A mounting plinth for an LED directional warning light. Intended for use on a flat surface, such as van roofs or side panels.

Flat faceplate is approx. 105 x 36 mm.

Whole unit is 110 x 40 x 80 mm.

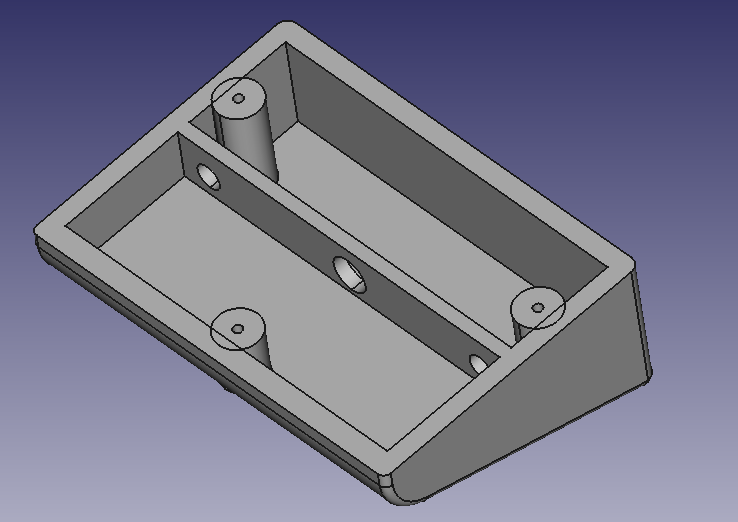

The face of the mount is left blank to drill holes as required for your warning light. Two cavities inside allow for cable connections and holes allow for cable routing if required. Rear is sloped to aid wind deflection.

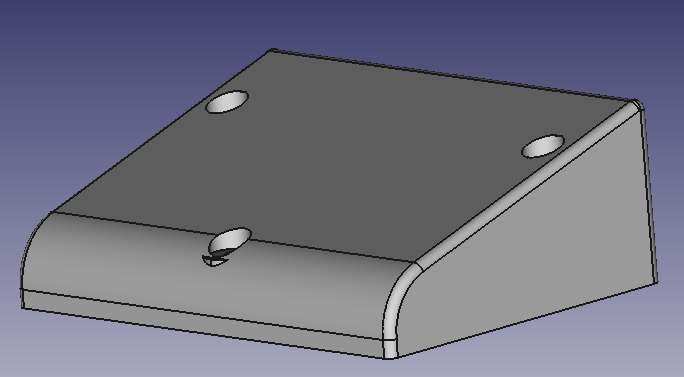

Three screw holes are provided, with 2.5mm diameter pilot holes and 9mm countersinks for pan-head screws. Alternatively, pilot holes could be drilled out to accept machine screws/bolts.

A home-made gasket will be required, and/or sealant to prevent water ingress. It is reccomended to seal around screwholes too.

Support can be avoided by printing with the sloping top flush against the faceplate.
