I had a problem and was looking for a solution to place and store items next to my couch. Unfortunately, I couldn't find a table with dimensions that fit next to my couch. Most of the time, I need space for a remote control or a drink.

Features:

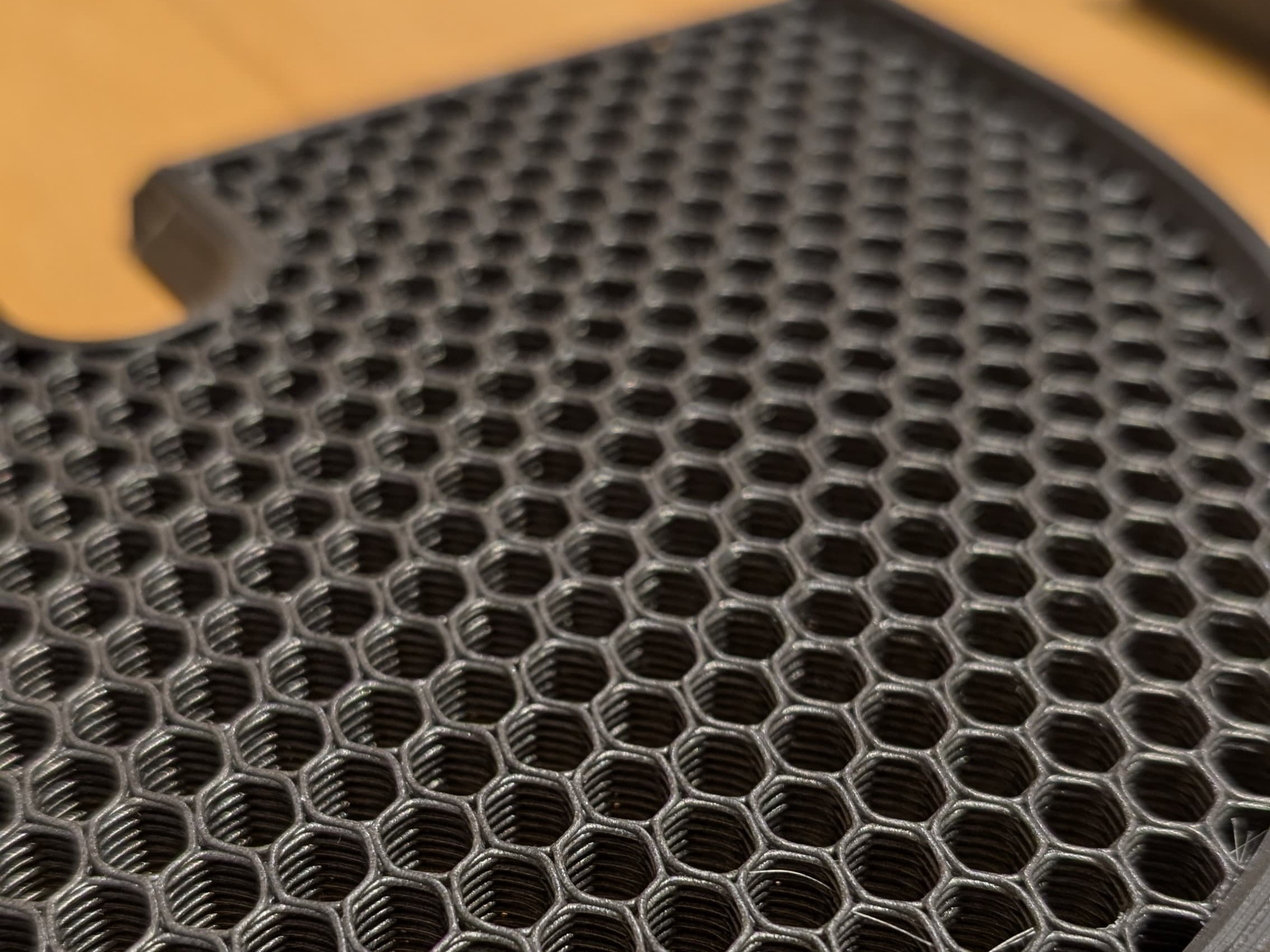

• Used Honeycomb infill as design element and also saving filament (looking forward to see other nice combinations)

• Wooden dowel as design element
• self aligning connection methods

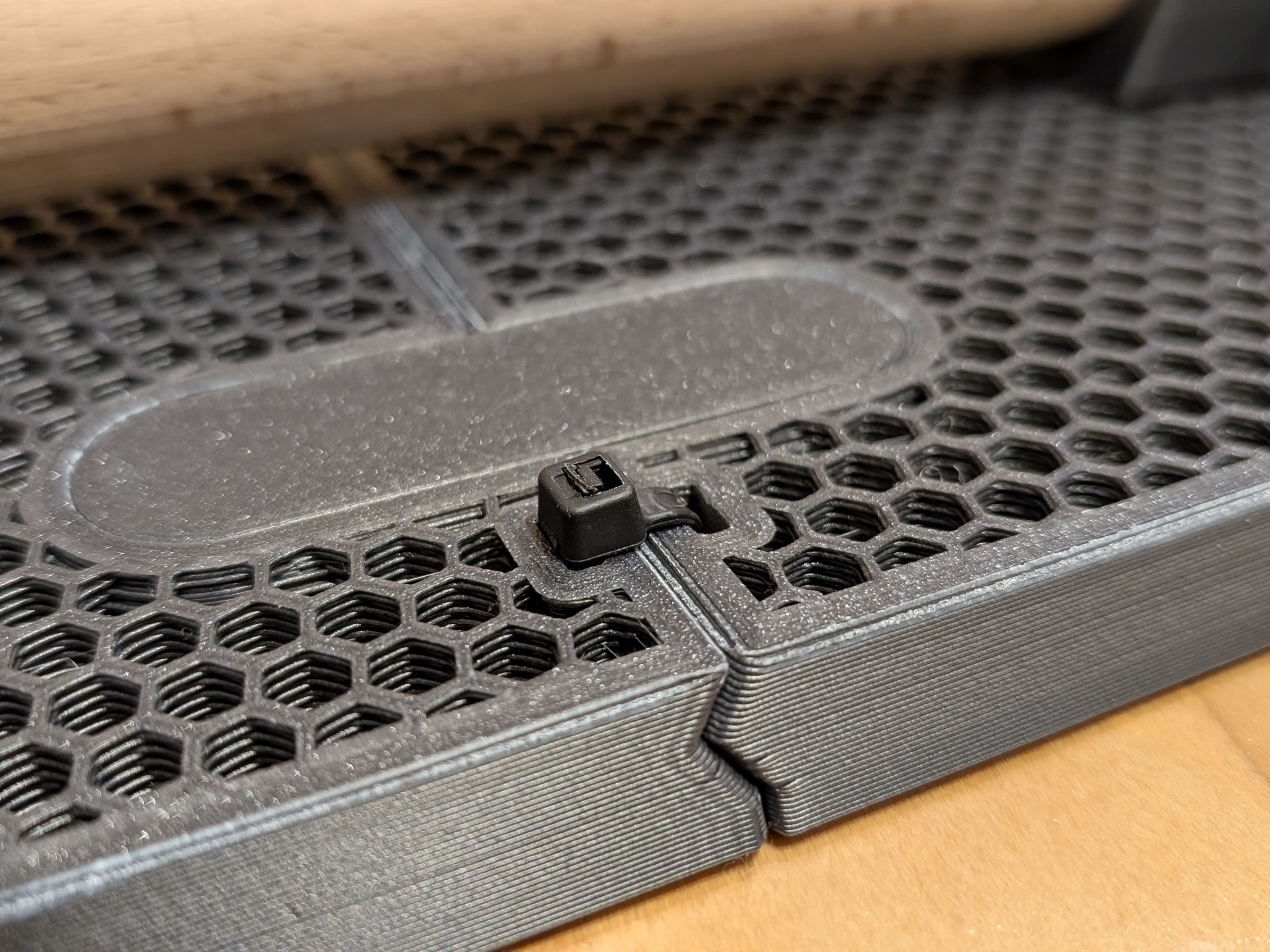

• holes for connecting zip ties to fix everything together

The table, with table legs measuring 500mm in length, has the following dimensions:

Table plate:
Width: 223mm
Length: 603mm

Total:

Width: 223mm
Length: 690mm
Height: 501mm

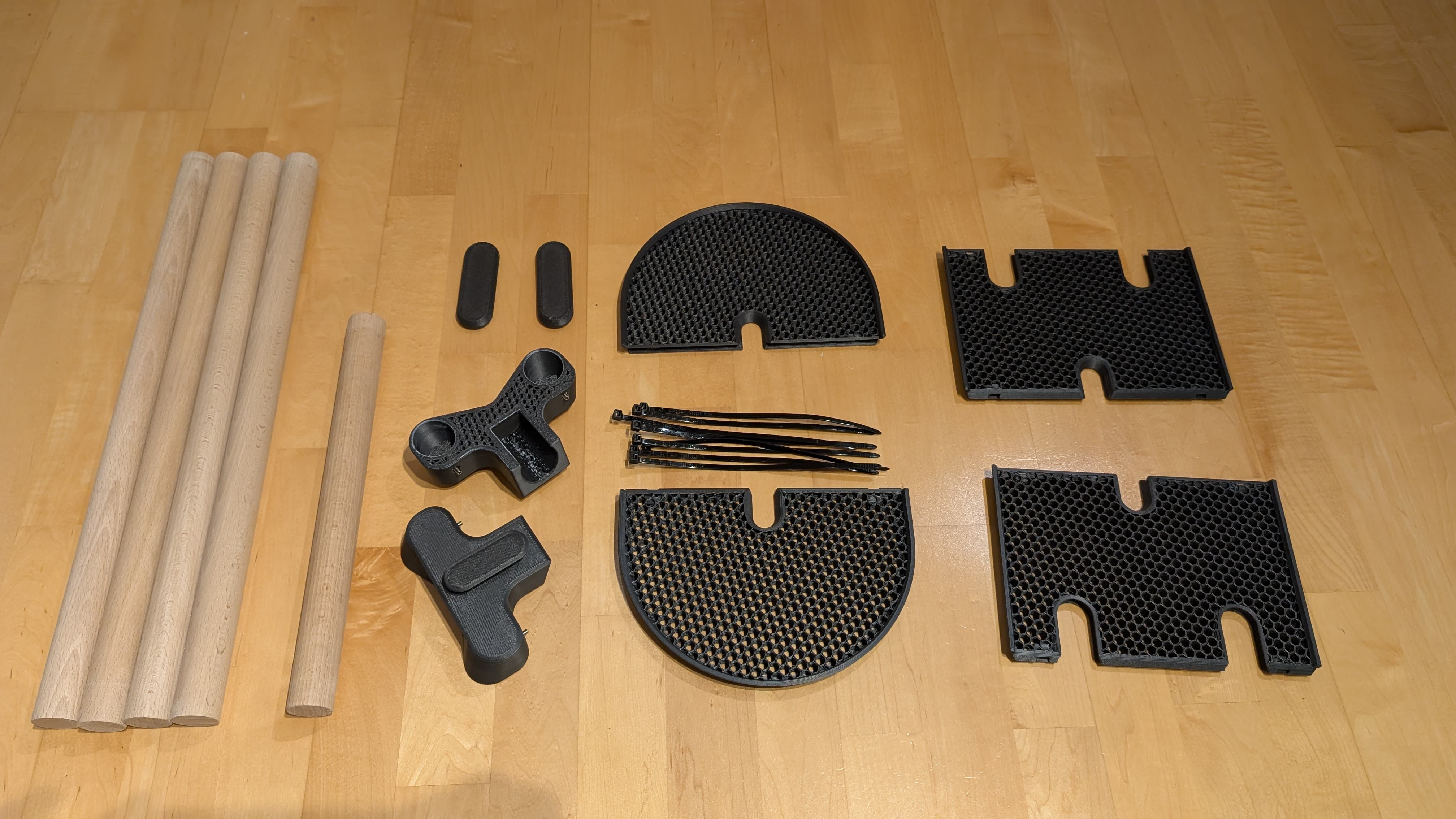

Required Materials:

• 1x wooden dowel, 319mm (connecting piece)
• 4x wooden dowels, 500mm (table legs)
  • [https://www.sonderpreis-baumarkt.de/renovieren-und-wohnen/buerobedarf/bastel-und-kuenstlerbedarf/rundstab-buche-1000-mm-oe-30-mm](https://www.sonderpreis-baumarkt.de/renovieren-und-wohnen/buerobedarf/bastel-und-kuenstlerbedarf/rundstab-buche-1000-mm-oe-30-mm)
  • was the cheapest store where i got it
• nice looking filament
  • i used CR3D ABS Carbon [https://www.cr3d.de/produkt/abs-carbon/](https://www.cr3d.de/produkt/abs-carbon/)
  • matt and very clean look
• 6x small zip ties for connecting the single parts

Optional for securing the table legs:

• 4x M4 threaded heatinserts
  • [https://www.ruthex.de/en/products/ruthex-gewindeeinsatz-m4s-50-stuck-rx-m4x4-0-short-messing-gewindebuchsen-fur-3d-druck?srsltid=AfmBOoomLk3QmVM5-Rv5EQXj9feBvjE9fPhGhHmRDbF_UqzT9IPbAQz4](https://www.ruthex.de/en/products/ruthex-gewindeeinsatz-m4s-50-stuck-rx-m4x4-0-short-messing-gewindebuchsen-fur-3d-druck?srsltid=AfmBOoomLk3QmVM5-Rv5EQXj9feBvjE9fPhGhHmRDbF_UqzT9IPbAQz4)
  • used this ones
• 4x M4 grub screws

Printing / Settings:

i used prusaslicer for slicing

General:

• Printed with an 0.6mm Nozzle for a nice 3d printing look
• 0.4mm Layerheight

Plate Parts:

• 4 Wall Lines
• 15% Honeycomb Infill
• 0 Bottom and 0 Top Layers

Connector Parts:

• 2 Wall Lines
• 15% Honeycomb Infill
• 3 Bottom and 3 Top Layers

Base parts:

• 4 Wall Lines
• 15% Honeycomb Infill
• 0 Bottom and 3 Top Layers
• Support on

Building instruction:

1.Push the two 500mm wooden dowel inside of the printed base part (secure it with the grub screw if necessary). Prepare also the second part in the same way.

 2. Slide one middle plate on the base part

3. Push the short 319mm wooden stick inside of the printed part

4. Slide in the two connector parts inside

5. Slide in the second middle plate so the chamfer slide together

6. Slide in the second base part into the dovetail guide and the wooden stick

Congratiulations the table can already stand by its own :)

7. Slide in both rounded side plates

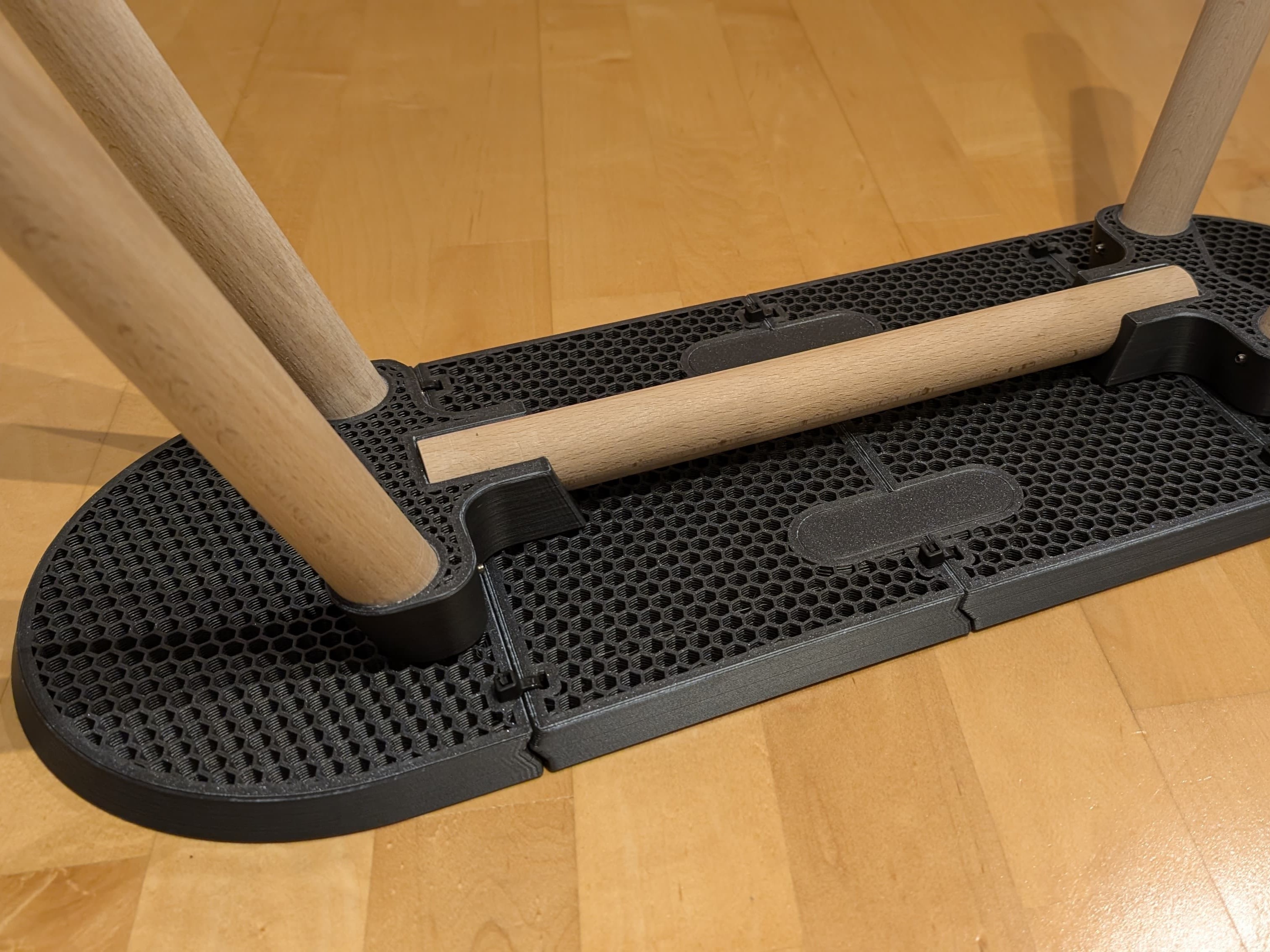

8. Flip the desk and lay it on the ground. Afterwards you can route the zip ties in the corresponding holes.

9. Tight them and cut the ends.

10. You almost reached the end. Take the table and flip it by 180 degress, place it on its legs and search a nice place for it :)

11. Make a photo of your couch table and post a make. I would be happy to see your work :)

Feel free to contact me or write an comment here if you have questions, wishes or something else.

Maybe i will also upload a small round version of the table soon!

Happy making.
