Modelo 3D Raspberry Pi3A+ mount for Prusa MK3/MK3S with stackable Headers por schellek no Printables

Descrição

Summary

Since the pins used in the original design are only available from big distributors (DigiKey, Mouser, ...) Shipping costs 20€.

Stackable Pin Headers can be found much more often and are therefore more affordable.

Additional Parts needed for this Build

1 x Raspberry Pi 3A+

2 x Stackable Pin Headers ([https://www.sparkfun.com/products/9279](https://www.sparkfun.com/products/9279))

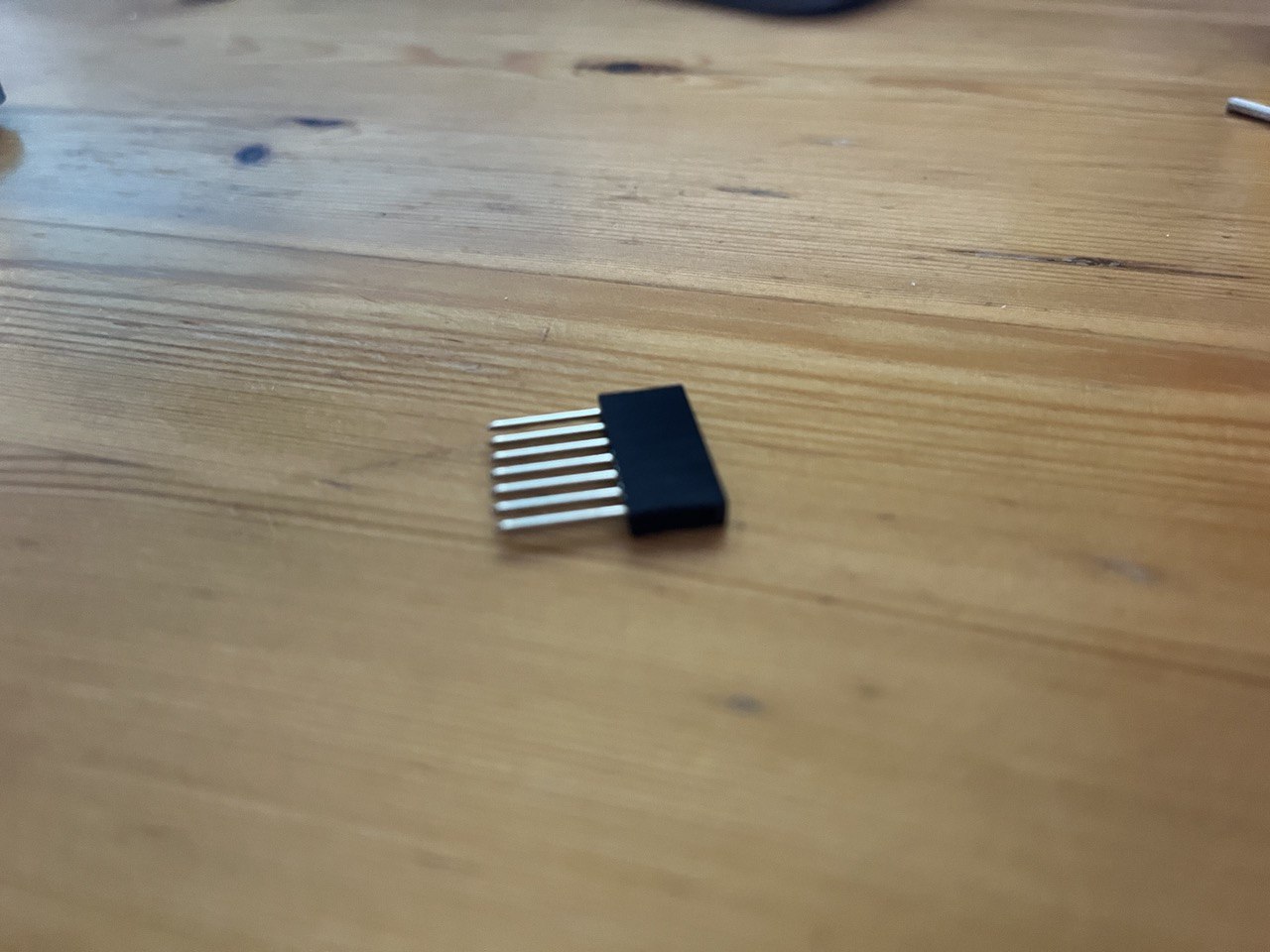

The Headers in the Link are 8 Pin Headers, however 7 Pin Headers should be used. I cut one pin away with a wire cutter and processed the surface with a file.

Build Instructions

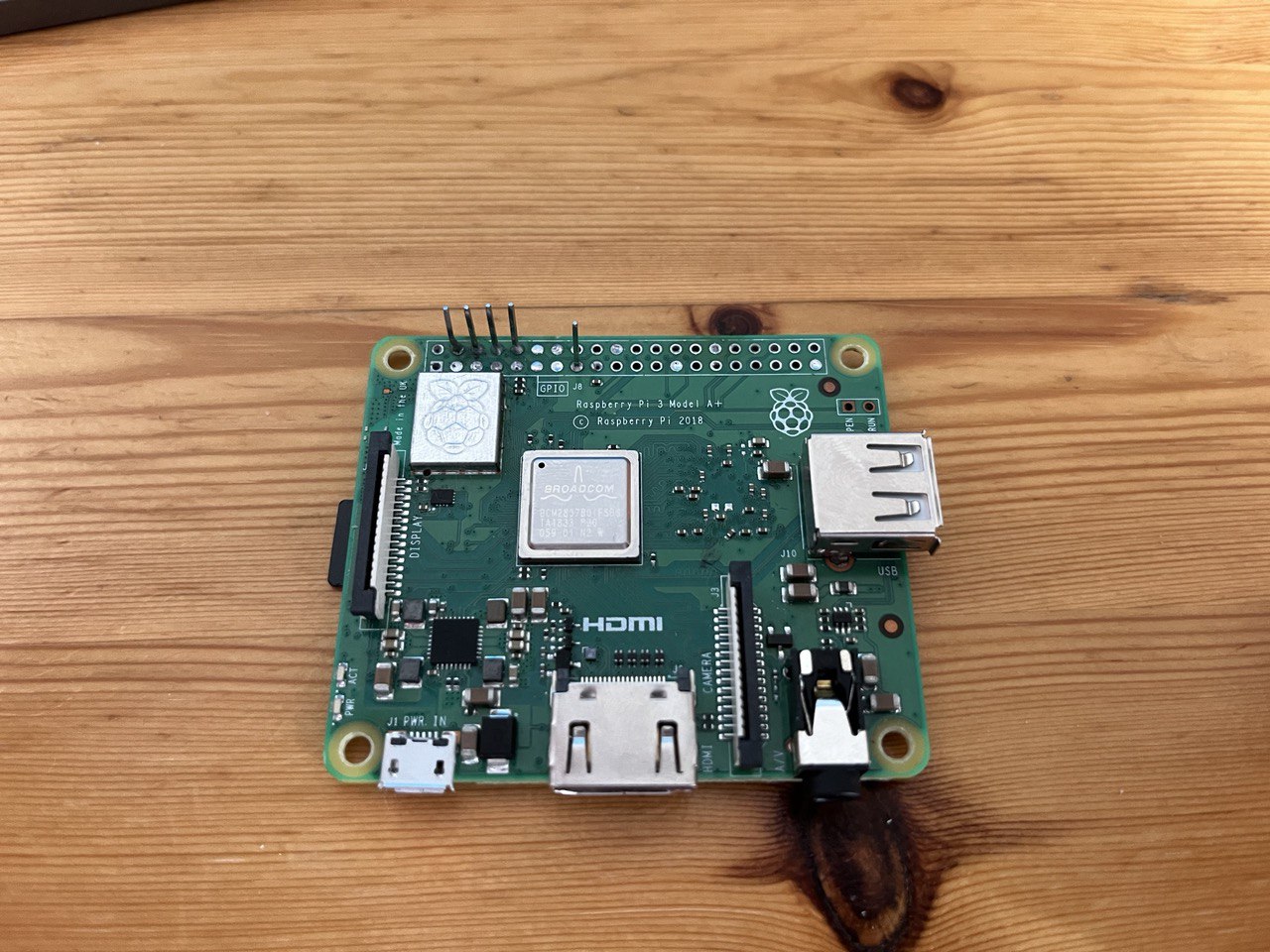

  1. Remove all the unnecesarry Raspberry Pi Pins as described in the manual. (In this case you don't need the longer Pins) [https://help.prusa3d.com/en/article/prusaprint-rpi-zero-and-octoprint_2180](https://help.prusa3d.com/en/article/prusaprint-rpi-zero-and-octoprint_2180)
  2. Also remove the plastic spacer
Printables

Raspberry Pi3A+ mount for Prusa MK3/MK3S with stackable Headers

Publicado em 6 de jan de 2022

9
Curtidas
31
Downloads
1
Impressões
Categoria Prusa Parts & Upgrades
Tags
mk3s octoprint octopi raspberrypi einsy raspberrypi3a
Licença GNU General Public License v2.0
Arquivos (3)
pi3a-cover.3mf 208.7 KB
pi3a-bracket.3mf 742.4 KB
pi3a-base.3mf 783.1 KB
