Trying to use less filament on my gridfinity build.

Loved the Gridfinity Ultra Light Bins - Plain Edition by @HuMa, but wasnt happy that the lid version would take some place in the bin ( to support the lid … ) and wanted the ability do put/remove them.

Modificitation :

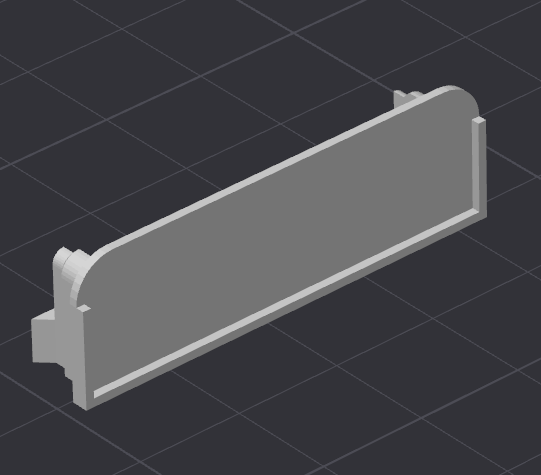

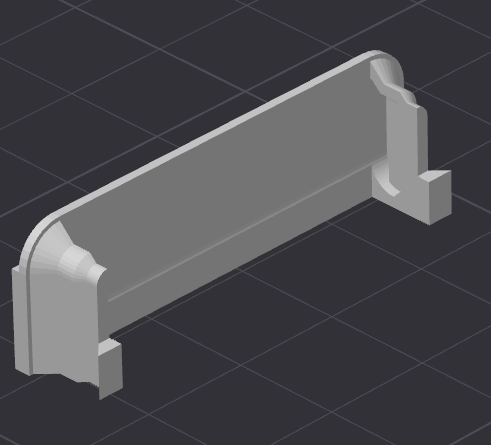

• Cut the model to 12.8mm to accomodate 12mm tape ( and still have the little cutout to place it right ).
• Cut the “bar” , as i find that it take some place in the bin that could be used to store more.

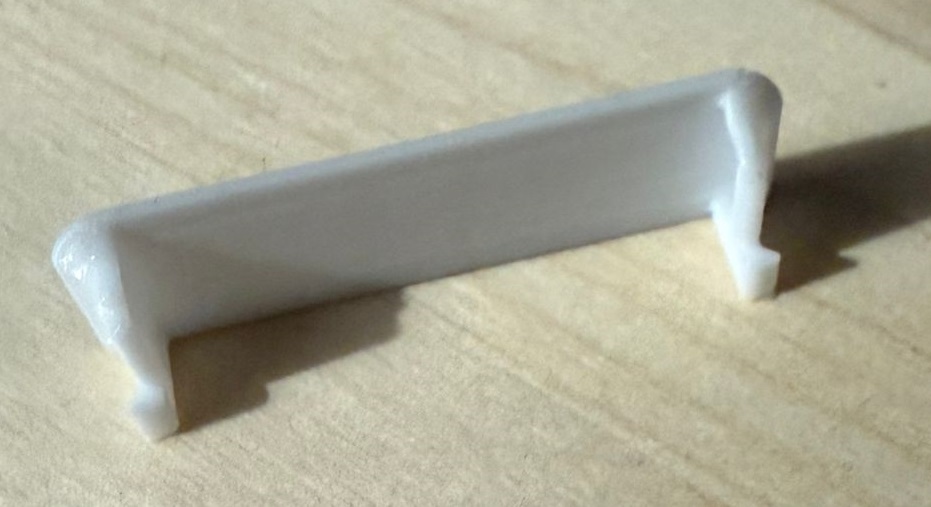

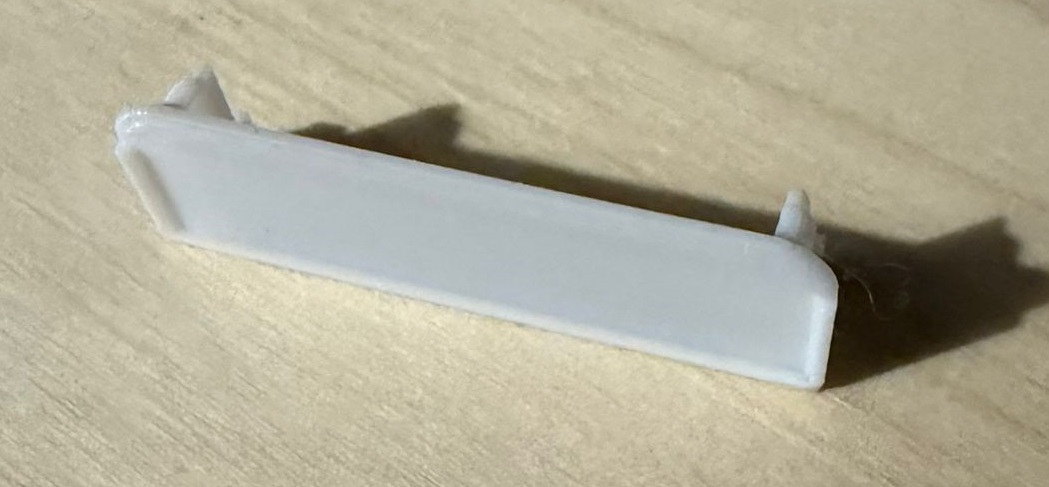

Using PLA+, they are not so easy to break with normal use. Depending on accurracy, they bend a little.

It work as that for my use. I recommend to print only one as a test print, to see if it do the job for you.

PLA+ used by lid :

1.09g

Print time ( with my X1C ) on normal mode 10% Gyroid :

5m5s
