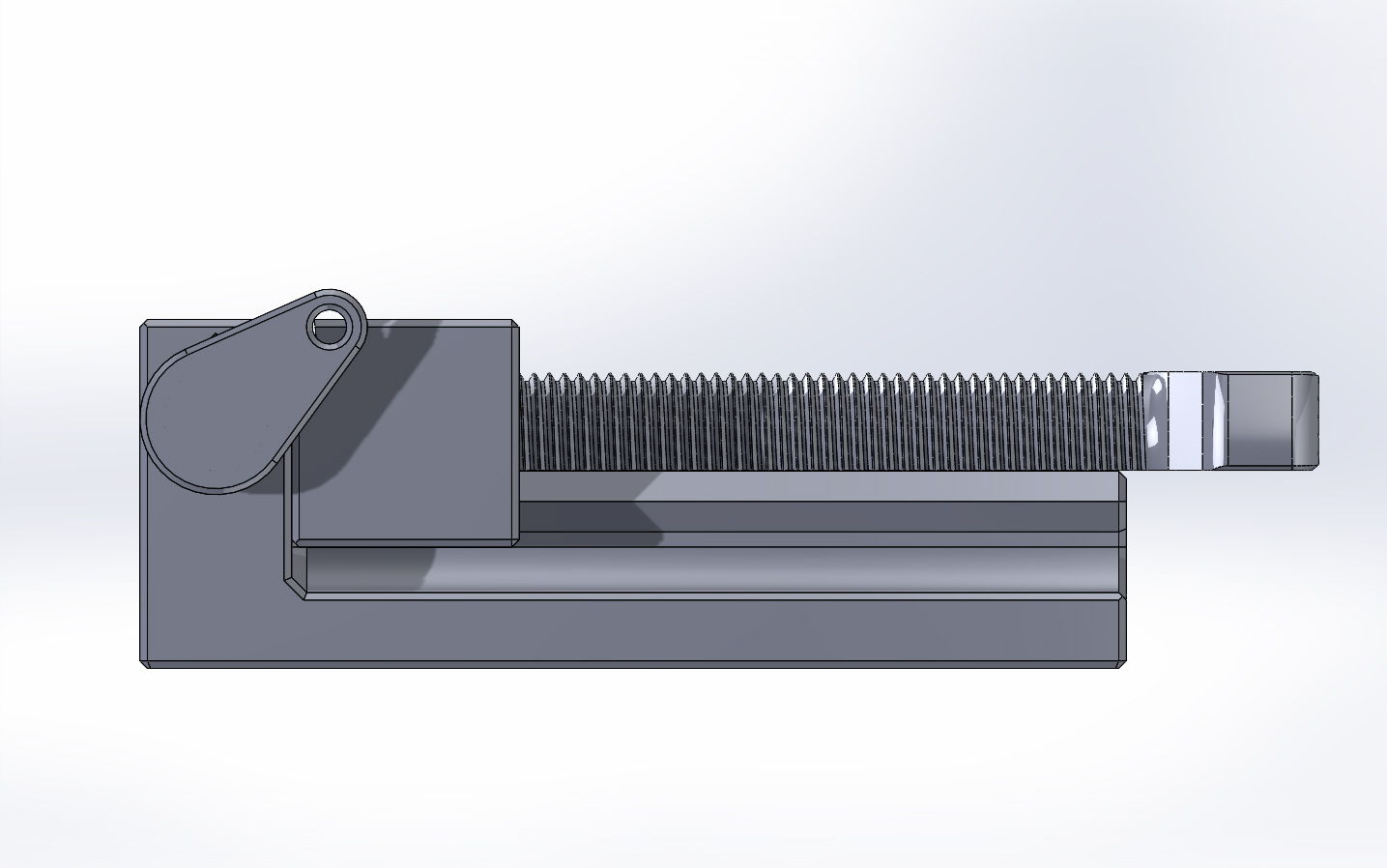

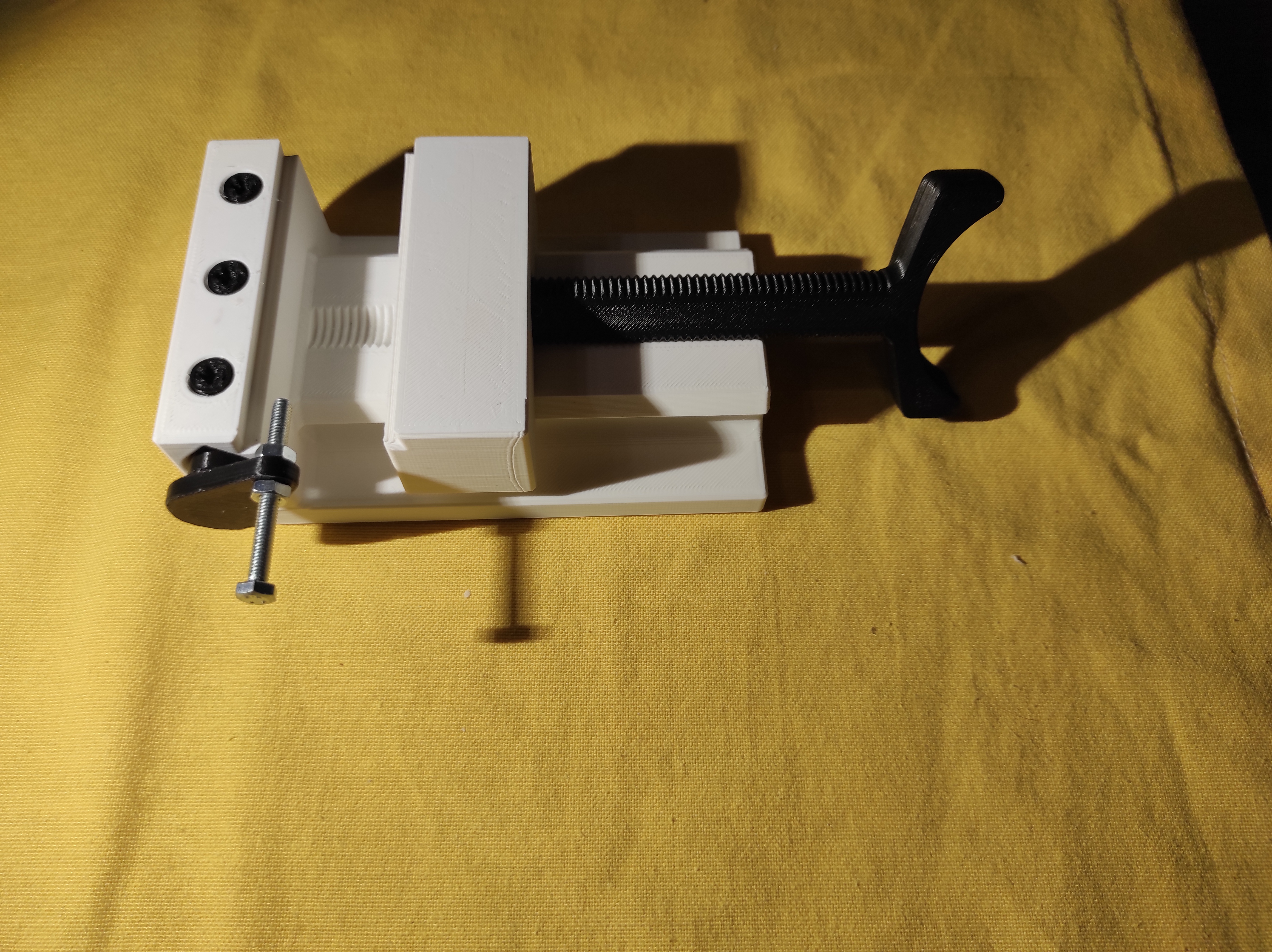

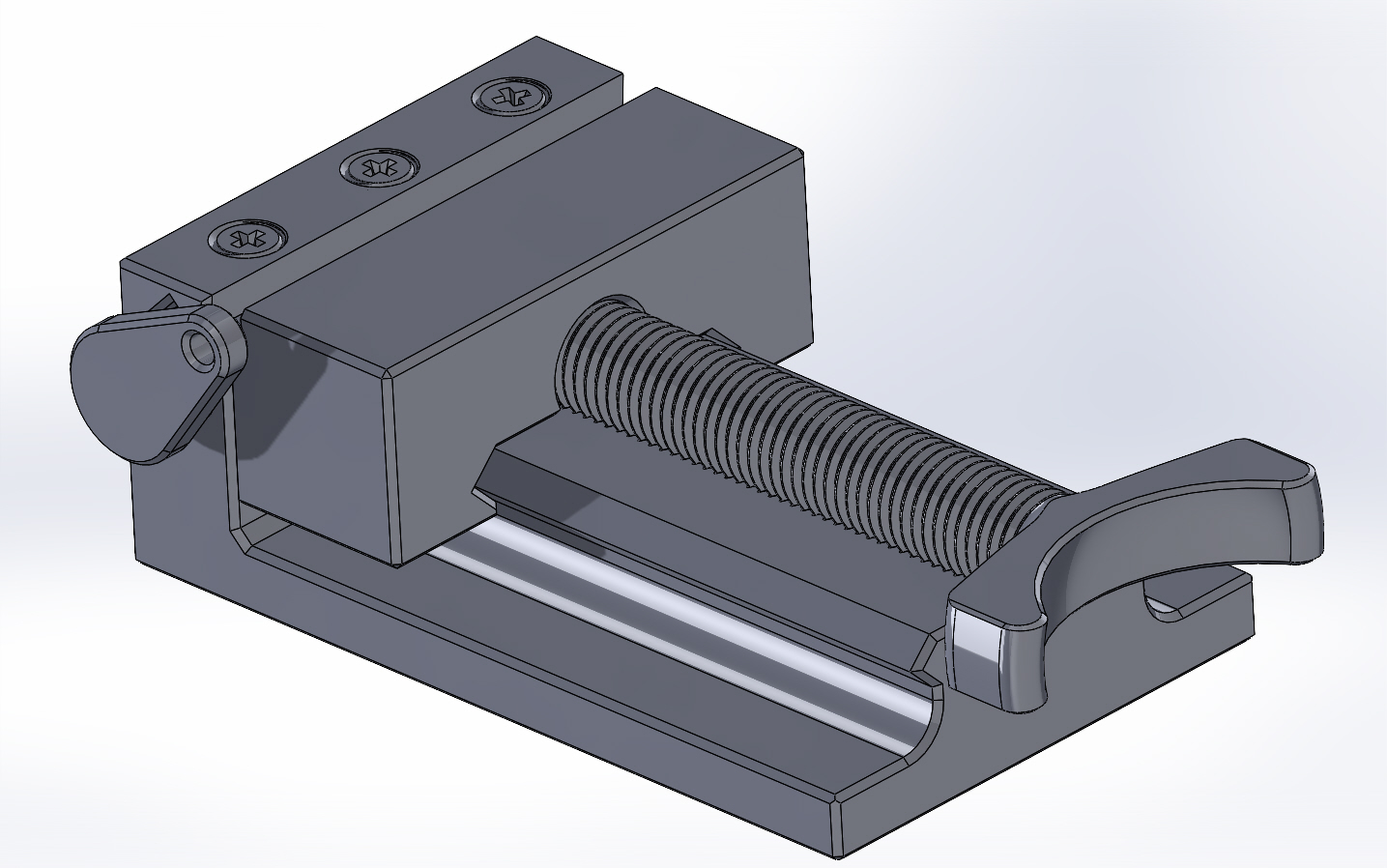

A small machine vise with interrupted thread for quick move of the jaw.

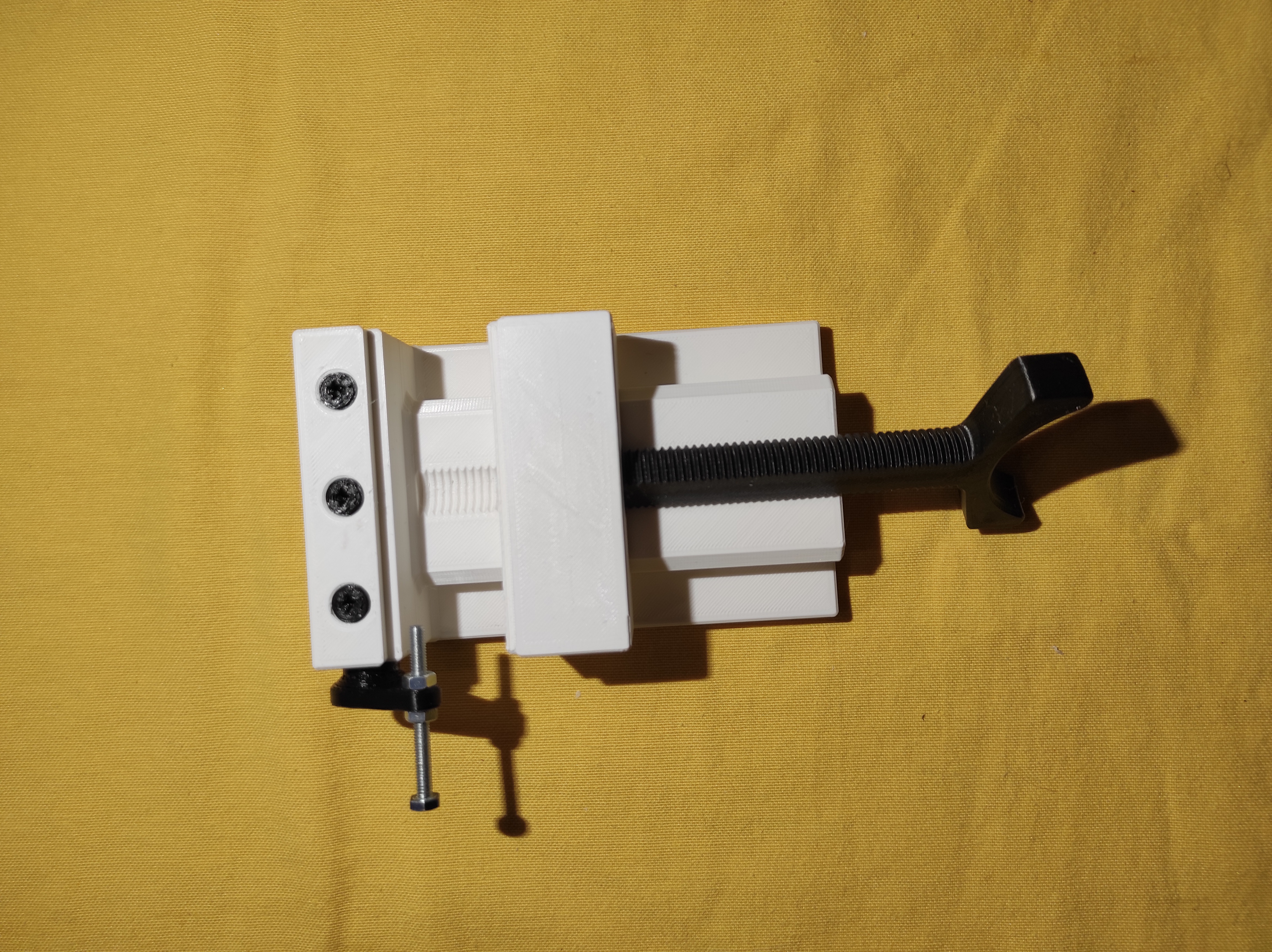

It has stop gauge using an M4 threaded rod through the 4.5mm hole, adjusted either by the 2 M4 nuts holding the threaded rod or by loosening the M10 printed grub screws.

Recommended maximum opening is at 85 mm.

Recommended material is PLA+

Recommended layer height is 0.2mm with 4 solid bottom and top layers.

Recommended infill is cubic at  20% or more

The part vise_grub_screw.stl needs to be printed 3 times

An additional threaded rod or bolt M4x40mm and 2pcs M4 nuts required

Support is needed on the part vise_jaw.stl

All parts are correctly oriented for printing
