Descrição
Choose 9 attachments to print and assemble this multitool.
Print Lower, Upper, 2 Nuts, and 9 spacers.
The nut is hard to screw on with hand, use a tool if possible.
- Print threaded parts in high-quality settings. (i used 0.16mm layer height)
- Print with part solid. About 5 walls or do 100% infill
- The spacer is small, ARACHNE wall generator worked for this part
- Use stiffer materials such as PLA, PLA-CF.
- ABS or PETG are more flexible, which is bad for printed lock picks.

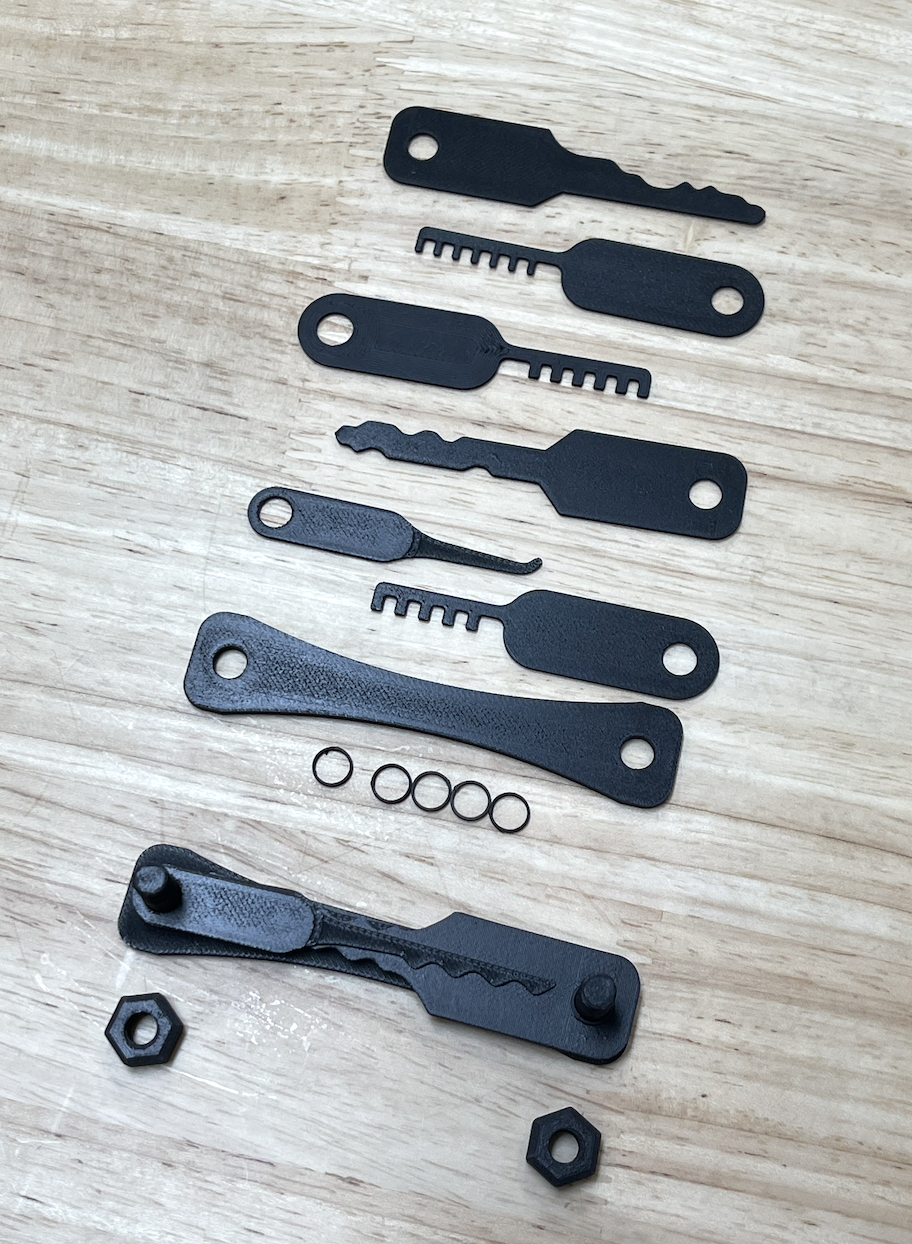

Assembly Instruction:
- Place a 1mm thick tool on one end of the first rod
- Place a spacer (1mm thick too) on the end of the second rod
- Repeat until 9 tools and 9 spacers are used up
- Place Upper part on and screw nut if needed (The lid can be press fitted without nut)
Slim 6 in 1 lock pick:
Check out OTF Pick, Lock Pick Tensioners, Rake, and Notch Decoder too:
2,319
Curtidas
5,647
Downloads
9
Impressões
Categoria
Tools
Tags
puzzle
multi
fast
tools
compact
edc
simple
lockpick
multitool
picks
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (21)
Upper_2mm.stl
51.1 KB
Lower_Low_Tolerance.stl
748.6 KB
Lower_2mm_Tight_Tolerance.stl
934.3 KB
Nut_Low_Tolerance (print 2).stl
1.1 MB
Nut_Tight_Tolerance (print 2).stl
1.1 MB
Spacer_1mm (print 9).stl
39.7 KB
ShortHook_1mm.stl
46 KB
ShortHook_0.7mm.stl
68.1 KB
MediumHook_1.0mm.stl
39.1 KB
Shim_0.2mm.stl
62.8 KB
Rake_0.7mm.stl
80.3 KB
Rake2_0.7mm.stl
76.9 KB
Comb1_1.0mm.stl
43.6 KB
Comb2_1.0mm.stl
44 KB
Comb3_1.0mm.stl
44.4 KB
Comb4_1.0mm.stl
45.2 KB
WaferJiggler1_1.0mm.stl
107.7 KB
WaferJiggler2_1.0mm.stl
68.8 KB
WaferJiggler3_1.0mm.stl
24.7 KB
WaferJiggler4_1.0mm.stl
30.6 KB
WaferJiggler5_1.0mm.stl
29.8 KB
