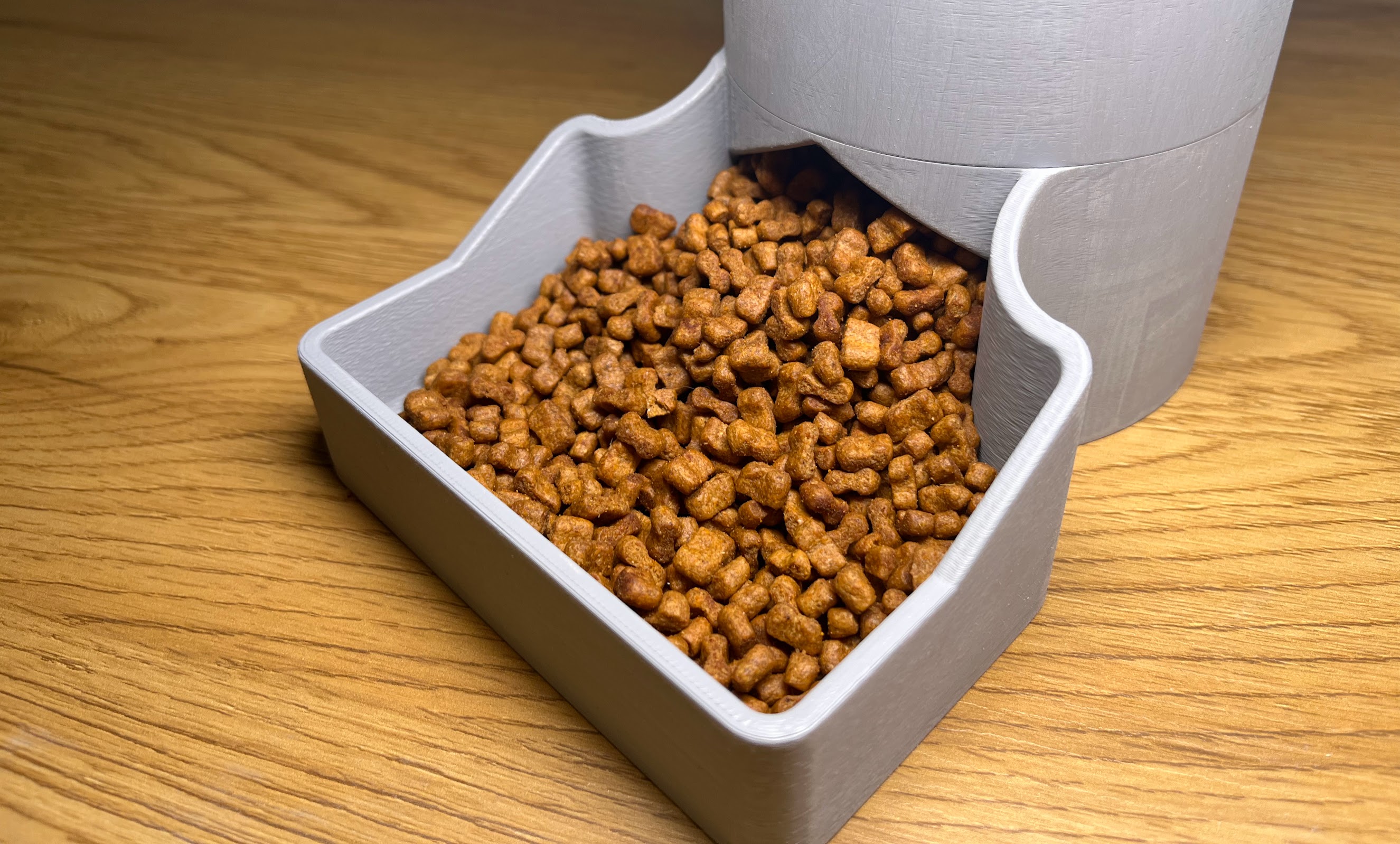

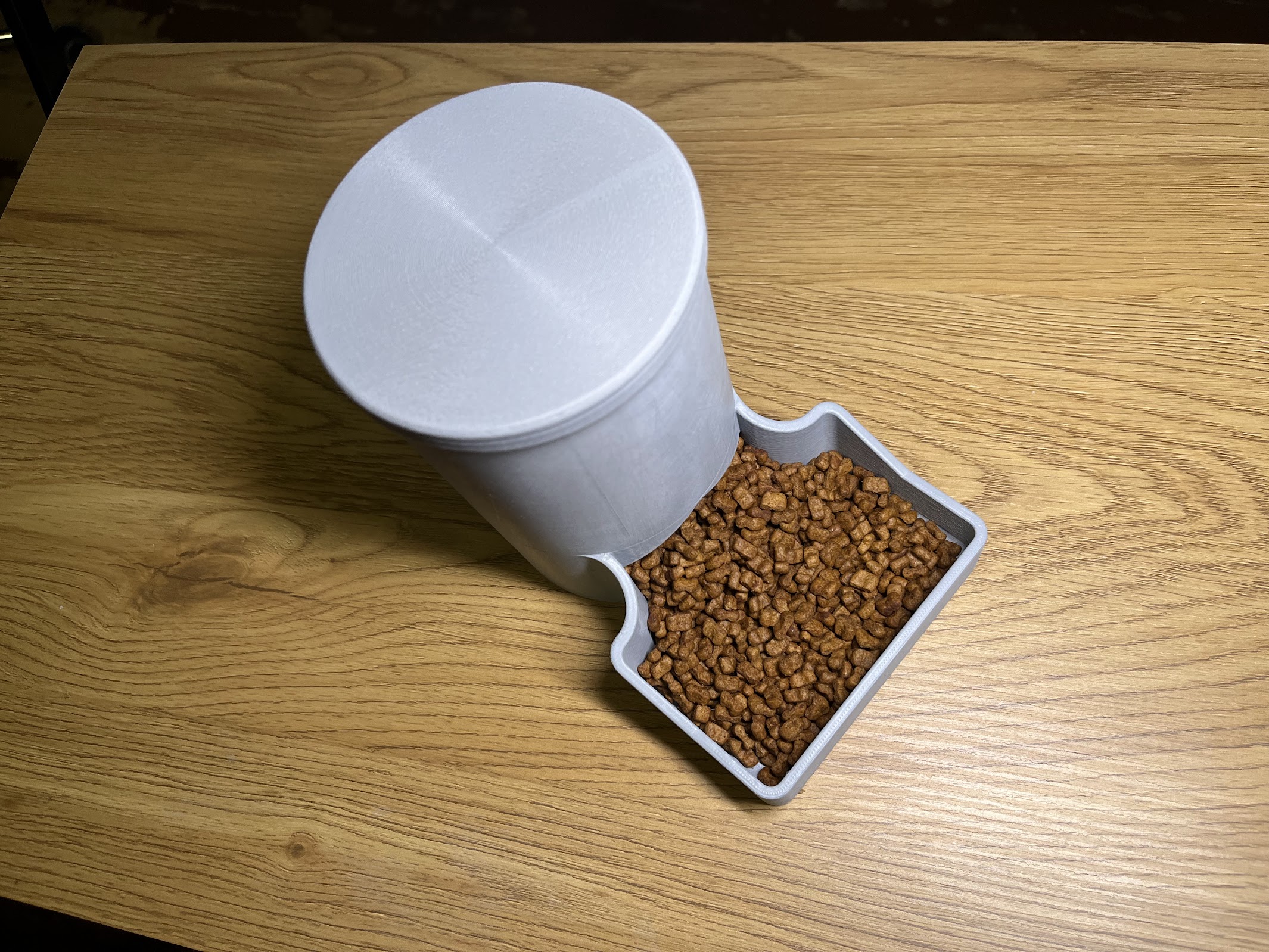

This pet food feeder is perfect for cats, small dogs, or other small animals. Designed with practicality in mind, it offers three tube length options and thoughtful features to ensure smooth food dispensing and ease of use.

Key Features:

• Customizable Tube Lengths: Three options (10cm, 15cm, 20cm) to suit your pet’s needs and feeding habits.

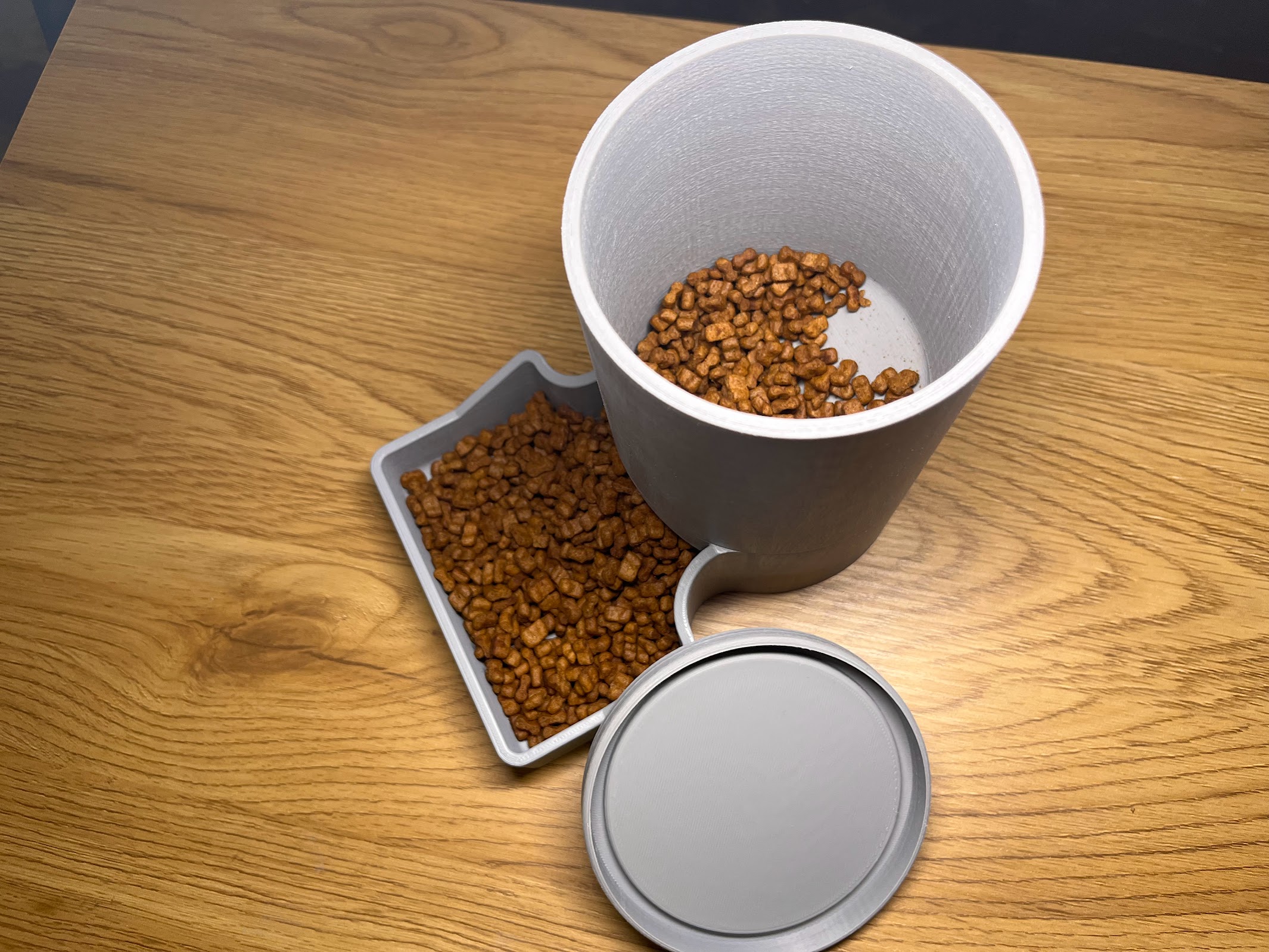

• Two Lid Variants:
  • Closed Lid: Keeps food sealed and fresh.
  • Honeycomb Lid: Features a patterned window for quick food level monitoring.
• Threaded Assembly: The tube securely screws into the base for a snug fit.
• Press-Fit Lid: Easy to remove for refilling or cleaning.

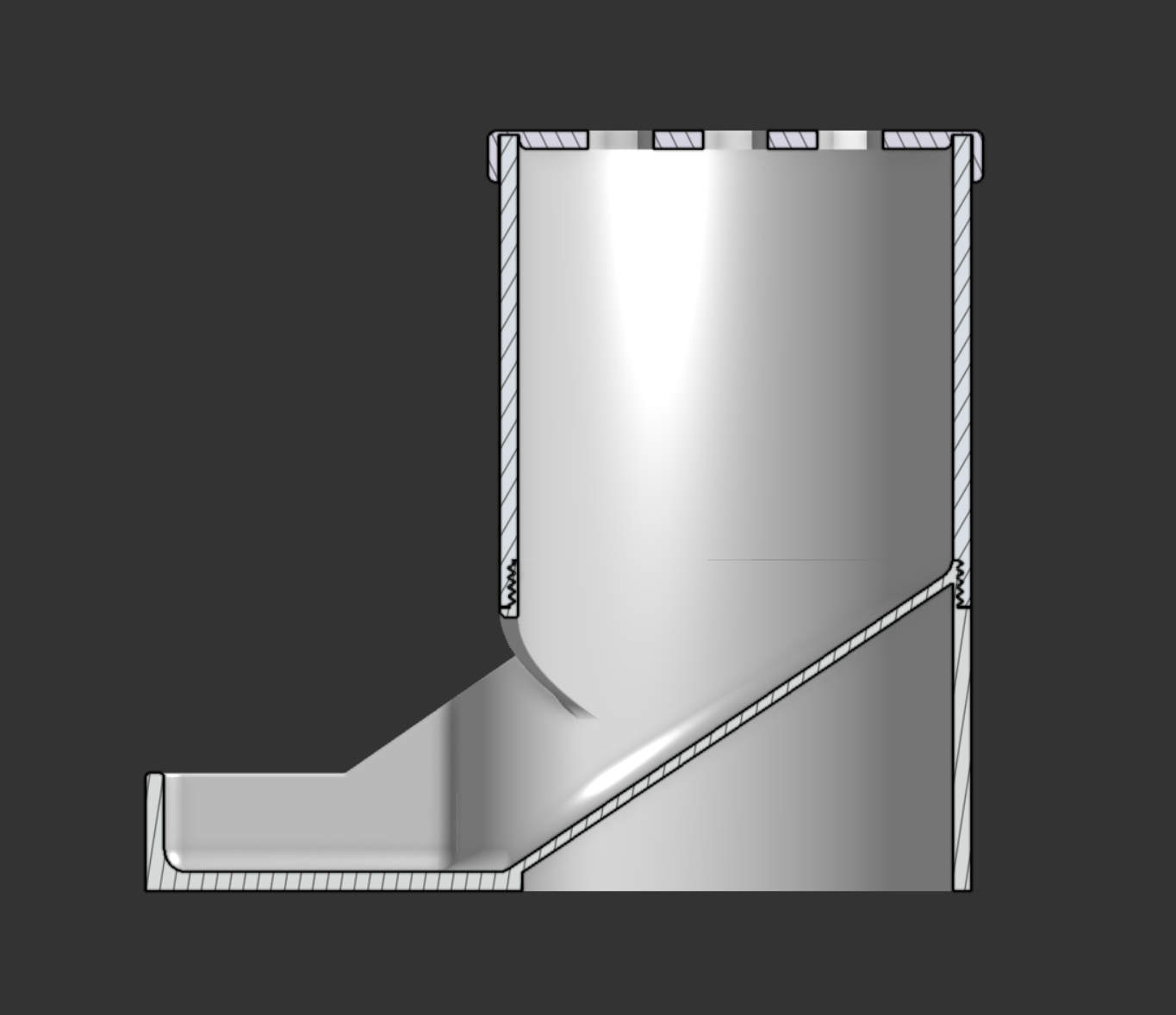

• Ergonomic Design: The angled slope ensures food is transported smoothly into the bowl.
• Pre-Oriented Models: All parts are pre-oriented for hassle-free printing.
• No Supports Required: The design does not require supports.
• 📣 Customization: Have unique requirements? Share your ideas in the comments, and I’ll create additional model files!

Print Settings:

• Printer: Ender V3 KE
• Layer Height: 0.16mm
• Supports: None required
• Seam: Scarf seam (optional)
• Infill: 15% Gyroid
• Top/Bottom Layers: 4
• Walls: 2
• Material: Hyper PLA Gray (Prototyping)
• Material Usage: ~210g

Printing Tips:

• ❗Use food-safe materials for your pets' safety.
• ❗Make sure that your pets are capable of self-regulating their food intake. This feeder can provide unregulated food amounts, so monitor your pet’s eating habits and decide accordingly, or contact your veterinarian if you have concerns about their feeding needs.
• Ensure threads are clean and free of debris before assembly.

Print Time:

• Base: ~3.5 hours, 100g filament
• Tube (10cm): ~2.5 hours, 85g filament
• Closed Lid: ~30 minutes, 25g filament
• Honeycomb Lid: ~1 hour, 15g filament

Enhance your pet’s feeding experience with this customizable and efficient food feeder! Perfect for modern pet owners looking for practicality and style.
