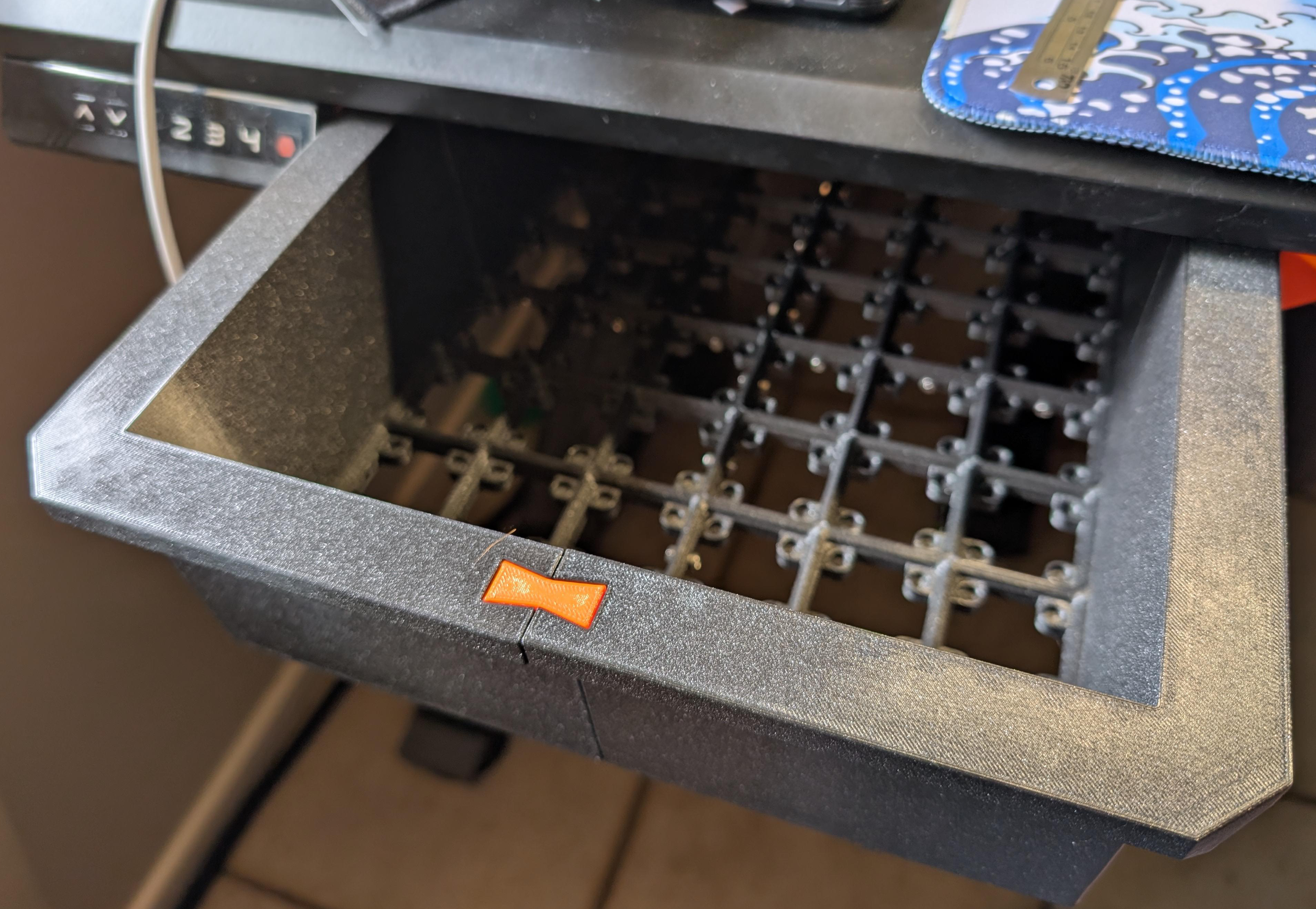

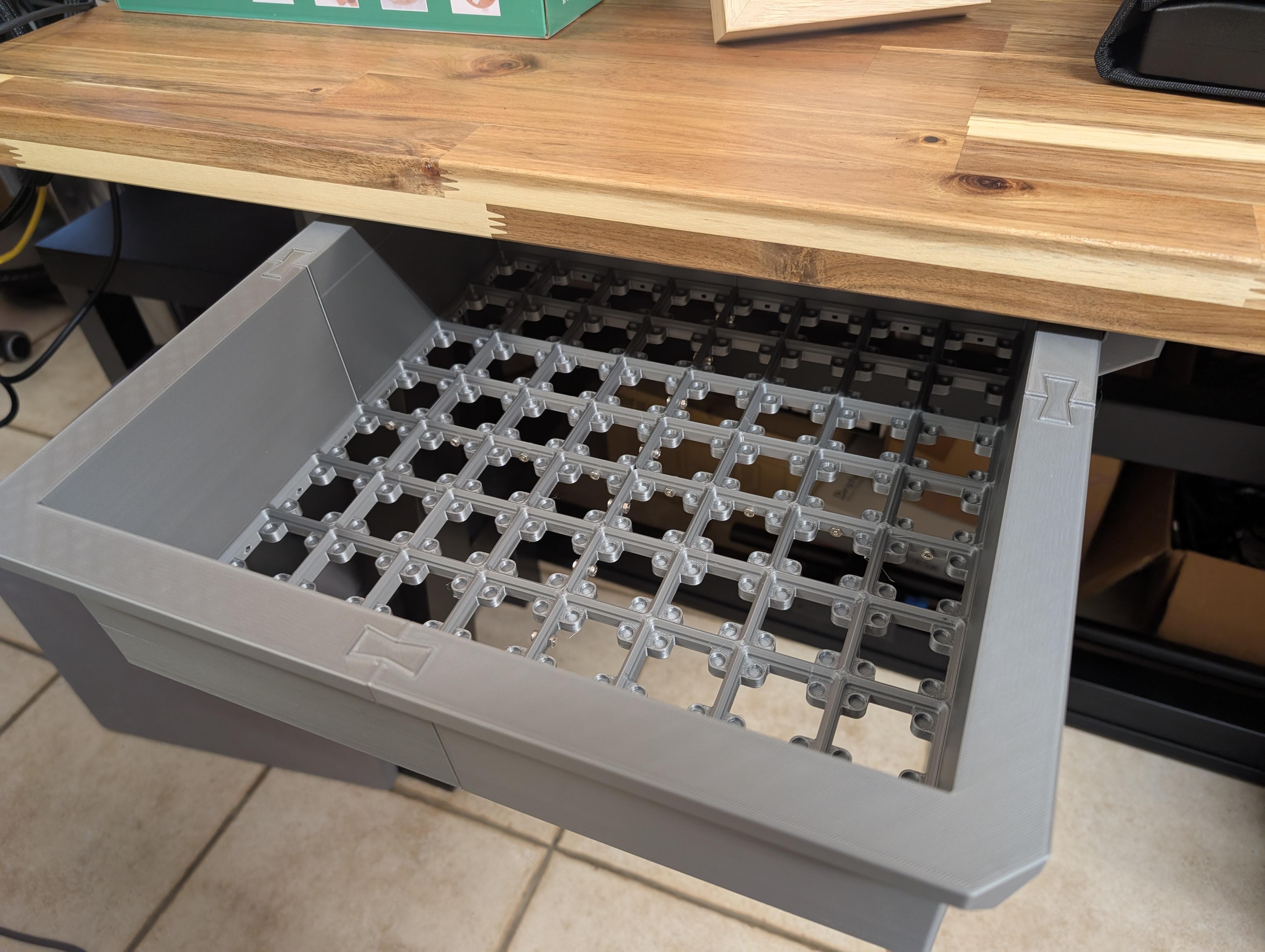

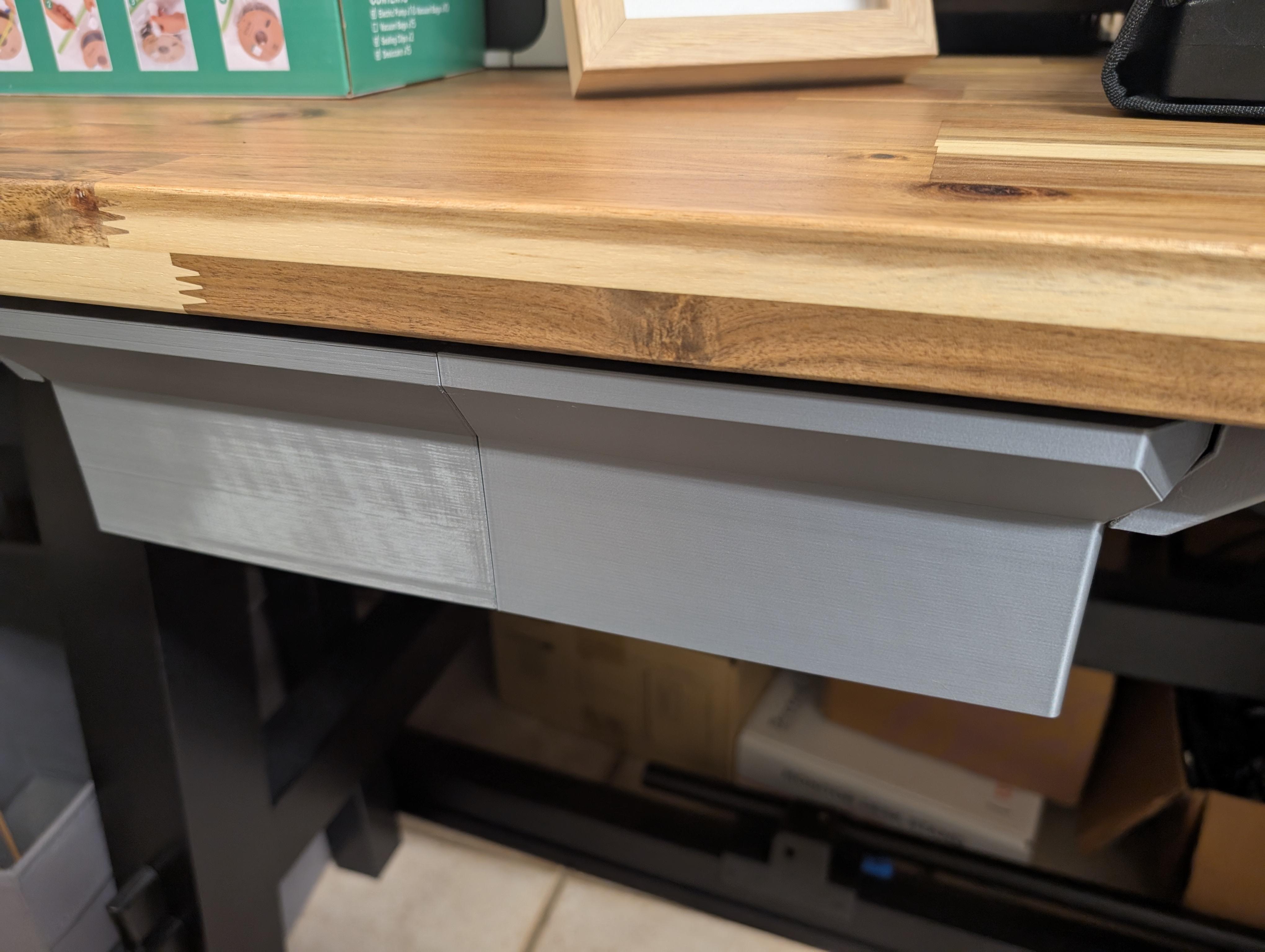

I needed under desk drawers, and wanted drawers that were significantly deeper than many available on printables, so I created these.

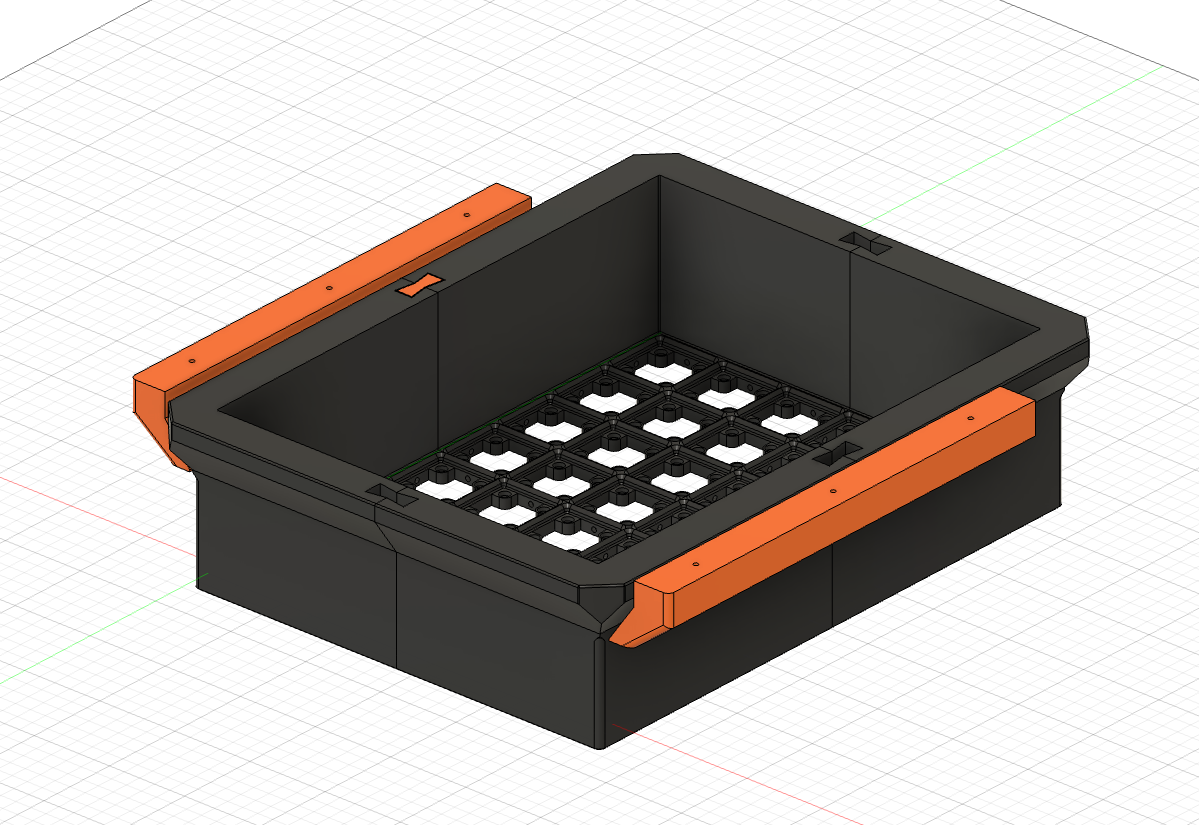

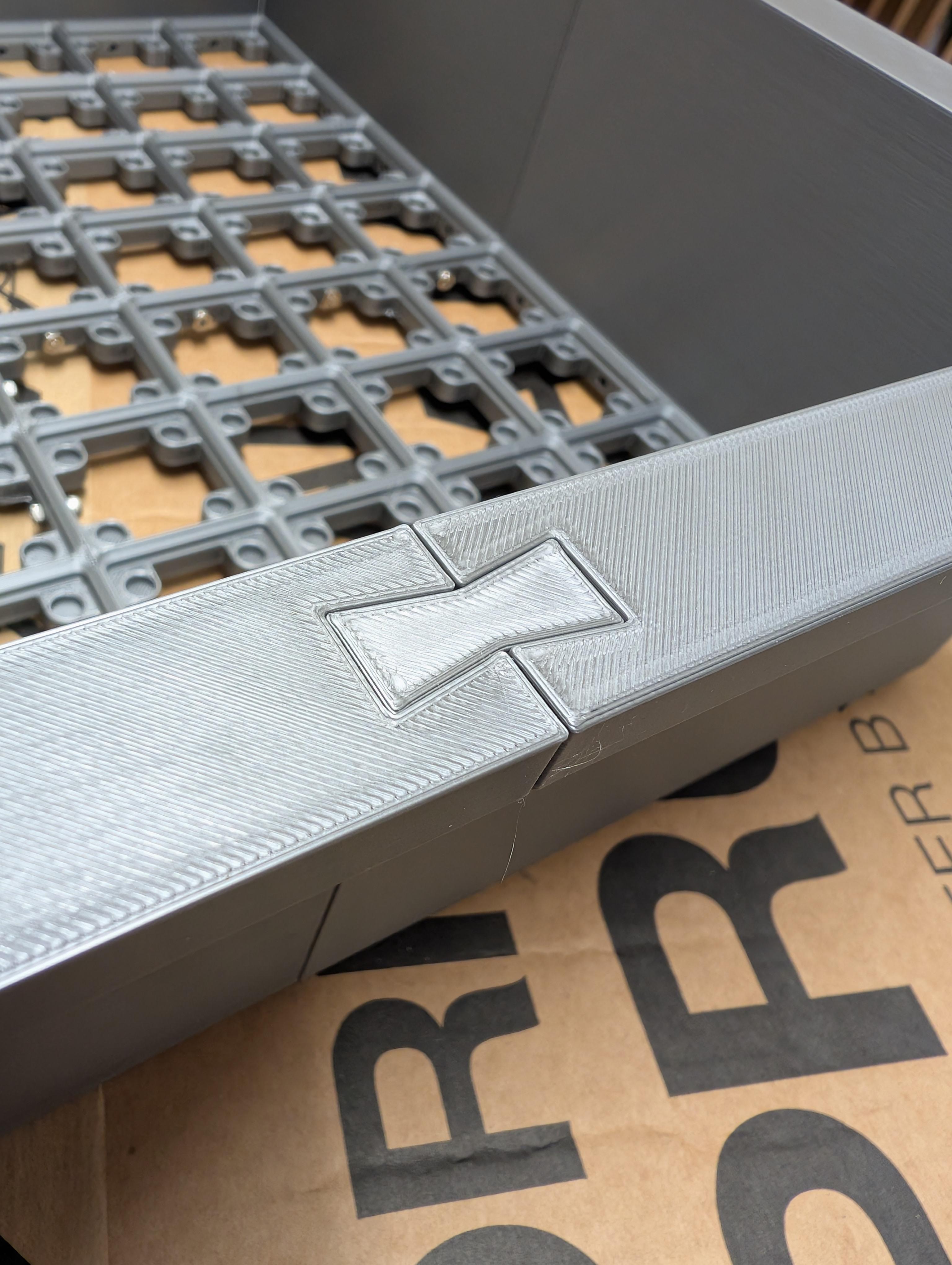

These Gridfinity drawers print in 4 pieces, have wedges to lock the tops together, use m3 screws to hold the bottoms together, and have rails that screw into the underside of your desk.

There are two drawer pieces in different sizes:

• 4x4 (single model), which prints symmetrically on both axis, so you can create an 8x8 Gridfinity drawer by printing 4 identical parts

• 3x4 (two models) , which prints symmetrically on the diagonal axis, so you can create a 6x8 Gridfinity drawer by printing two copies of each model

There are other needed elements:

• Each drawer will need 4x hourglass pegs if you aren't using a handle

• Each drawer will need 3x hourglass pegs and 1x handle (if you want a handle.)

• Each drawer needs 2x rails. They have curved edges at the front

Drawers, Rails and Pegs designed to be printed without supports, and fit on a Prusa Mk4s print bed.

The handle does need supports on the split clip. Prusa tree supports on that single underside face works a treat…

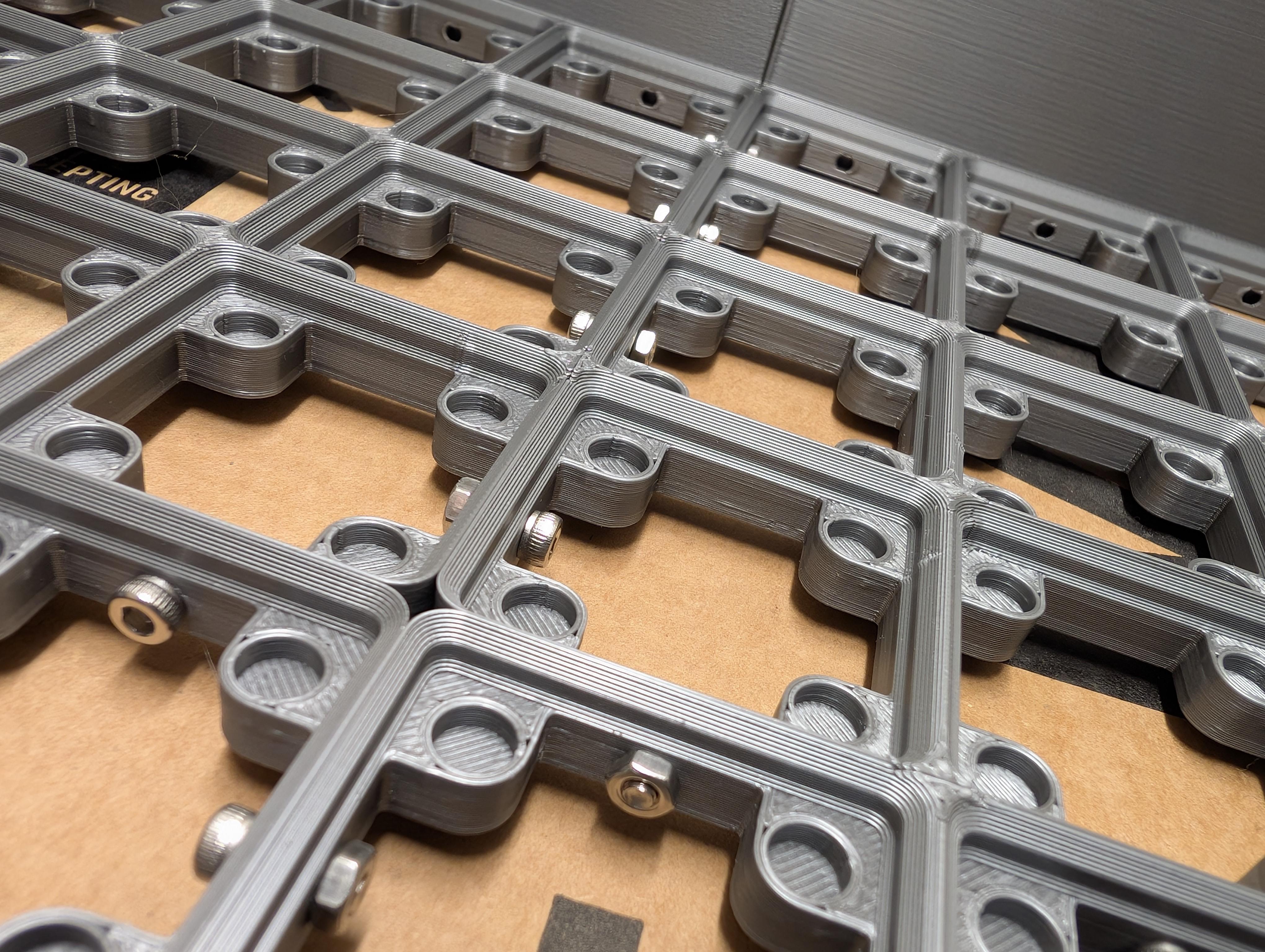

m3 screws&nuts are needed for screwing the bases together.

Mine were printed with the 0.20mm structured profile in Prusament PETG (Galaxy Black & Orange). The grey ones were printed in Overture space grey PETG.

If there is interest, I will share the Fusion360 file for all this…

🎩 Hat tip to @Neizo_195722 for [https://www.printables.com/model/405181-under-table-drawer-no-support,](https://www.printables.com/model/405181-under-table-drawer-no-support,)   I was inspired by the way @Neizo designed their rail shape!

Also - massive thank you to Lev Mishin's Gridfinity plugin for F360 [GitHub Repo]([https://github.com/Le0Michine/FusionGridfinityGenerator](https://github.com/Le0Michine/FusionGridfinityGenerator)) and [Fusion 360 installer]([https://marketplace.autodesk.com/apps/bbc0c98d-52d6-46e8-a4b0-170717d04516?priceId=8650d575-1d33-45f6-bfb5-ac0d1ada623b](https://marketplace.autodesk.com/apps/bbc0c98d-52d6-46e8-a4b0-170717d04516?priceId=8650d575-1d33-45f6-bfb5-ac0d1ada623b))
