Modelo 3D Square Table Leg Compresion Cable Bracket por SailorJerry no Printables

Descrição

There are plenty of table organizers to attach to the edge of a desk or even underneath. Neither of these types take care of cables you're trying to run down a desk leg. My desk has square metal tubing for legs. I wanted something that was easy to print, did not require extra hardware, and would be easily scalable for any square table leg.

There are a few clip-on cable organizers, but these don't have the tension that this model creates.  Additionally, they are designed for a few small cables at most.  This model can accomodate many cables of many sizes, from USB-C to 120V power cables..

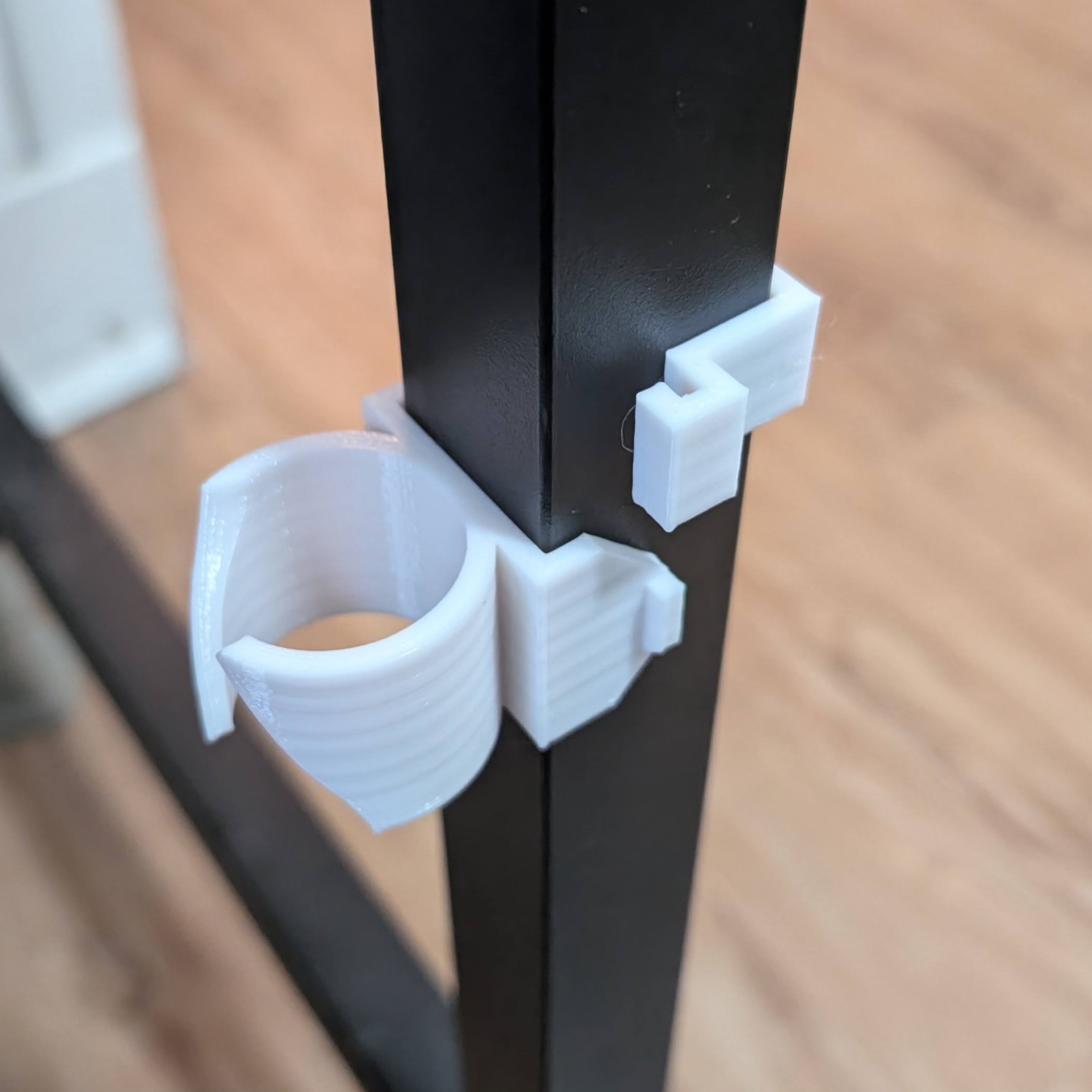

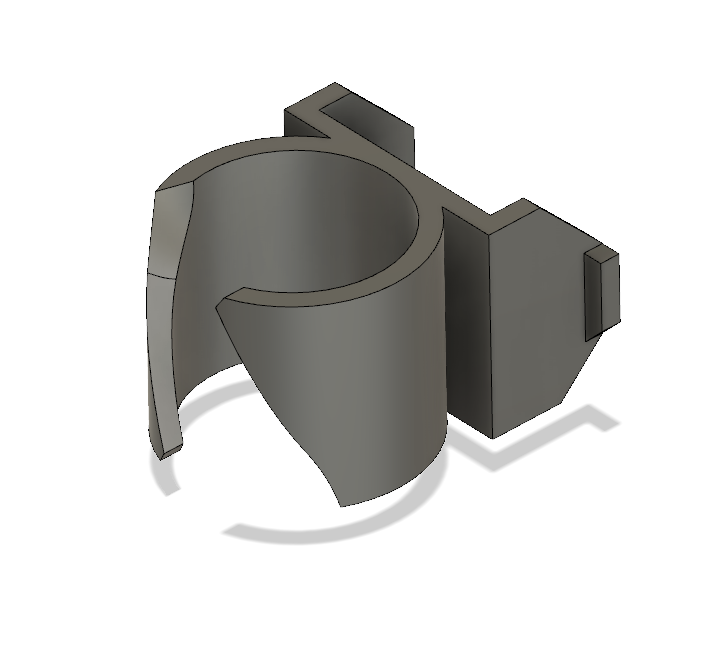

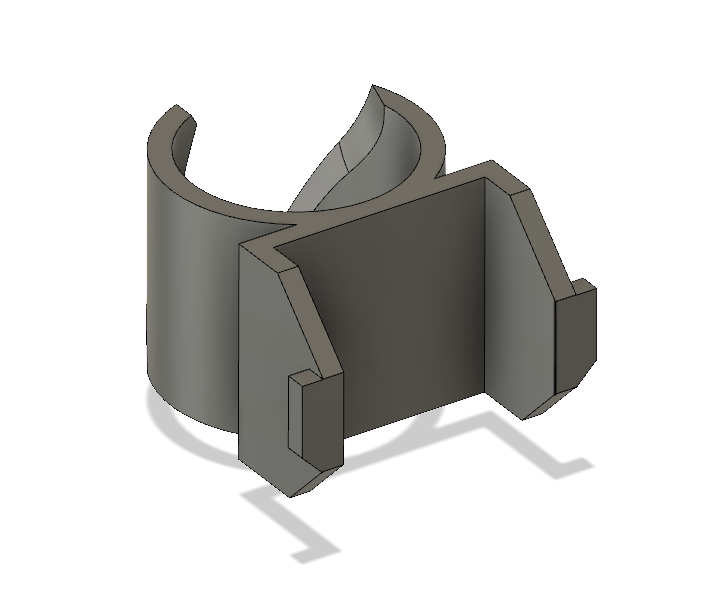

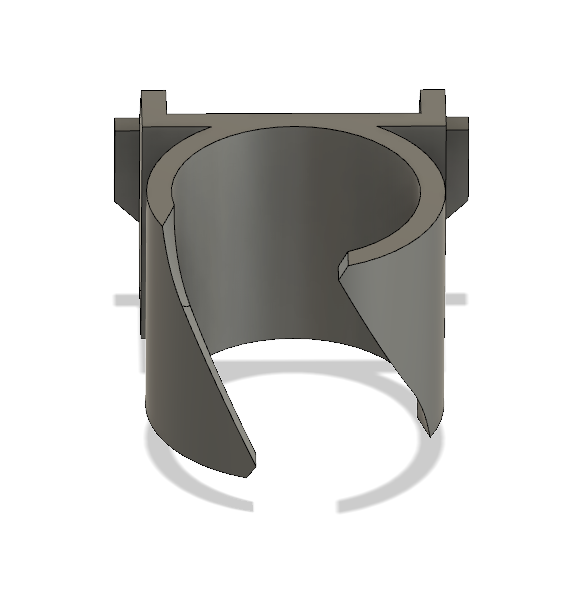

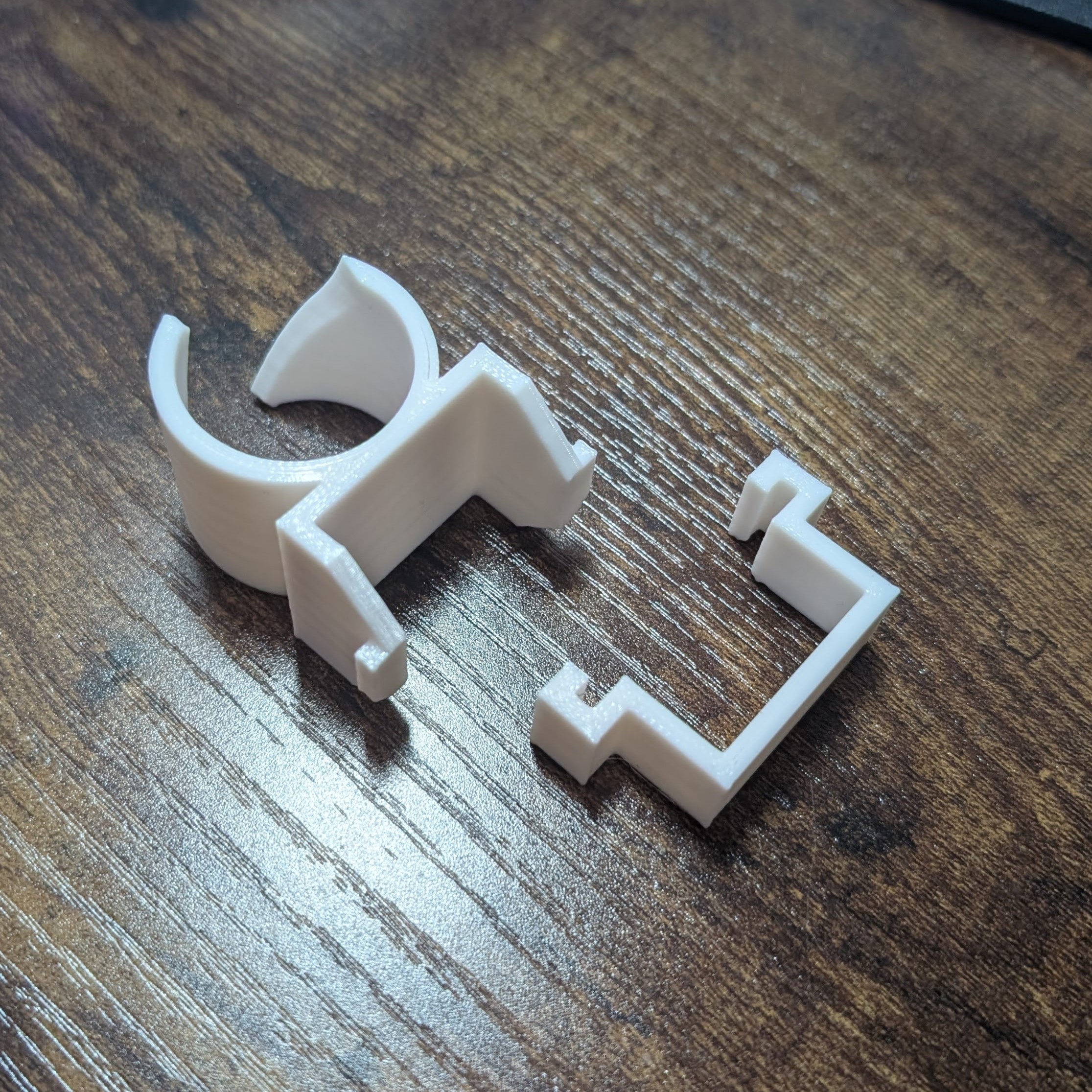

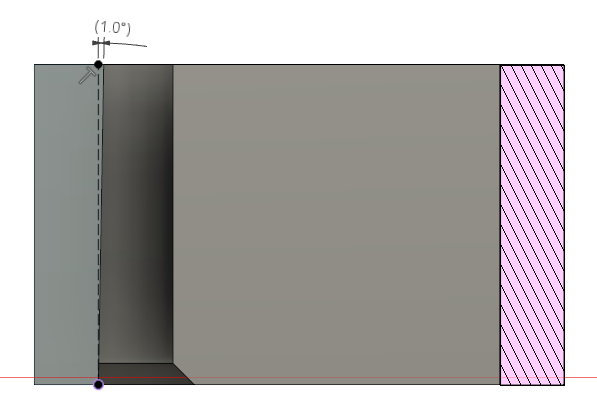

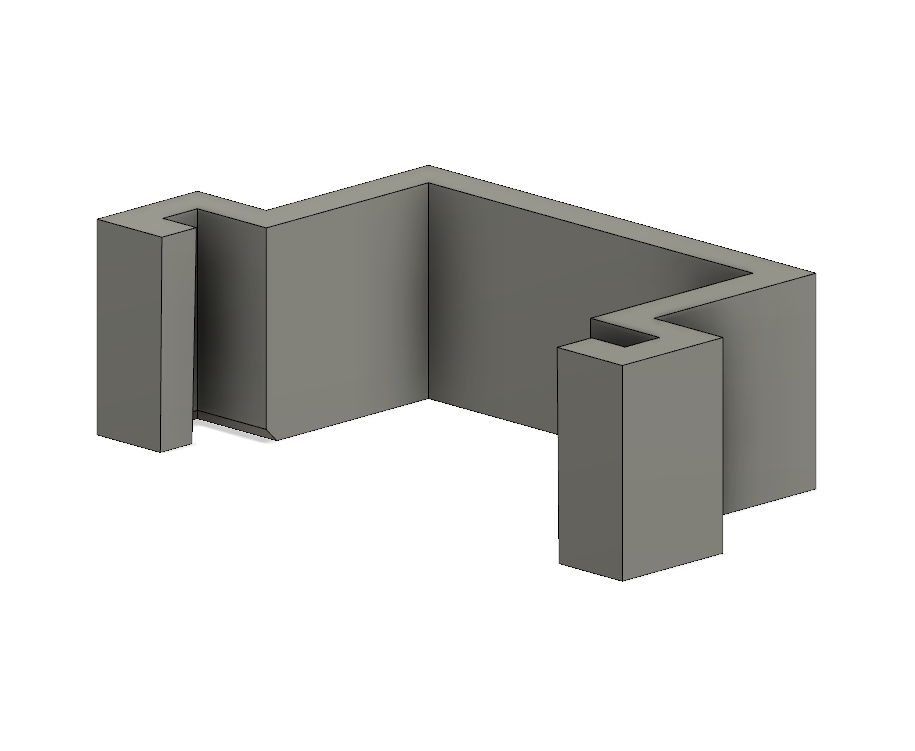

The first-half of this cable organizer has a wide mouth cable bracket suitable for cables you plan to run or cables that are already in place behind your desk. The second-half of this cable organizer slides over the nibs of the first half. A slight angled edge on the second-half means that as you slide the second-half over the first-half, you create greater tension with which to hold on to the square table leg. The result is a easy to print, hardware free solution that will stay in place and neatly stow cables as they run down one of your desk legs.

I've included a parametric Fusion 360 file for customizing for the size of your desk's square legs, or for just remixing this model.

If you like this design then click here to check out my other uploads.  Happy printing!

Printables

Square Table Leg Compresion Cable Bracket

Publicado em 31 de dez de 2024

1
Curtidas
10
Downloads
Categoria Organizers
Tags
cable cableorganizer tableleg cablebracket squaretableleg
Licença Creative Commons — Attribution — Noncommercial
Arquivos (3)
Tension-Half.stl 4.4 KB
Square Table Leg Compresion Cable Bracket.f3d 266.4 KB
Cable-Half.stl 72.1 KB
