Disclaimer: I wanted to enter this in the controller competition, but due to late notice on my part (found out about 3 days before due date lol) and hastened development, documentation will be pretty sparse upon release. While this is a finished product, I plan on adding proper documentation and optimize the parts of the controller as time goes on (I know where I definitely can improve this project, but if you see anything let me know). Thank for understanding and hoping this can help someone!

(*** is the pin assignment to the part, for example if X button is labeled like *X button, then the x button uses pin one)

Parts needed

*Pin 1: 2

**Pin 2: 2

***Pin 3: 5

Base Plate: 1

Top Plate: 1

X Button: 1

A Button: 1

**Y Button: 1

**B Button: 1

**Arrow Buttons: 1

*L Button: 1

ZL Button: 1

*R Button: 1

ZR Button: 1

**Plus Button: 1

Minus Button: 1

**Select Button (labeled as circle button):  1

***Home Button: 1

JoyStick Attachment: 2

Right Slide Rail: 1

Left Slide Rail: 1

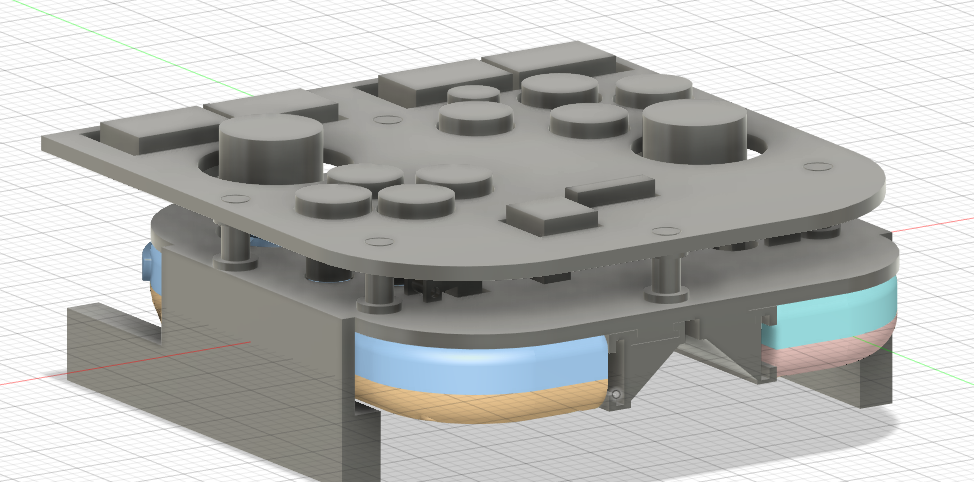

Everything should be friction fitted and relatively easy to assemble. Diagram attached shows where buttons are located. Stay tunded for more updates
