Parallel guide for Festool Style tracks
(might also fit similar rails like Makita, Milwaukee or Triton)

Parallel Guide designed to provide precise and repeatable cuts with Festool Track saws.

Use two guides for parallel cuts or a single guide in combination with a rail-square for repeat square cuts.

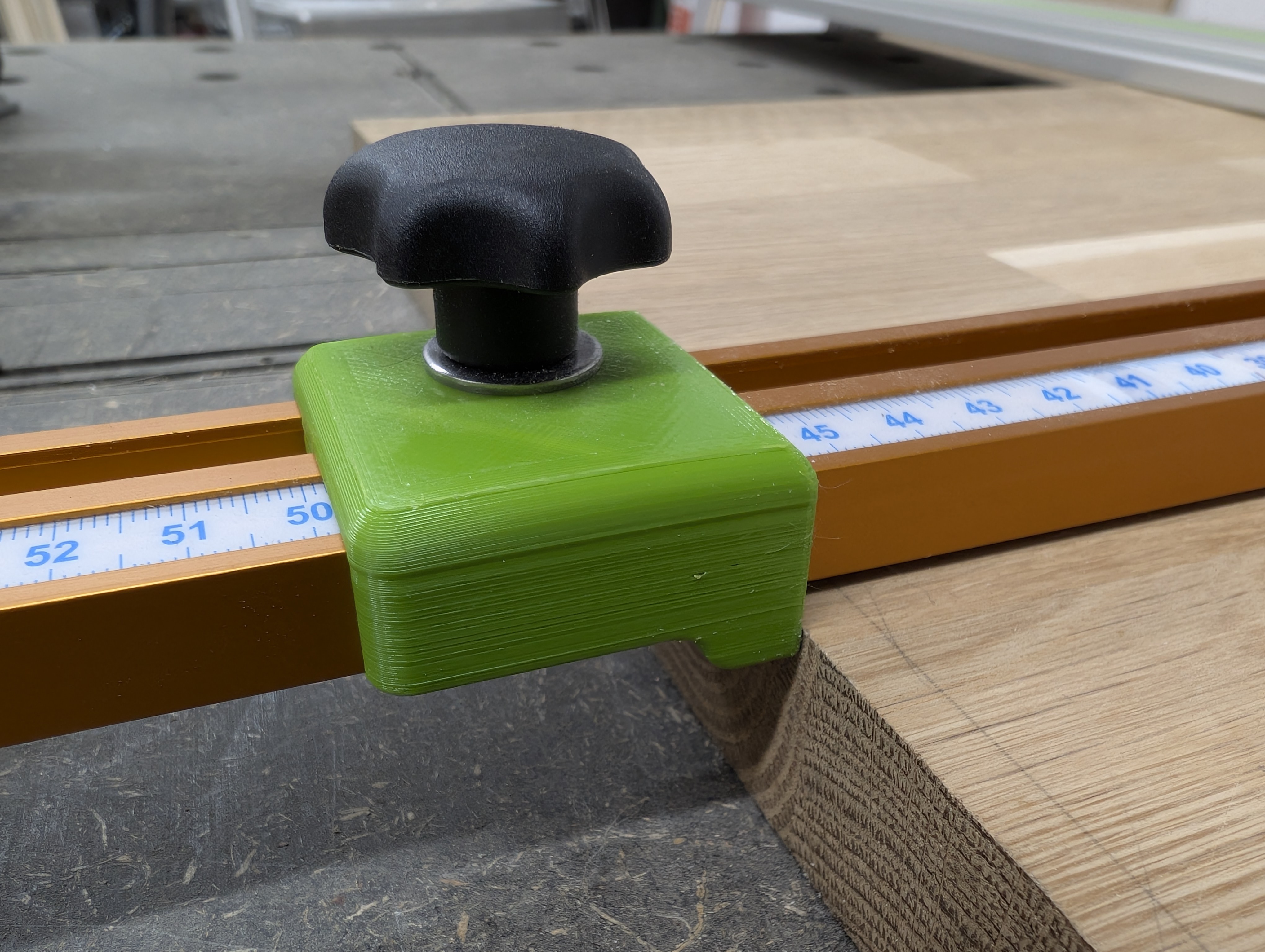

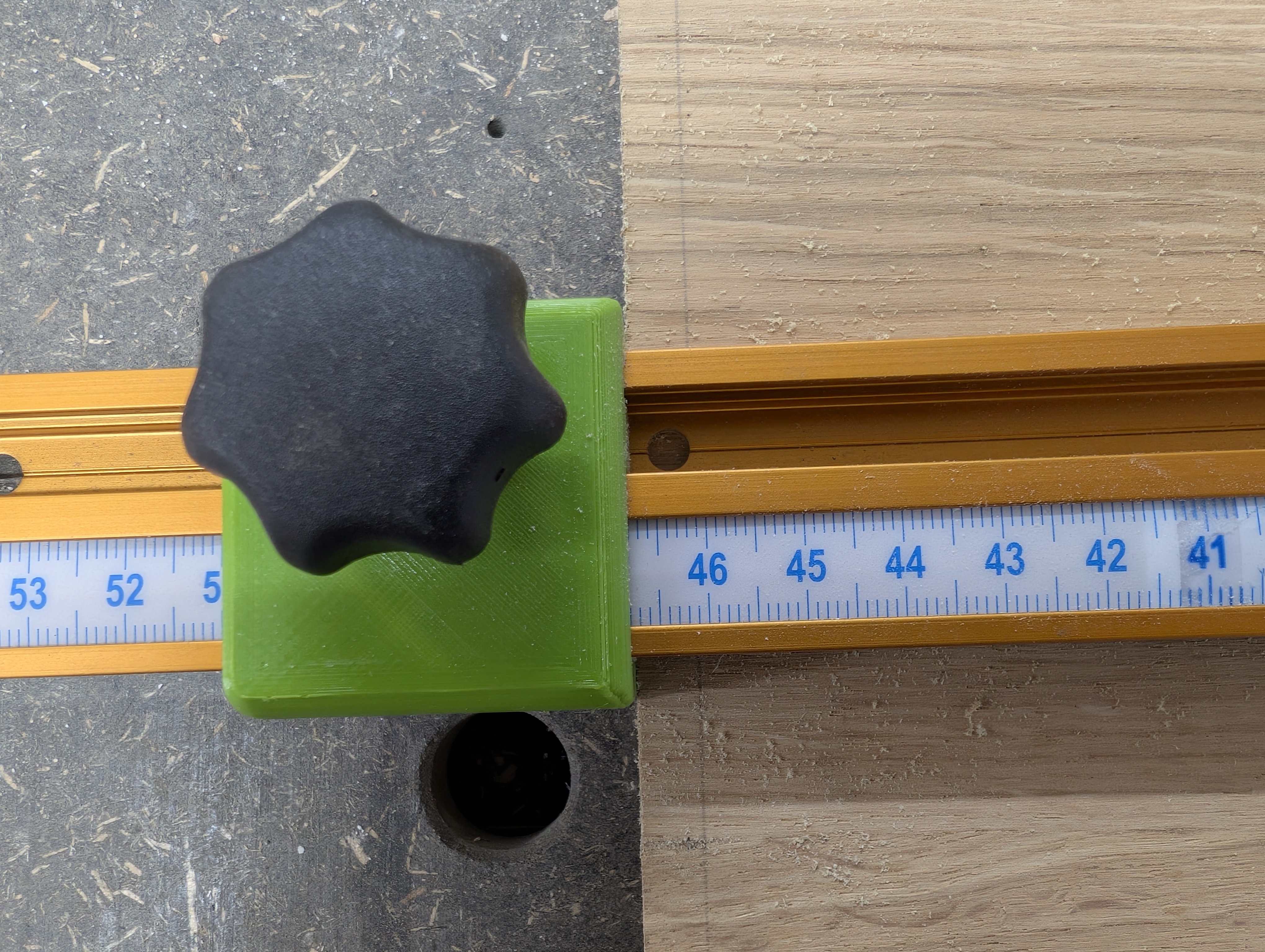

Easy adjustments of the stops between ~235mm (9,25") and ~1090mm (42,91") using a 910mm (36") T-Track.

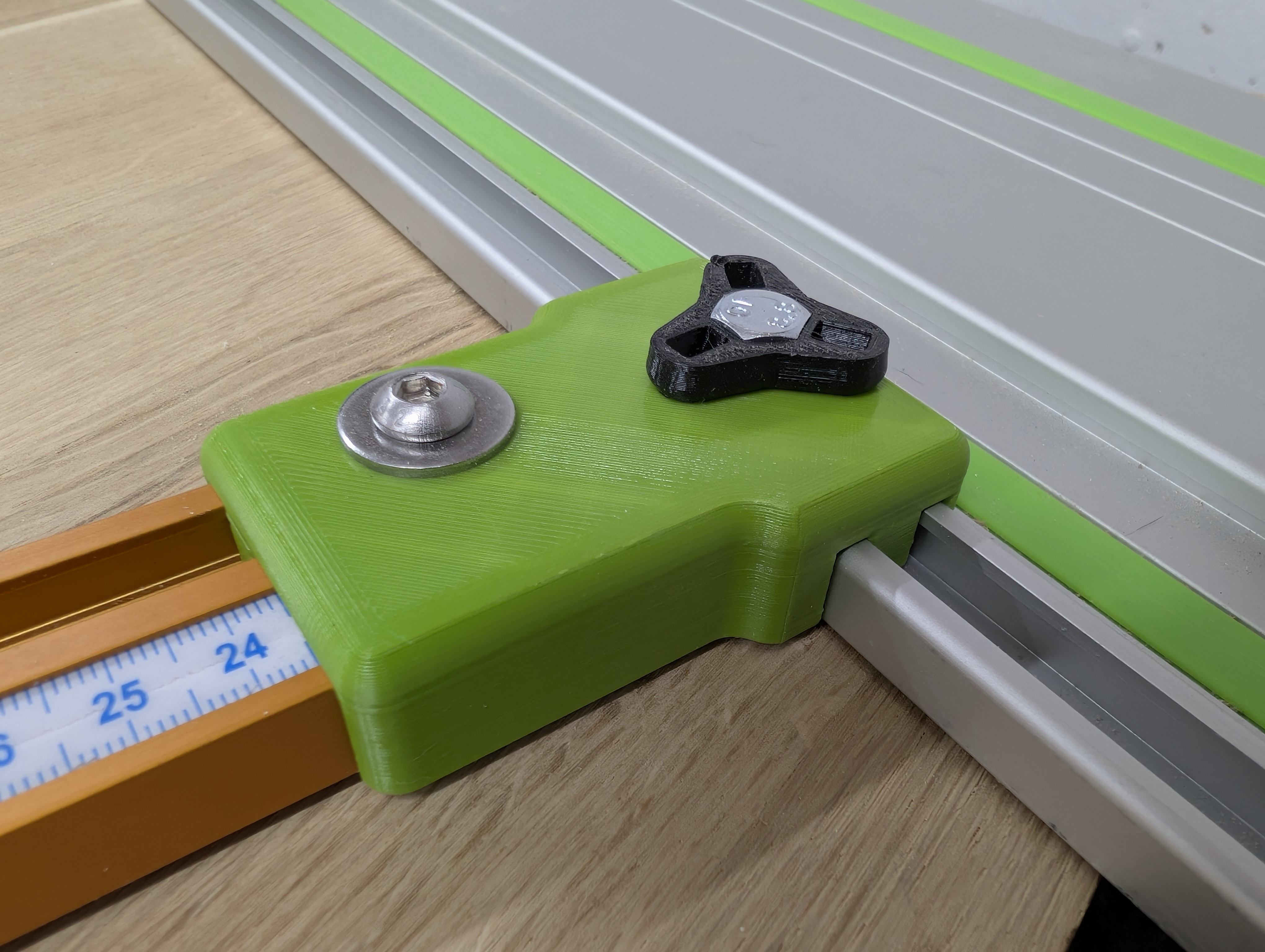

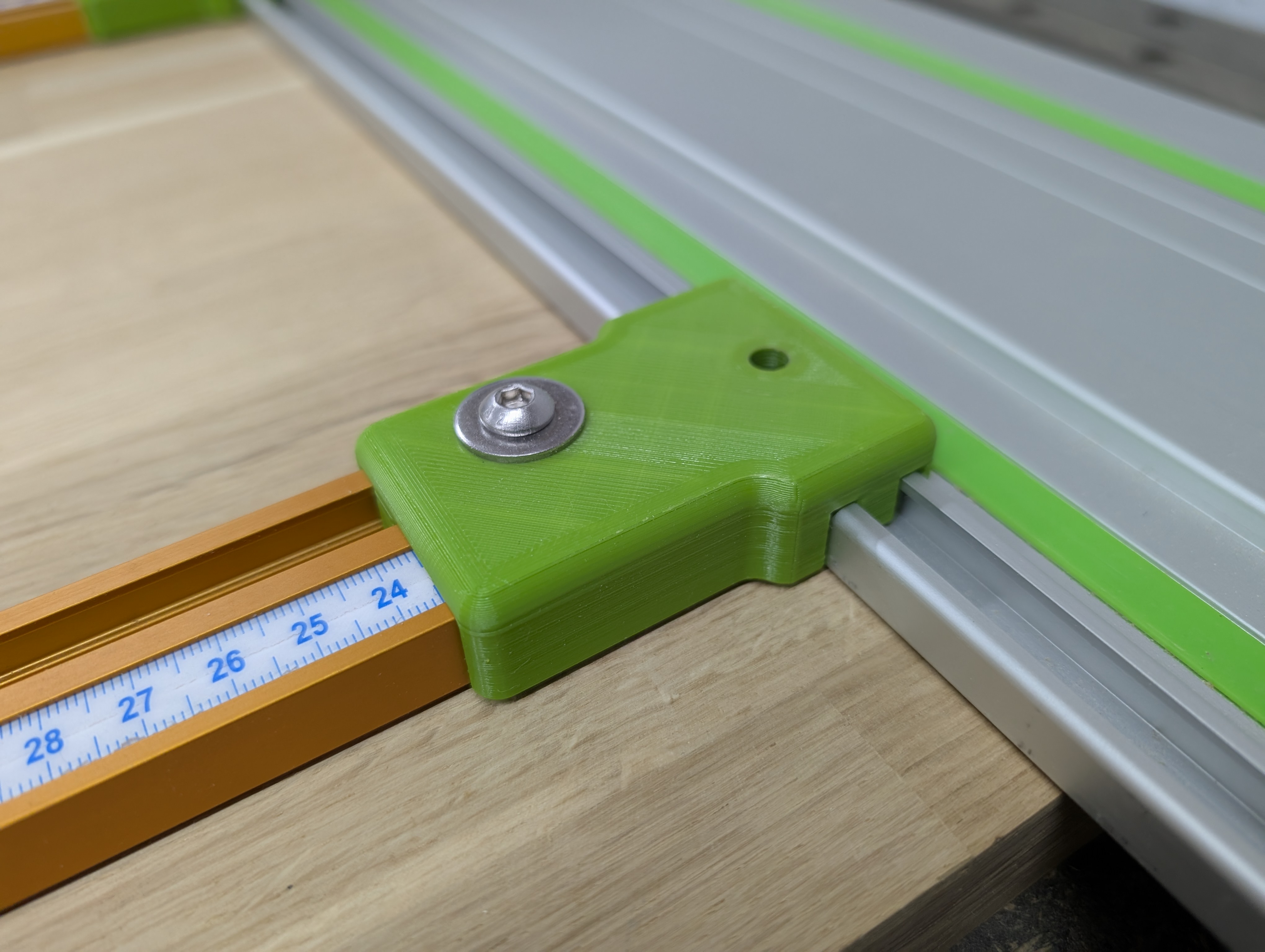

A T-Nut and bolt can be used to attached the quide to the rail (otional but recommended). I recommend using a bolt with a low profile head or a hex-bolt as it interferes with the housing of the saw. As the motor housing of Festool TS55 overhangs the rails the depth of cut is limited to ~48mm without and ~43mm with hex bolts. (Other Saws may vary)

Additional HW needed for two guides:

• 2x INCRA T-Track Plus
  • whatever length you want or need
  • Comes with a ruler. Available in metric and imperial
• 6x T-Nuts and bolts (M6x16)

Additional notes:

I printed one guide mirrored but that is optional. Just felt better

If you want a low profile star knob for your M6 hex-bolts use the “Unterteil” of this model:

[https://www.printables.com/model/200462-star-knob-knopf-m6m3-multifunctional-for-screws-an](https://www.printables.com/model/200462-star-knob-knopf-m6m3-multifunctional-for-screws-an)
