Want a smooth spool rolling experience to induce as little drag as possible?

A spool stand that's super modular for custom attachments and upgrades?

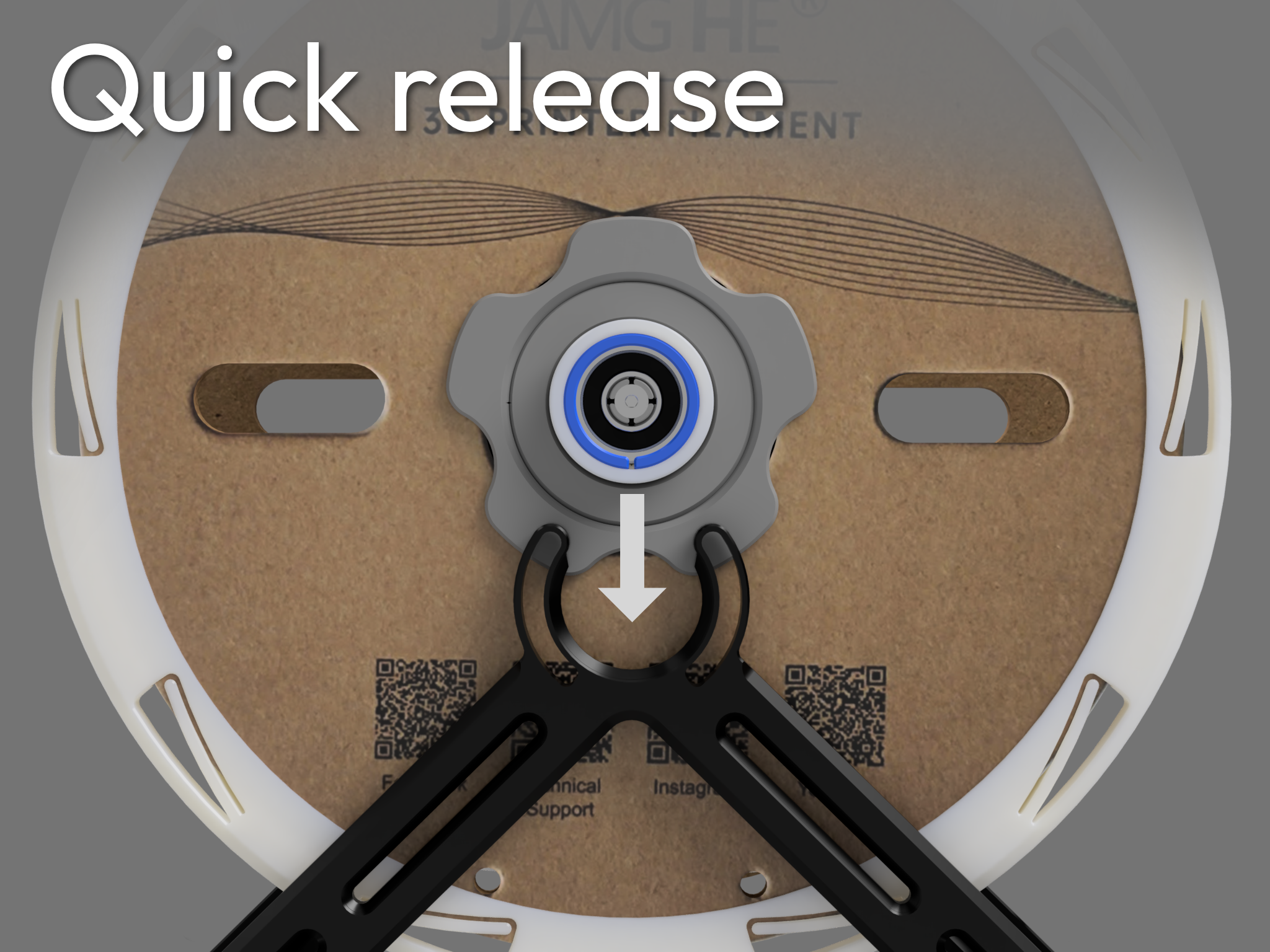

Quick snap, easy take in and out system?

🤩 Do you like the design? You can help fund innovations like this!
Consider supporting me!
Much appreciation given to my supporters, and you get exclusive access to various CAD files!
Submit feature requests here!

Assembly guide here

Make sure to check remixes for more variations!

Features:
- Expanding locking collet for bearing
- Supportless print, 45 deg custom thread profile
- Chamfers and fillets to increase user comfort

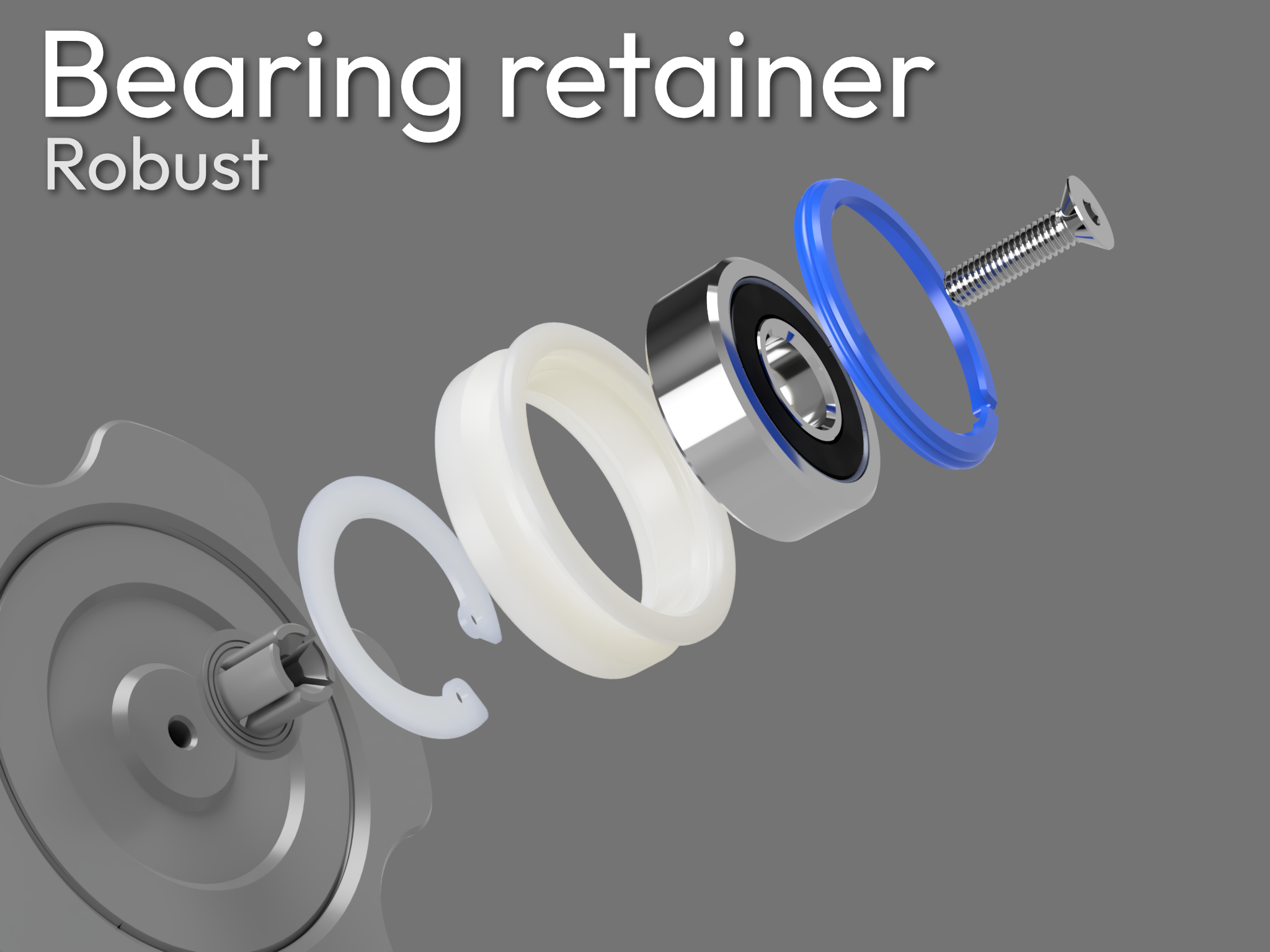

- Bearing retainer does not depend on print tolerance!
- Strong, lightweight stand
- Multiple spots for attachments and upgrades
- Can bind next to eachother into a row
- Super narrow, space saving

Dimensions:
- 82mm wide, 210mm long
- Accepts spools with ID 50-60mm
- Acceps spools slimmer than 63mm
- Spool rim accept spool OD 197-202mm
- Spool rim outer diamter 218mm

Recommended print settings:
- Nozzle diameter: 0.4mm
- Layer height: ≤ 0.2mm
- Print orientation: as imported
- Supports: Not required

Recommended materials:
- PETG
- ABS/ASA

Installation requires:
- 2 * 608/6900 bearing
- 6 * M3x12mm FHCS

Note:
- [a] = accent color
- [p] = primary color
- [s] = secondary color
- [t] = tertiary color
- x… = print x amount (count is for one spool)

Changelog:
