yet another electronics case - part 1, anet board and bed mosfet
features:
fits 1 anet board and 1 mosfet
removable front panel
cable management components

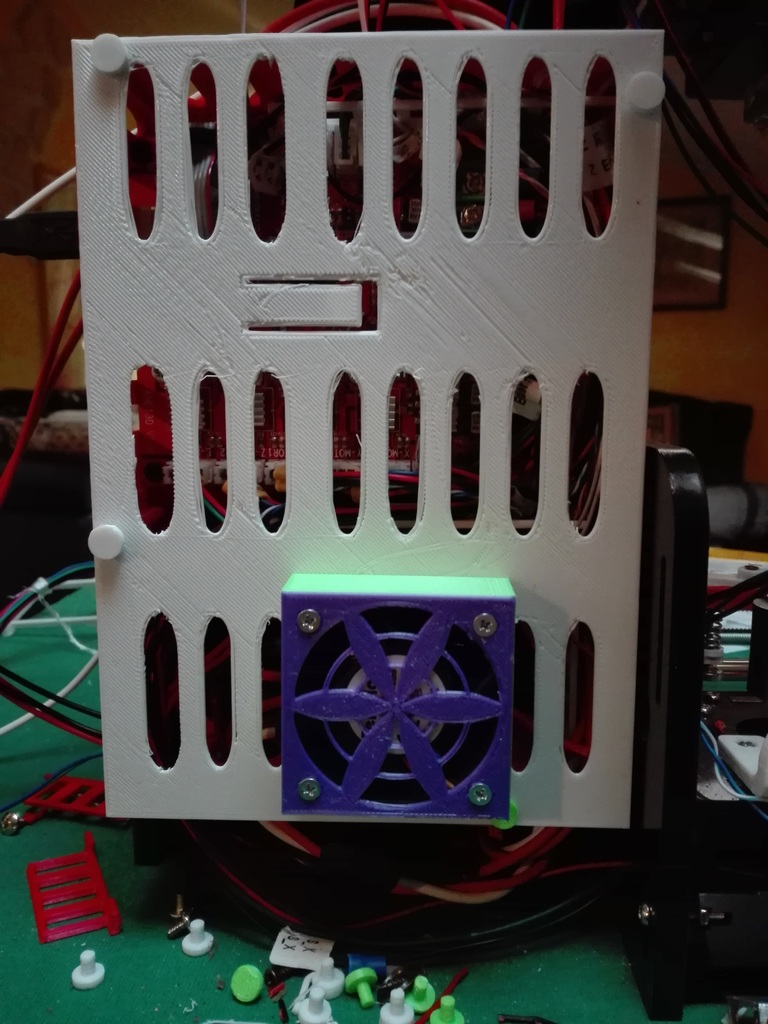

40 mm fan
reset button

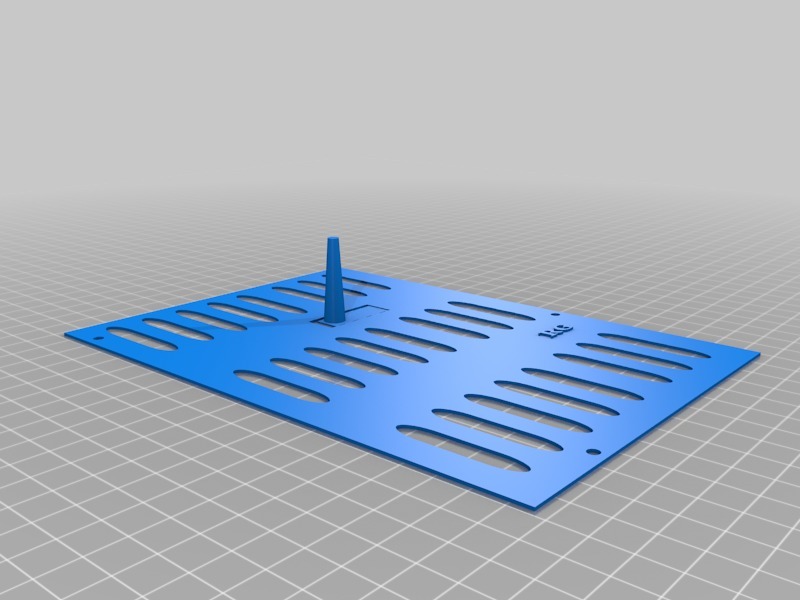

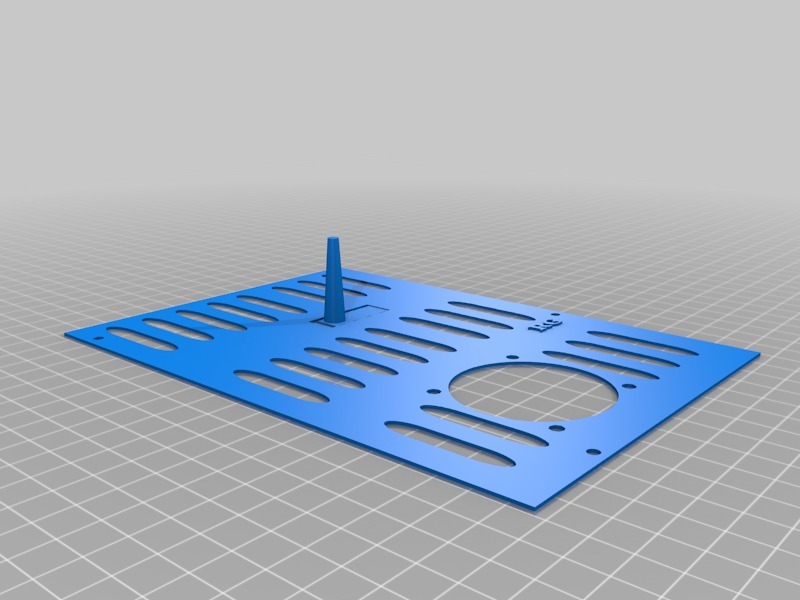

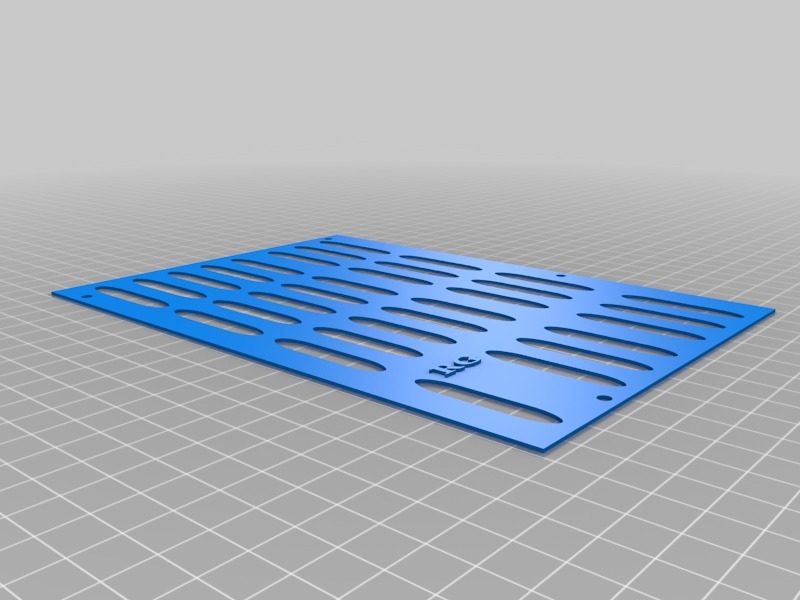

4 different front panels to choose whether or not use reset button and or fan

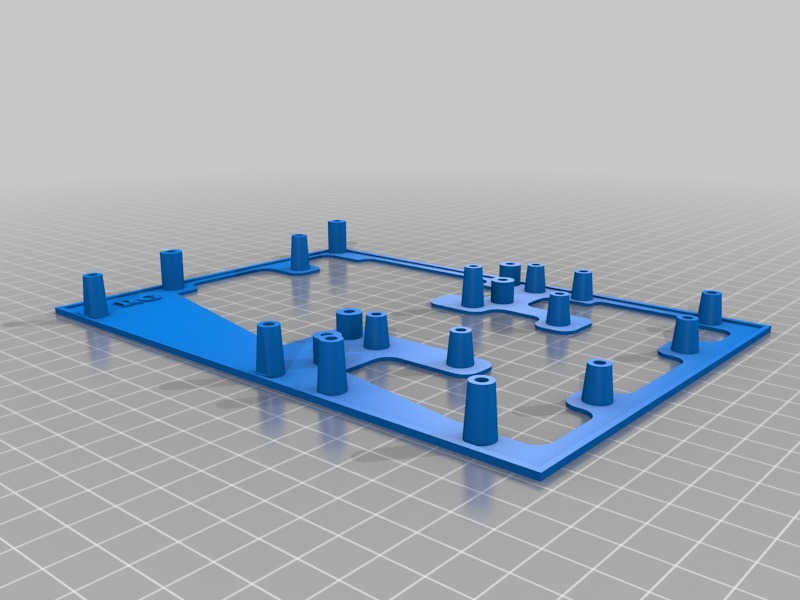

"naked" version to be use as a support for mb and mosfet.

installation instructions:
remove cabling from the motherboard and remove it from the frame;
install the box it fits into the frame original motherboard holes;

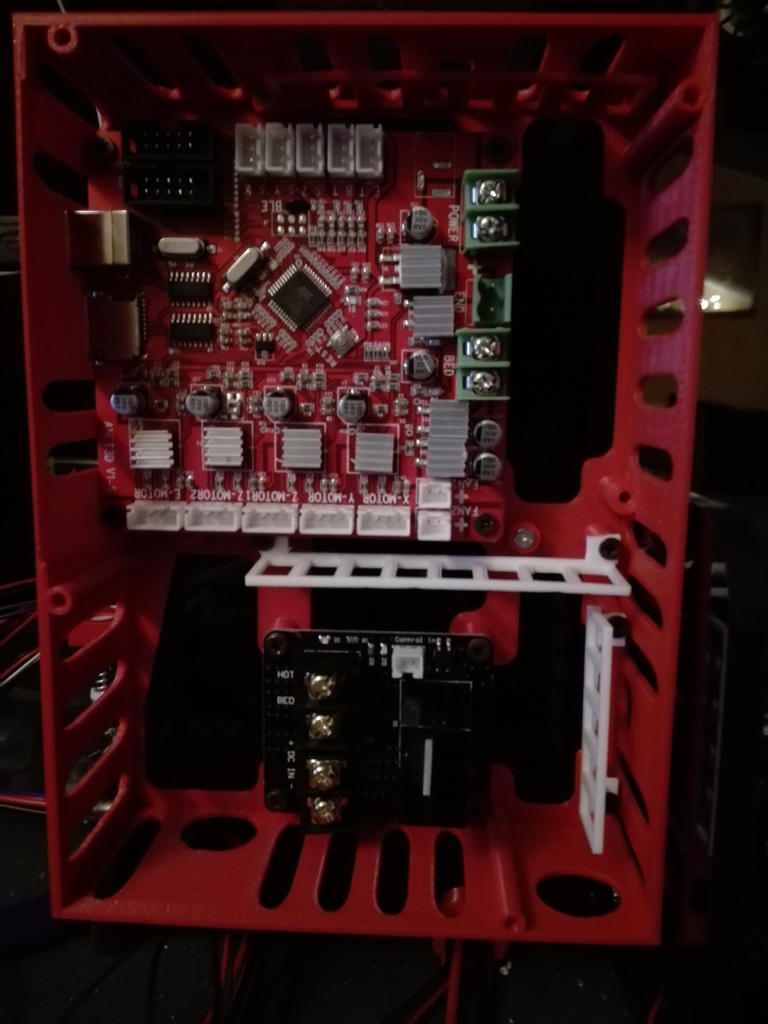

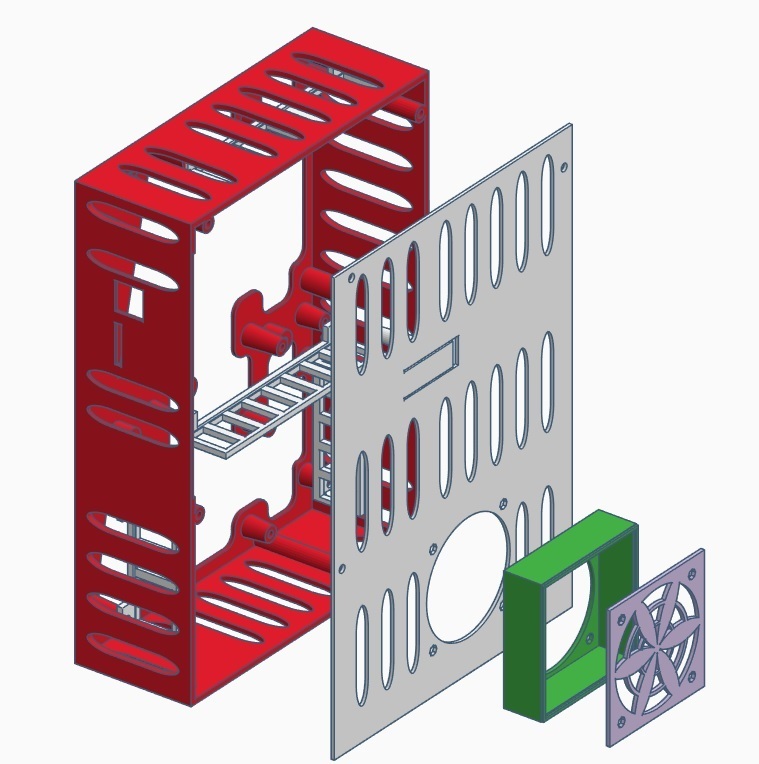

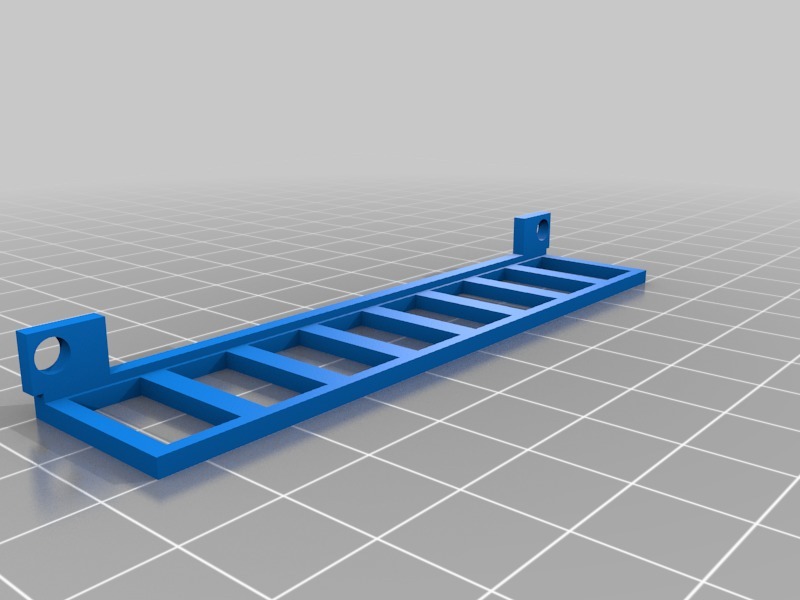

if you have printed the cable management parts install them as shown in figure #1 and #2. note that one part is missing of the left side of the mosfet, i added it later asfter assembling mine. Cable management parts are optional, if you don't plan to use them just put the connections back.
if you plan to use the cable management parts to organize cables please be patient and make the following cables longer than 15cm: X end-stop, Y end-stop and Z end-stop and
extruder rmotor.

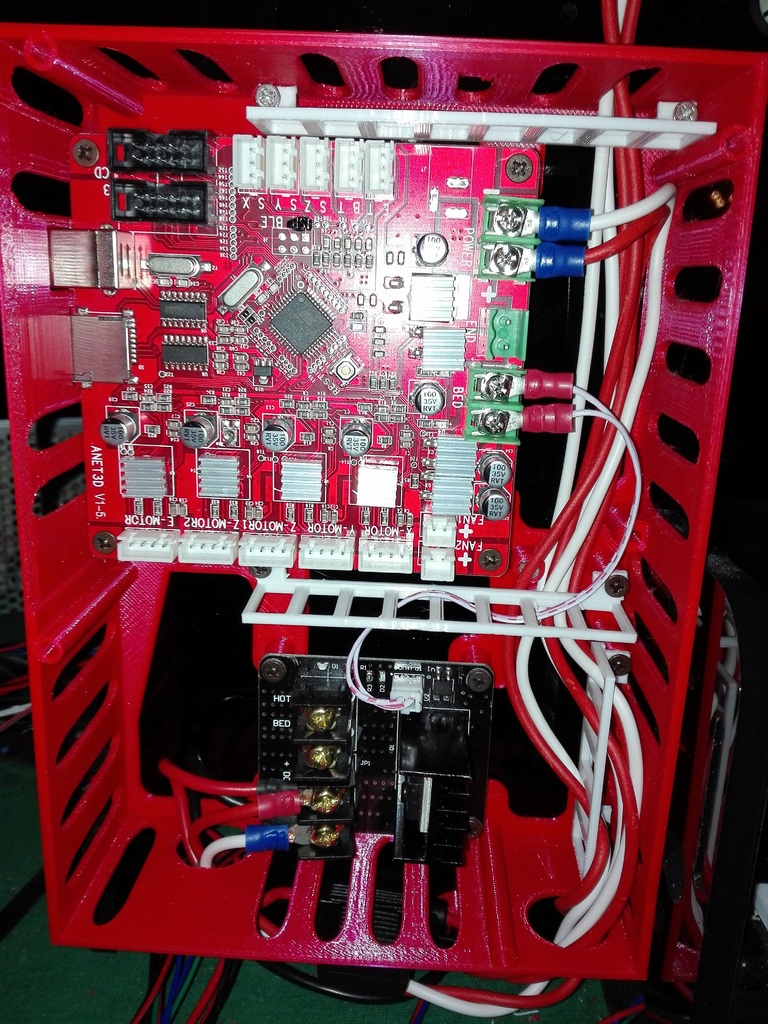

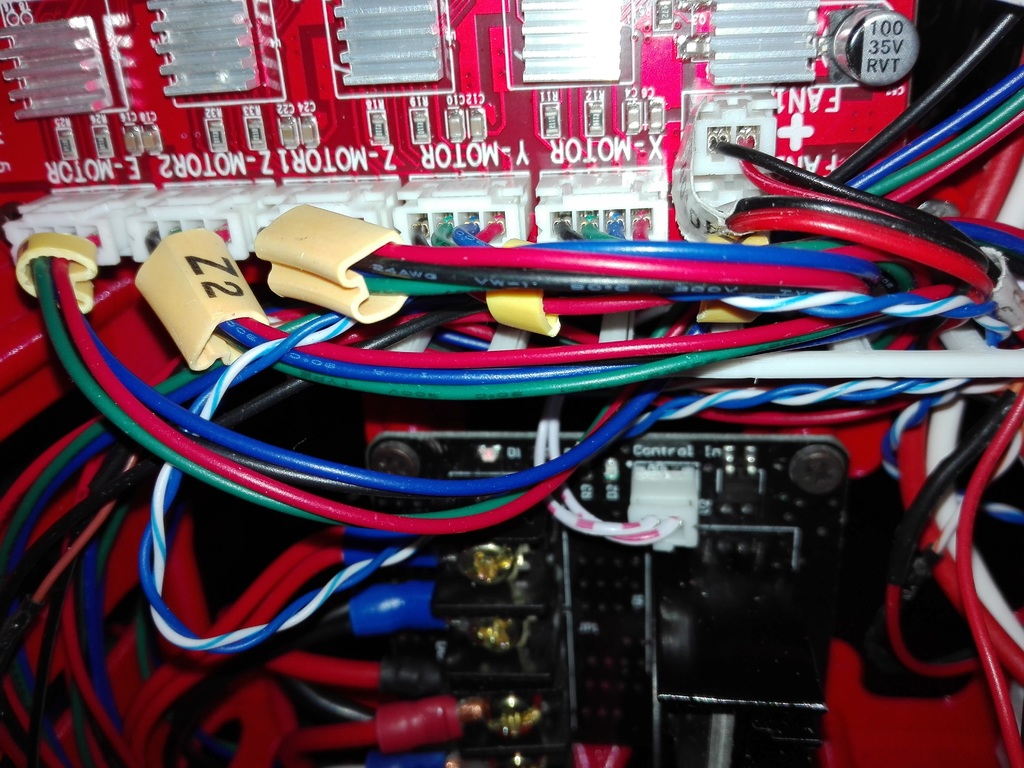

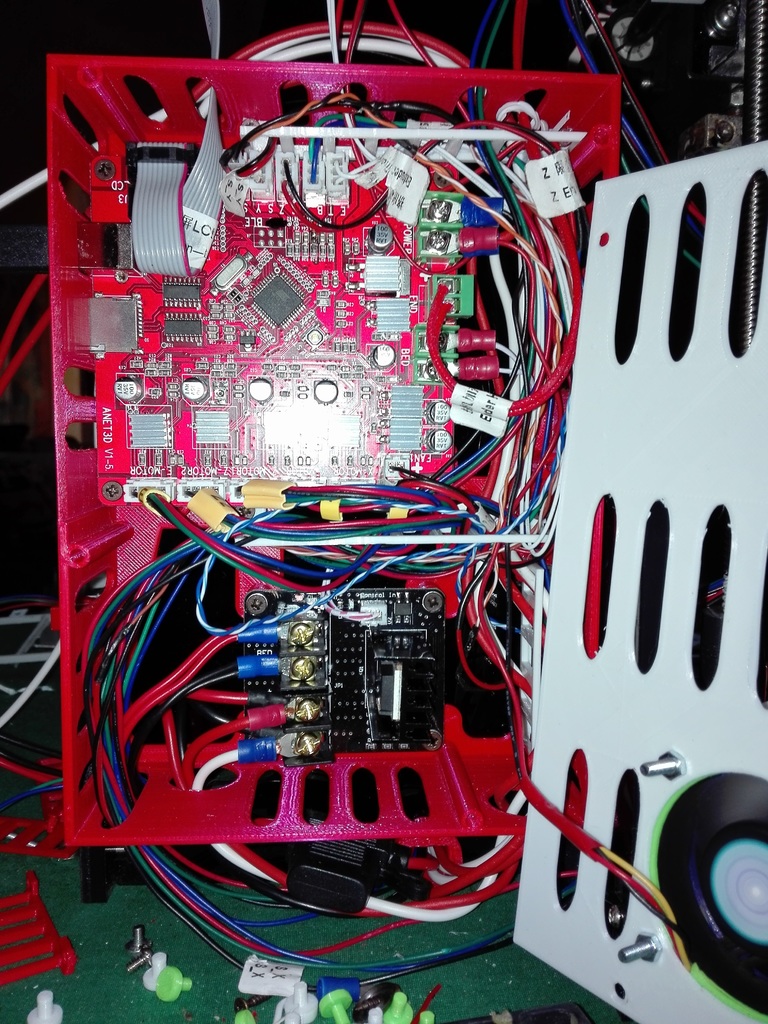

See picture 3 , 4 and 5 for an example of cable arrangement using the printed parts.

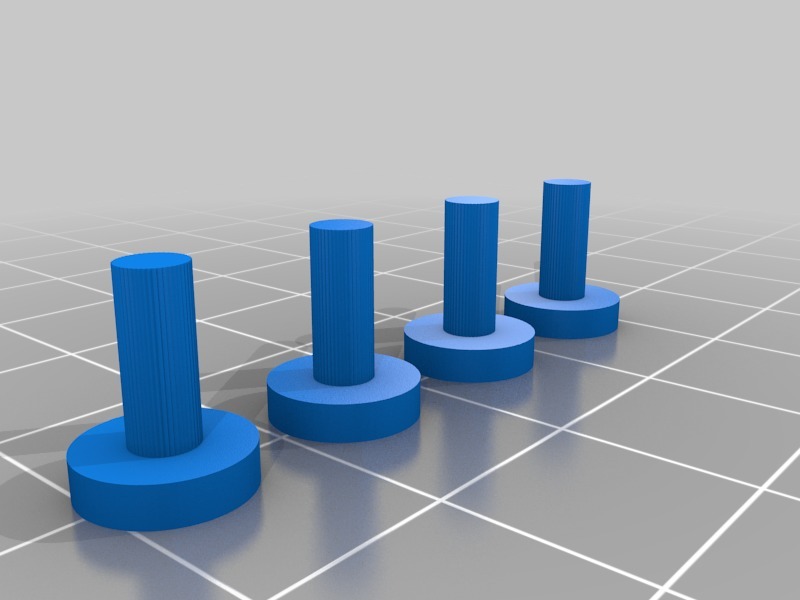

choose one front panel and use pins to close the box.

you can complete the project by printing part 2 also (hotend mosfet + raspberry + 12v to 5v dc voltage converter)
part2: [https://www.thingiverse.com/thing:3257232](https://www.thingiverse.com/thing:3257232)
part 3: [https://www.thingiverse.com/thing:3266018](https://www.thingiverse.com/thing:3266018)

You can find all my models here, thank you who will appreciate with a download or with a like
