Modeled up a simple yet elegant launch pad using easy to find items off Amazon to make a high air flow pad to keep these little heaters cool while sitting still!


Parts required:

8x2mm Magnets x8
Desktop Fan

OPTIONAL
LED Strip
USB C Power Connector (If you're going to mod fan further and make fan ‘permanent’)

Print Settings:
Printed at 0.2mm Height.
Lid was PAUSED at top of magnet hole to push in magnets then print is resumed.
Supports SHOULDN'T be necessary but I used organic tree supports.

Modifying of Fan to Fit:
The fan linked and pictured requires you to remove the swivel stand. The stand is pressed in and just requires prying of the sides of it to ‘pop’ out the hinges.

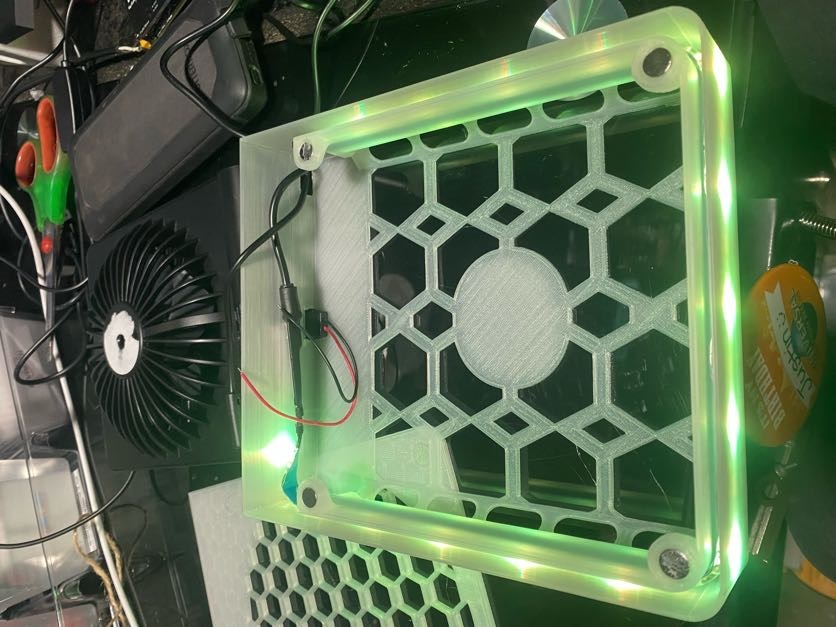

Installation of Fan:
1. Run the power cord in through the large hole in back corner.

2. Plug fan cable in

3. The fan by design fits snug. To get the fan in the case put the front nose of the fan in first towards the front of the case and carefully pull the side of case out a little to do one back corner at a time to get it under the magnet mounts.

4.Case magnets I superglued in.
Lid magnets are print in place.
