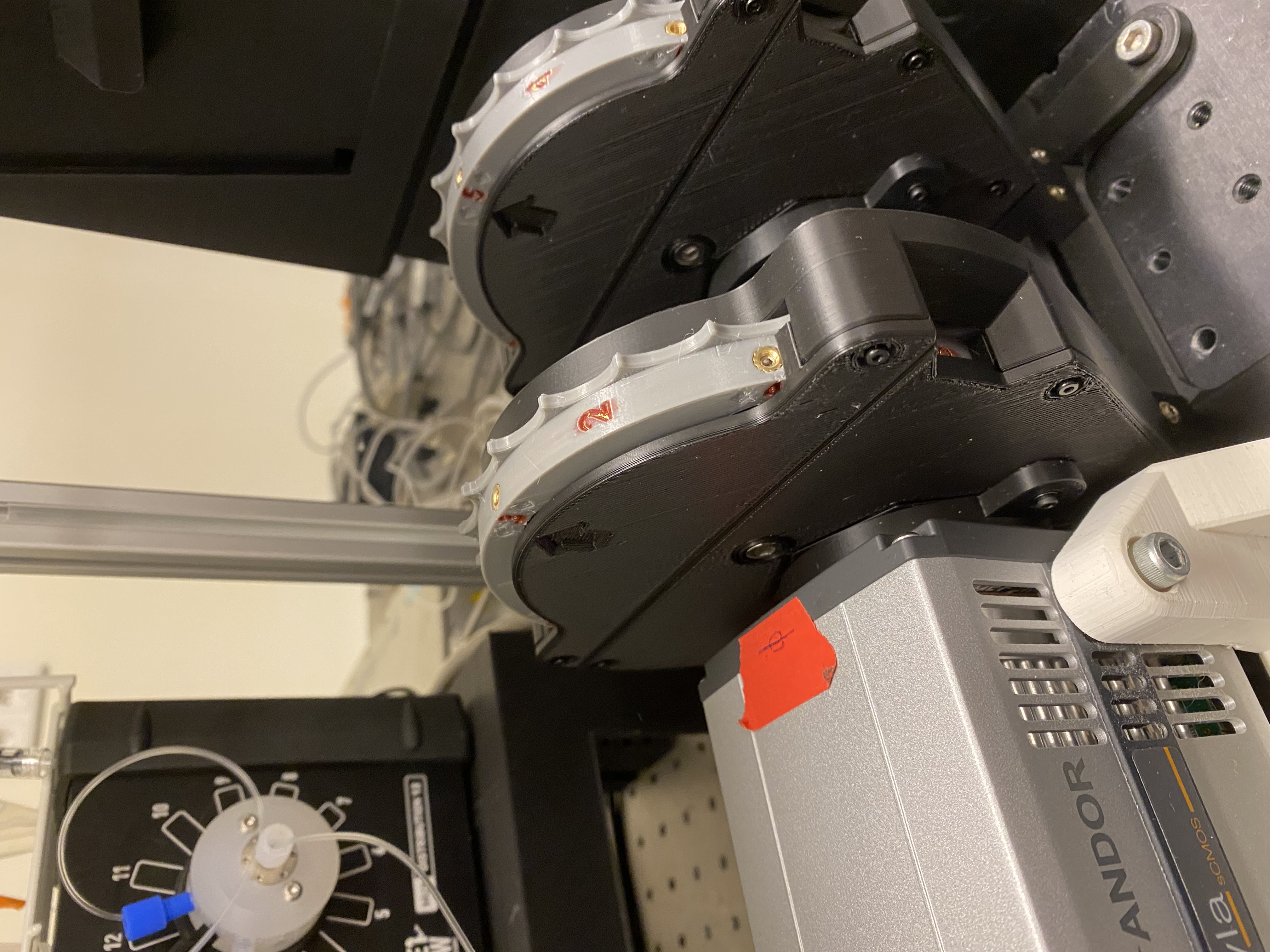

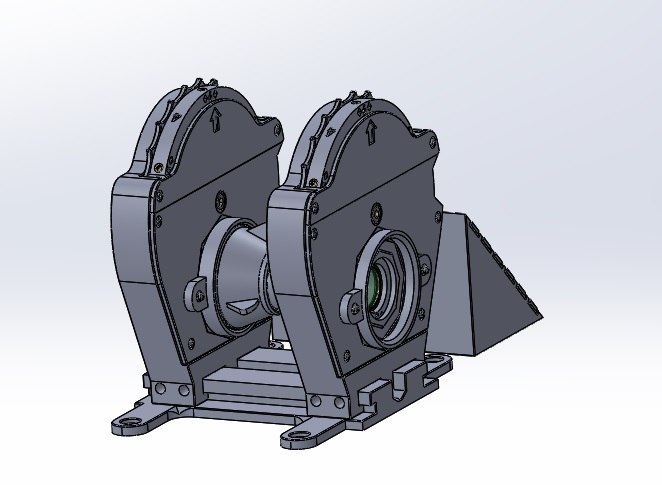

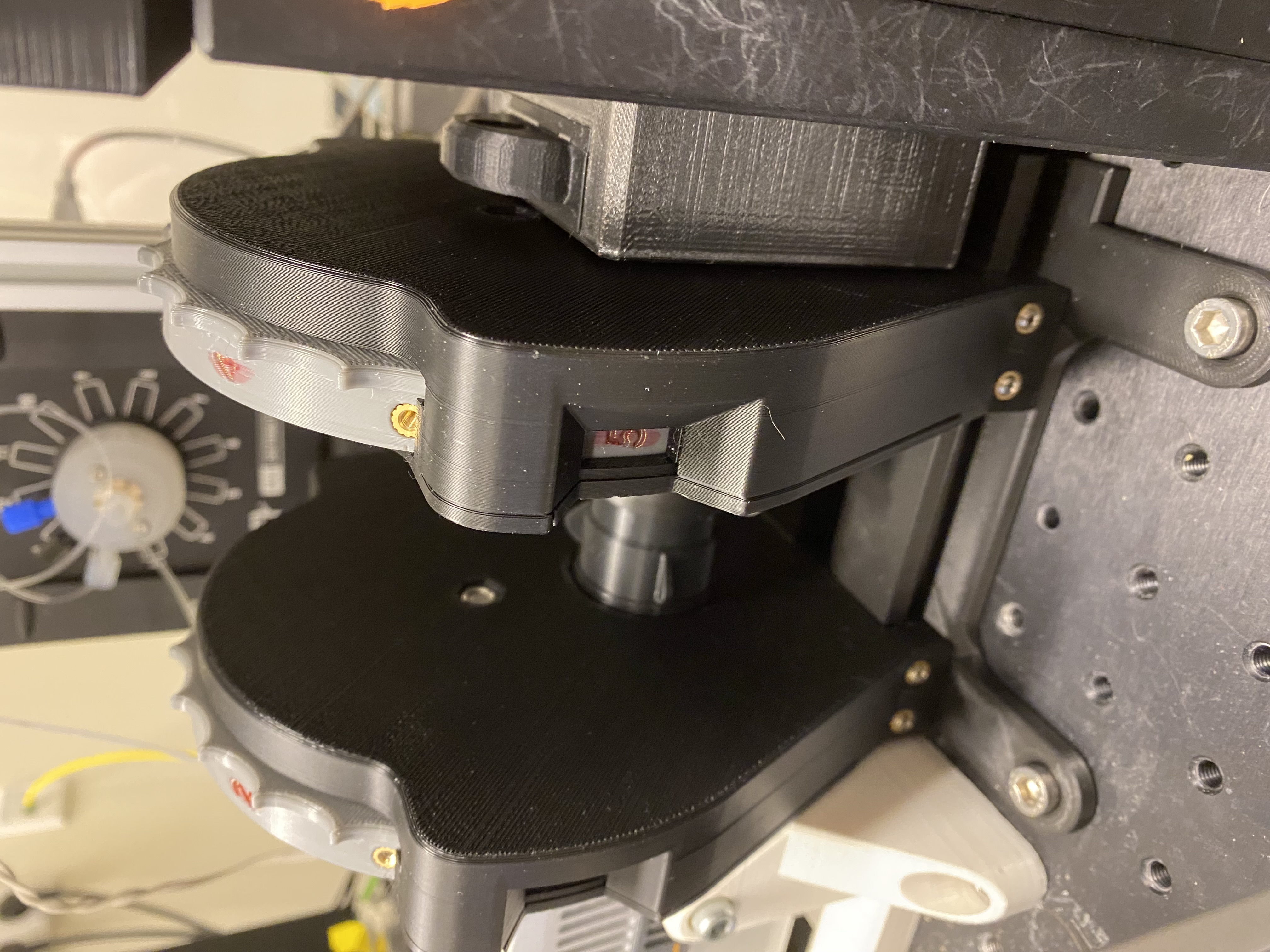

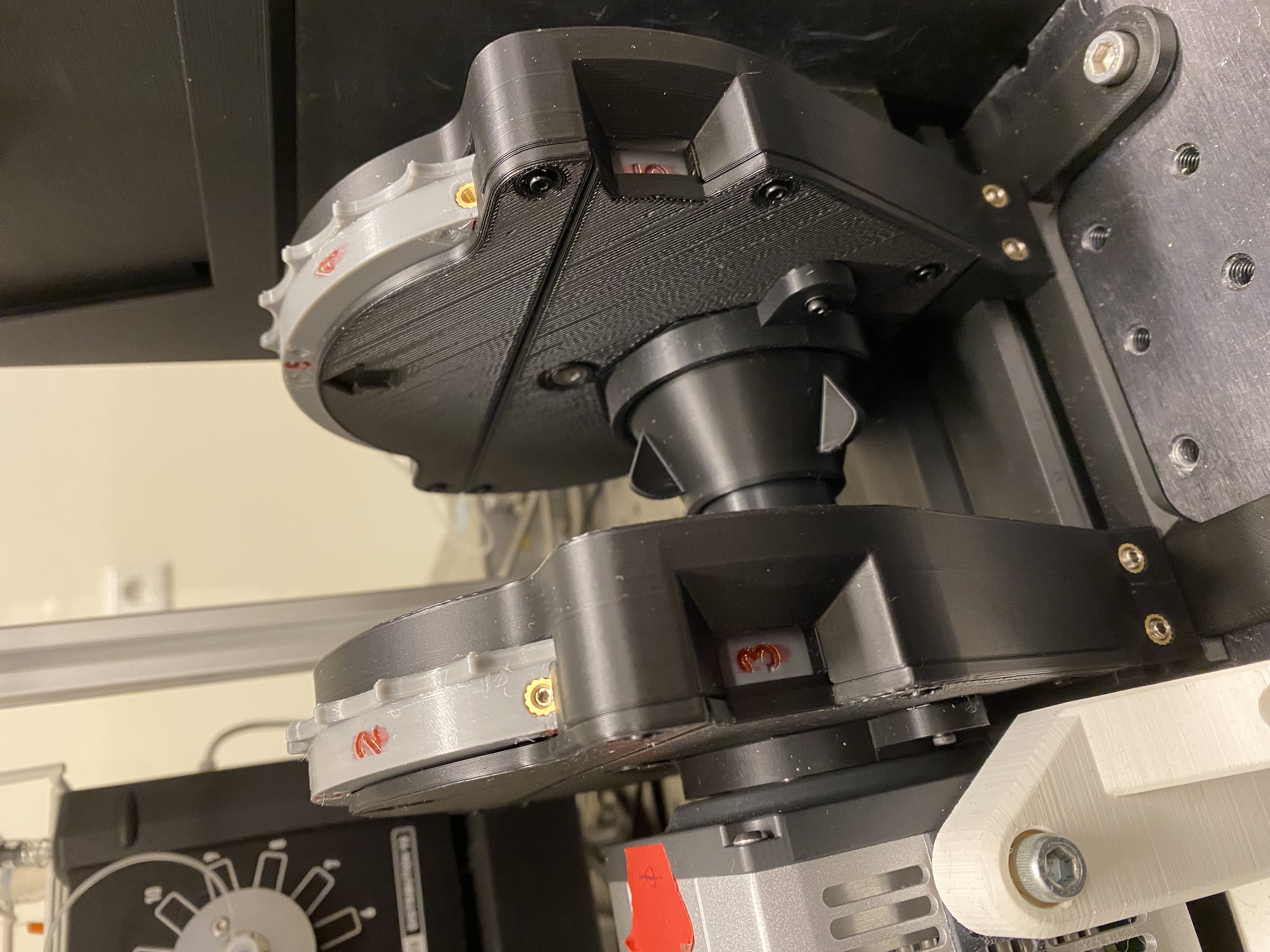

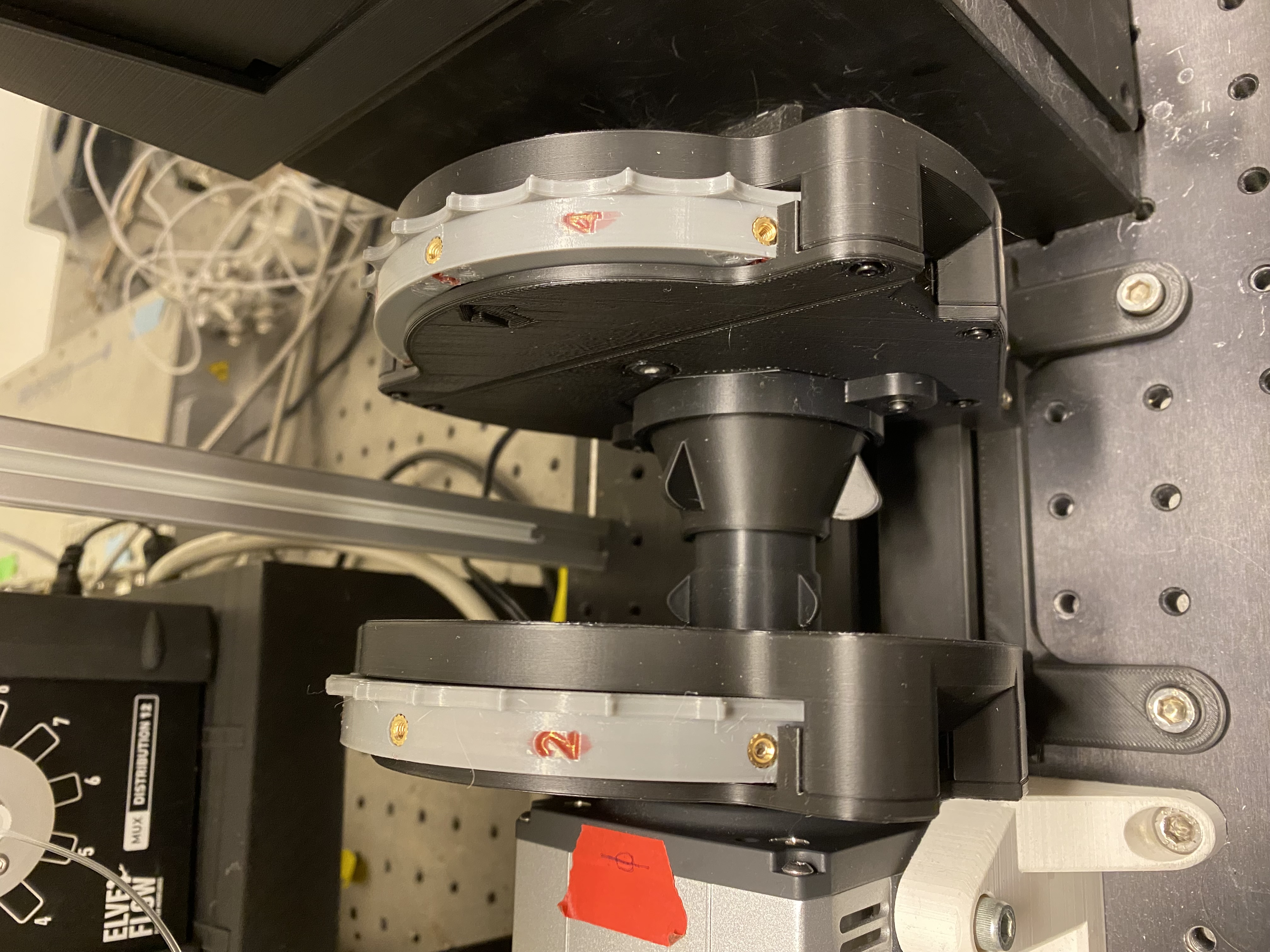

The second version of the filterdisk. I designed this filterdisk holder v2 with the intention to make an affordable and user friendly way to change between optical filter when using the miCube microscope as designed by hohlbeinlab making use of both 3D and non-3Dprinted components improving on the first design. The filterdisk holder is designed to replace Astimatism block(21) and Astigmatism lens holders(23,24) in the microscope setup.  Design and information regarding the miCube can be found at: miCube - Hohlbein Lab.  I hope it will be proven to be usefull to more people.

---Print information---

Prusa slicer

Infill was set to: 20%

infill: cubic

XY separation between an object and its support: 70%

---Material list---

2x M5*20 bolt

2x M5 nut

Glarks 510Pcs M3 M4 M5 304 Rvs Hex Socket Hoofd Cap Schroeven Met Moeren Assortiment Kit : Amazon.nl: Klussen & gereedschap

12x m2*8mm*3.5mm heat insert

12x m3*6mm*5mm heat insert

4x m4*10mm*6mm heat insert

Glarks 300 Stks M2 M3 M4 M5 M6 Vrouwelijke Draad Gekartelde Noten Messing Ingepaste Insert Embedment Moeren Assortiment Kit voor 3D Printer : Amazon.nl: Klussen & gereedschap

16x m2 washer

12x m2*10mm bolt

4x m2*8mm bolt

4x m2 nut

660 stuks M2 schroevenset, M2 schroeven, moeren en sluitringen, assortiment kit, cilinderschroeven met binnenzeskant schroeven, schroefdraadschroeven, zeskantschroeven, machineschroeven, set : Amazon.nl: Klussen & gereedschap

12x m3*6mm grub schrew

4x m4*10mm grub schrew

BOZONLI Hex Socket Cup Point Grub Schroeven Roestvrij Staal Schroef M2*6mm,20 pcs : Amazon.nl: Klussen & gereedschap

18x 4mm*2mm neodymium magnet

Wukong Kleine neodymium-magneten, 200 stuks, 4 x 2 mm, sterke mini-koelkastmagneten voor knutselen, koelkast, magneetbord, whiteboard en doe-het-zelf : Amazon.nl: Kantoorproducten

2x 608-RS bearings

20 stuks NUZAMAS 608-RS skateboard-lagers, metalen wiellagers, kleine lagerreserveonderdelen voor skateboards, longboard-wielen, skaten, scooters : Amazon.nl: Sport & outdoor

Filament PLA - choose your colour
