Modelo 3D W1219 Temperature Controller Enclosure por Rakesh Jaiswal no Printables

Descrição

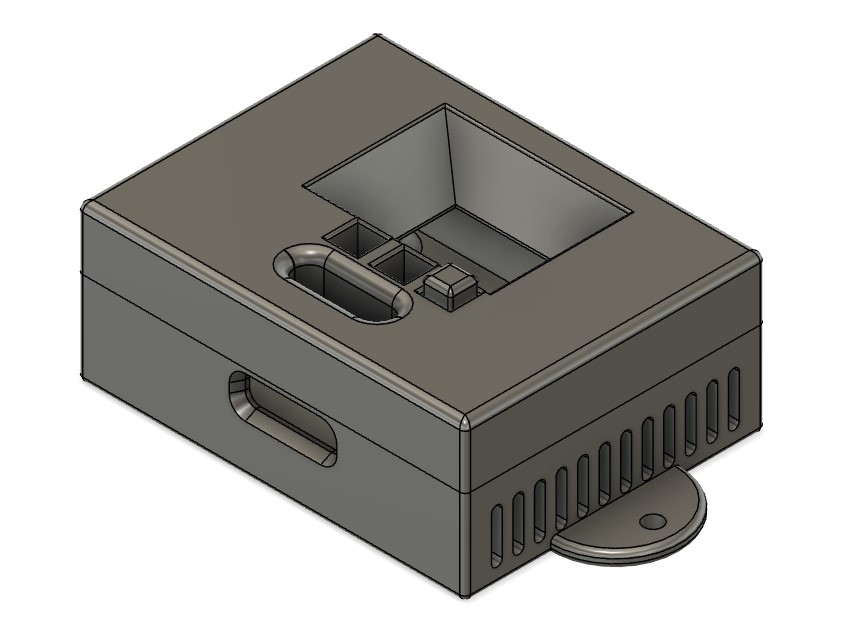

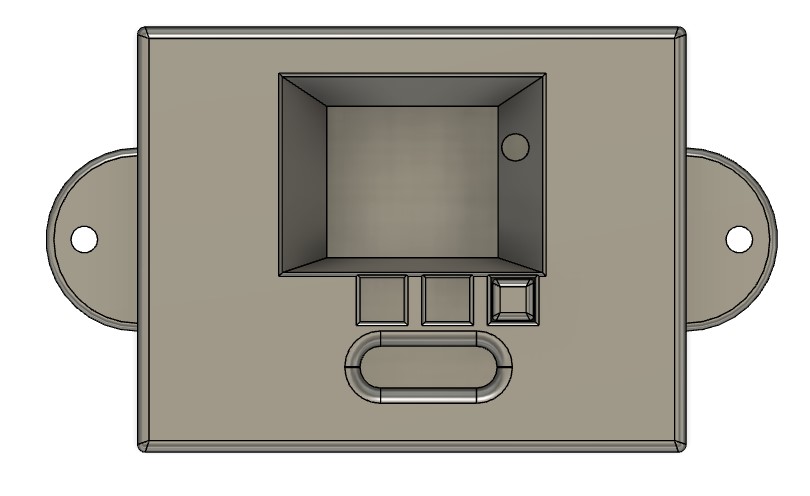

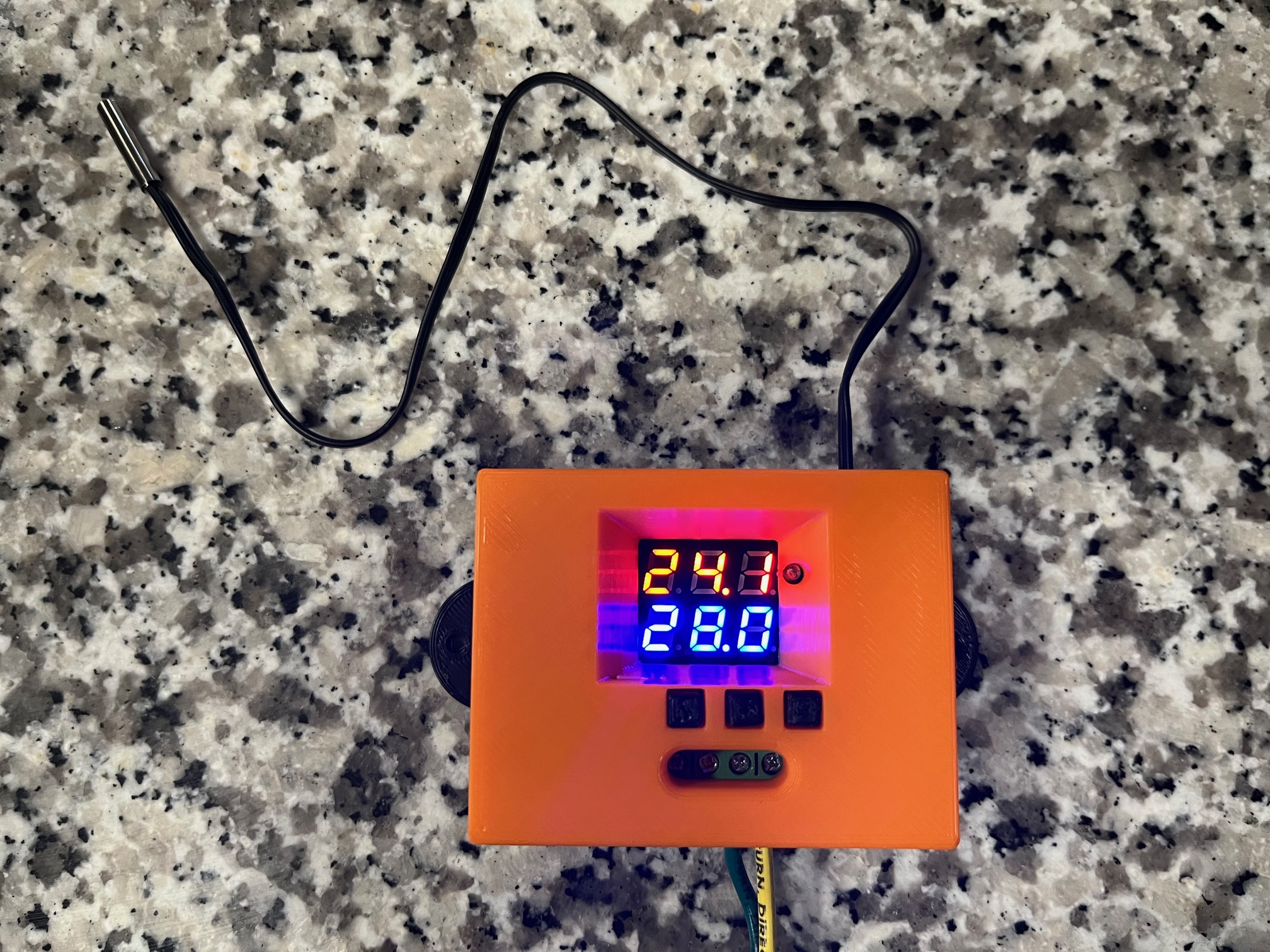

This is a snap fit case for W1219 temperature controller module

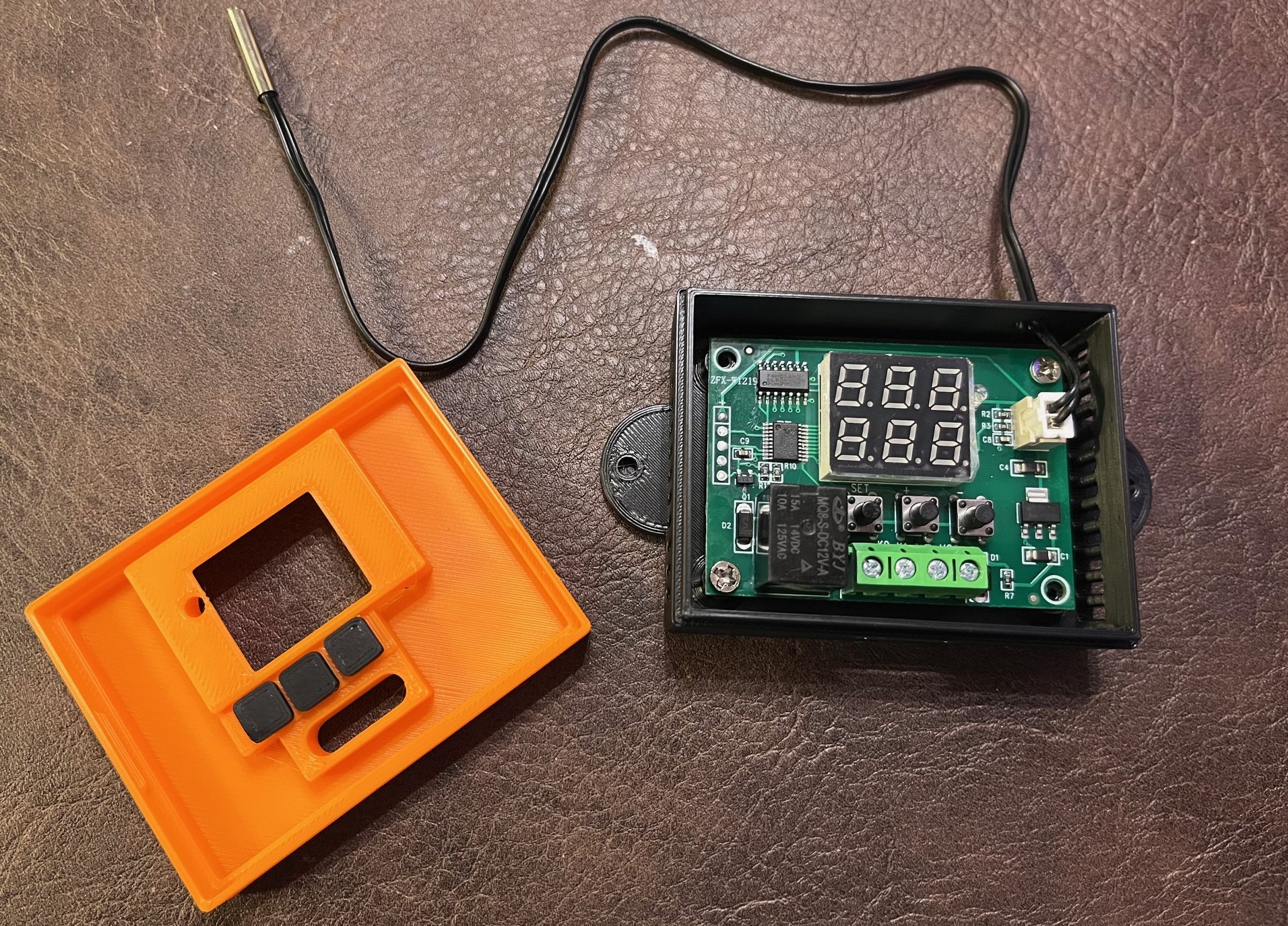

The board itself need to be attached to the base with screws and lid is snap fit

It has three different parts: Bottom Base, Top Lid and Switch (x3)

All three parts could be printed without any support.

Enclosure has ventilation grills on both sides, holes to connect power, control and sensor wires and also for the status hole LED

Enclosure also has screw mounting option

Printables

W1219 Temperature Controller Enclosure

Publicado em 7 de dez de 2024

5
Curtidas
62
Downloads
Categoria Electronics
Tags
case enclosure
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (6)
W1219_Case_Switch.stl 47.5 KB
W1219_Case_Top.step 161.8 KB
W1219_Case_Bottom.step 281.2 KB
W1219_Case_Top.stl 198.3 KB
W1219_Case_Switch.step 39.6 KB
W1219_Case_Bottom.stl 613.3 KB
