Modelo 3D Organizer Box Small Double por 3DPrintyi no Printables

Descrição

Please read the description!

When you decide to print my model please print the normal box first and look how it goes before you print the organizer holder!


This model is not compatible with gridfinity!

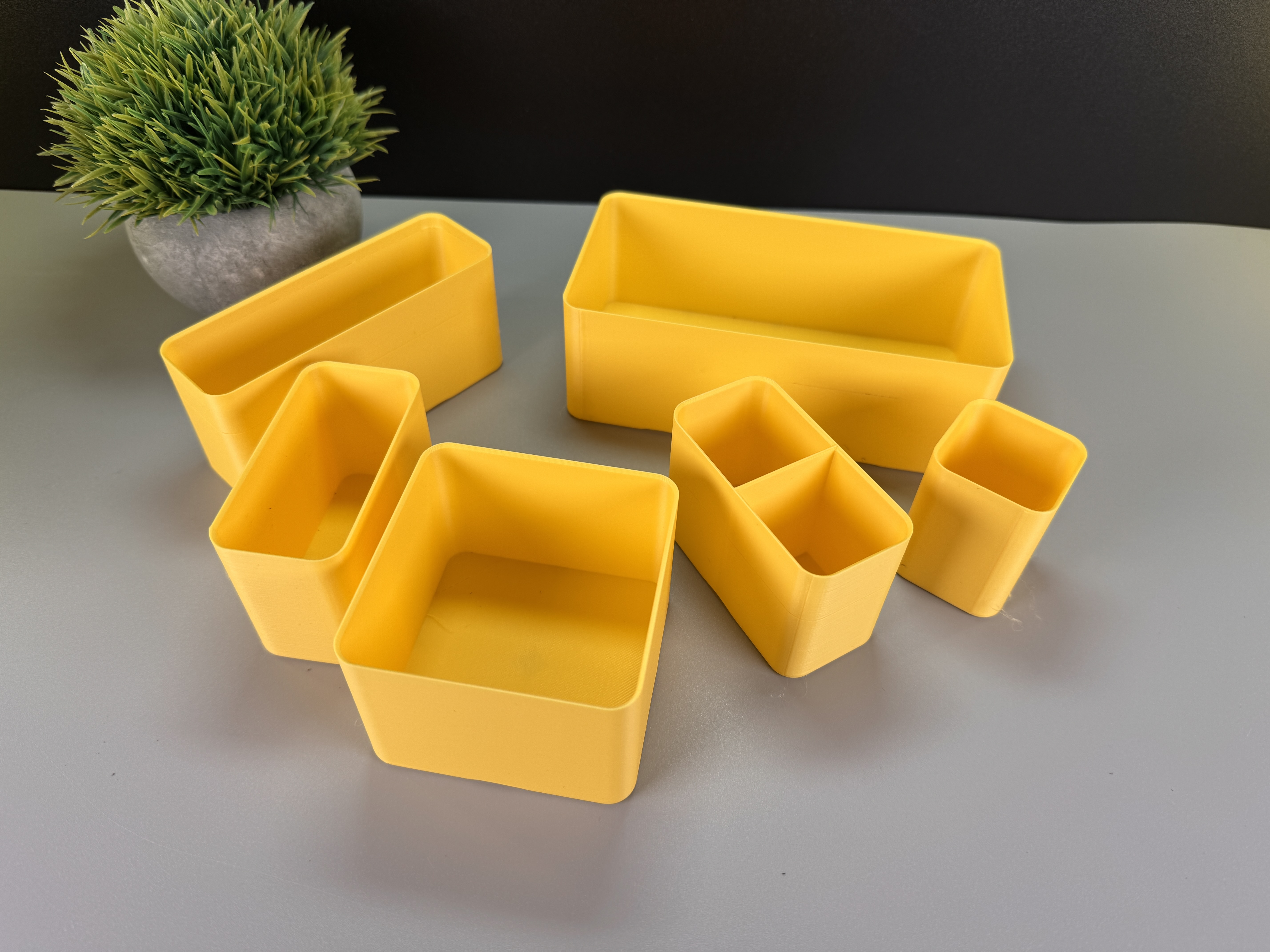

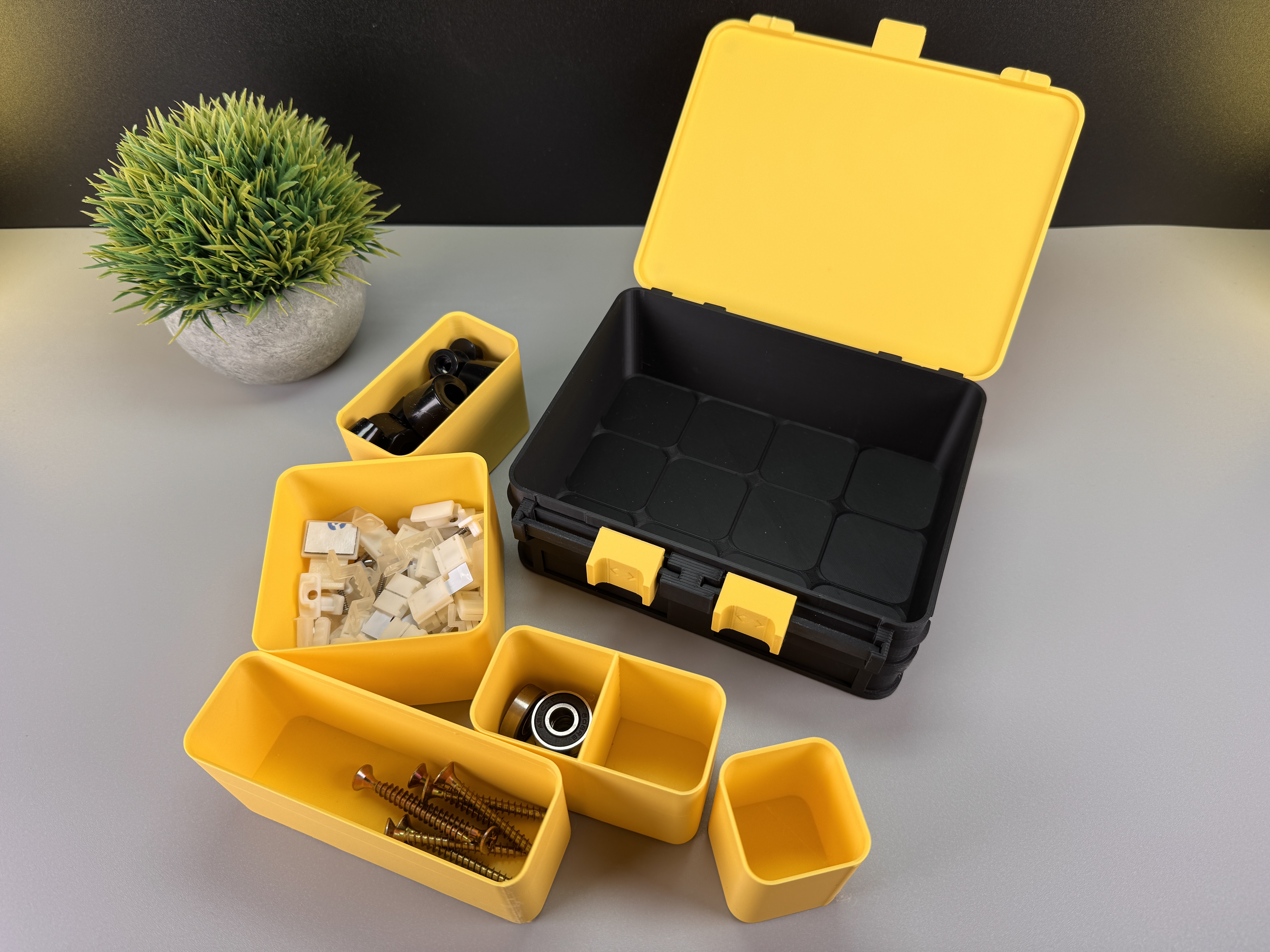

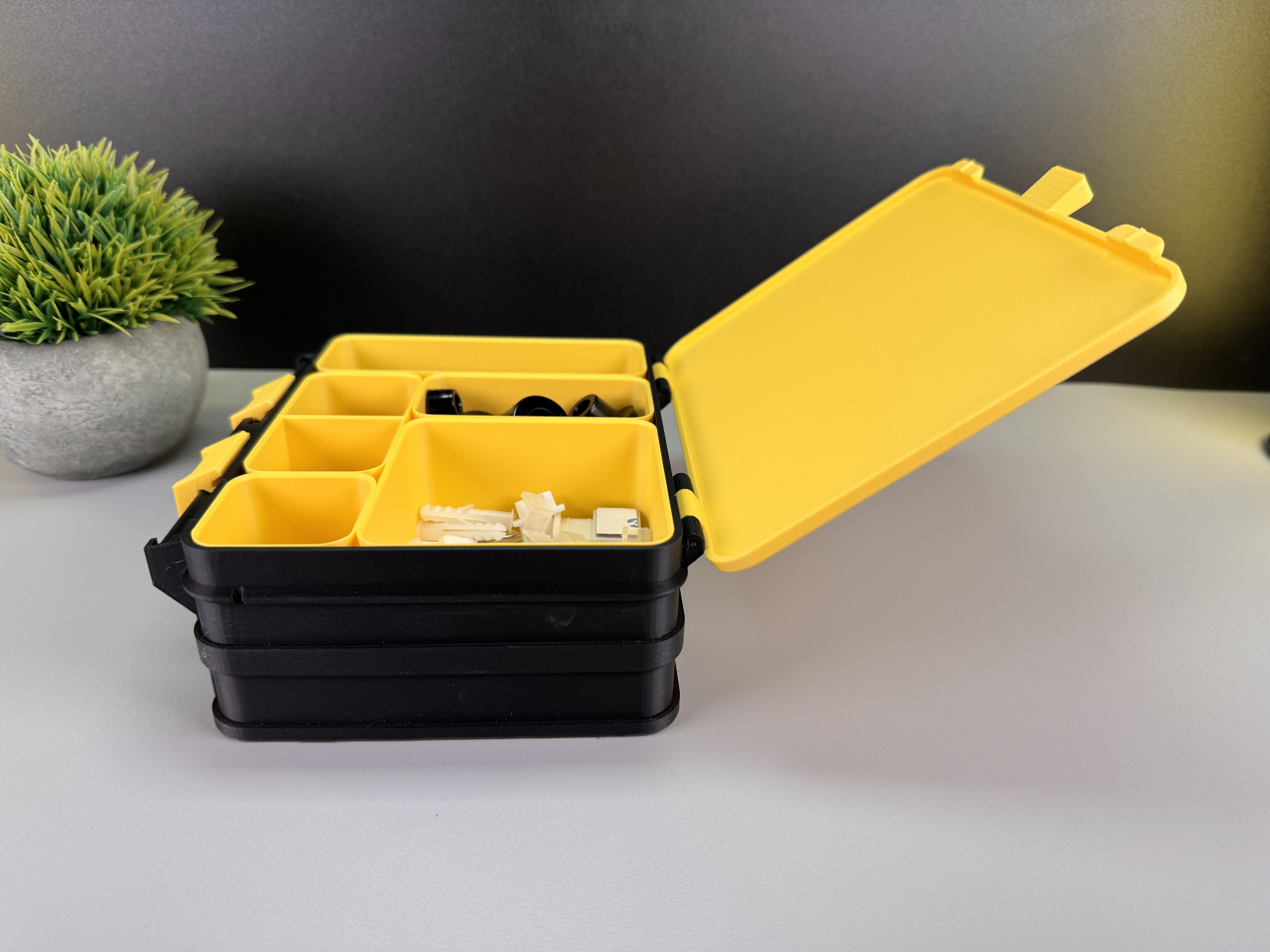

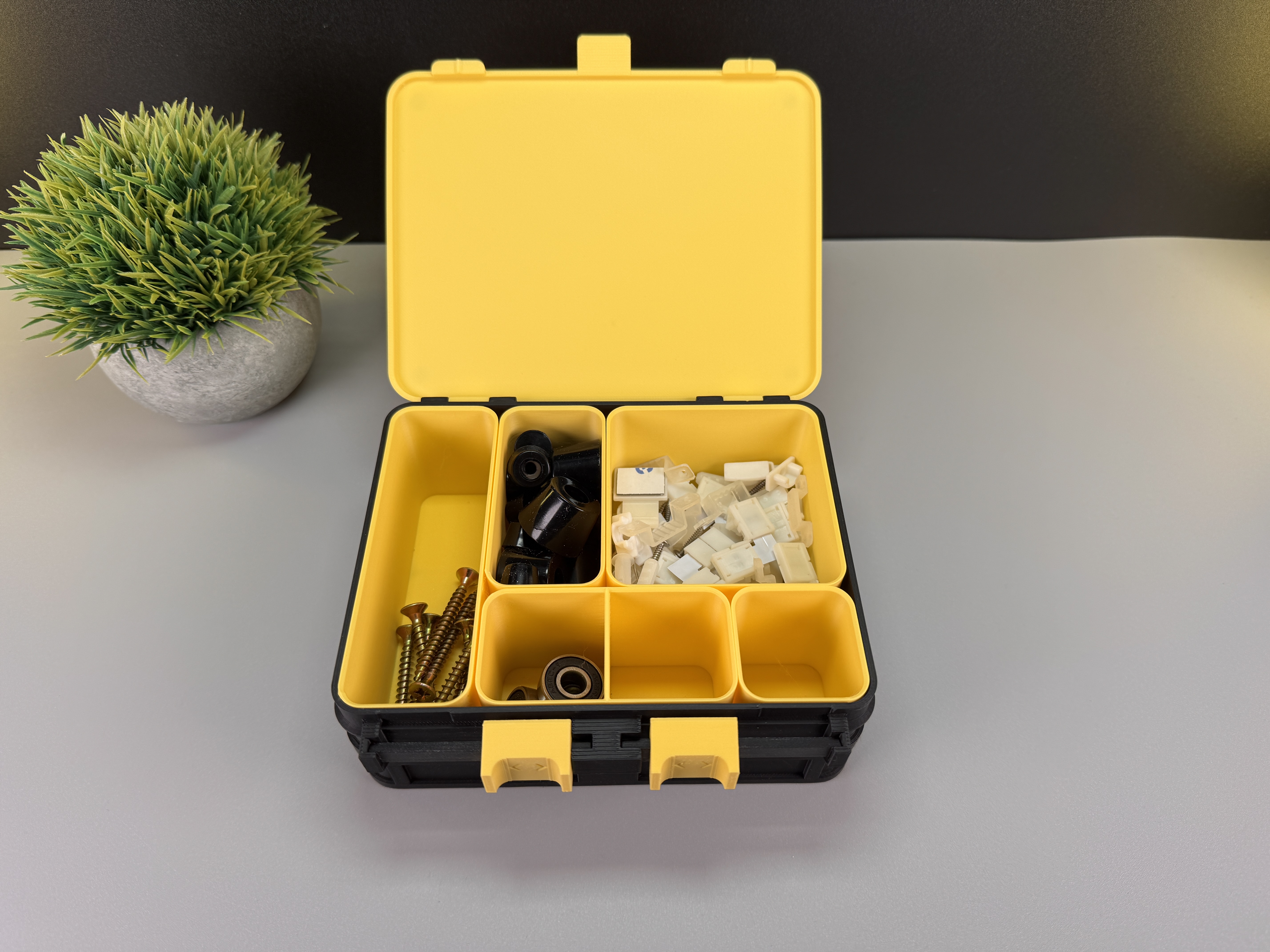

This is the Organizer Box Small Double. The box is twice as high as the normal version of the box. The Organizer Box Small Double has also been reinforced a little to compensate for the height a little better. The inserts have all been remade. They can now all be placed on top of each other (V02). I hope you like it!

Size of the Models:

Organizer Box Small: [https://www.printables.com/de/model/942089-organizer-box](https://www.printables.com/de/model/942089-organizer-box)

Organizer Box Xl: [https://www.printables.com/model/980912-organizer-box-xl](https://www.printables.com/model/980912-organizer-box-xl)

Organizer Box XL Double: [https://www.printables.com/model/1029683-organizer-box-xl-double](https://www.printables.com/model/1029683-organizer-box-xl-double)

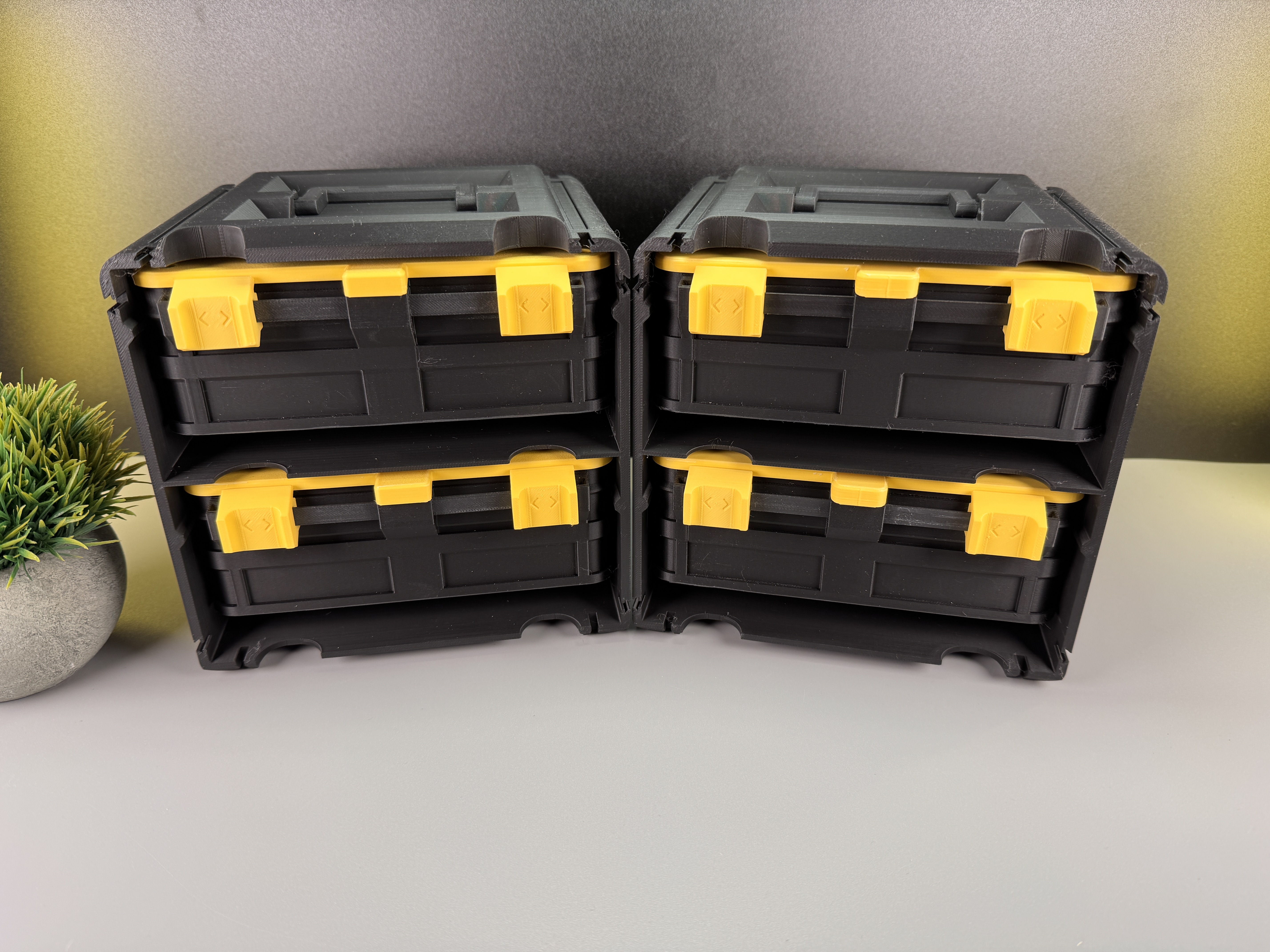

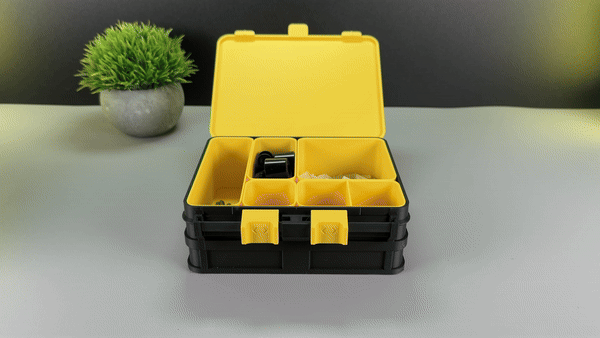

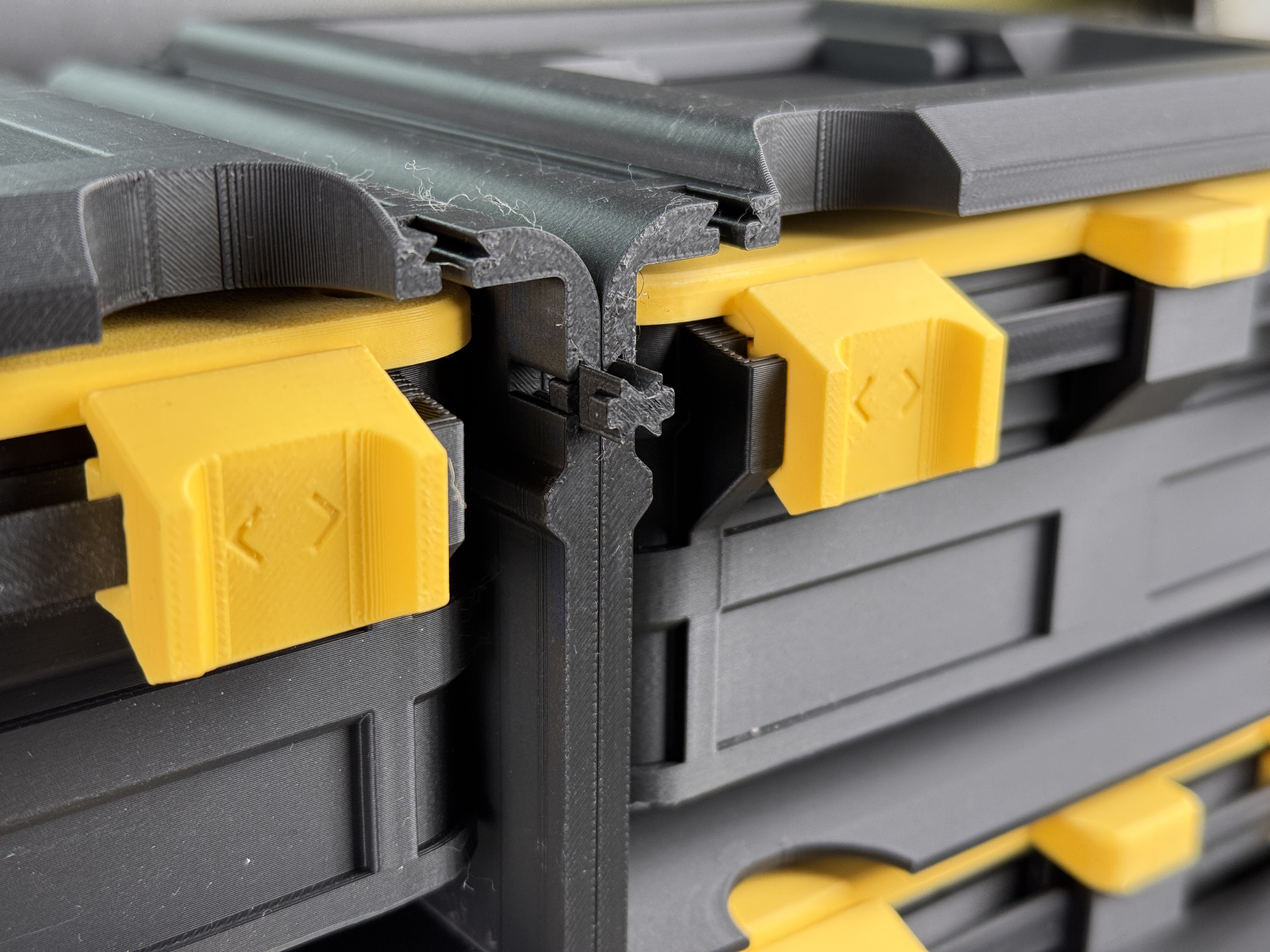

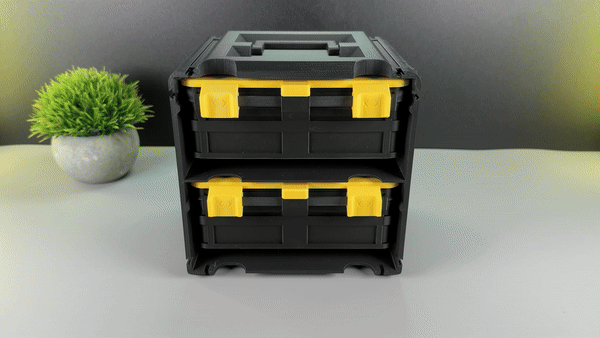

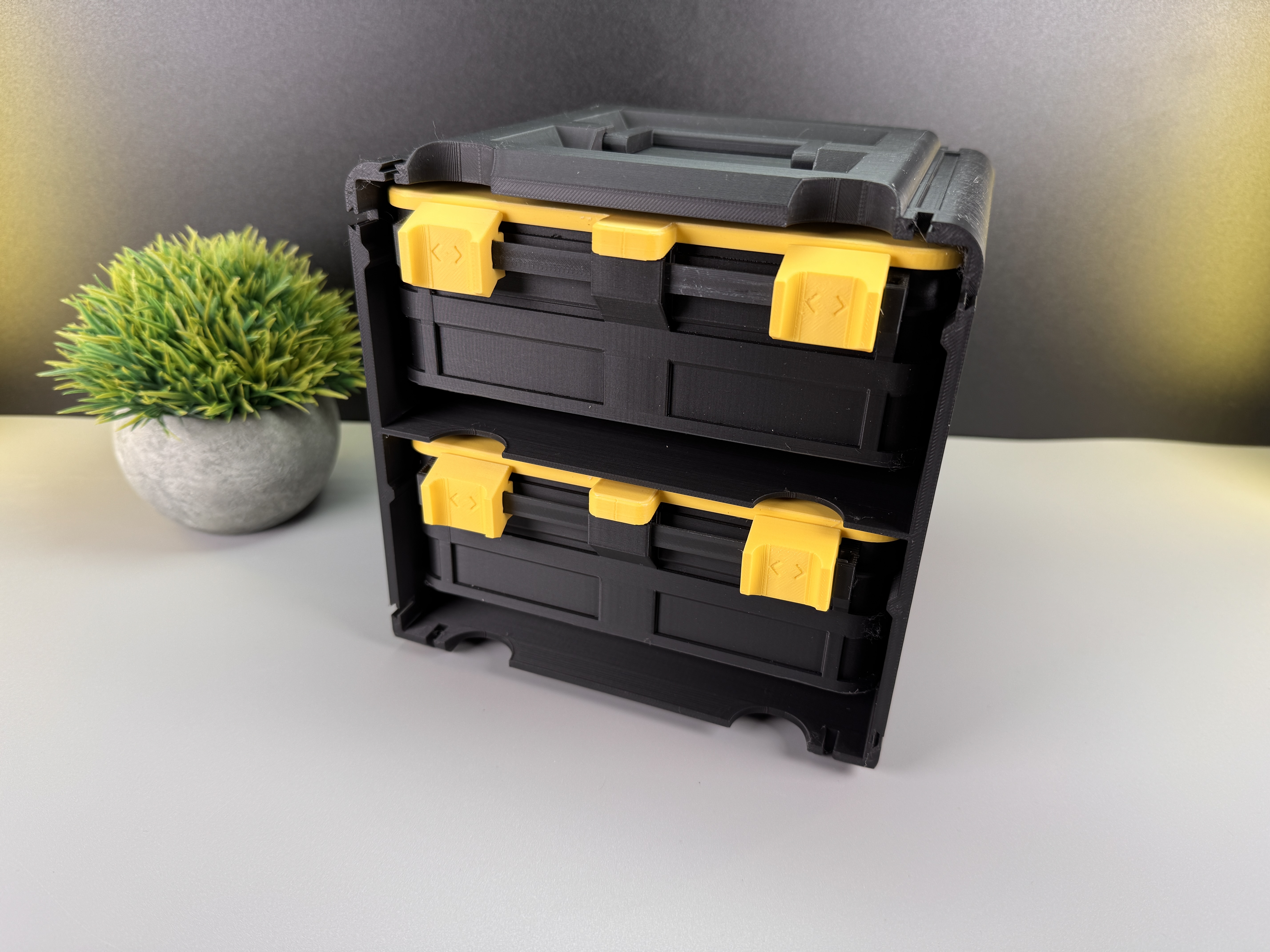

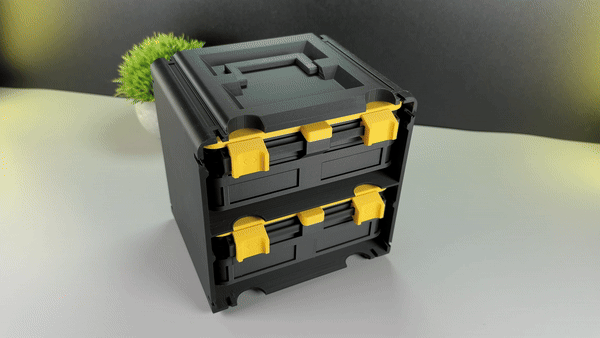

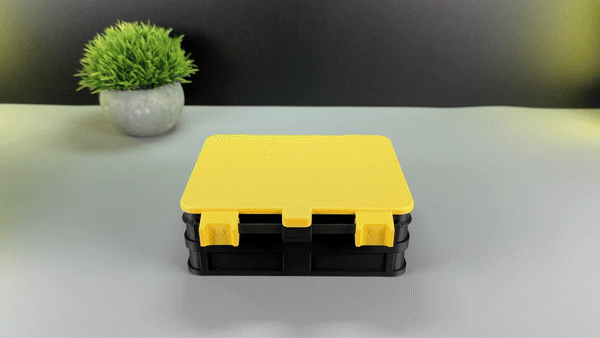

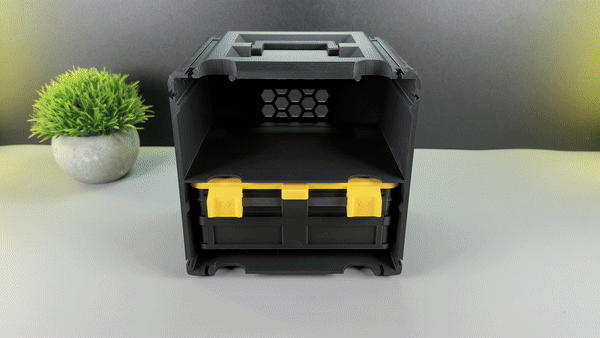

This organizer box (Small Version Double) has a lockable sliding mechanism. The boxes can be stored in a holder with up to 2 pieces. You can connect the holders with connectors in any direction and thus hold them all together. Inserts are available in all sizes, but more from me will be added from time to time!

The box should only be placed directly on the table and not mounted to the wall, as it is made of plastic.

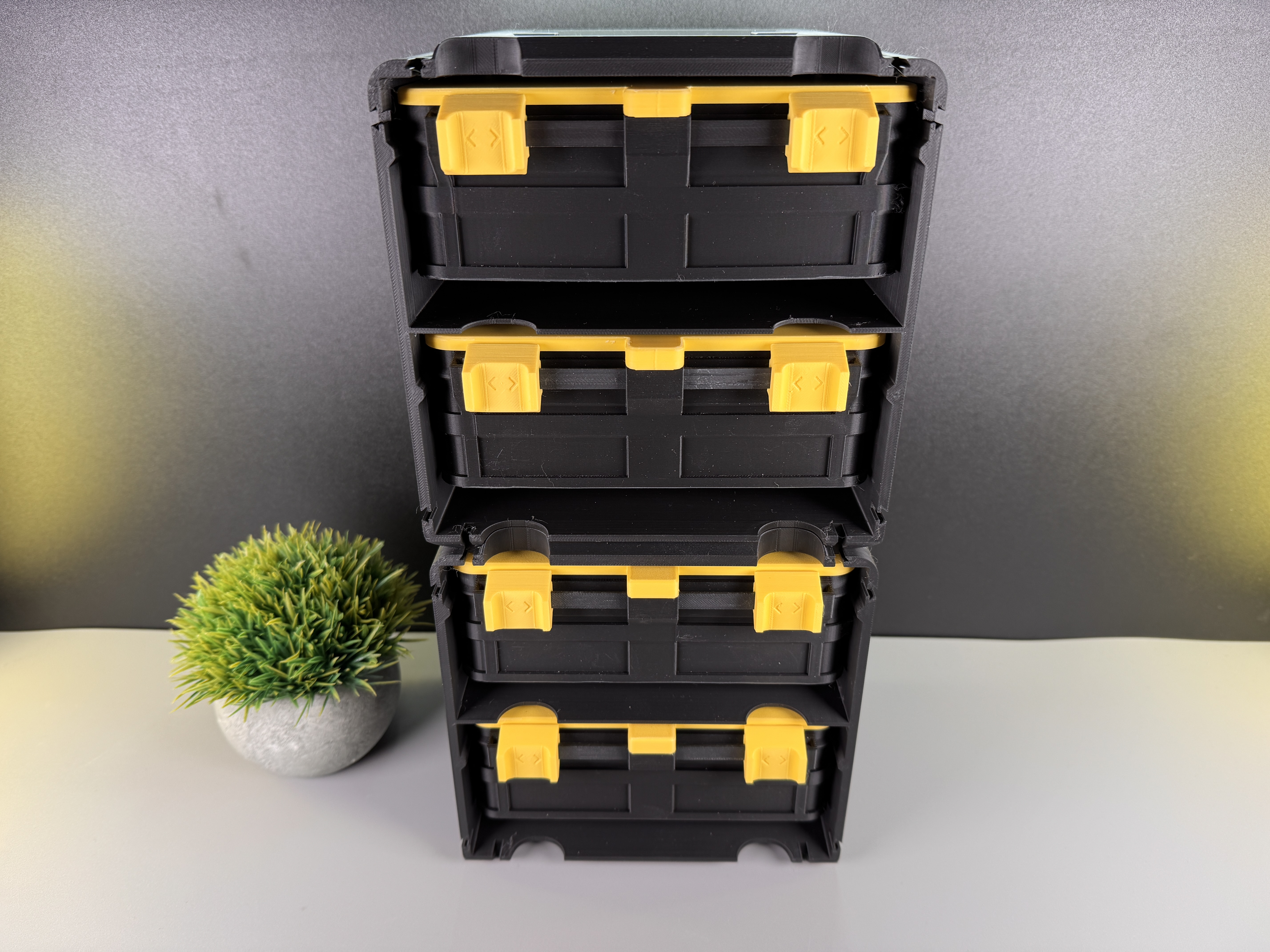

Important!!! You can only connect the box holders with the same sizes in the horizontal length. For the vertical height it doesn't matter which sizes you want to combine. (see picture below)

Here are my tips for printing! Please use these values, as I have adapted my models to these and only so I can guarantee that everything works perfectly!!!

Tipps and values:

  • Filament: PLA recommended (PETG also works)

  • Quality (Layer Height): 0,2mm

  • Wall Loops: 3

  • Infill: 20-30% (the Handle for the organizer holder must be printed in 100% Infill)

  • Infill pattern: Doesn't matter (I used Rectilinear)

  • Supports: No! (Do not use supports for all of my Parts!)

  • Wall generator: For all Inserts Arachne!!! For all other parts Classic!!!

Print the parts as they are already oriented

Please make sure that the parts come not loose while printing them. When this happens it could be that the function of my sliding mechanism does not work perfectly!

It's just a recommendation, if the parts should hold well on your plate, you don't necessarily have to use a brim.

You can add a brim to the:

  • Lid

  • Bottom

  • Organizer Holder

  • Slide Lock Left/Right

I have made an instruction how to assemble my organizer box Small Double. You can find the instructions  in the download folder!

Changes and added models:

  • Nothing added jet!

Problems that have occurred

How to solve them

Rails don't fit in the SlideLockLeft/Right

Scale the rail down on Y and Z scale by 0.4mm or try out which value you need to adjust!

Added Rail_reduced_0,2mm_2x_V01 (Folder:OtherDesigns) this should help too (made the rail smaller) (print it as oriented!)

filament won't fit through the hinges

drill out the hinges if you can (be very careful that you don't take to much away!) because the filament must sit a little tight in the hole, otherwise the hinge will not work correct and the filament can fall out of the hinge!
