Descrição
Streamline your display or gridfinity setup with the Stackable Display Shelf System! Easy to print and assemble, just stick the pieces together!
Designed for filament conscious printing, this system allows for multiple configurations, making it perfect for a variety of uses.

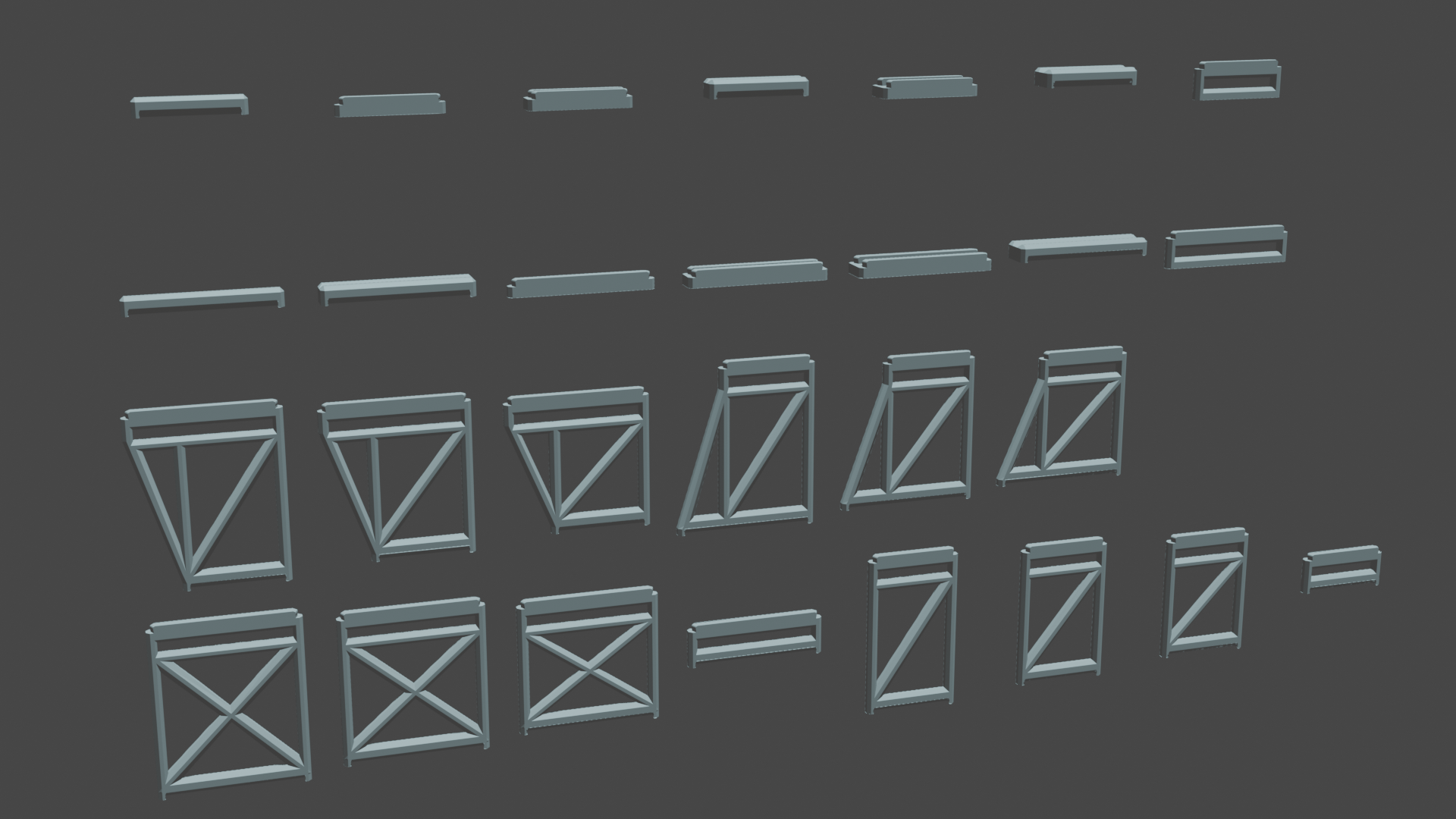

Choose from 36 different interconnectable stand parts and 8 different shelf parts.
The shelves are intercompatible with the 3-in-1 Display Shelf.
Parts to print

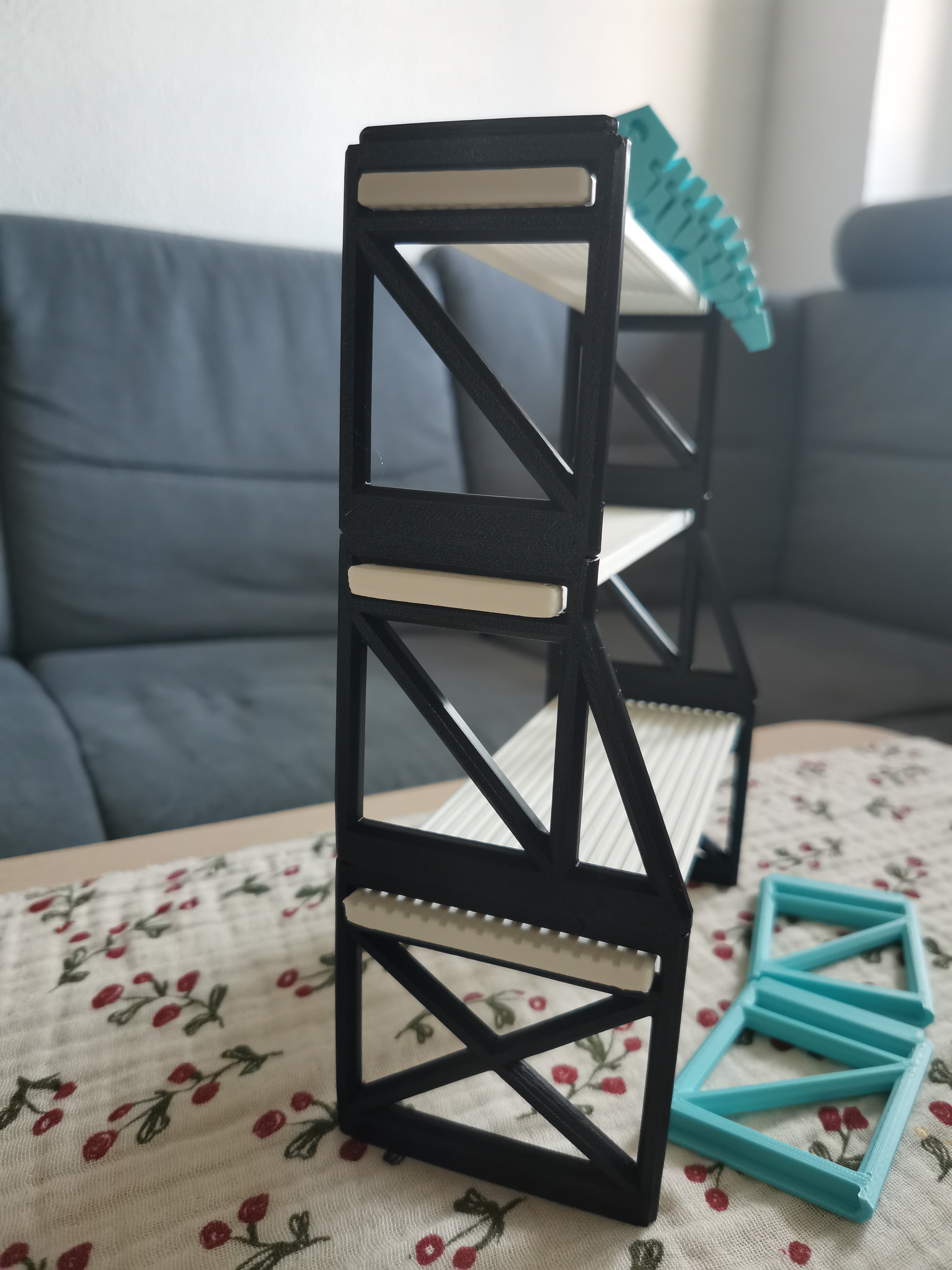

Each ‘stack’ needs
2x base
1x shelf
If you want to save filament, i recommend the hexagon shelves.

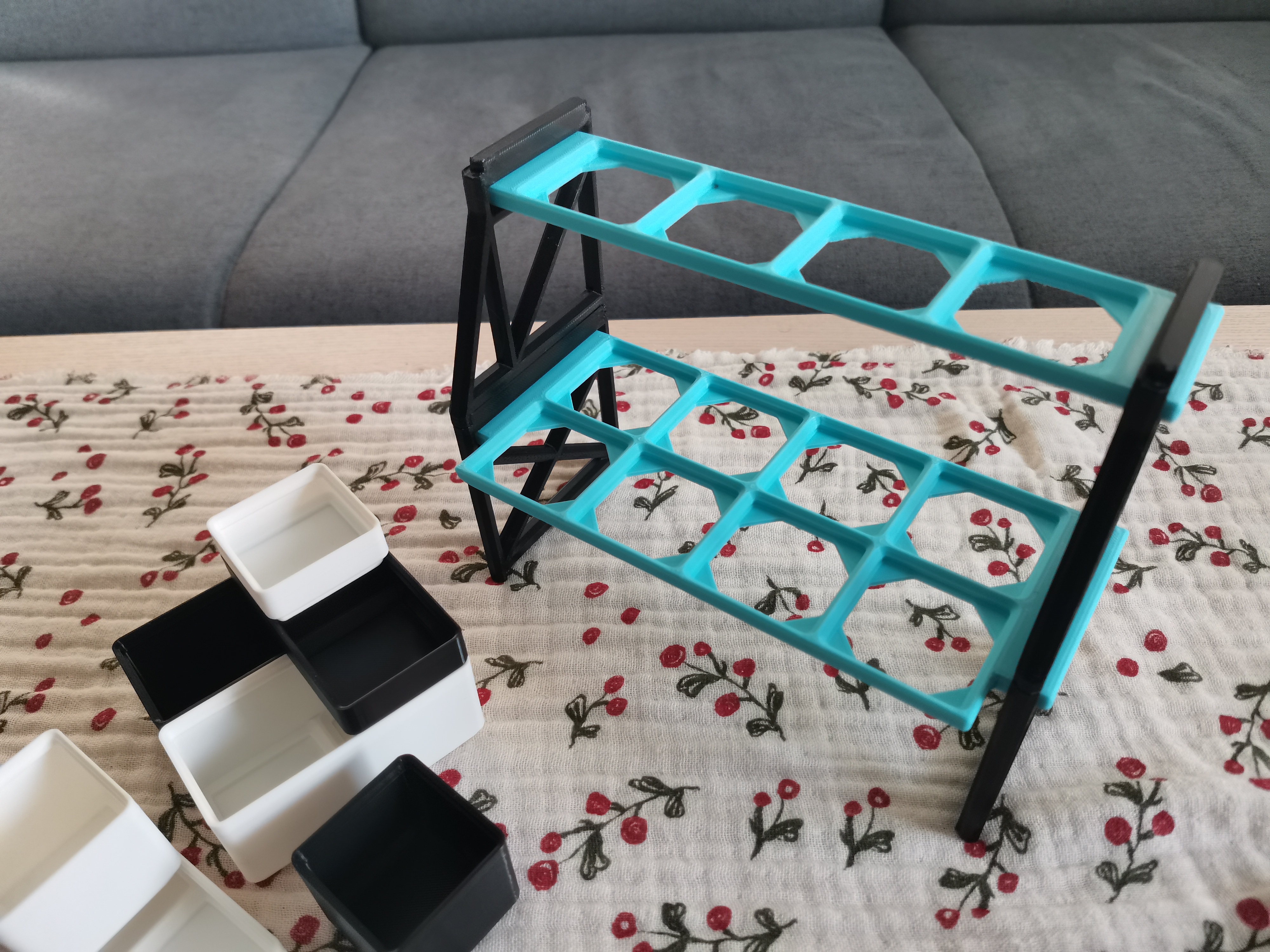

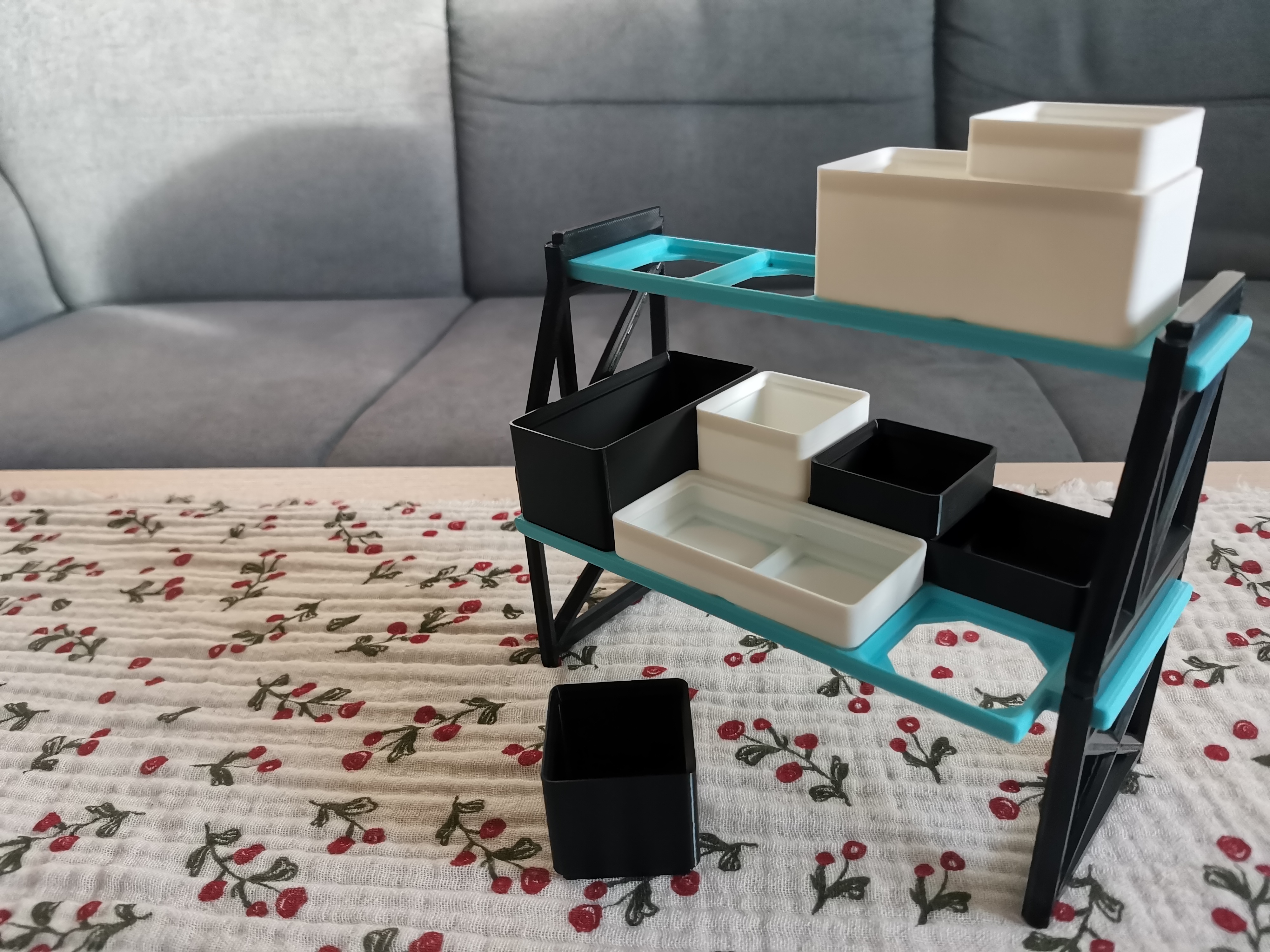

The short gridfinity shelf is 4x1 and the long shelf is 4x2.
For 80mm high bases the sensible maximum is 7U, for 90mm 8U and for 100mm 9U. There is space for more, but accessing them gets cumbersome. The gridfinity bins in the photos are 2U and 5U.
Attribution
This model is originally based upon the Display Stand (3 shelf) by elden.designs. For this model, only the dimensions of the shelves are still shared with the model by elden.design.
The gridfinity shelves are based upon the gridfinity minimal magnetic baseplate by Jools.
Size
Short Base: 57x(26/80/90/100/120/150)x7 mm
Short Feet: 57x(10/22)x7 mm
Short Cap: 57x10x7 mm
Short Shelf: 45x6x200 mm
Long Base: 82x(26/80/90/100/120/150)x7 mm
Long Feet: 82x(10/22)x7 mm
Long Cap: 82x10x7mm
Long Shelf: 70x6x200 mm
Supports
Normal (not tree) supports are needed for the base models.
These are very small and easy to remove and only needed for the click-together part.
3D Printing Settings
Layer Height: 0.2 mm
Infill: 15%
Update Log
[06.02.25] - adds 120mm & 150mm base variants, optimizes geometry of existing variants
[06.01.25] - adds gridfinity shelves
[13.12.24] - adds connector caps & feet
[09.12.24] - adds 26mm base parts, adds 10 & 22mm feet parts, adds 10mm cap parts
[05.12.24] - adds 90 & 100mm version of all base parts
Stackable Display Shelf System (Gridfinity compatible)
Publicado em 12 de mar de 2026
