This is my remix of AAScan frame from QLRO at [https://www.thingiverse.com/thing:4167615](https://www.thingiverse.com/thing:4167615)
I recreated all parts and added some improvements.

1. No supports needed for all parts.
2. Reduced print time for complete project.

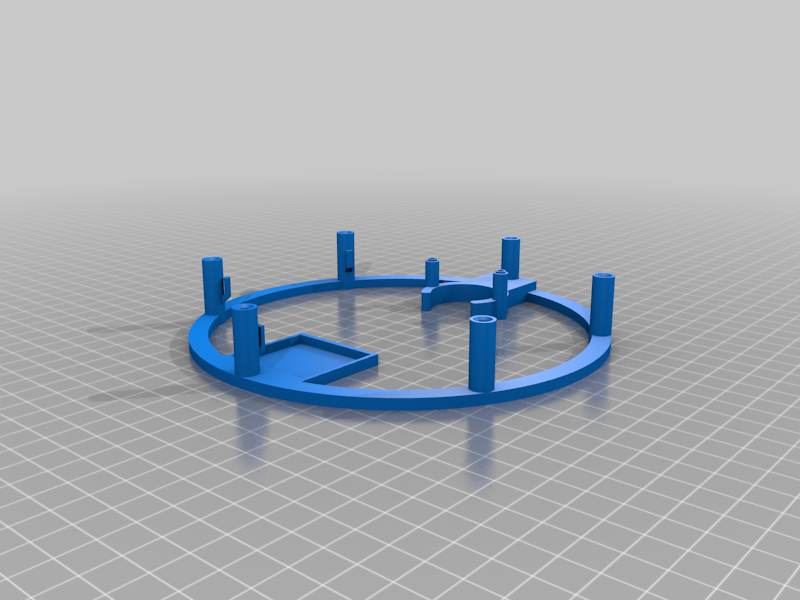

3. Motor holder is now part of base frame.
4. Motor holder has holes for M3 screws for better motor fixation.
5. Added pocket for step motor electronics + cable holders at bars.

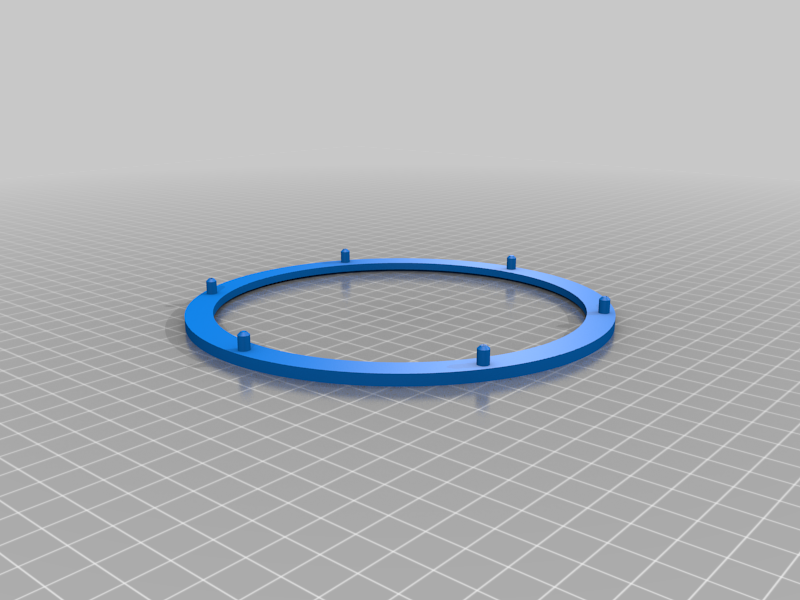

6. Gear ring with pins holding it in the base without glue.

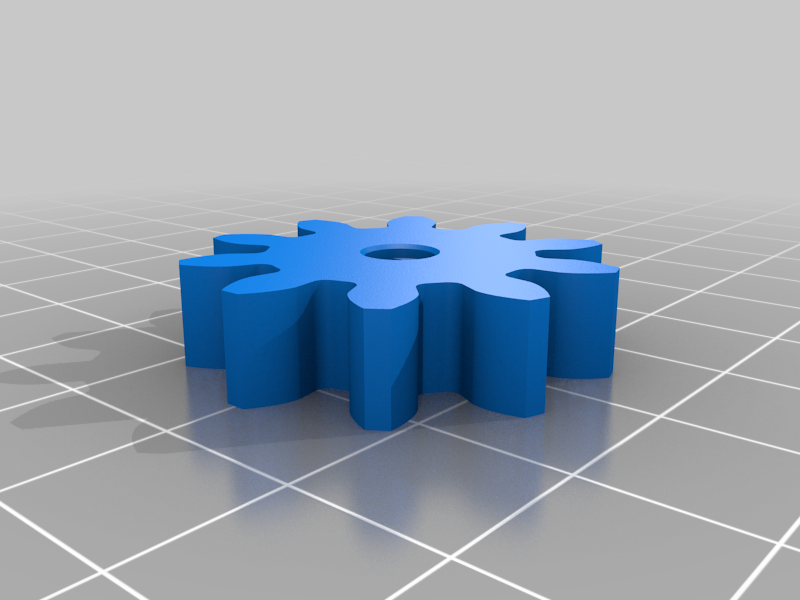

7. Small gear has shaped pocket for motor axis. No fixation needed.

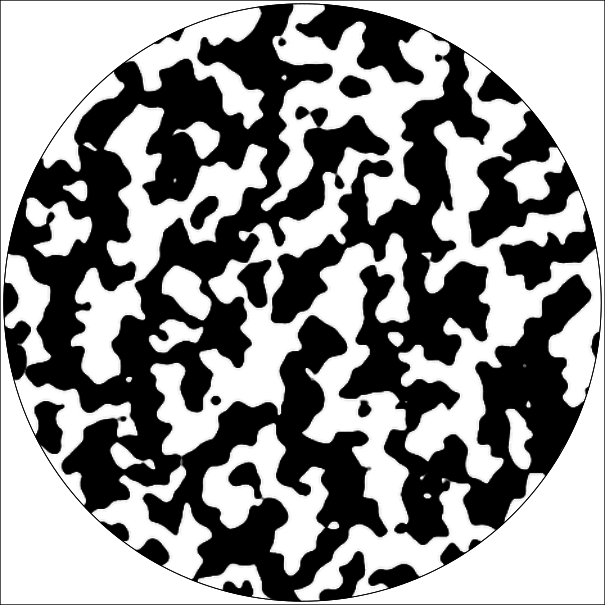

Included board print with exact dimensions and shape for cutting.

Software

For scanner control please use software from original post.
