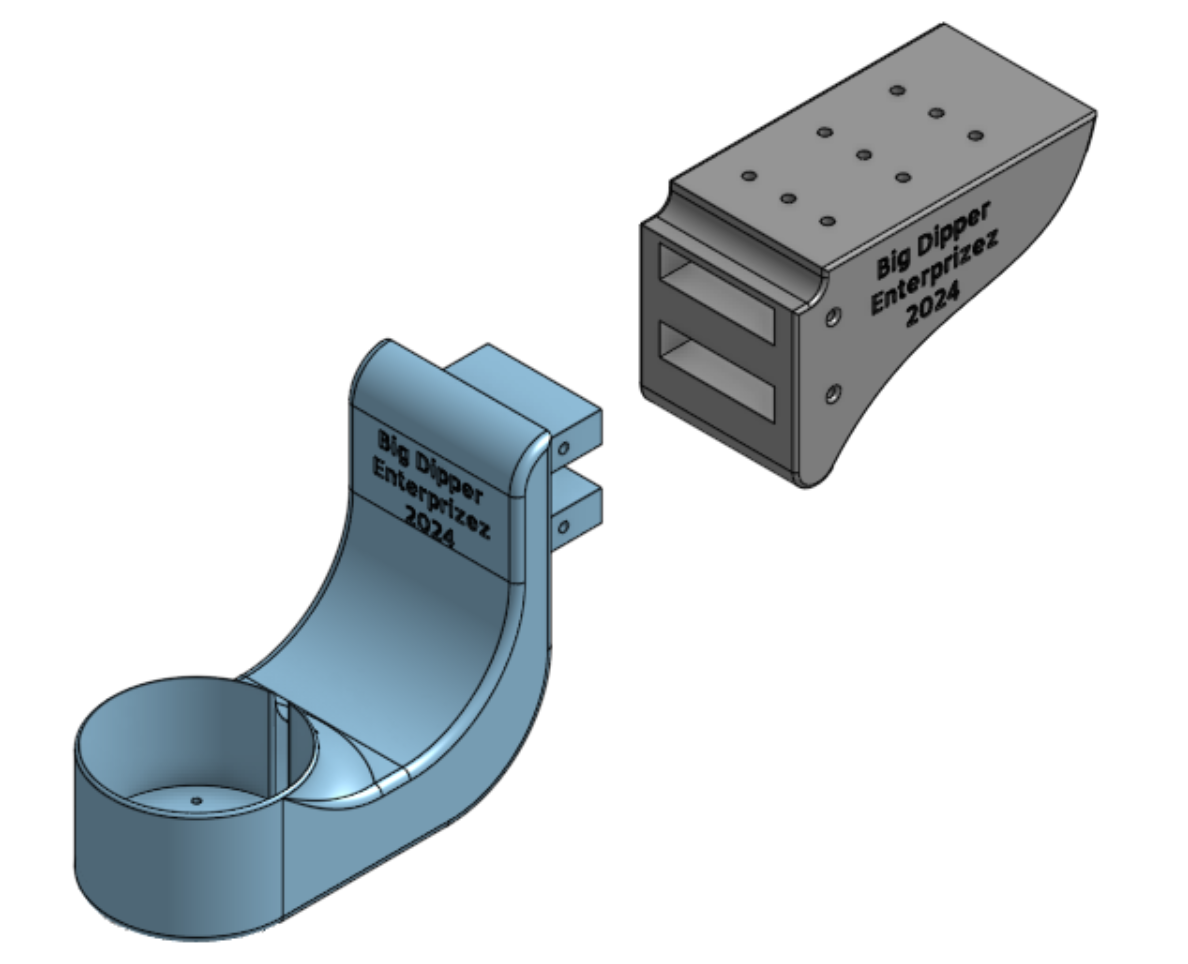

This bracket is designed to securely attach the ThrustMaster Flight Stick to a desk or table. It consists of two main components: the support bracket and the stick bracket.

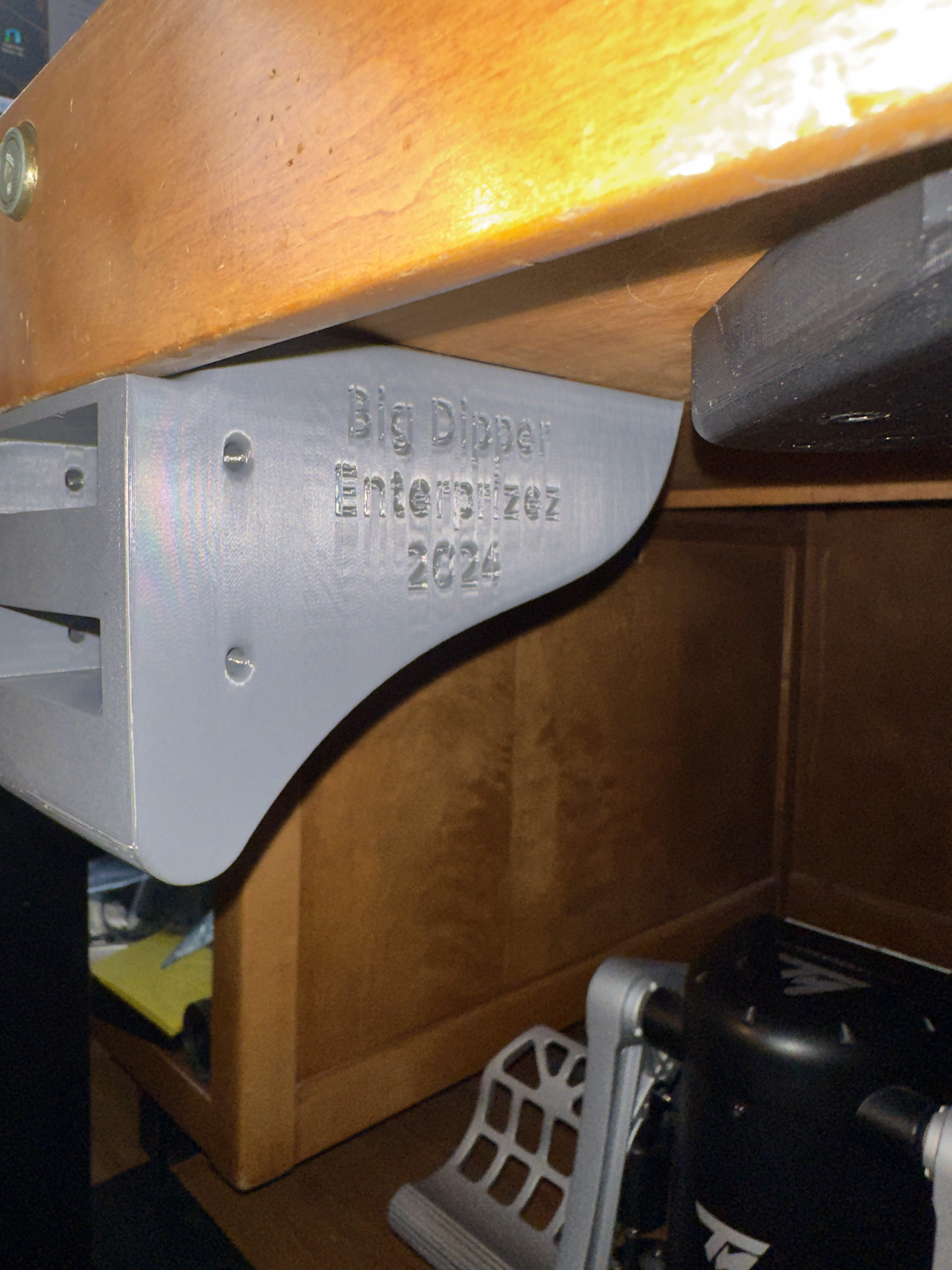

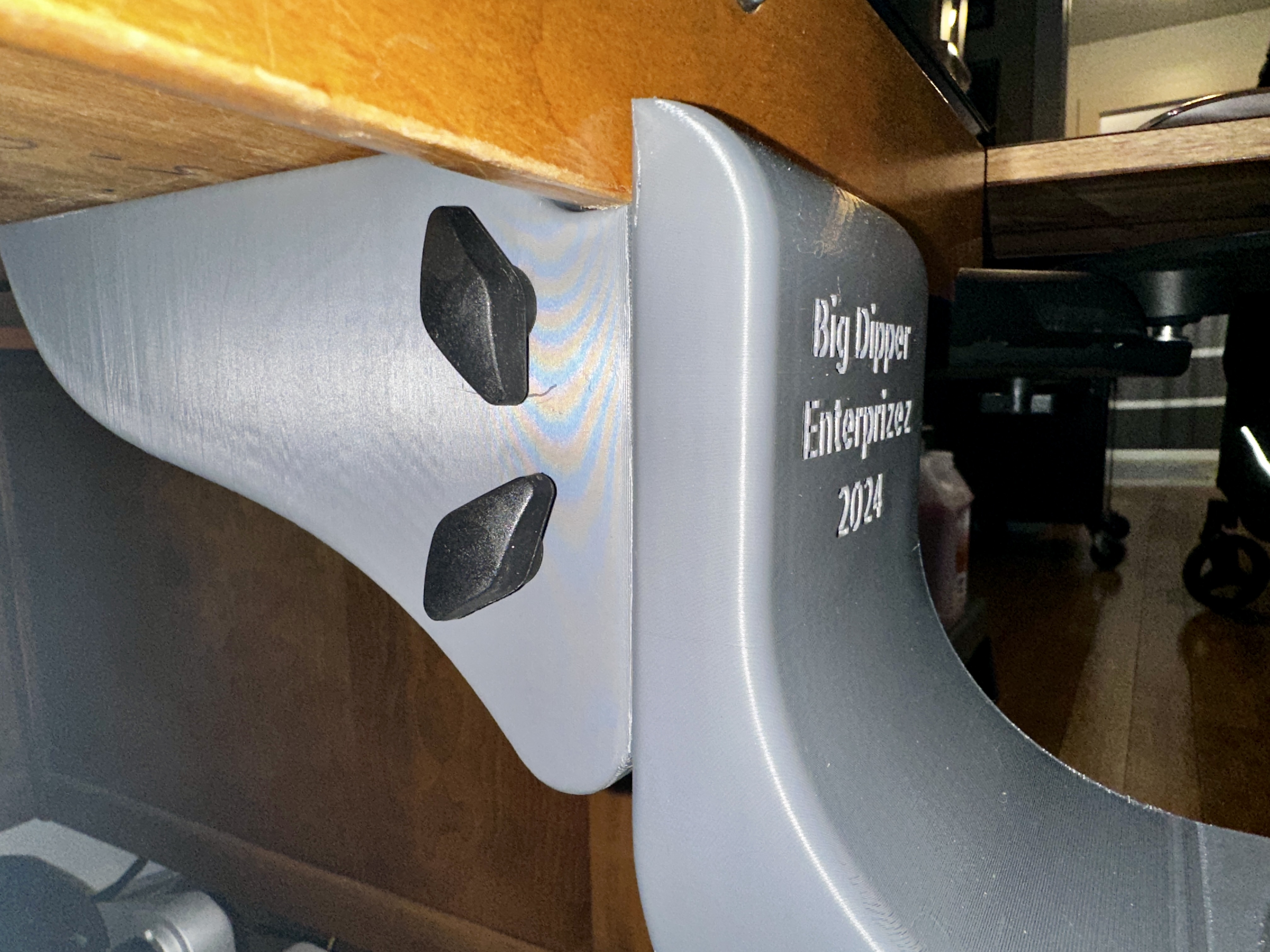

The support bracket is permanently affixed to the desk or table. The stick bracket features tenons that fit into mortises on the support bracket. Once inserted, the stick bracket is locked in place using four M5 x 20mm clamping screws, which are threaded into heat-set M5 x 10 x 7 inserts located on the sides of the tenons.

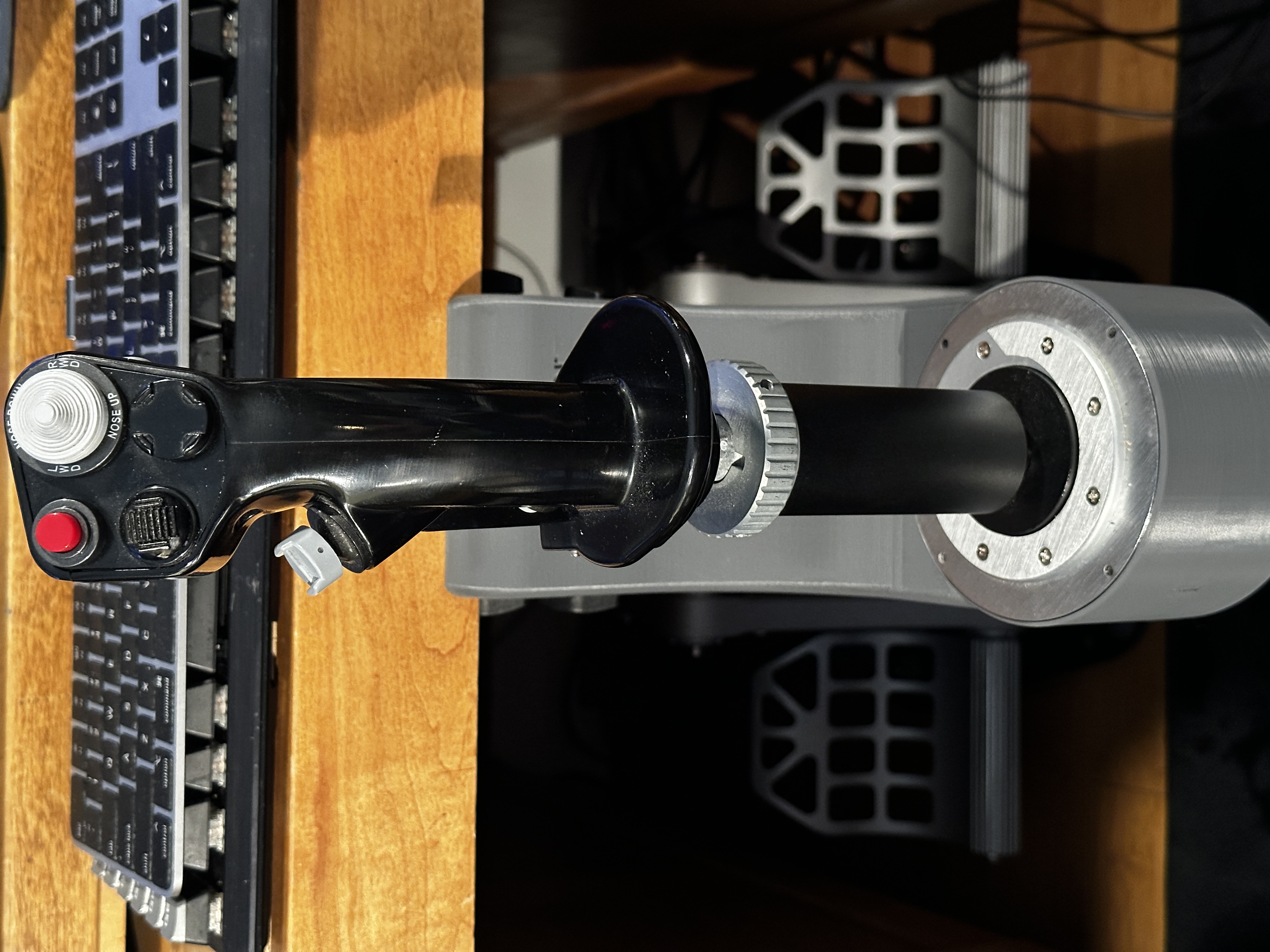

To detach the stick from the steel plate, simply remove the four M4 screws located on the bottom. To reattach the stick to the stick bracket, use four M4 x 20mm screws.

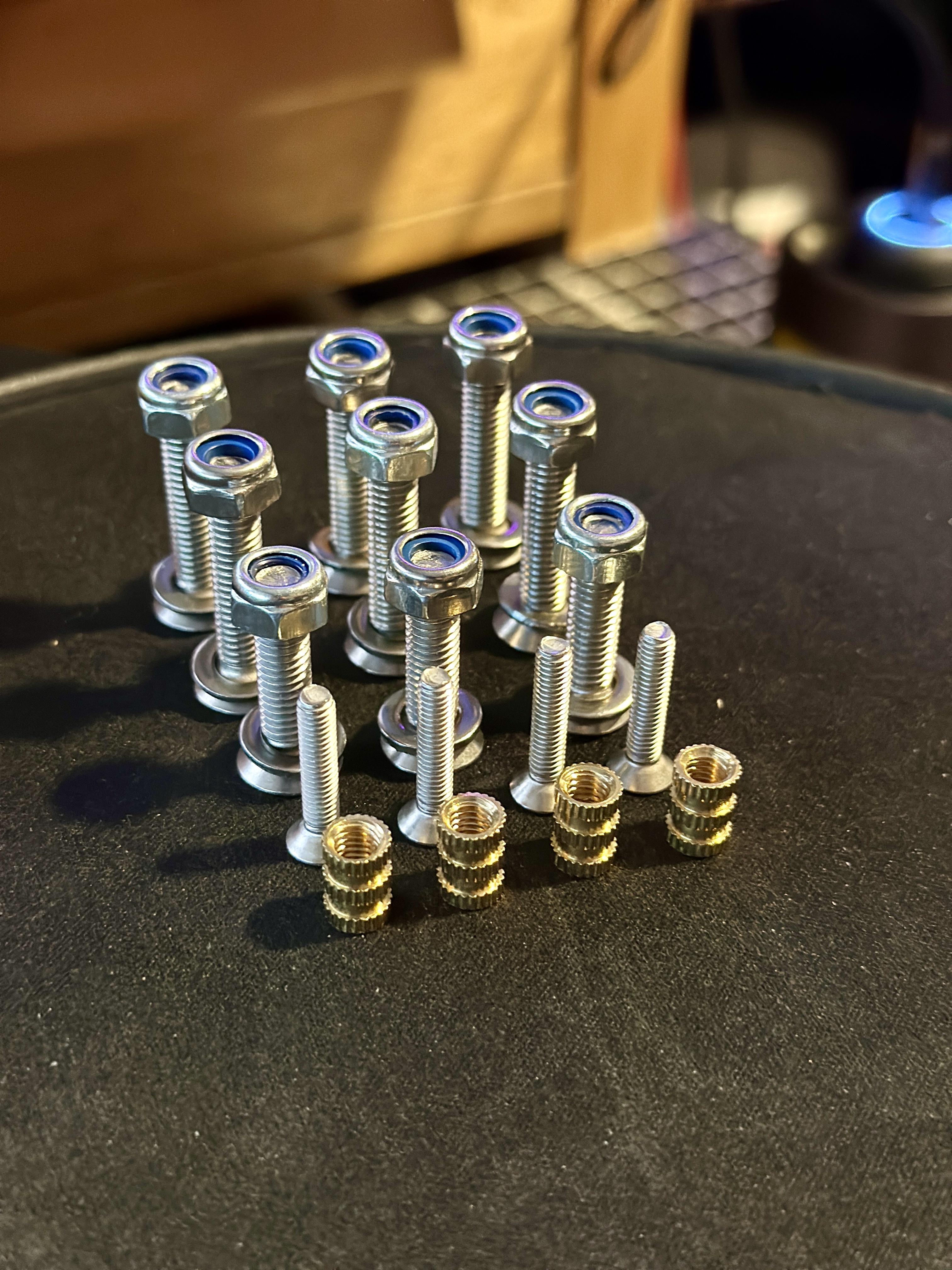

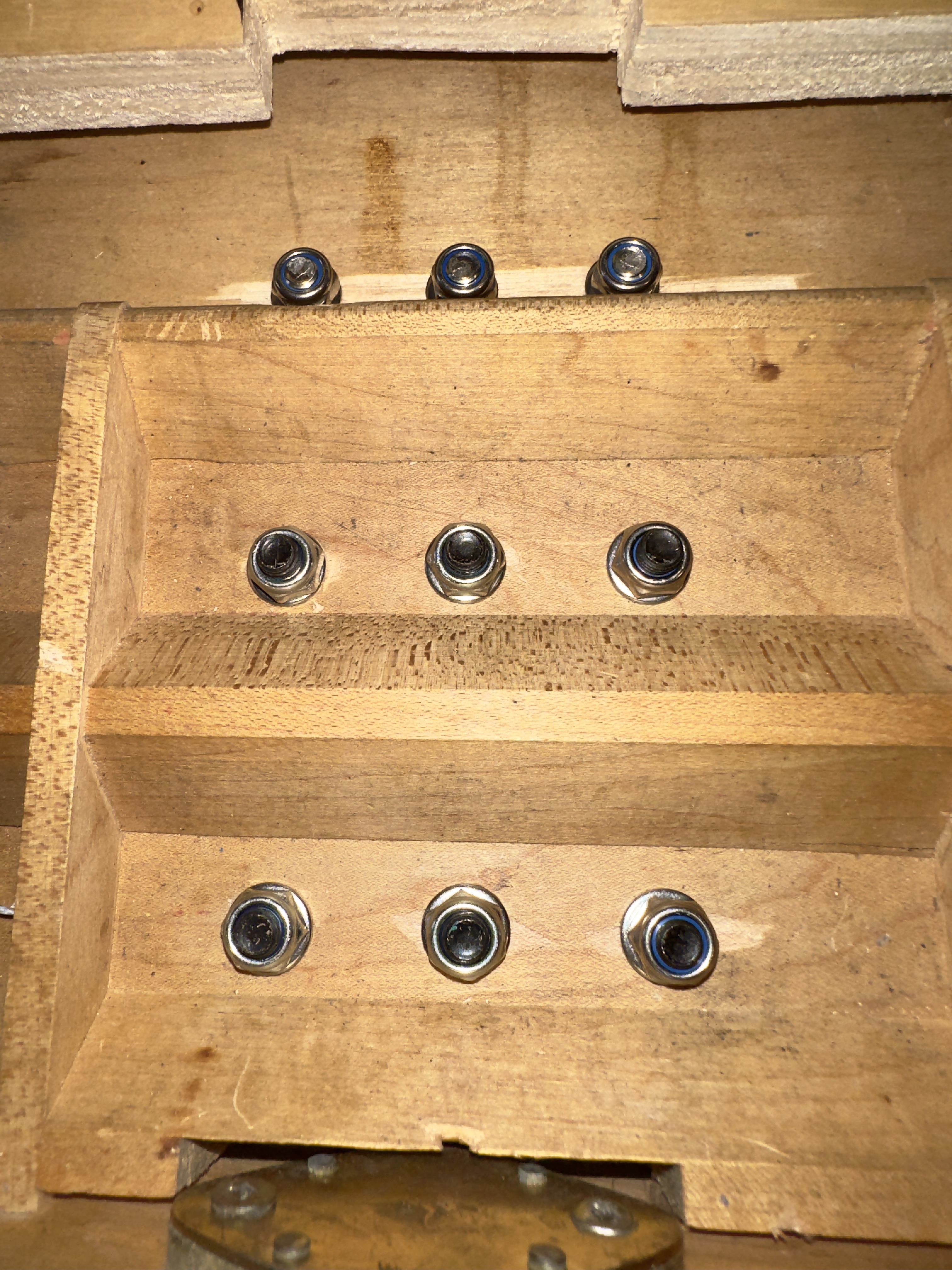

**Required Hardware (for my desk, where it is mounted to the bottom of a drawer):**

- 3 x M6 x 20mm Countersunk Screws
- 6 x M6 x 25mm Countersunk Screws
- 4 x M4 x 20mm Countersunk Screws
- 6 x M6 Washers
- 6 x M6 Nylon Insert Lock Nuts
- 4 x M5 x 10 x 7mm Heat-Set Inserts

**Printing Specifications:**

- Material: ABS (Precise Wall)
- Layer Height: 0.24 mm
- Wall Count: 4 walls
- Top and Bottom Layers: 5
- Infill: 40% (Adaptive Cubic)
- Brim Size: 10 mm
- Supports: For Curves and for the tennons at the read of the stick mount portion.
