Modelo 3D Temperature Controller Box por GeoJdk no Printables

Descrição

If you need a compact temperature controller for a project can this one perhaps be a solution together with my design

[https://www.aliexpress.com/item/4001226880181.html?spm=a2g0o.order_list.order_list_main.4.2fb21802cFmn5d](https://www.aliexpress.com/item/4001226880181.html?spm=a2g0o.order_list.order_list_main.4.2fb21802cFmn5d)

Required hardware:

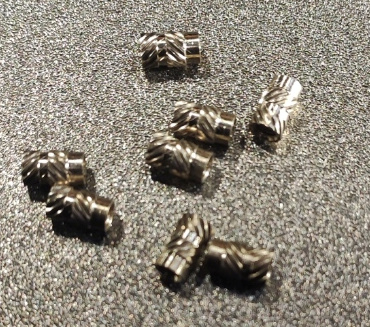

Heat-inserts: 8 PC M3,*7*4.2 or similar.
Screws: 4 PC M3*10mm and 4 PC M3*8mm  (countersunk)

Material: your choice.

Support: Tree support for the box window.

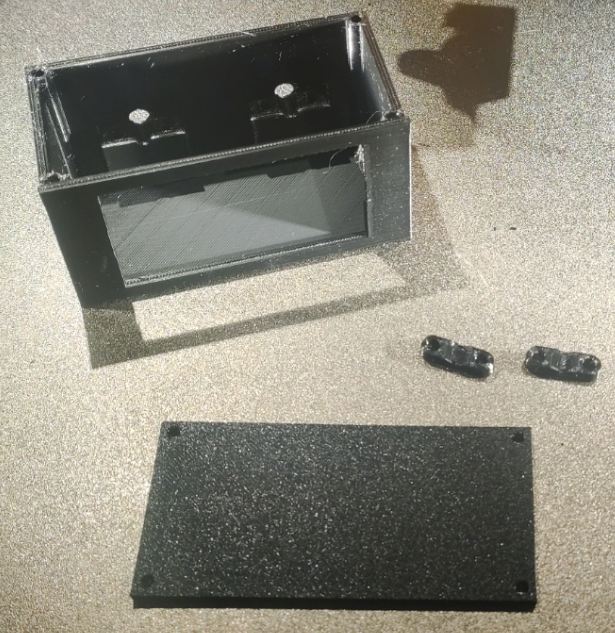

Parts in the design:

Box: Select this if you only need two cable outlets
Box2: Select this if you need three cable outlets

Bottom: Bottom lid to the box.

Cable relief: uses two in both design.

Cable relief2: only used together with Box2





Printables

Temperature Controller Box

Publicado em 24 de nov de 2024

9
Curtidas
36
Downloads
Categoria Electronics
Tags
temperature controllercase aliexpress
Licença Creative Commons — Attribution — Share Alike
Arquivos (10)
Box.stl 363.6 KB
Bottom.stl 58.5 KB
Bottom.obj 140.5 KB
Box.obj 757.1 KB
Cable Relief.stl 88.2 KB
Cable Relief.obj 201.8 KB
Cable Relief2.stl 100.7 KB
Box2.obj 1019.2 KB
Cable Relief2.obj 220.9 KB
Box2.stl 493 KB
