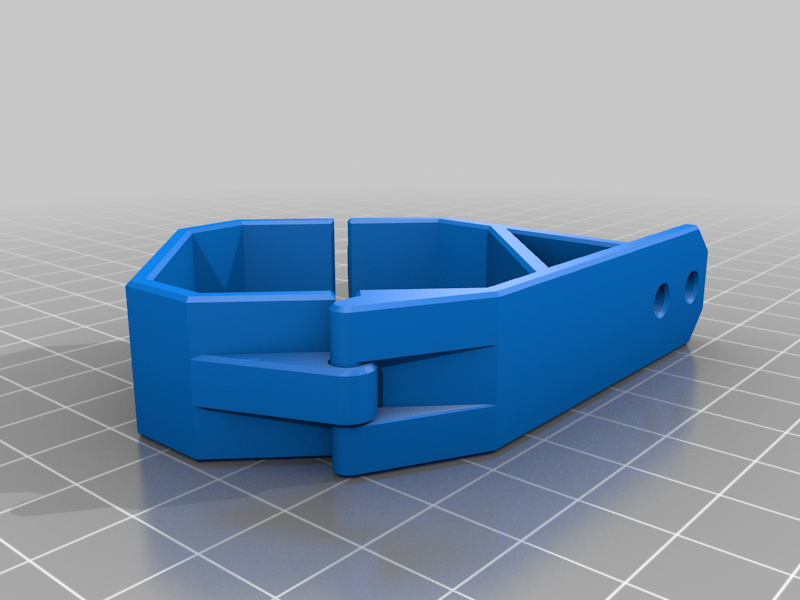

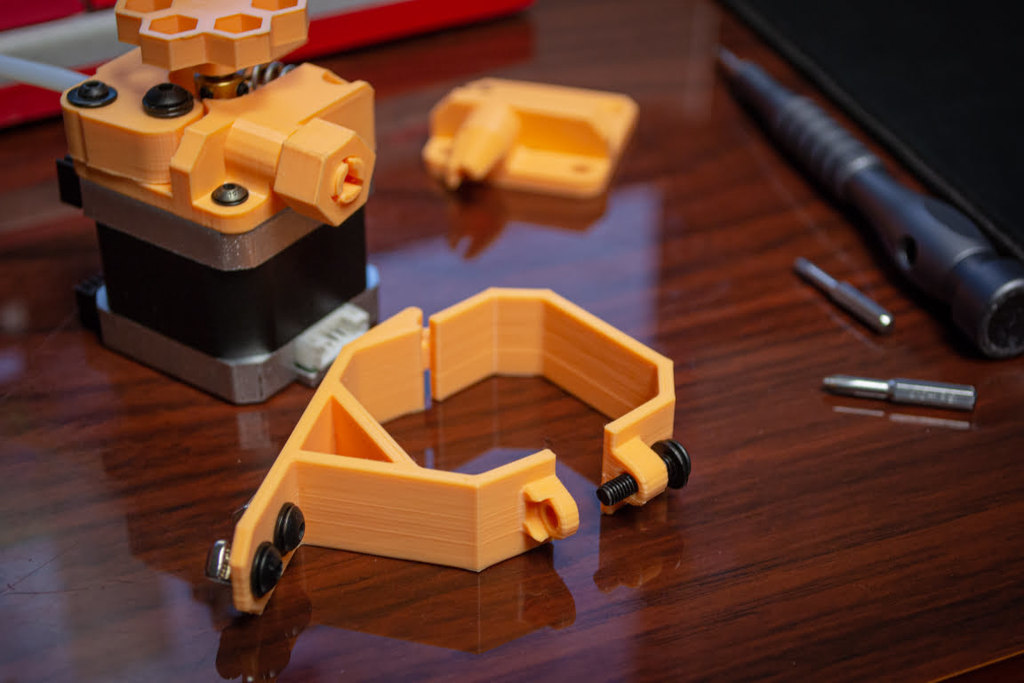

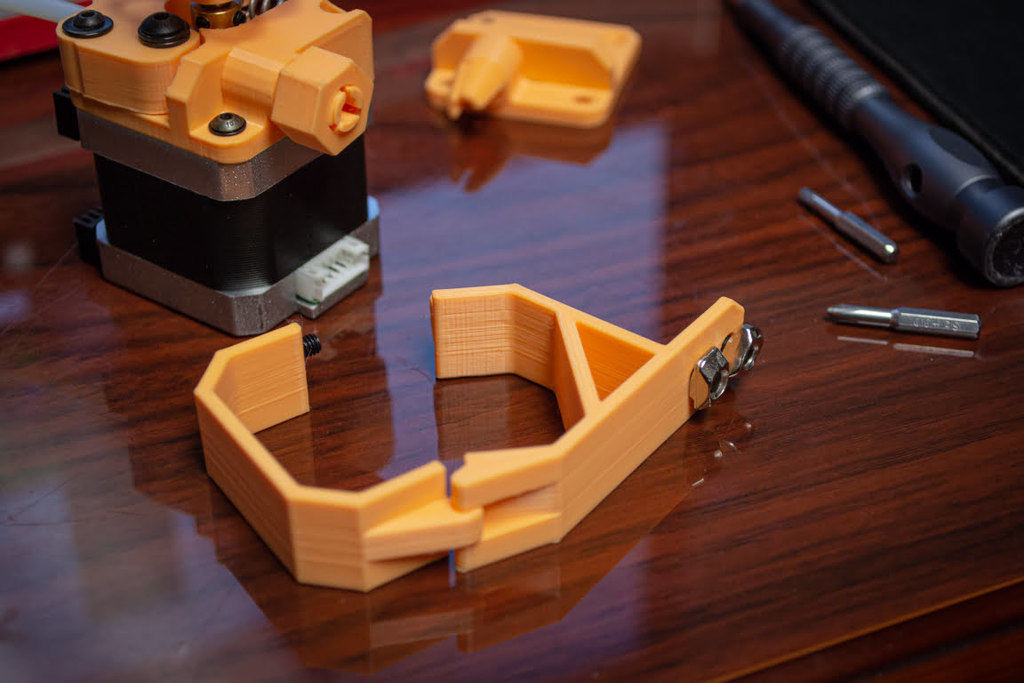

UPDATE: You DONOT need to print the Stepper Mount. That is for a custom install if you want more the stepper motor to the top of the machine OFF of the z axis. You do need some hardware. m4x10, m4x16, m3x16, m3 washer, m4 nut.

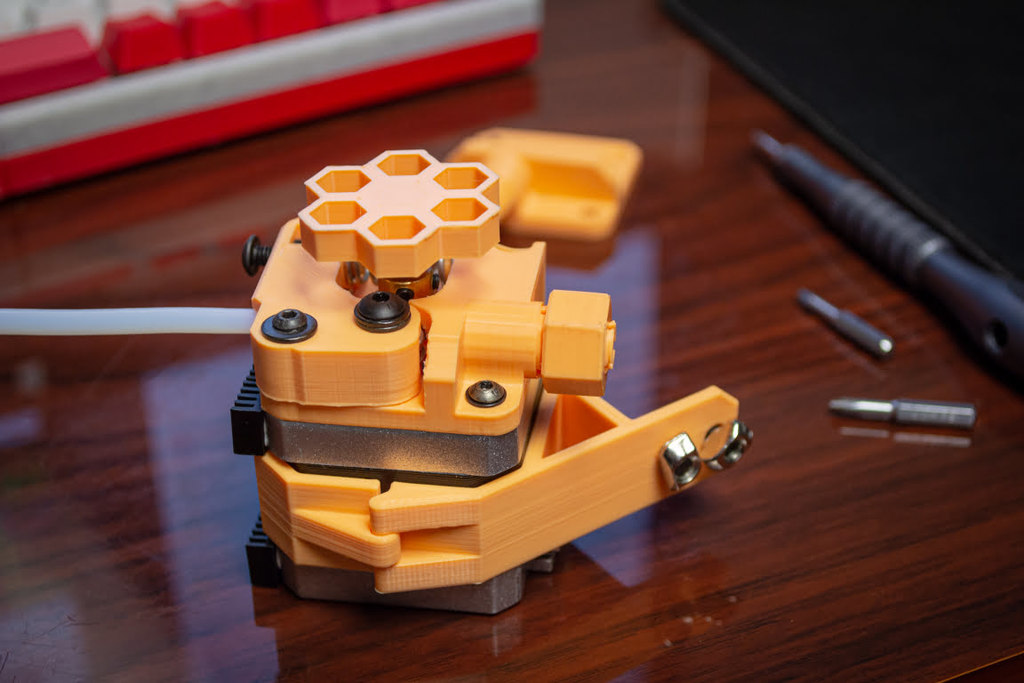

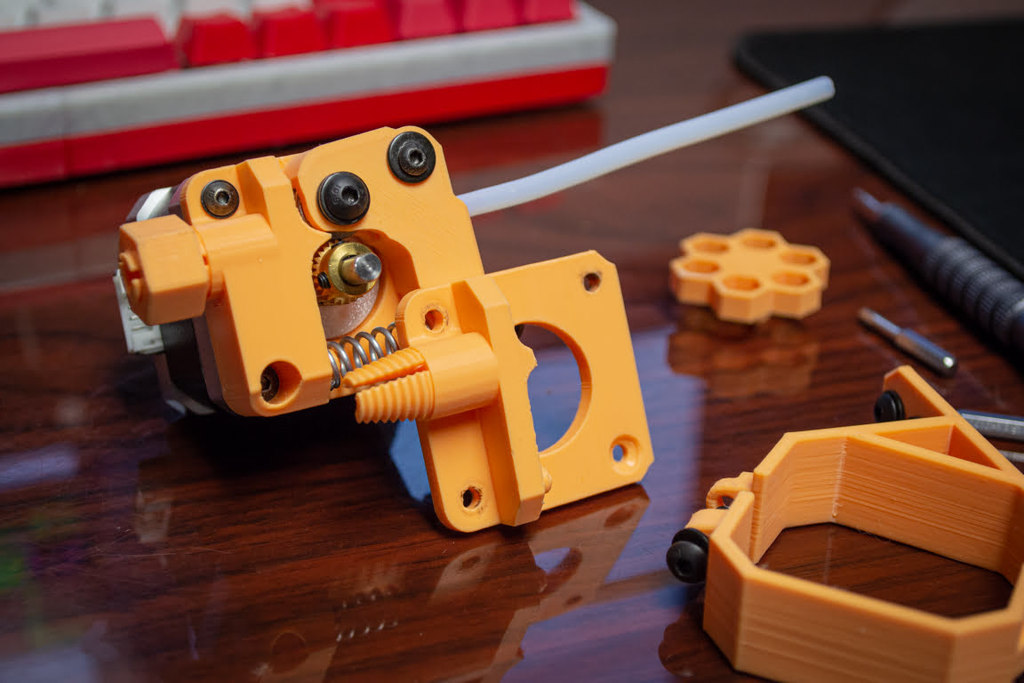

After 2 years of use, I have reworked my previous design to strengthen the extruder block and improve the filament path to allow for trouble free flexible filament printing. Tried and true.

No more slipping couplers, no more TPU nightmares, no more heavy extruder blocks!

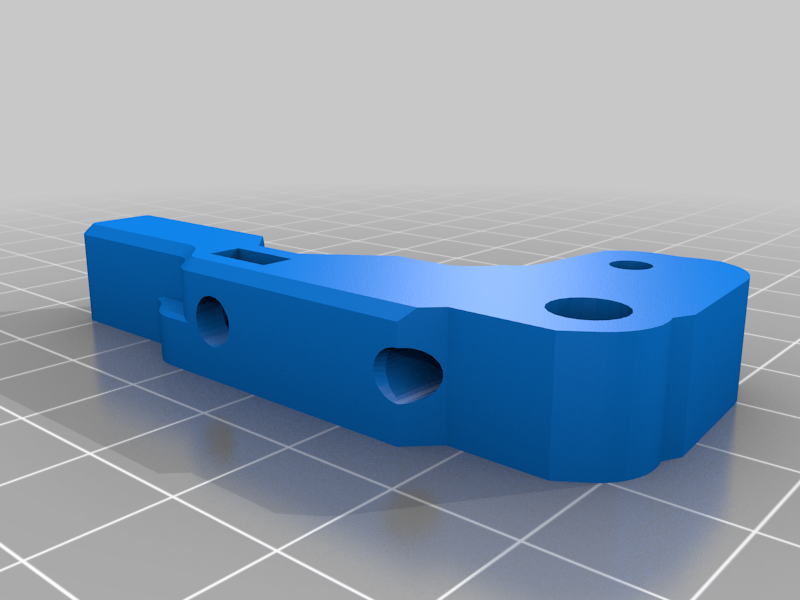

I have also combined the block with my adjustable lever and print in place mount to make things easy.

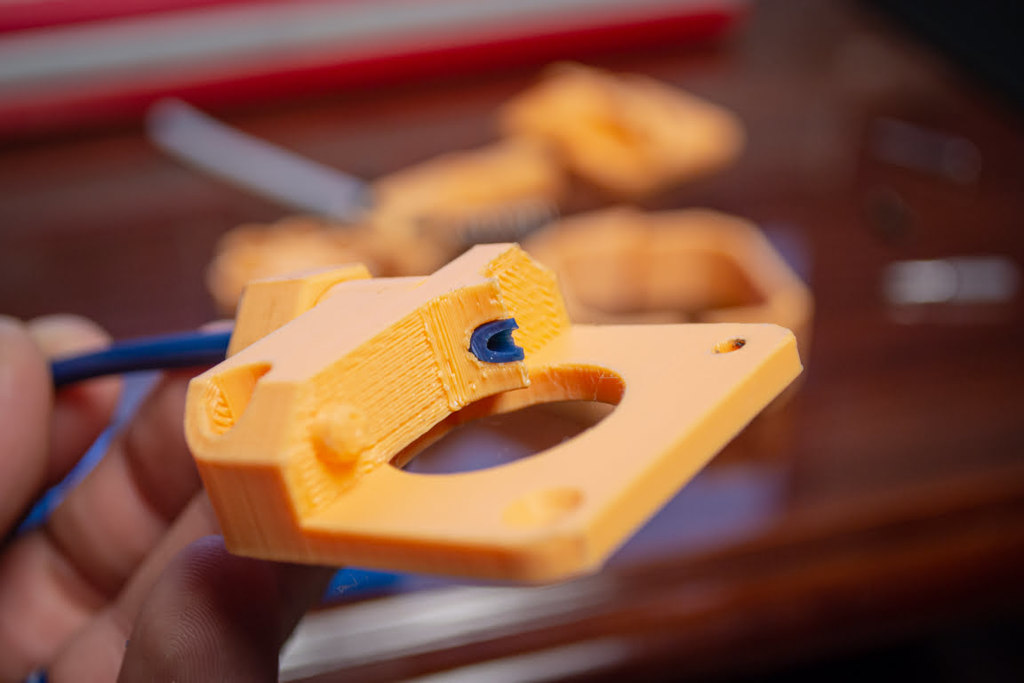

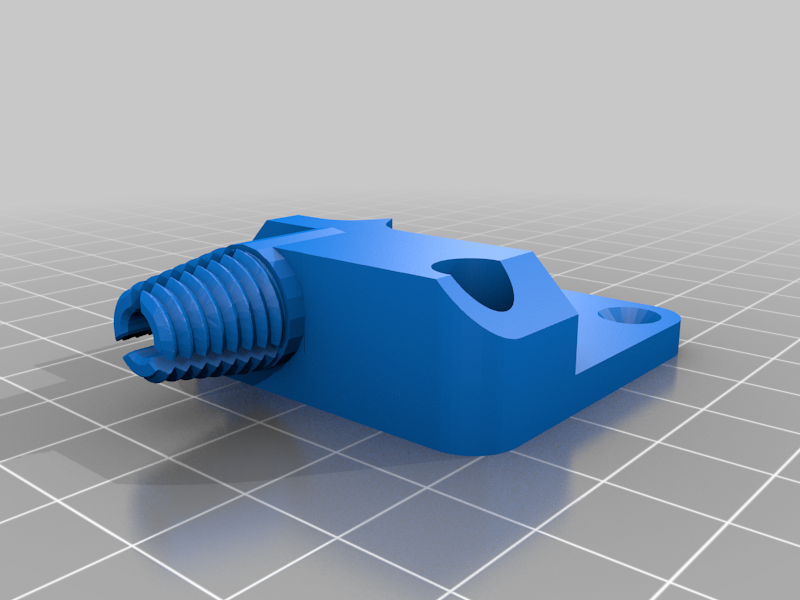

NOTE: The block should be printed standing upward with the threads pointing up. Supports are a must and should be setup from the print bed only.

Enjoy and post your makes!

Printer:

Heavy Machinery

Rafts:

No

Supports:

Yes

Resolution:

0.16

Infill:

50%

Filament: Inland PLA Orange

Category: 3D Printer Extruders
