Descrição
I wanted to have a mini voltmeter for quick measurements and polarity checks. With 1x1 Gridfinity footprint (credits to Zack Freedman) it's easier to access than my big one.
- Printed with 0.2 mm layer height.
- Any filament can be used
- Clearance is designed to hold the parts in place without glue
- The screw holes of the circuit board need to be removed

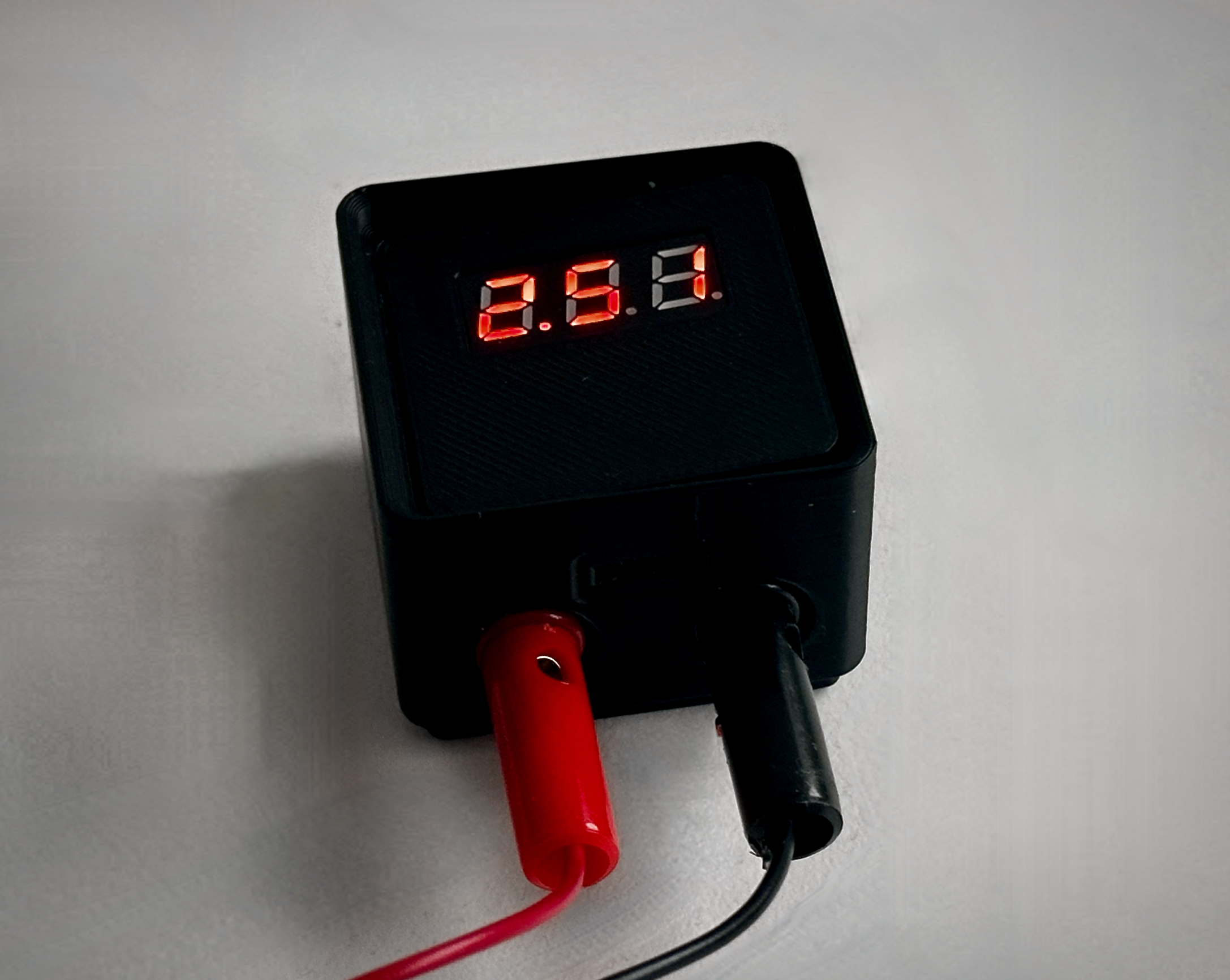

- To hide the voltmeter nicely (see photos) print the closed top plate in a bright color - ideal white
- To further improve the look you can grind down the black surface of the voltmeter
- The small opening can be used for header pins
Other hardware
9
Curtidas
10
Downloads
Categoria
Electronics
Tags
tiny
mini
1x1
voltmeter
gridfinity
1x1gridfinity
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (4)
voltmeter box.stl
246 KB
top plate open.stl
20.6 KB
top plate closed.stl
20.4 KB
cable box.3mf
76.6 KB
