I made a video showing how I fit it into the CRT.

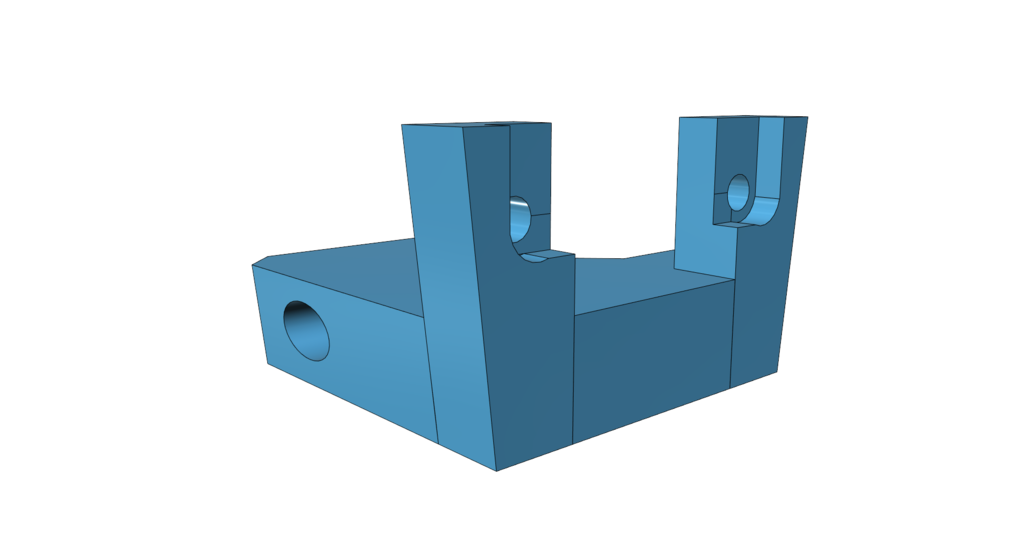

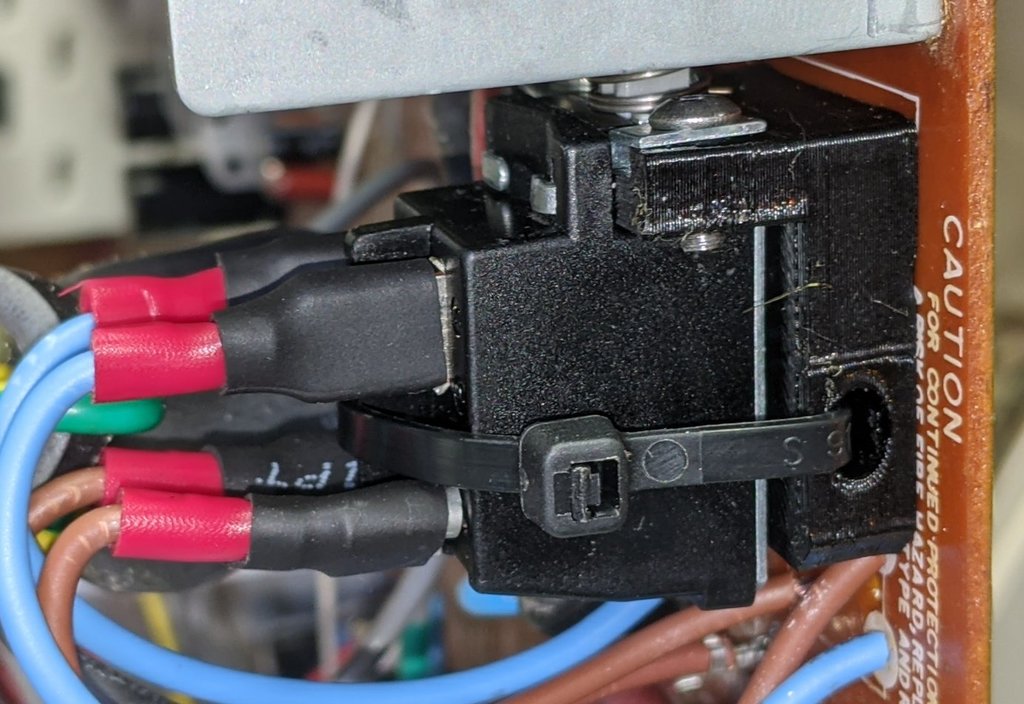

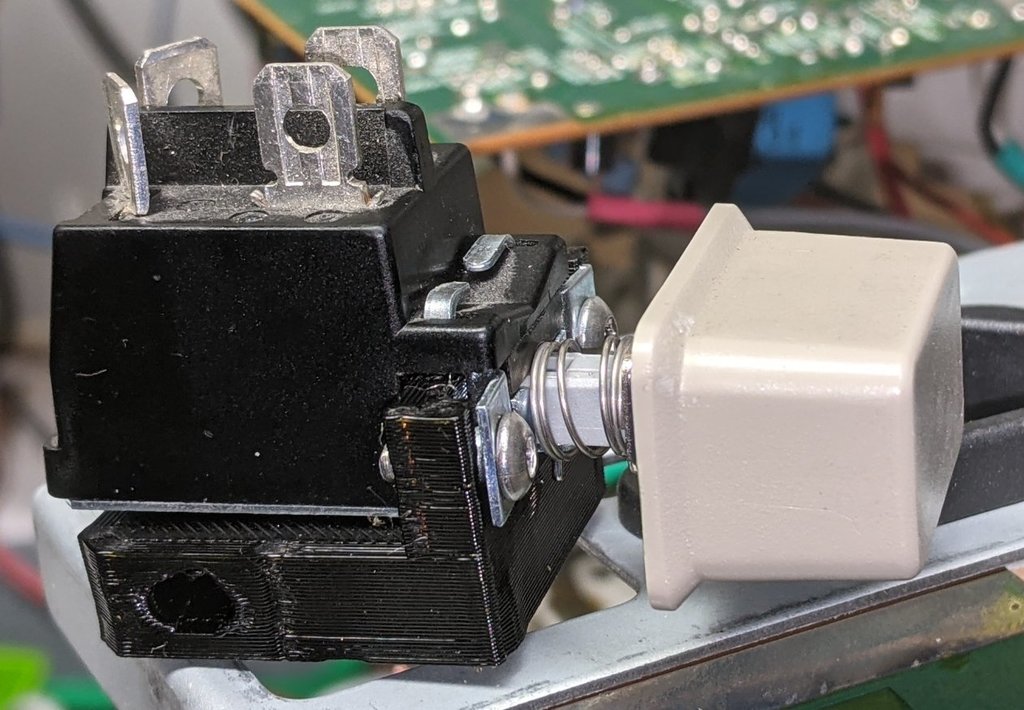

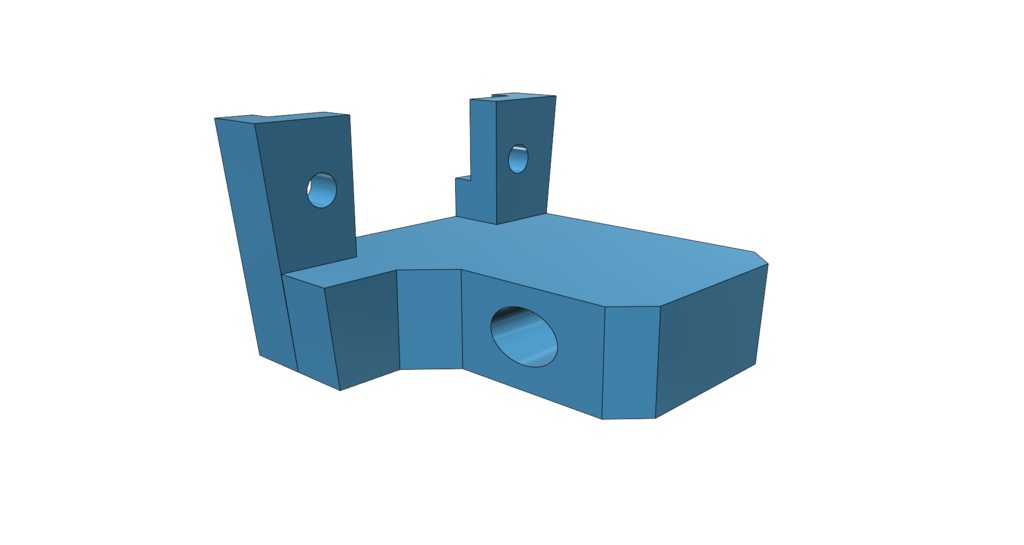

I had a 1084s monitor with a faulty switch and it was hard to find an original. While searching for alternatives I found the Canal PDS-1 and if it was flipped onto it's back the connections can be soldered to the board. I designed this mount for the switch to sit on and the mount can be screwed to the PCB with some of the holes from the original switch.
I printed in PETG for strength with 5 perimeters 5 top and bottom layers and 30% infill.

Print Settings

Printer Brand:

Creality

Printer:

No

Supports:

200

Infill:

Category: Video Games
