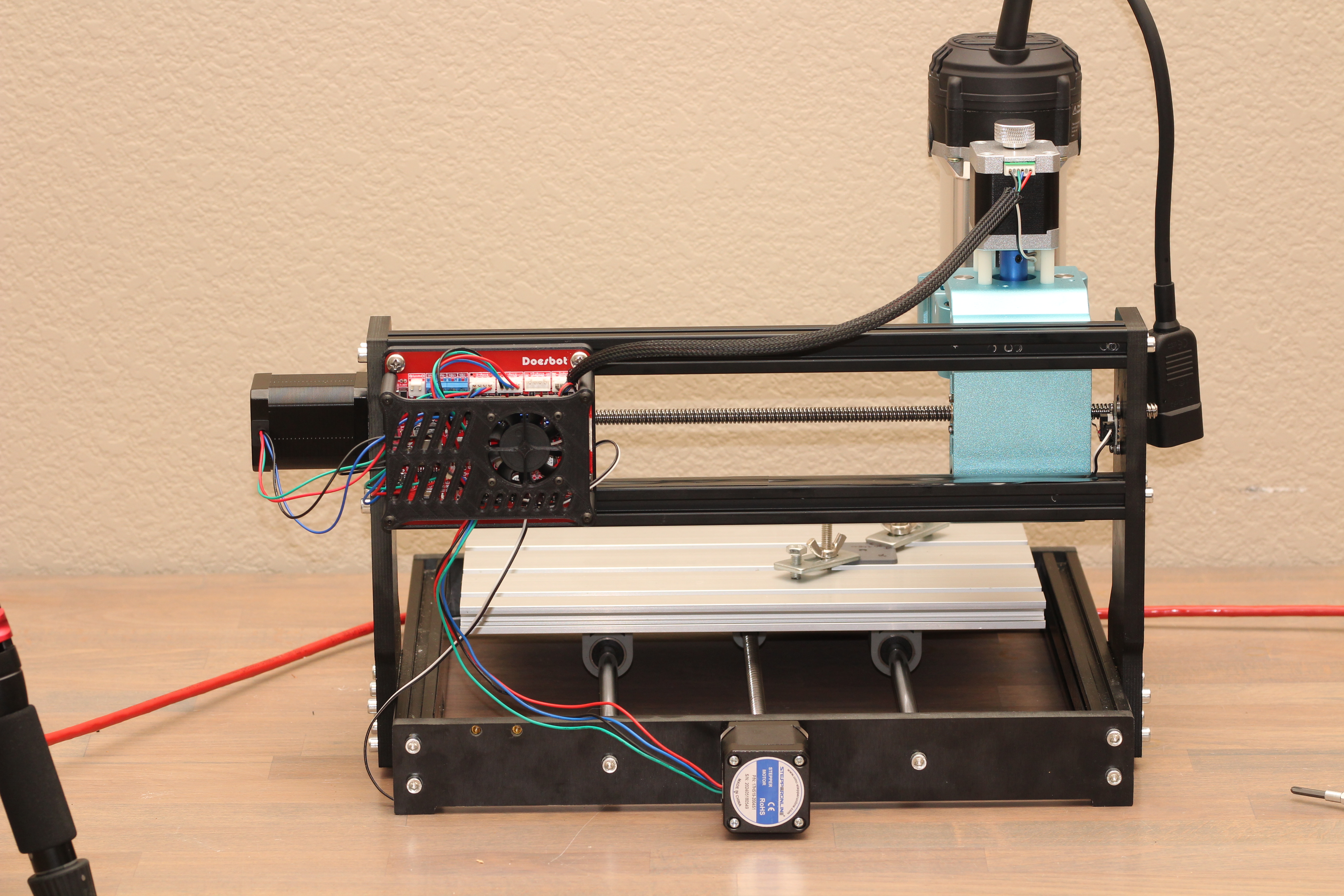

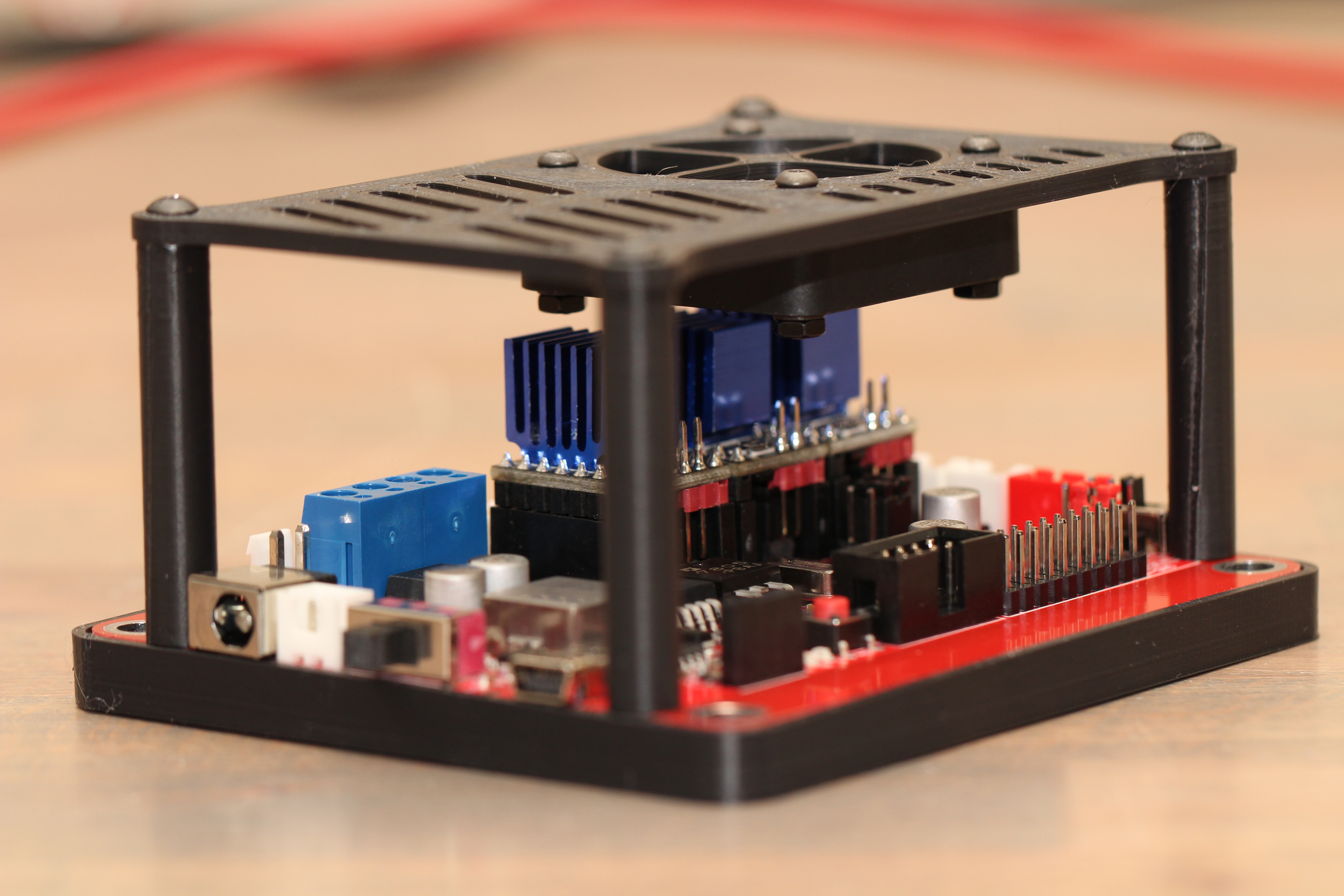

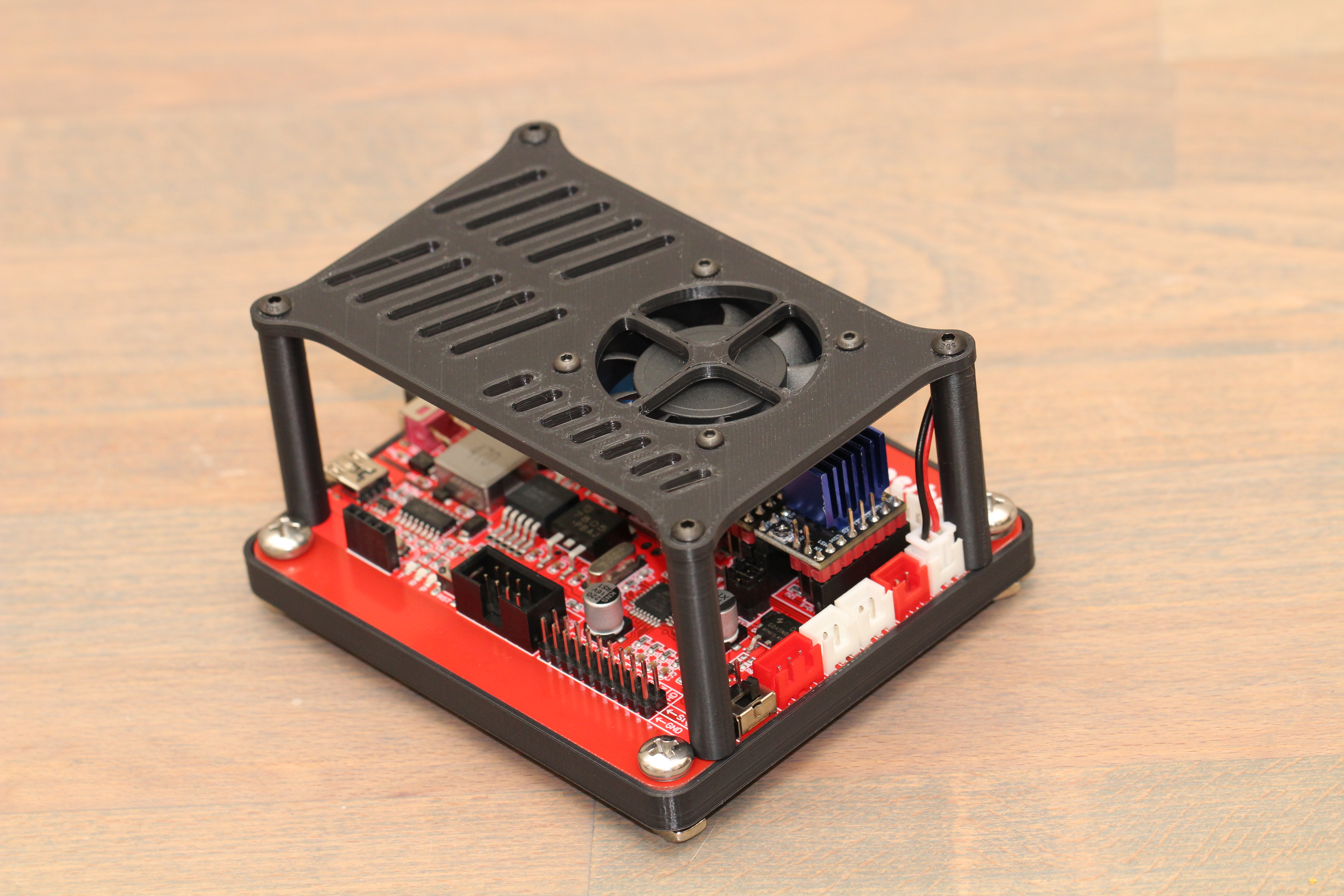

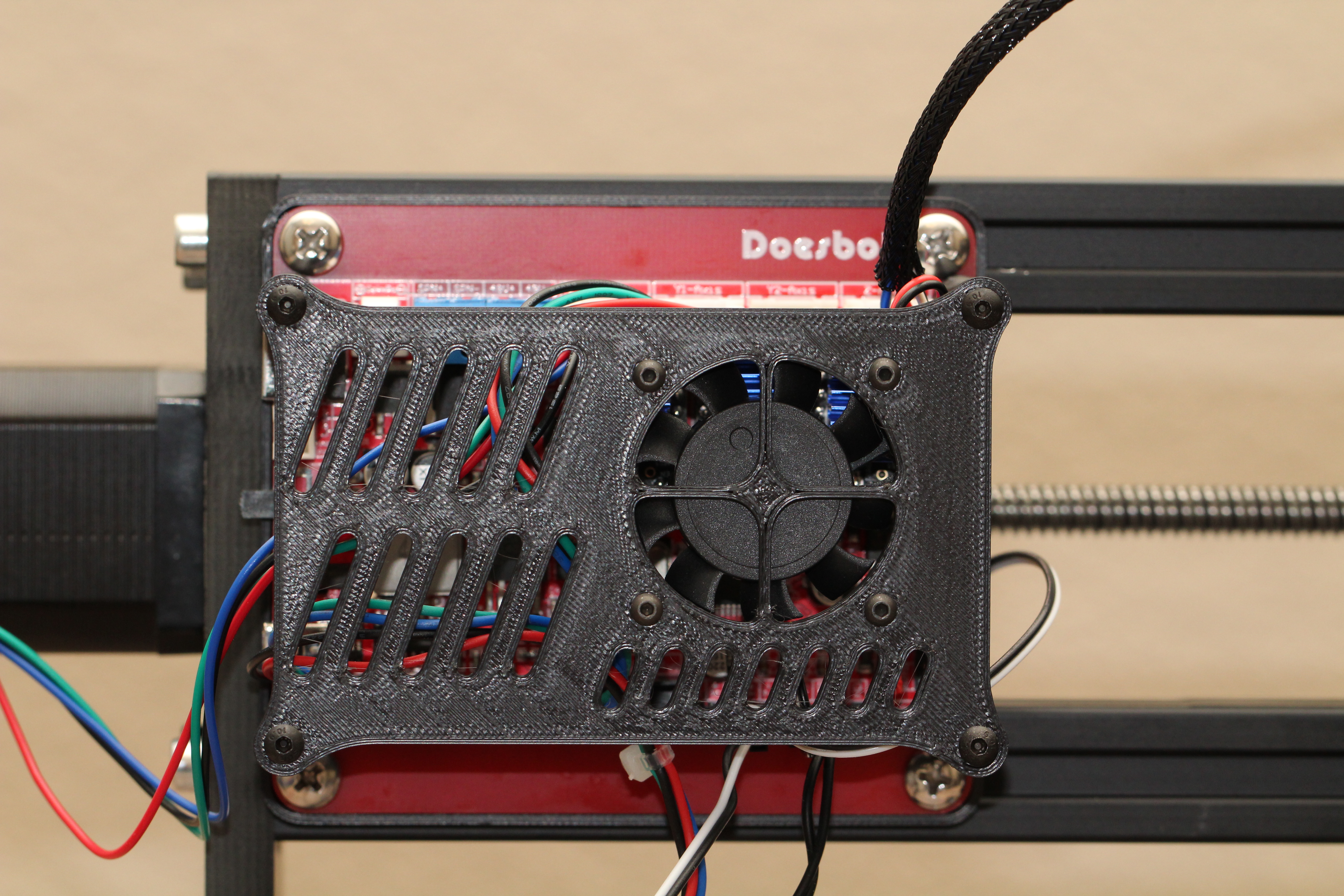

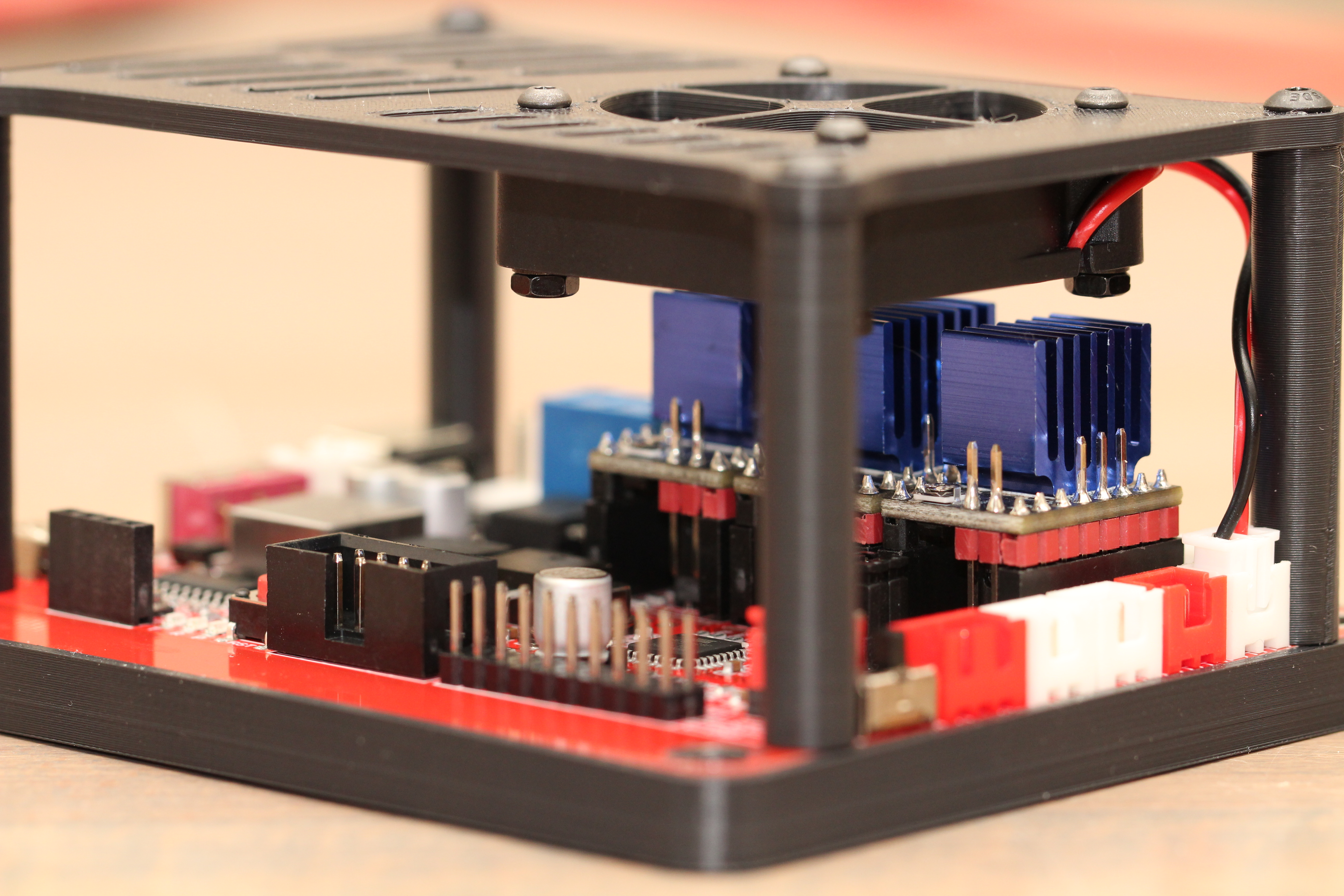

This is a mounting bracket for the Doesbot CNC board with a fan mount to cool off some upgraded stepper motors for my Genmitsu 3018 PRO. I upgraded several components and the stock stepper motors (and crappy A4988 drivers) did not cut it anymore. This board lets you upgrade steppers, so I put some TMC2209 drivers in instead and they're working quite well.

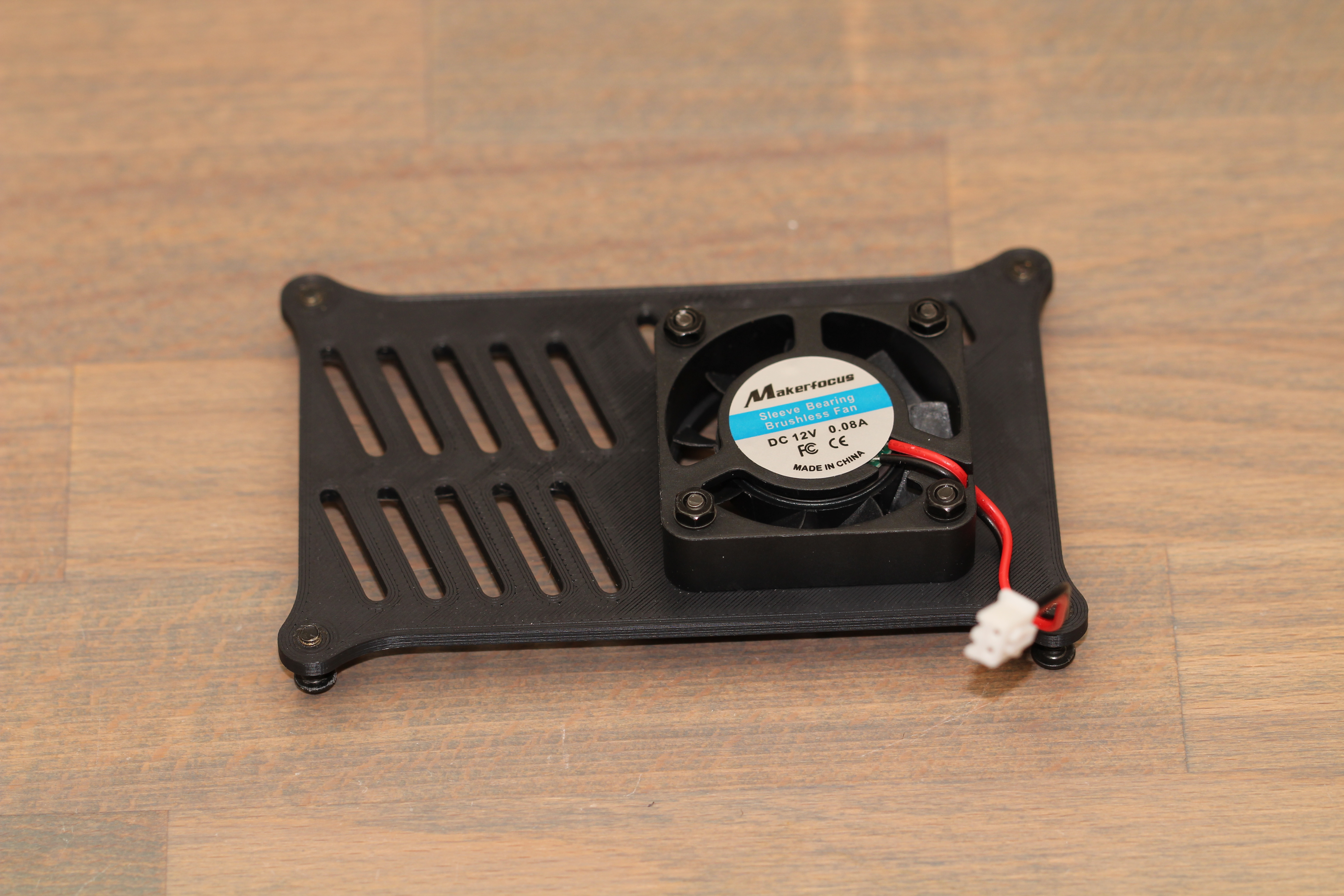

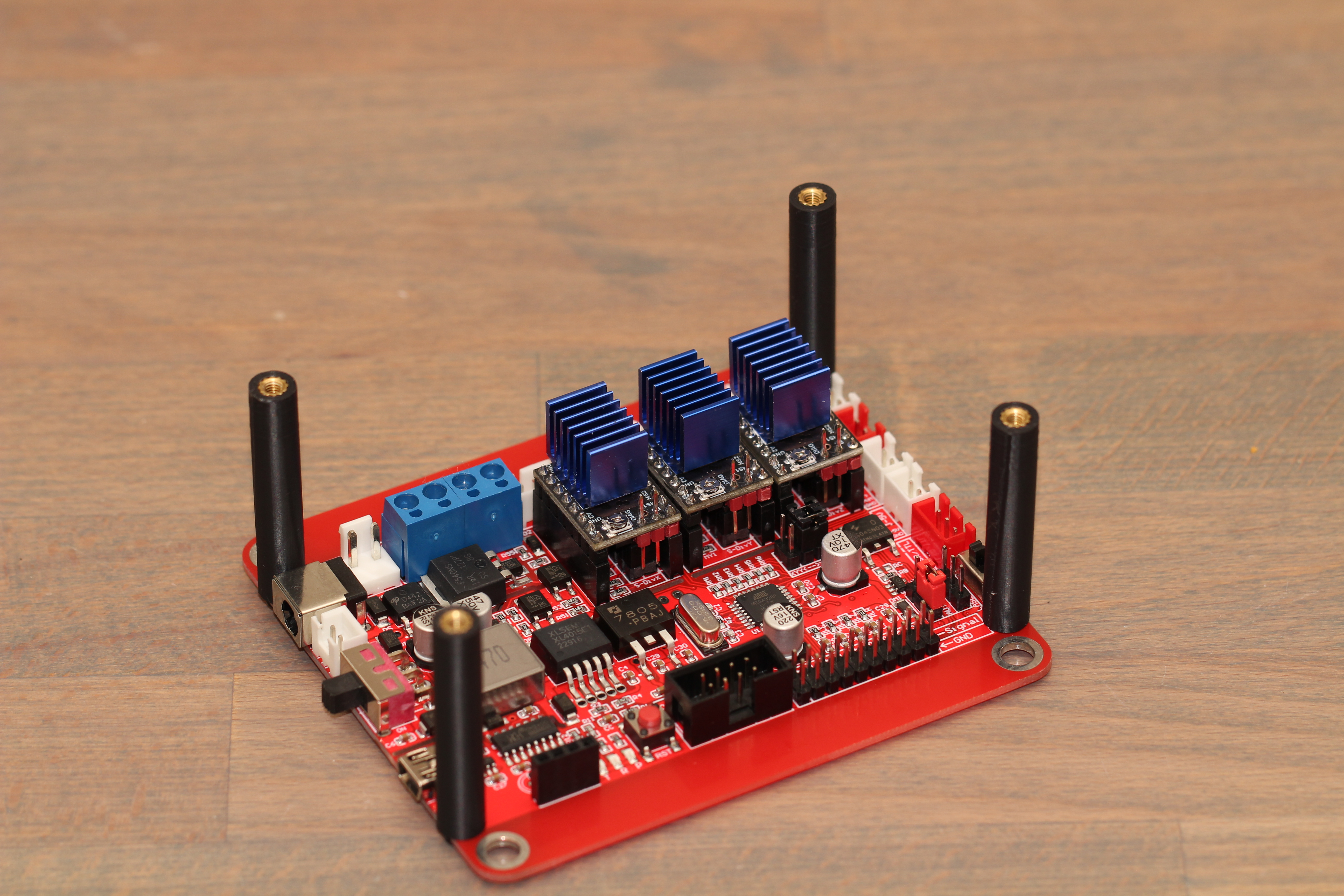

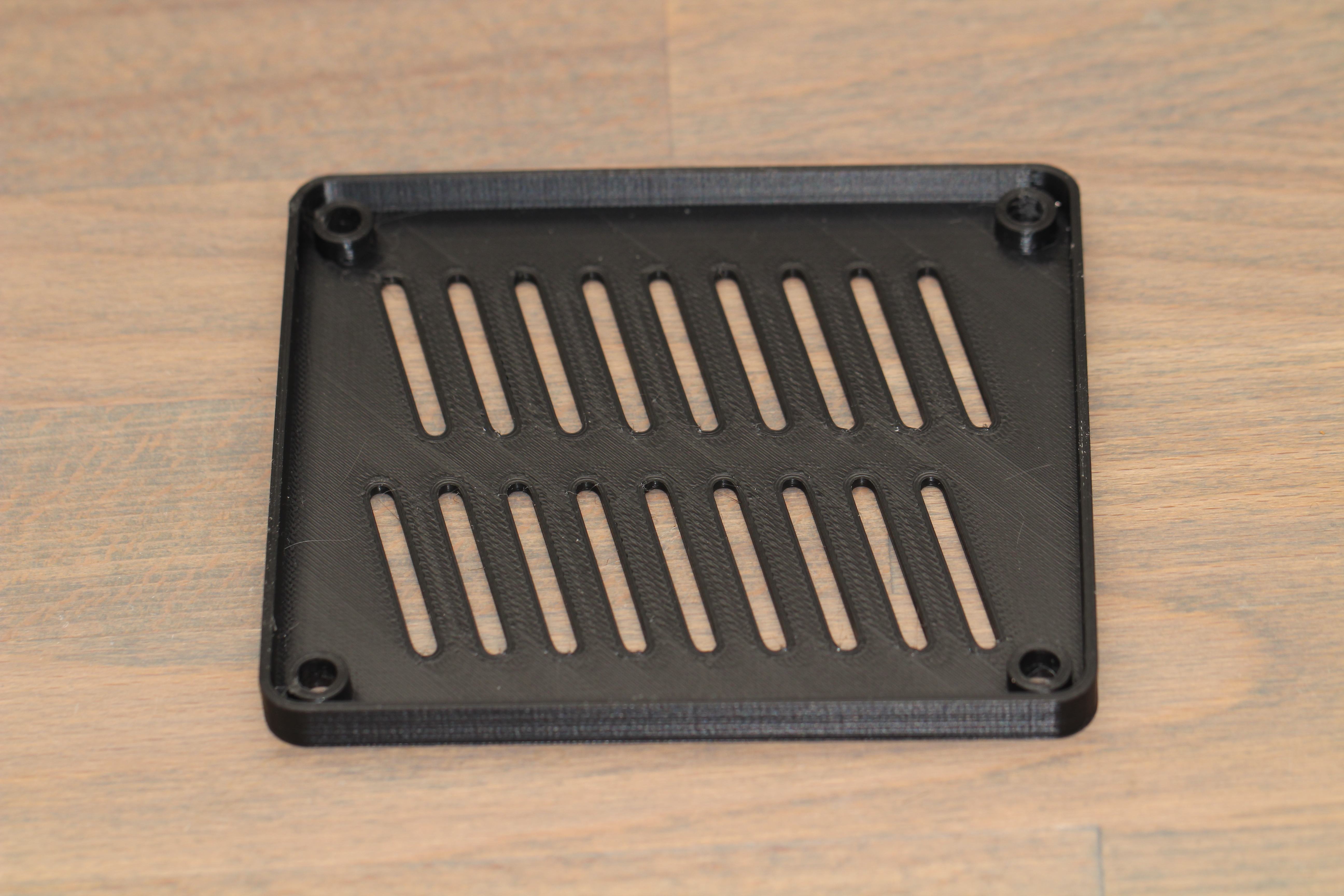

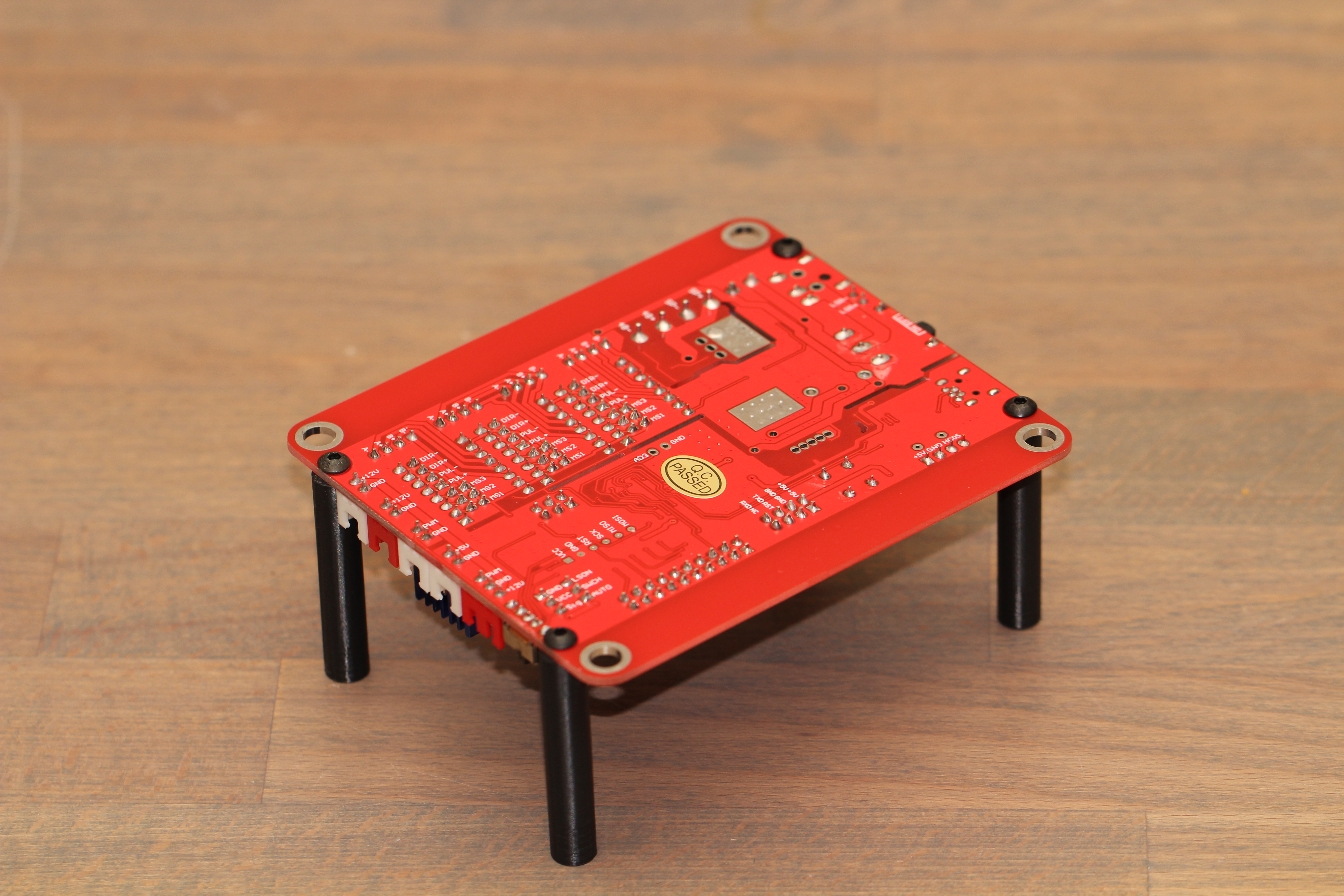

If you do not need a fan, you do not need to print the spacer studs and fan mount. This will work without that.

Items used for this:

• Doesbot GRBL Controller: [https://a.co/d/5twACOL](https://a.co/d/5twACOL)
• 40mm 12V Fans: [https://a.co/d/0TntiFg](https://a.co/d/0TntiFg)
• M3 Threaded Inserts: [https://a.co/d/4b5U9Zc](https://a.co/d/4b5U9Zc)
• M3 Screw Assortment: [https://a.co/d/bO9ik7R](https://a.co/d/bO9ik7R)
• M5 T-Slot Nuts: [https://a.co/d/j5uQx37](https://a.co/d/j5uQx37)
• M5 Screw Assortment: [https://a.co/d/9aQt6ml](https://a.co/d/9aQt6ml)
• Soldering Iron Heat Inserts: [https://a.co/d/51ZGfxI](https://a.co/d/51ZGfxI)

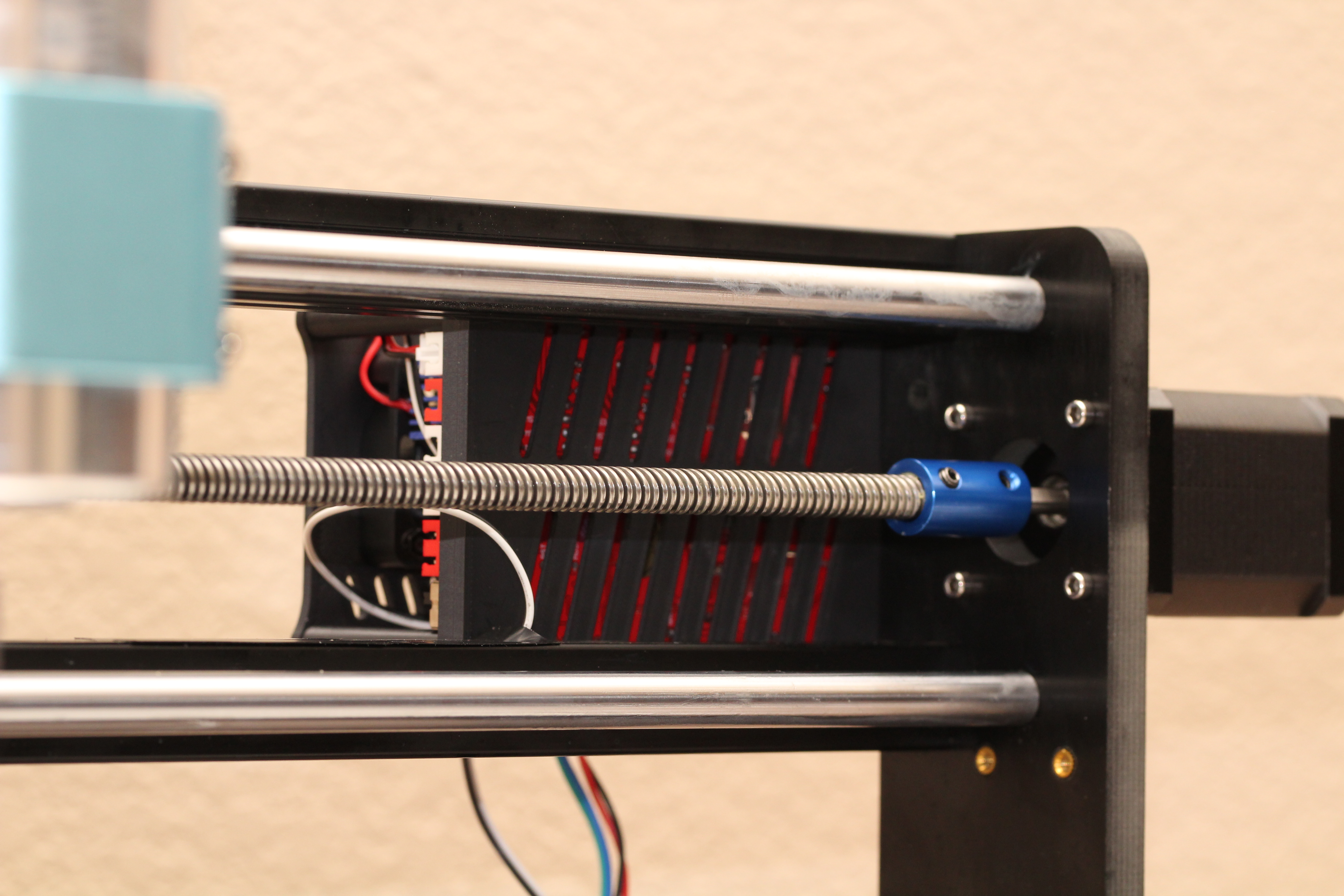

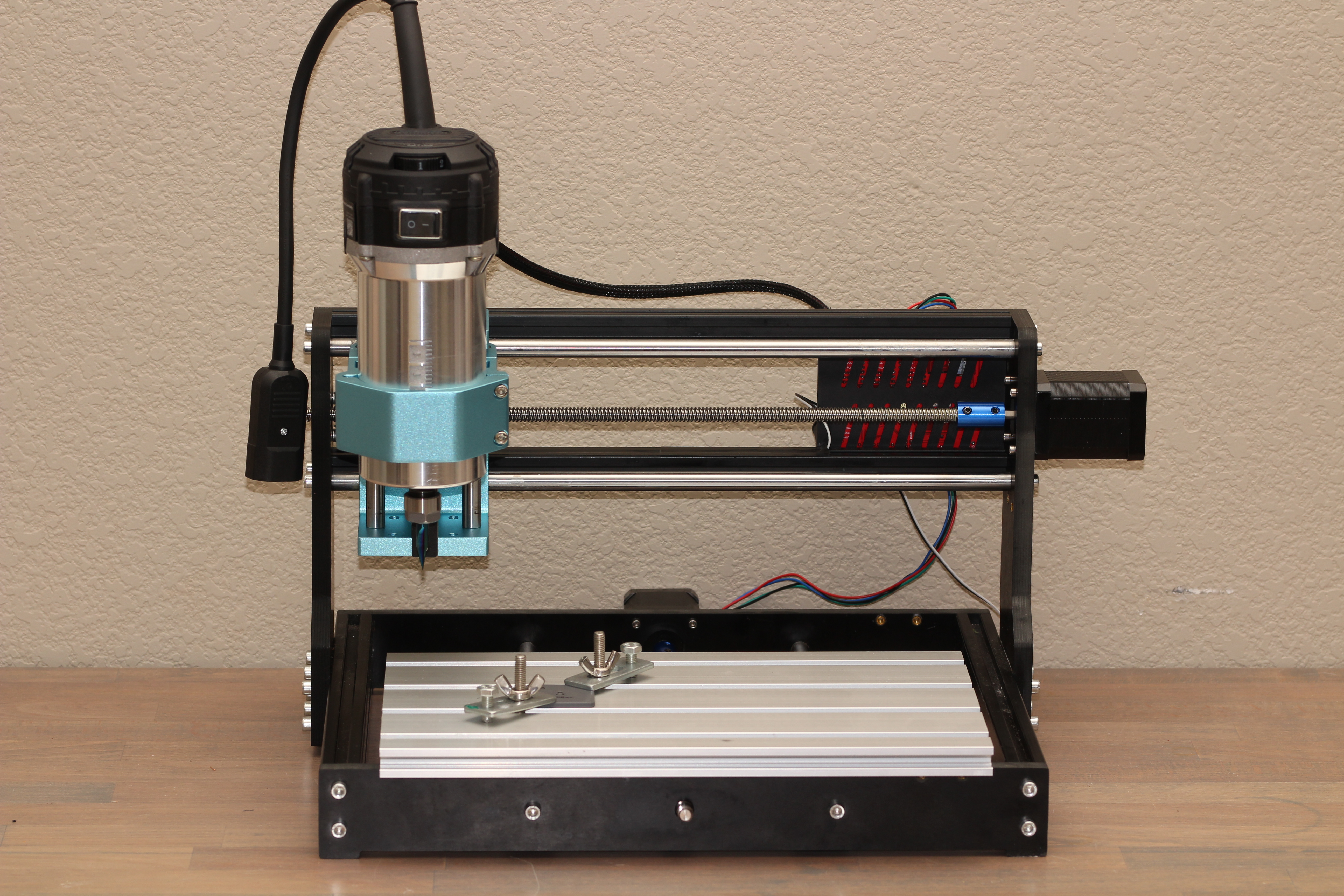

Other CNC upgrades seen in the photos:

• X-Axis Stepper Motor Upgrade: [https://a.co/d/5TCesGs](https://a.co/d/5TCesGs)
• Y-Axis Stepper Motor Upgrade: [https://a.co/d/9WJ5EO2](https://a.co/d/9WJ5EO2)
• BigTreeTech TMC2209 Steppers: [https://a.co/d/bUmo3Q2](https://a.co/d/bUmo3Q2)
• Stepper Driver Heatsinks: [https://a.co/d/2NFSF7C](https://a.co/d/2NFSF7C)
• Limit Switches: [https://a.co/d/9qamlS3](https://a.co/d/9qamlS3)
• Aluminum Spindle Mount (for 3018 PRO): [https://a.co/d/8AdSWNe](https://a.co/d/8AdSWNe)
• 65mm Spindle Mount: [https://a.co/d/45cV7n9](https://a.co/d/45cV7n9)
• 710W 30K RPM 65mm Spindle: [https://a.co/d/hYJXlQQ](https://a.co/d/hYJXlQQ)

Printing Details:

• Printer: AnyCubic Vyper (with Klipper)
• Filament: PolyMaker ASA Black (PLA would be fine, too)
• Infill: 50%
• Layer Height: 0.2mm
• 3 Walls
• No Supports
