Descrição
edit 08.11.2024:
- Added a case version compatible with both old and new PCB versions.
- The old version, which is only compatible with the old PCB version, was moved to the folder named 'old.'
- added 3mf for multicolor printing.
deprecated:
- This design is compatible with Philibert's PCBs manufactured prior to November 2024. Please note: it is not be suitable for PCBs produced after this date.

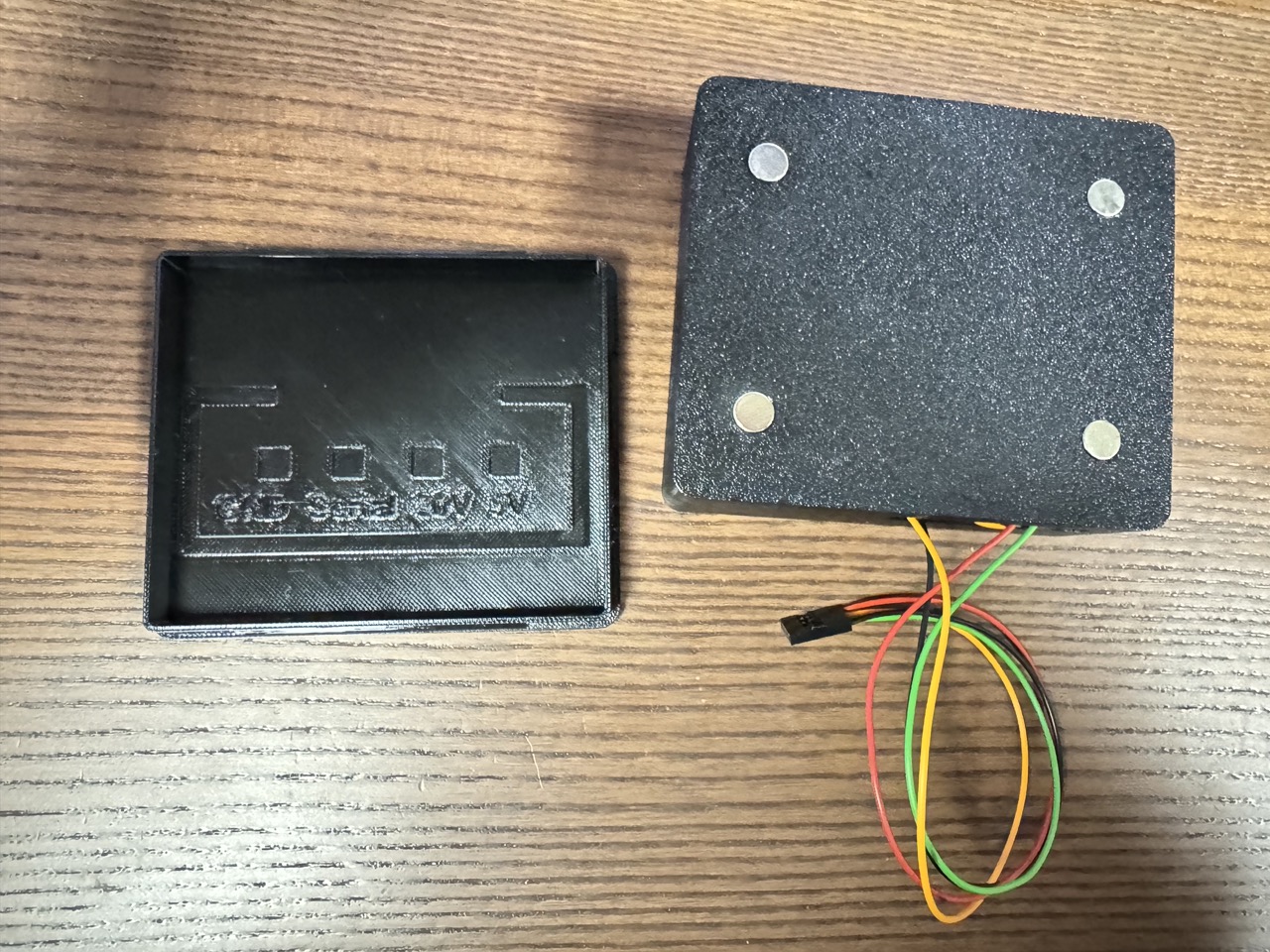

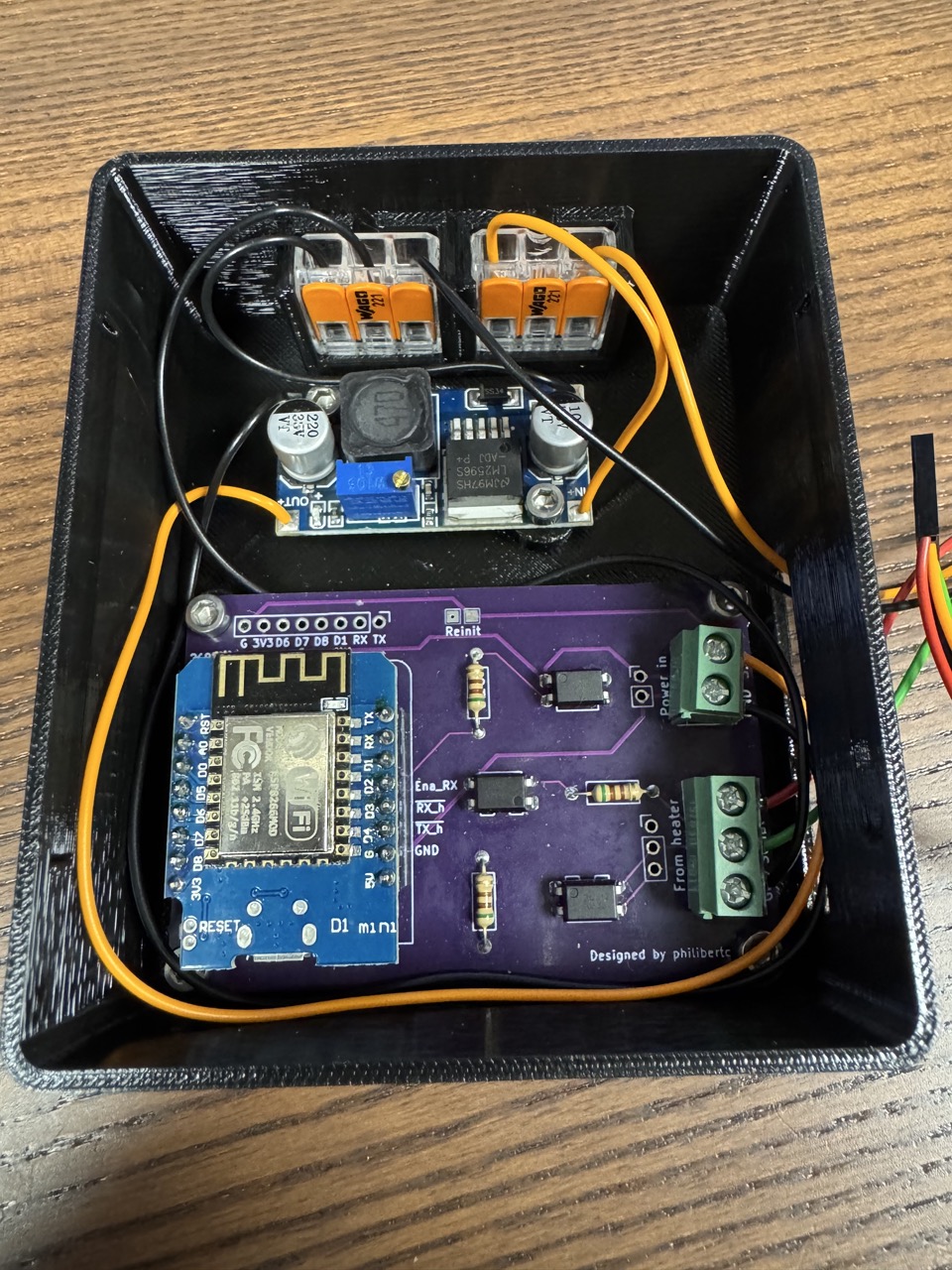

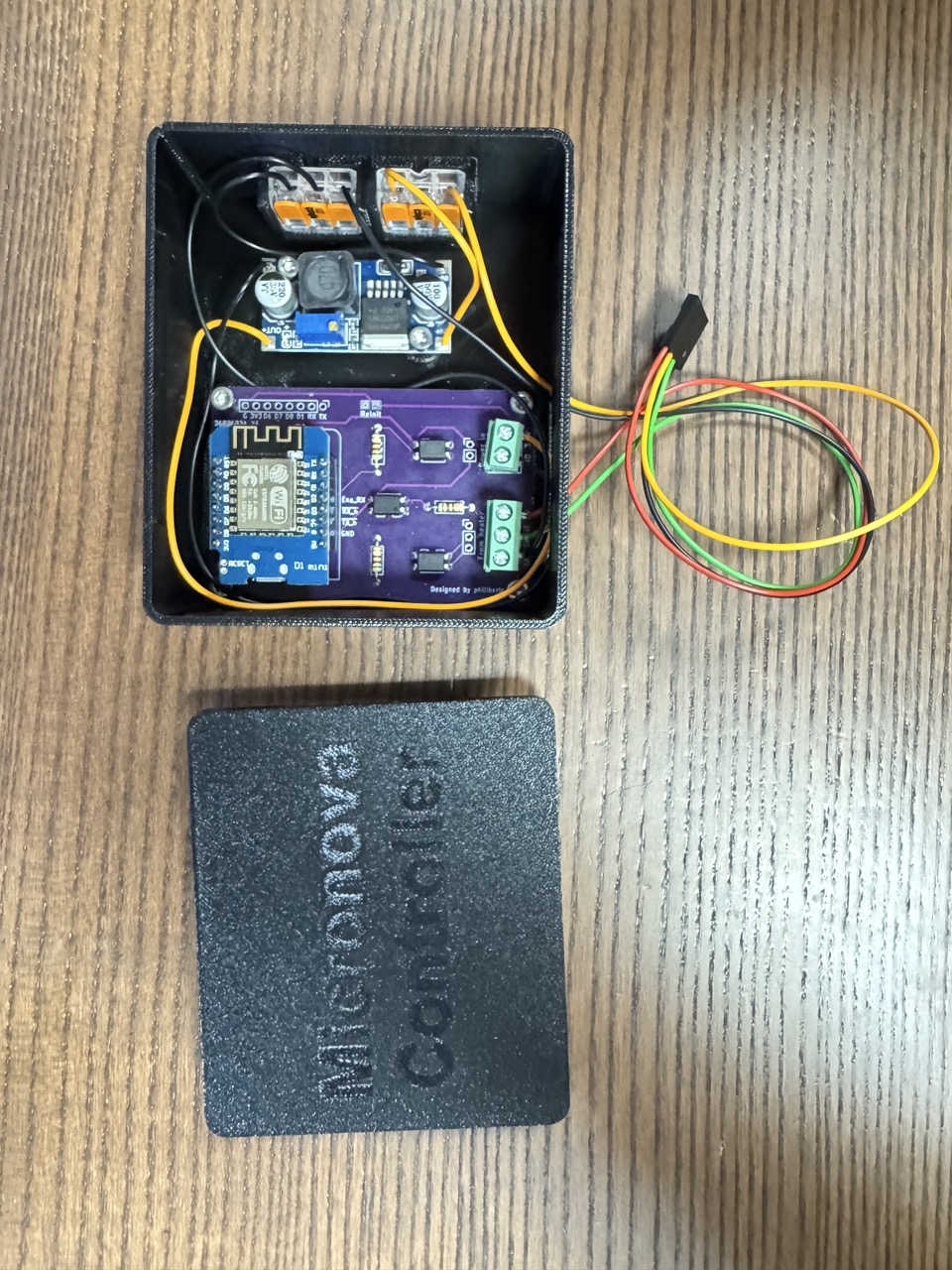

The enclosure features an integrated buck converter and two Wago connectors for streamlined cable management. The base includes holes for magnets, allowing secure attachment of the case in various locations, whether inside or outside the pellet stove.
Link to Philibert's project on GitHub
BOM:
- 6x M3x6 Socket head screws
- 4x 3x8 magnets
- 2x Wago 221-413
Happy Printing!
1
Curtidas
38
Downloads
Categoria
Electronics
Tags
box
case
controller
esp8266
esp32
housing
stove
esp
dcdcconverter
pellet
pelletofen
micronova
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (9)
micronova_controller_old.f3d
1.5 MB
case_old.step
193.4 KB
case_old.stl
191.6 KB
micronova_controller.f3d
2.2 MB
case.step
227.3 KB
lid.step
1.7 MB
case.stl
221.7 KB
lid.stl
429.2 KB
lid.3mf
320.2 KB
