My second project.
Learning as I go along. I'm new to CAD work and 3D printing. But seems like I'm getting the hang of it. :)

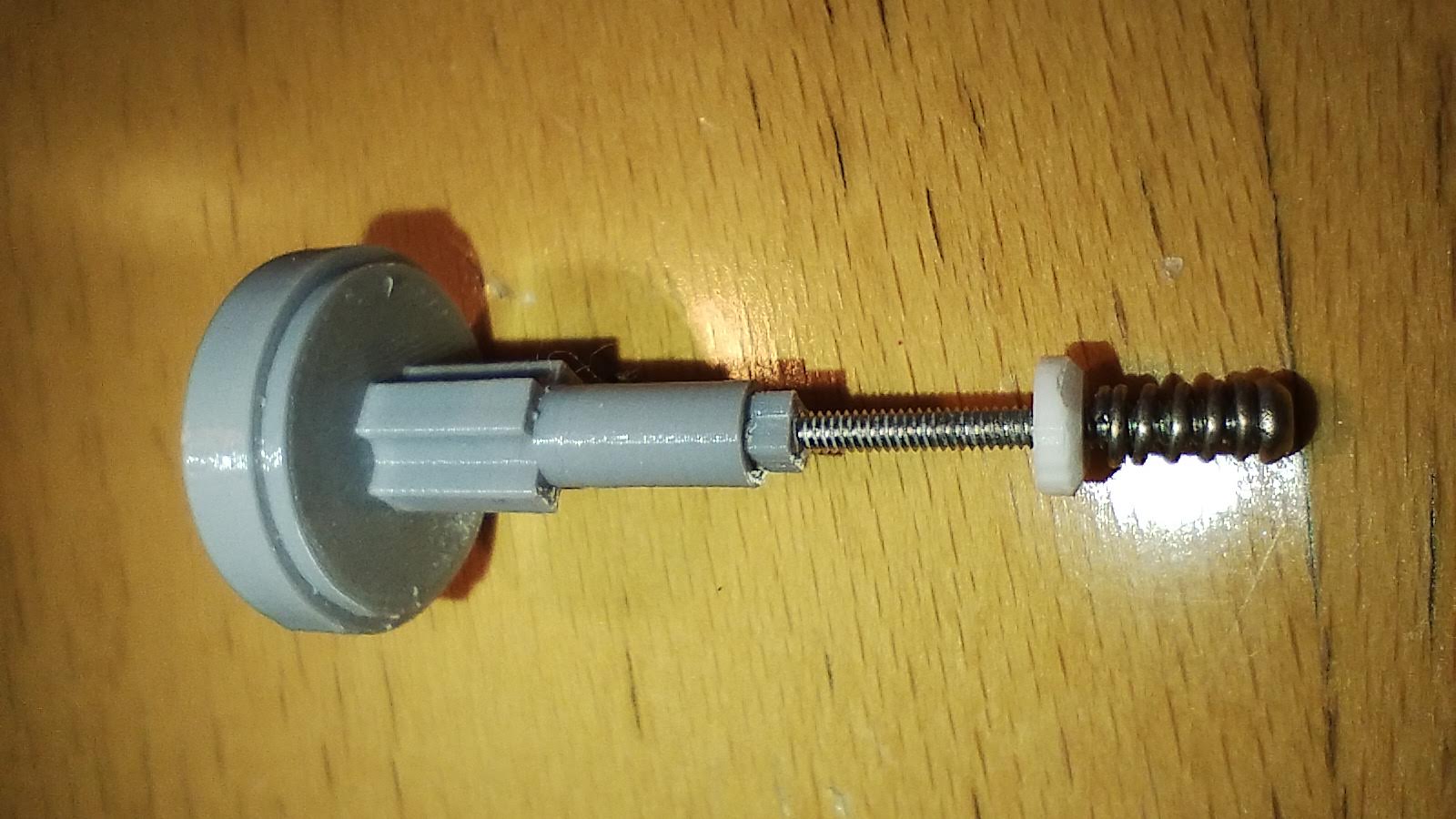

Parts needed:
4 x 12mm M2 screws with nuts (Hex preferably)

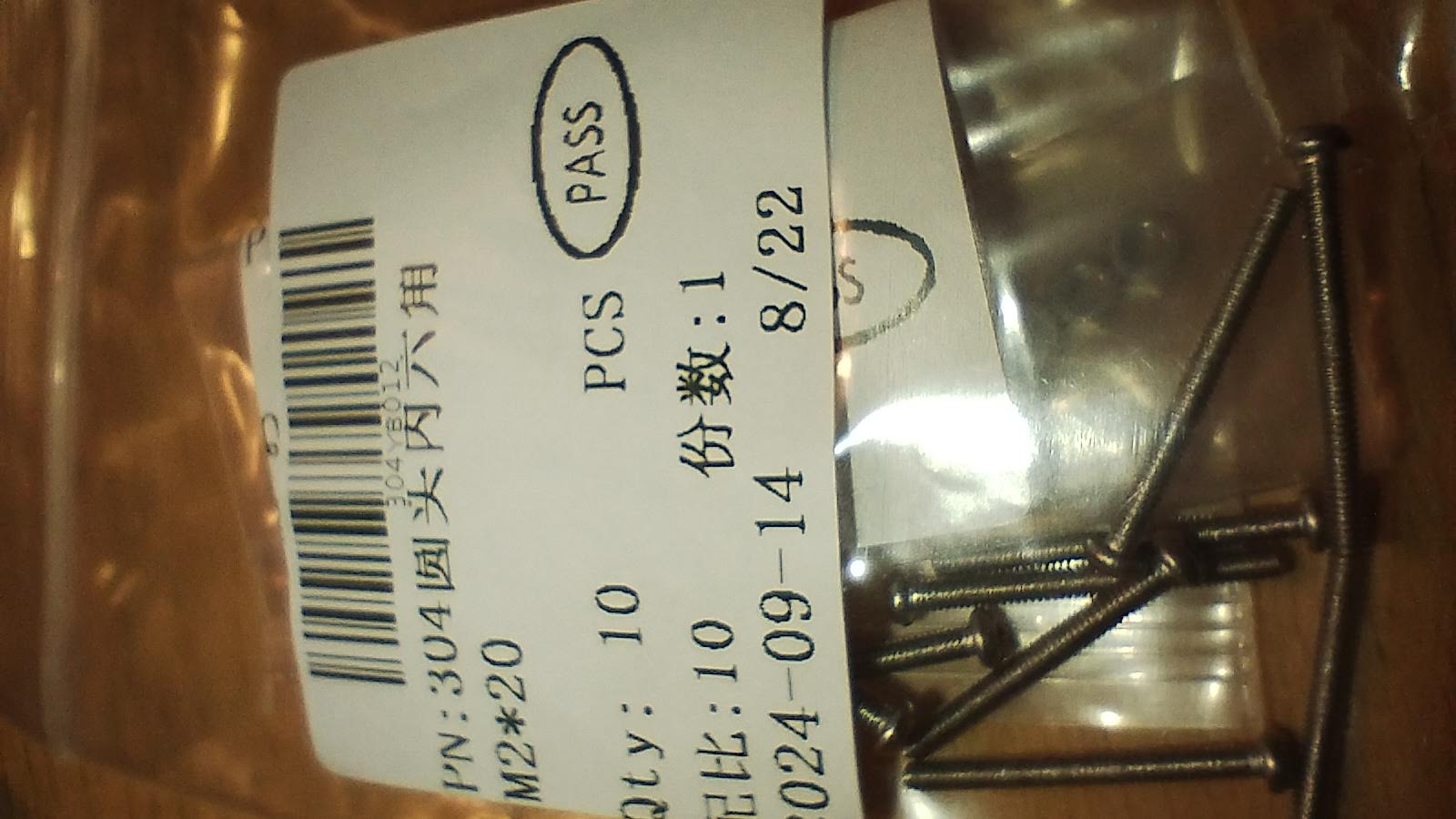

1 x 20mm M2 screw (Hex preferably)
5 mm spring w/2 - 2.5mm inner diameter

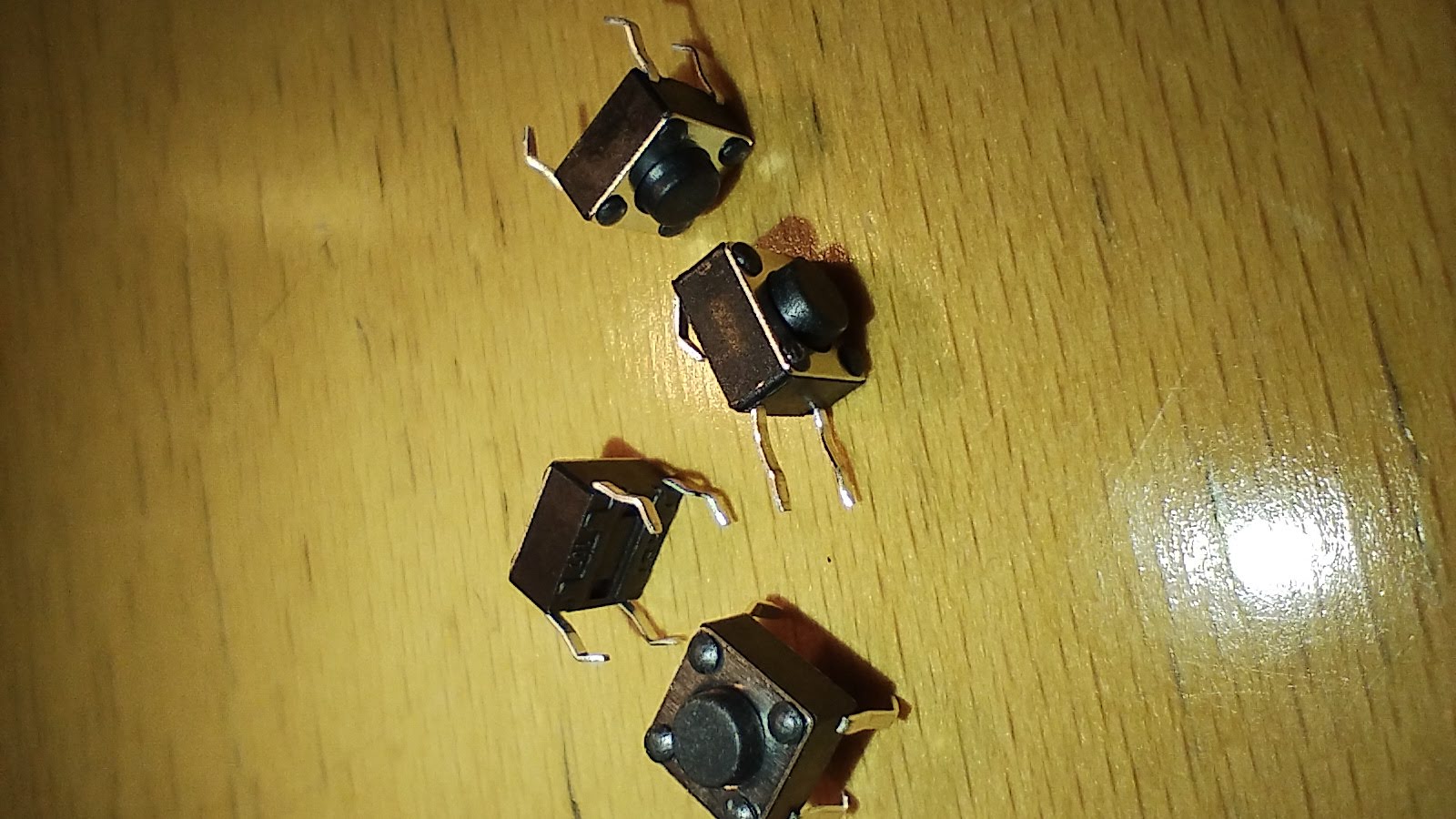

4 x 6x6x4.3mm Tactile Push Button Switch

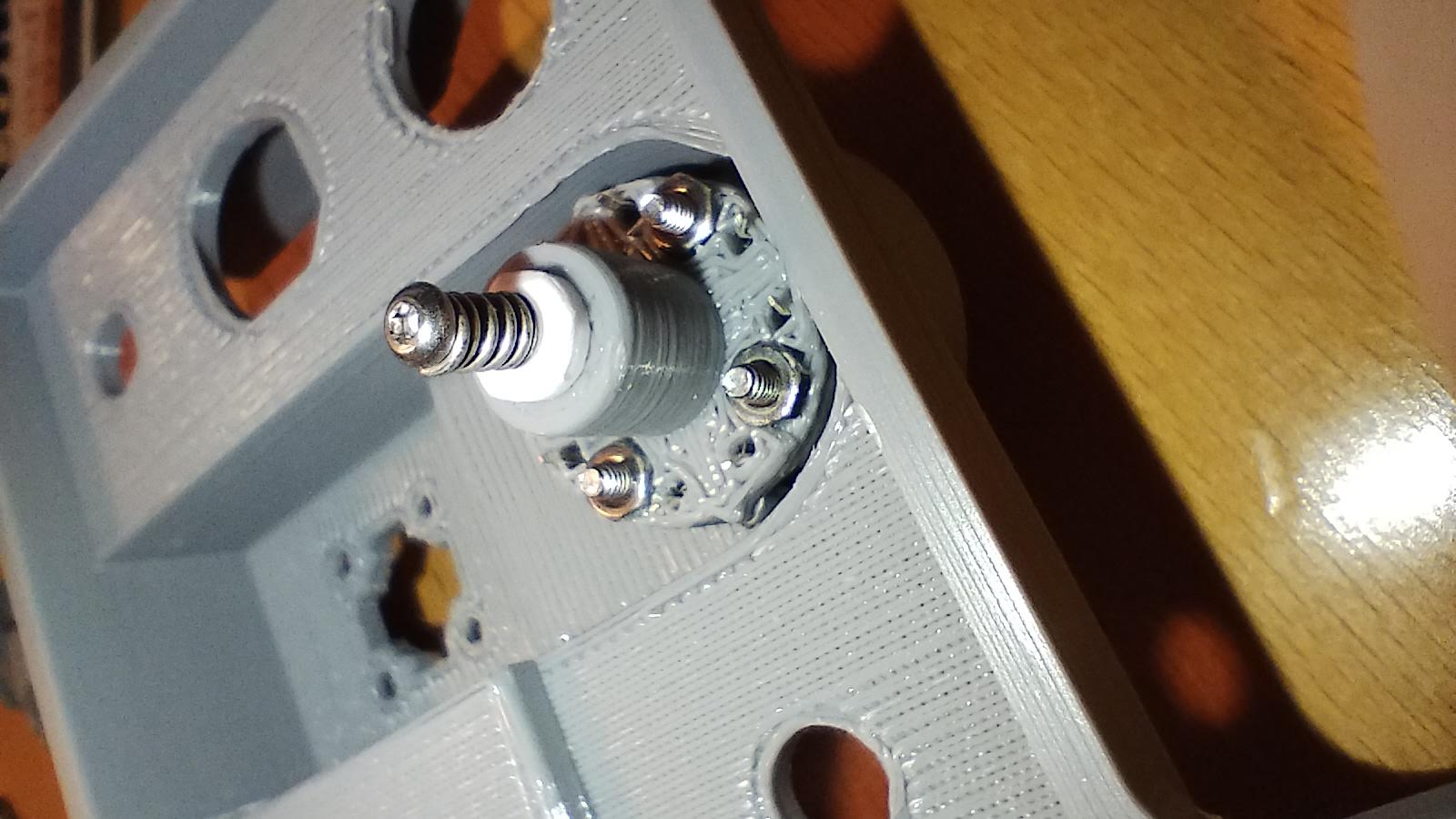

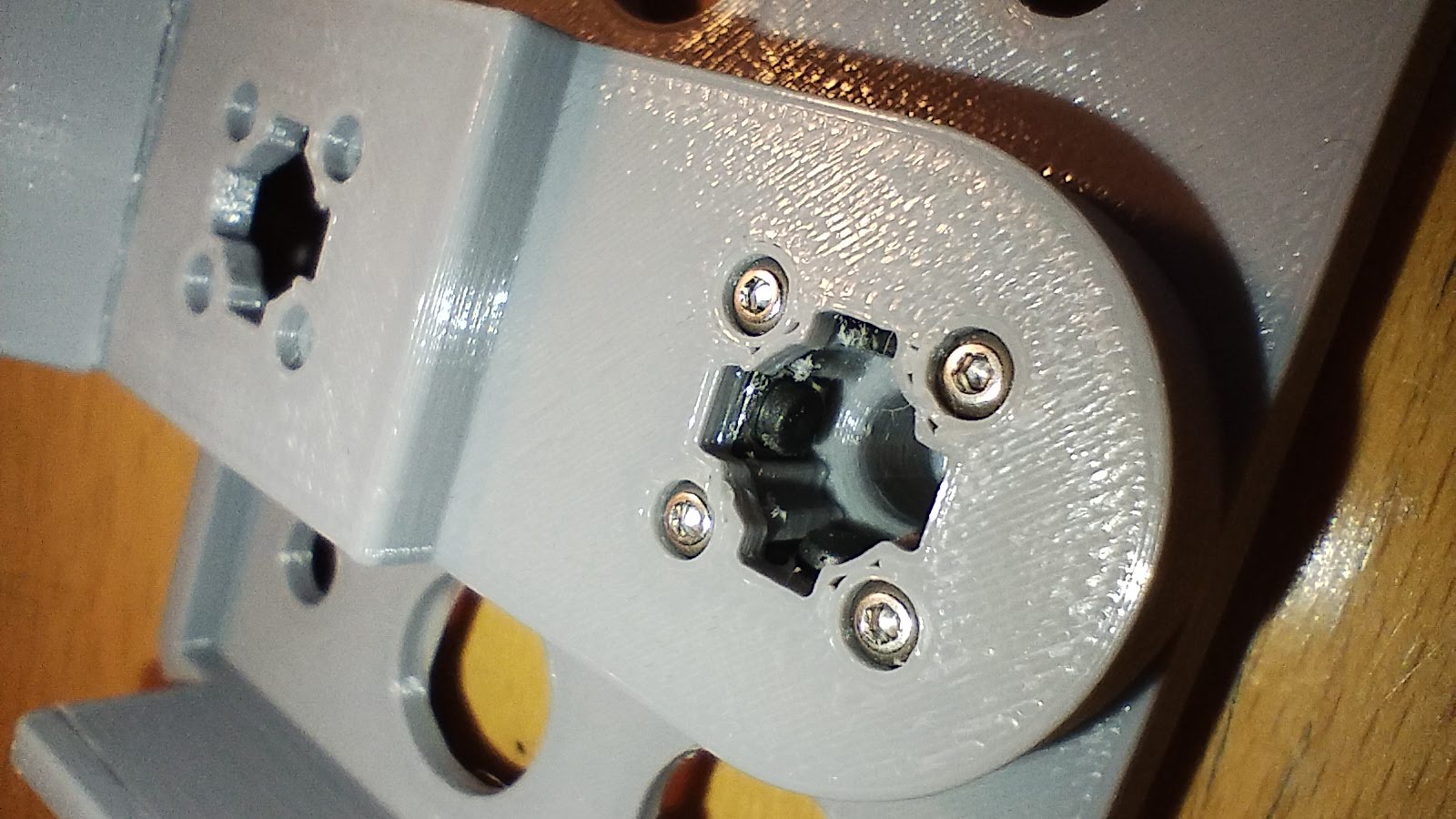

The length of the rod is to fit through a 3mm plate. Se picture where I have mounted the switch to my collective head.
For any changes or your own modifications, here's the link to my OnShape if you want to do that. :)
[https://cad.onshape.com/documents/93ce1f8cfd08e98a4e8afb03/w/2a7cce11c311382a81682f40/e/36b61f896538e9fb03aaaca2?renderMode=0&uiState=67121d8627199419eec4add2](https://cad.onshape.com/documents/93ce1f8cfd08e98a4e8afb03/w/2a7cce11c311382a81682f40/e/36b61f896538e9fb03aaaca2?renderMode=0&uiState=67121d8627199419eec4add2)
Ps: I've uploaded the collective head with the holes. Recommend you to also go to my CAD project in OnShape to get the measurement for the holes to the hat switch.
[https://cad.onshape.com/documents/5a9c2c957760262a87dd6fa0/w/923ce8f40f28e6d4b528f4dd/e/2b6dd1a3dffa470bb22b5213?renderMode=0&uiState=67121e9c3a459e5d1dc5a84b](https://cad.onshape.com/documents/5a9c2c957760262a87dd6fa0/w/923ce8f40f28e6d4b528f4dd/e/2b6dd1a3dffa470bb22b5213?renderMode=0&uiState=67121e9c3a459e5d1dc5a84b)
Enjoy my work.
