Modelo 3D square twist lock box por DrJones no Printables

Descrição

Since bayonet mounts (“twist lock” or “click lock” in 3D printing slang) allow for a precise position of the closed lid (in contrast to a screw that can be fastened a bit more or less), I thought I should try a square base shape, even make a cube box. Then I added some nice wavy decoration, and here it is :)

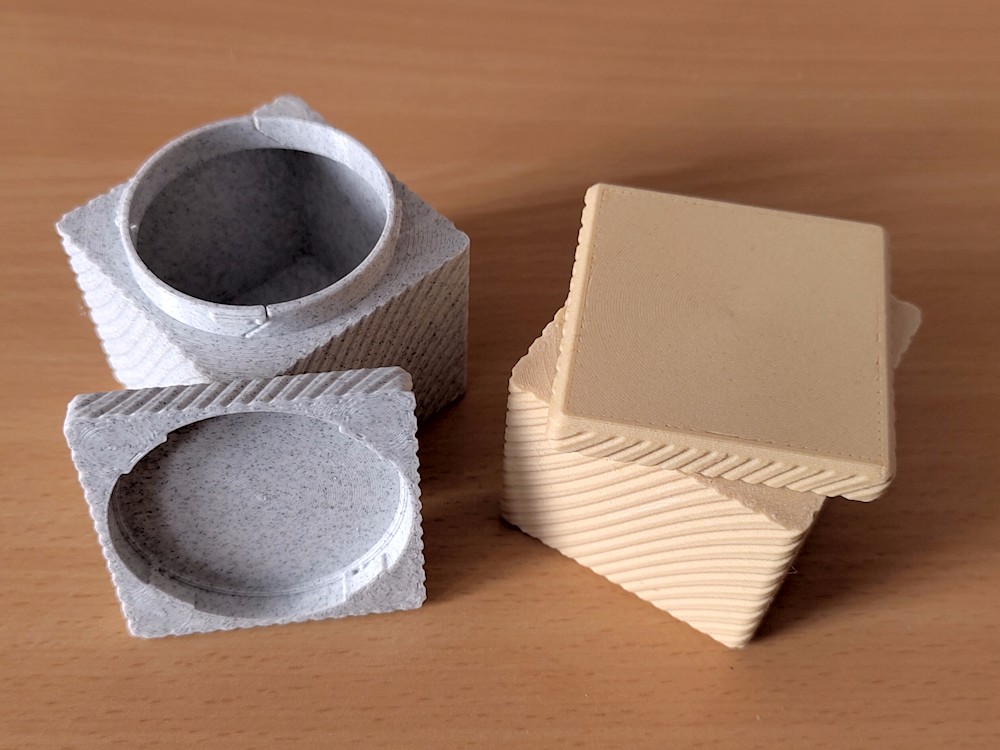

The bayonet mount features an anti-creep compliant mechanism (to put some cool buzz words here; it just involves some springy elements that are only shortly under stress when opening or closing, but not when open or closed).

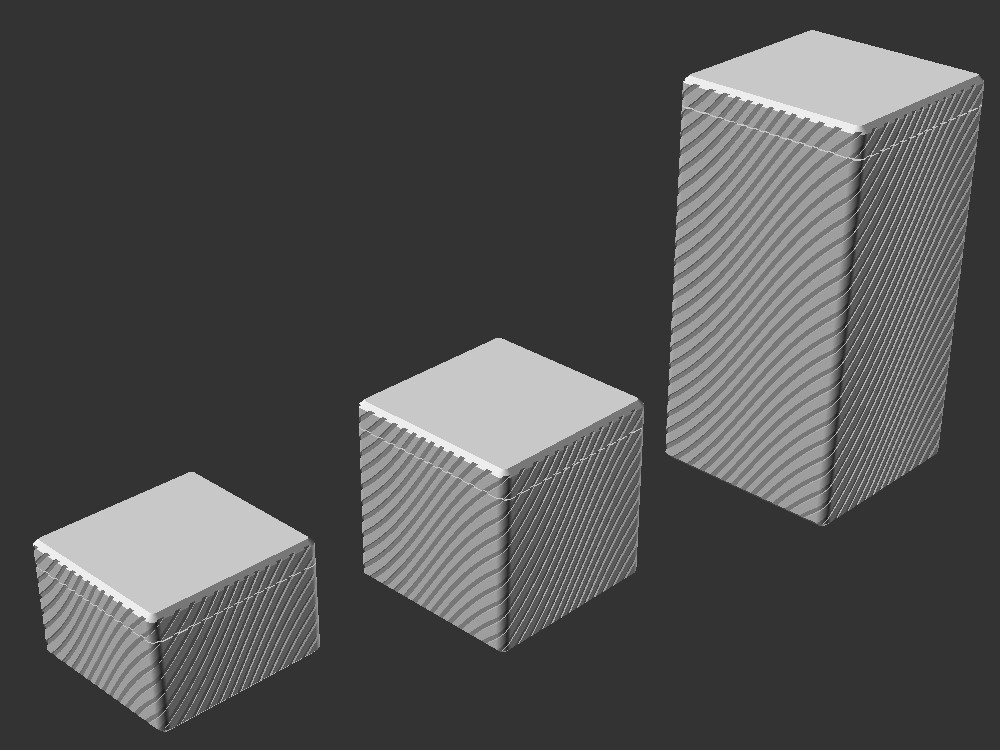

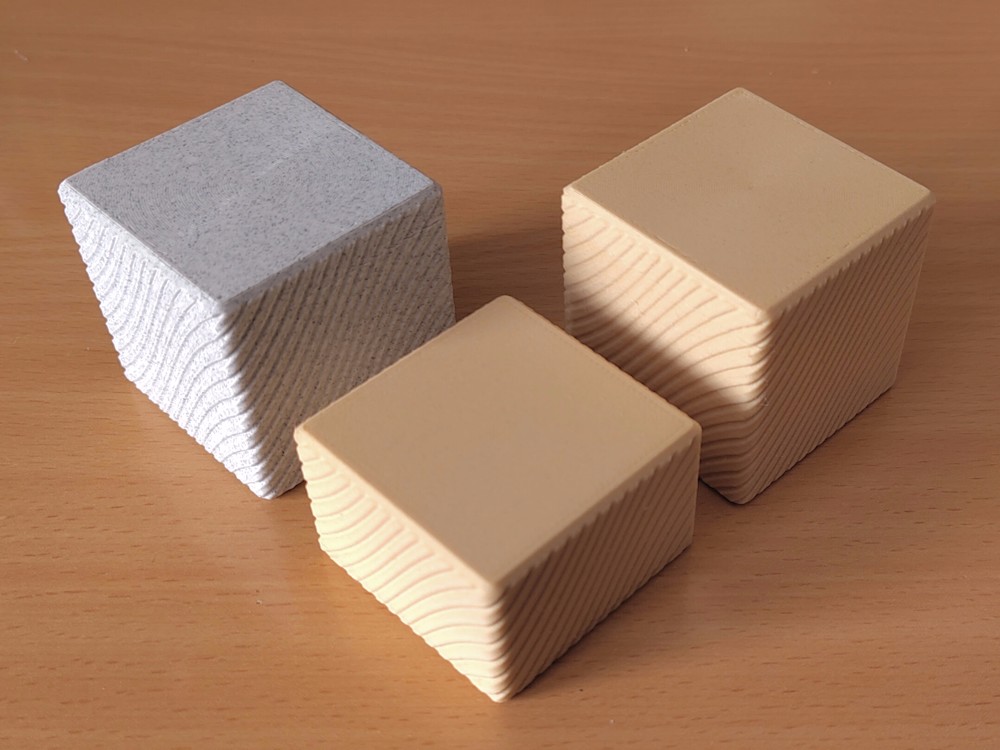

There are 3 sizes included; if you need a different size, ask in the comments, and there's a good chance I'll upload that.

Printing: Nothing special, no supports. I used a 0.4mm nozzle and 0.2mm layer height, but other values probably work.

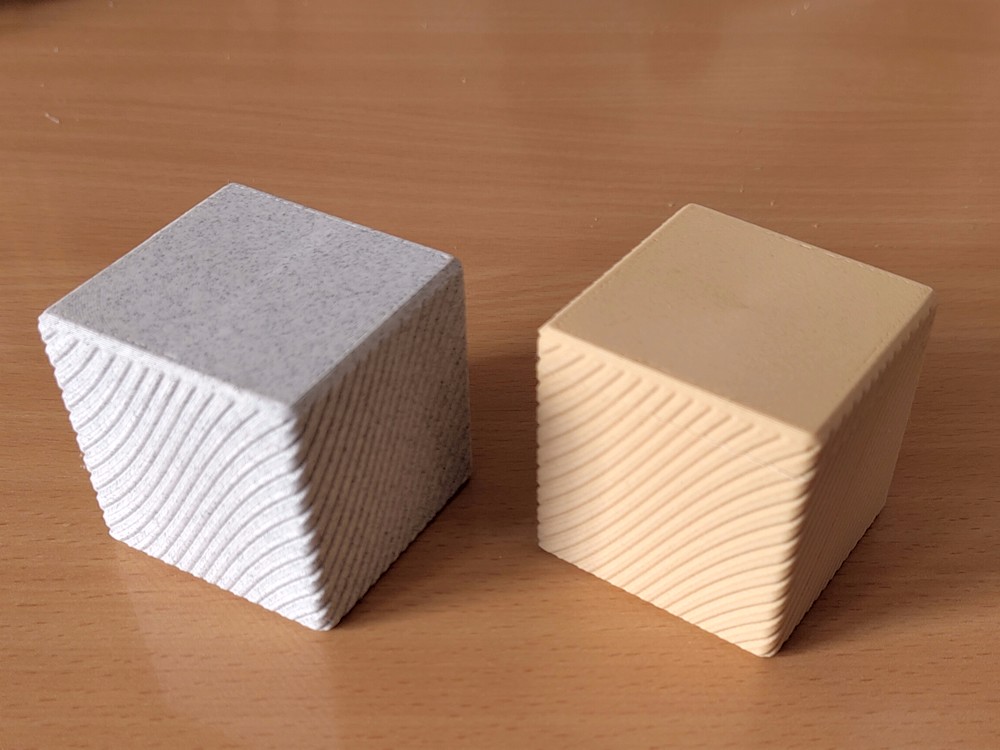

I used Prusament Marble and Prusament woodfill linden; I do not recommend the latter for this model since it lacks quite a lot of springiness, though it looks and feels very nice :)

Printables

square twist lock box

Publicado em 21 de out de 2024

29
Curtidas
232
Downloads
3
Impressões
Categoria Other Art & Designs
Tags
box cube square twistlock bayonetmount
Licença Creative Commons — Attribution
Arquivos (3)
square twist lock box 50 50 50.stl 4.6 MB
square twist lock box 50 50 33.stl 3.2 MB
square twist lock box 50 50 100.stl 8.4 MB
