Designed by me to restore a broken camping table. May be of some use to you.

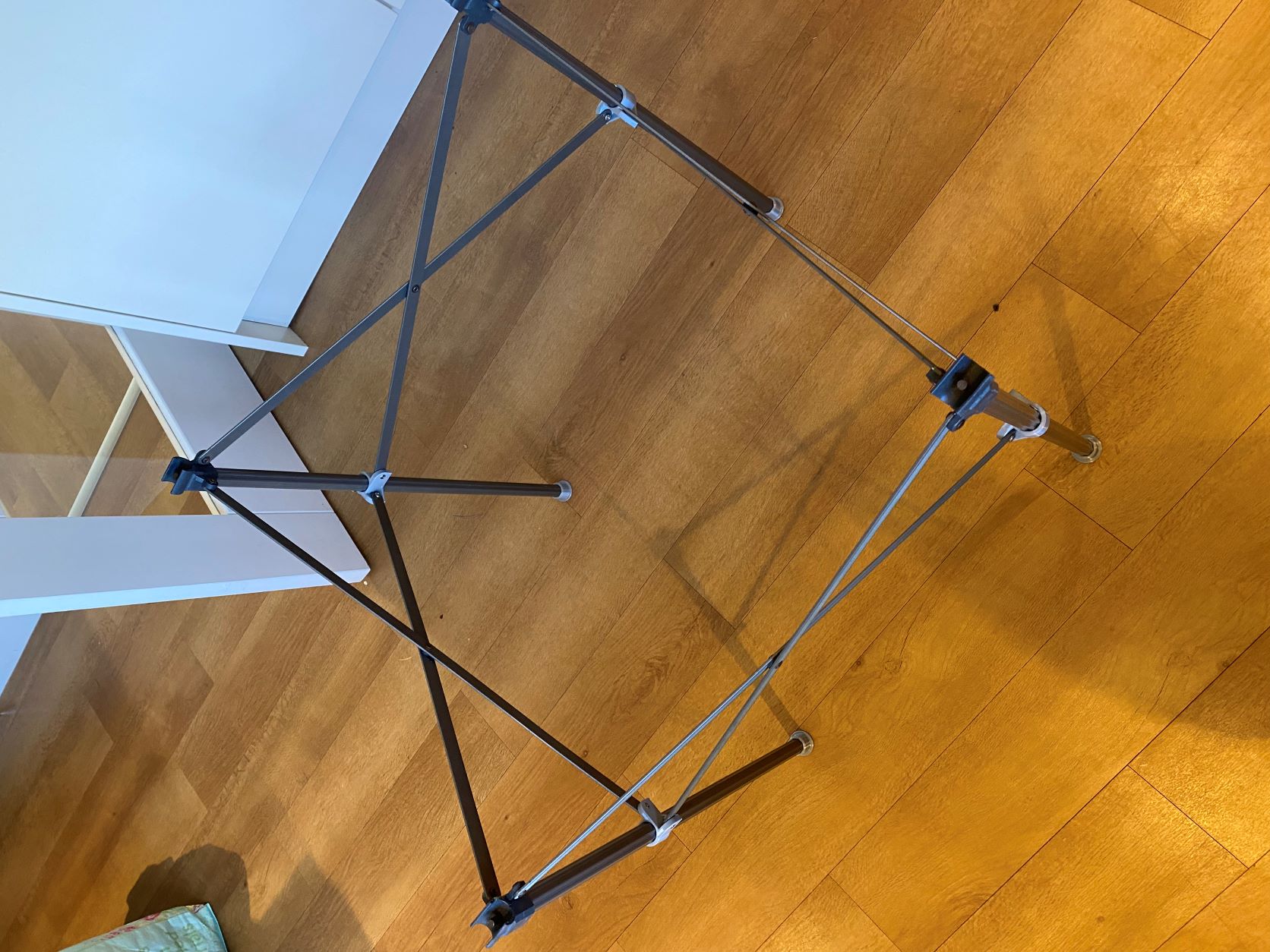

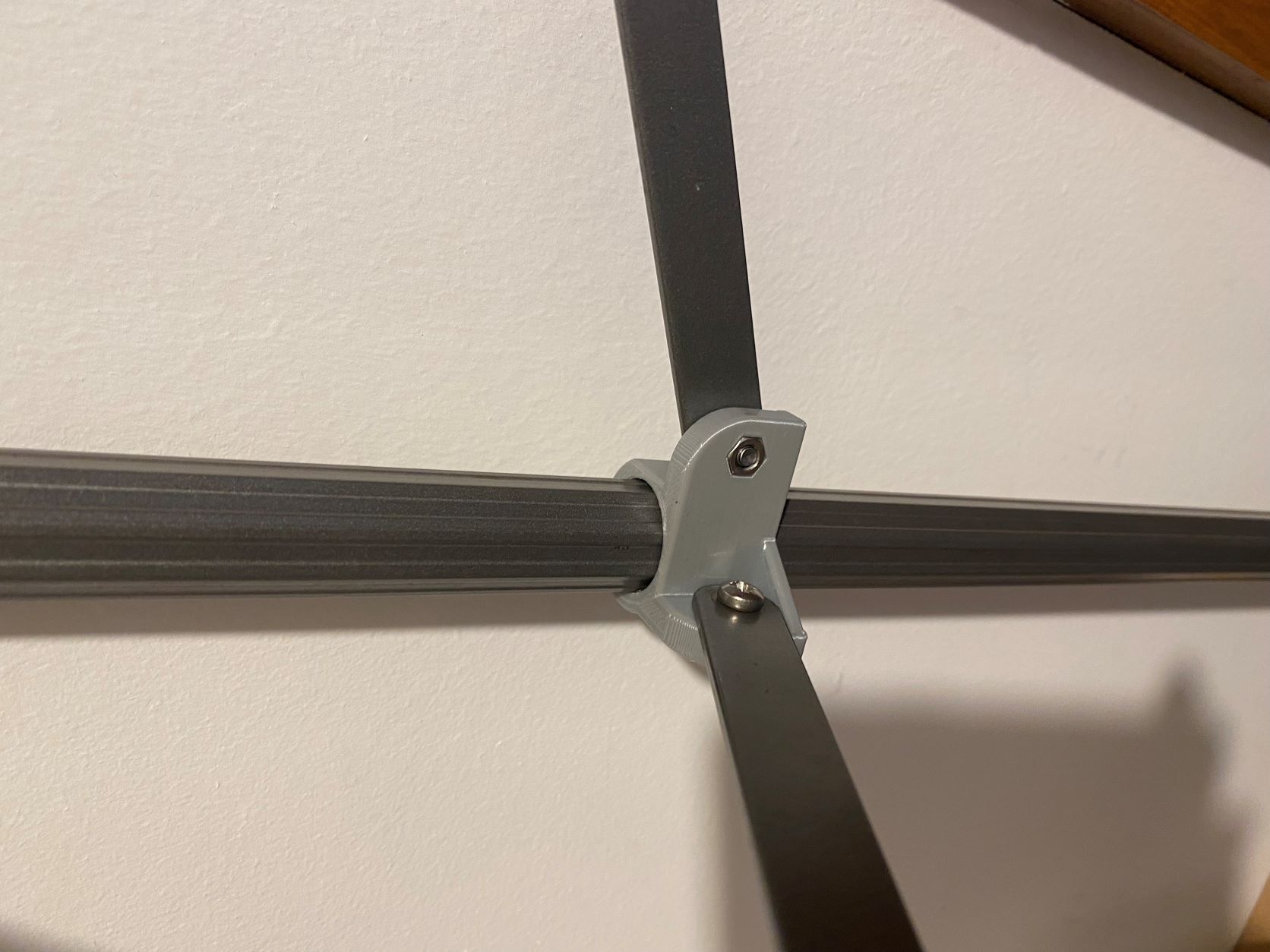

Fits tables like the one shown with a leg OD of 20mm (the hole in my bracket is 20.4mm)

Supports not needed if you print the brackets with the triangular ribs on the bed, and the feet..... well, foot down!

I hope they're useful, they were for me.

Happy printing!

I used PLA+ and they're fine

100% infill, 0.2mm layer, no supports needed.

You will need two m4 screws and nuts per leg.

The old plastic brackets will need removing, and in my case I had to forcefully remove the old rivets.

I used some threadlock to stop the screw from undoing itself when the table folds
