When I needed a depth limiter for the drill, I downloaded models from other authors. These are interesting models with a collet lock. But in fact, they were useless, because the fixation on the drill was insufficient and the limiters simply slipped, especially when working with the hammer drill. So I created my own drilling depth limiter design.

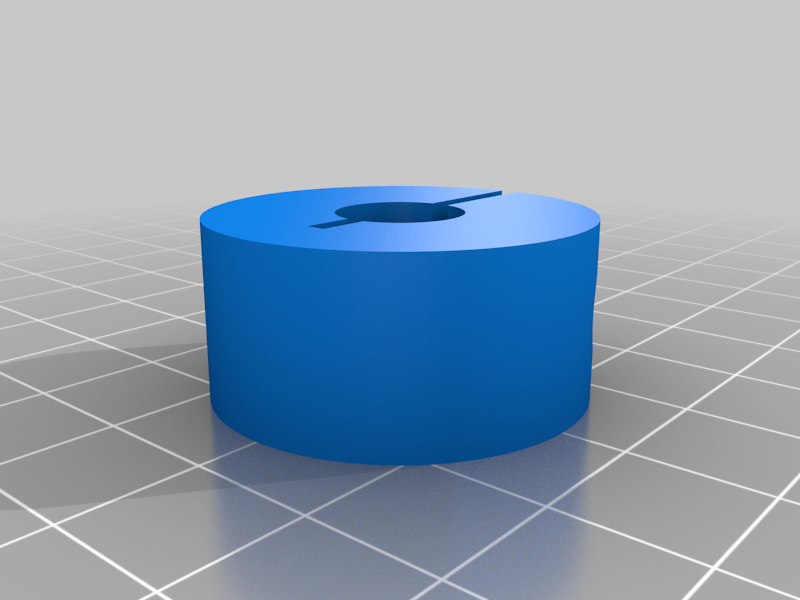

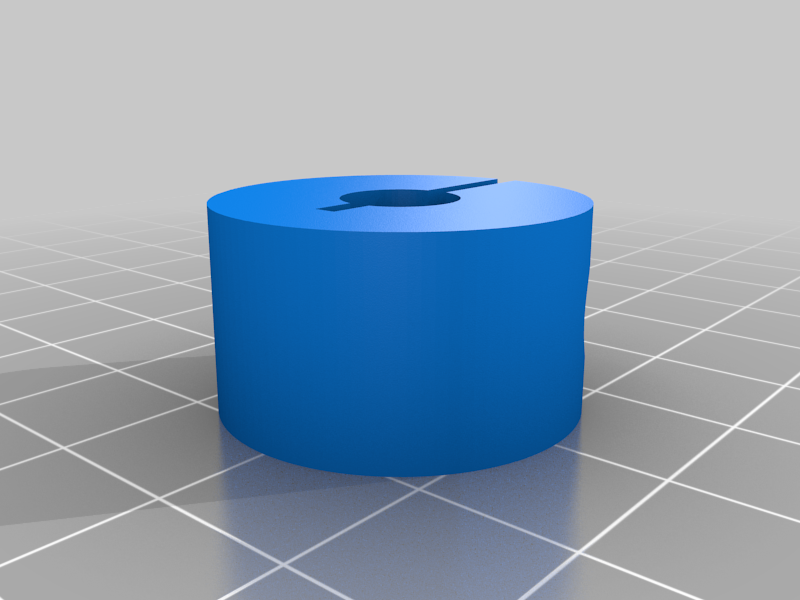

I made three of the most popular diameters for drilling with a hammer drill 6-8-10mm. However, you can use the source file to modify it for yourself.

The model is printed without support, print in place.

To complete it, you will need: M4x12mm Hexagon Socket Screw and M4x7x2 Square Nut.

Parts links below:

M4x12mm Hexagon Socket Screw

M4x7x2 Square Nut

Multi-function 18 In 1 Universal Wrench Keychain

Useful Links:

Heating Tube 12V/24V 70W High Temperatu

Noulei silk PLA Filament

Trianglelab Highall-metal V6 Hotend

Deburring Burr

Print Settings

Rafts:

No

Supports:

No

Resolution:

0,2

Infill:

15

Filament:
PolyMaker PLA


Notes:

The filling of 15% in my case was sufficient for the material to retain strength and be elastic when the lock is compressed.
