This miter saw protractor is specifically designed to ensure a correct and precise miter angle with no effort. The miter protractor could provide you the exact angle you need (inside or outside corners) to make your perfect trim for crown molding, baseboard molding and more.

Two scales transfer your work angle directly to the miter saws for an accurate Miter cut, and Single cut.

MITER CUT

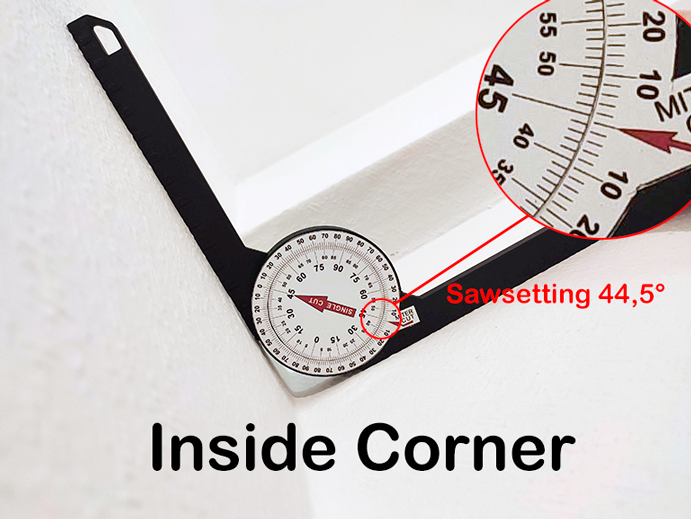

Use Inner Scale to set miter saw settings for an accurate miter joint cut.

SINGLE CUT

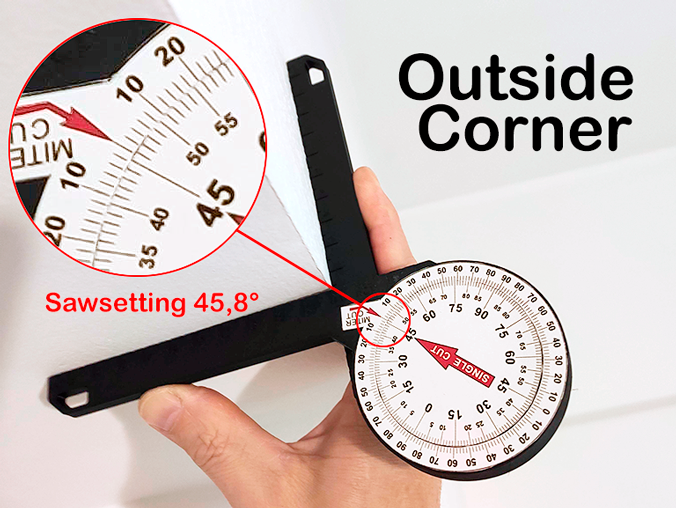

Use Outer Scale to miter saw settings for fitting a single piece to angle.

Perfect for crown molding, miter cuts, carpentry, plumbing, metalworking and more.

Post-Printing

The dial contains small divisions, so you need to print it on a regular printer. It is advisable to use a color printer and glossy paper or a laminator. So that the paint does not fade from the gloss, I used varnish for artwork. Next, you need to cut out two dials (external and internal) and paste them combining with the labels, as shown in the video. Before pasting the inner dial, it is necessary to turn the protractor 180 degrees - an unfolded angle if you press it to a plane, for example, to a table.

Two vector format files have been added to the distribution. (Unfortunately, due to the non-standard file format, they cannot be downloaded in one archive. Just select the files you need and download them one by one. Sorry for the inconvenience.) If you don't have a vector editor, then you can use raster graphics files: [https://photos.app.goo.gl/V9ebx7YxbQvawbF28](https://photos.app.goo.gl/V9ebx7YxbQvawbF28)
