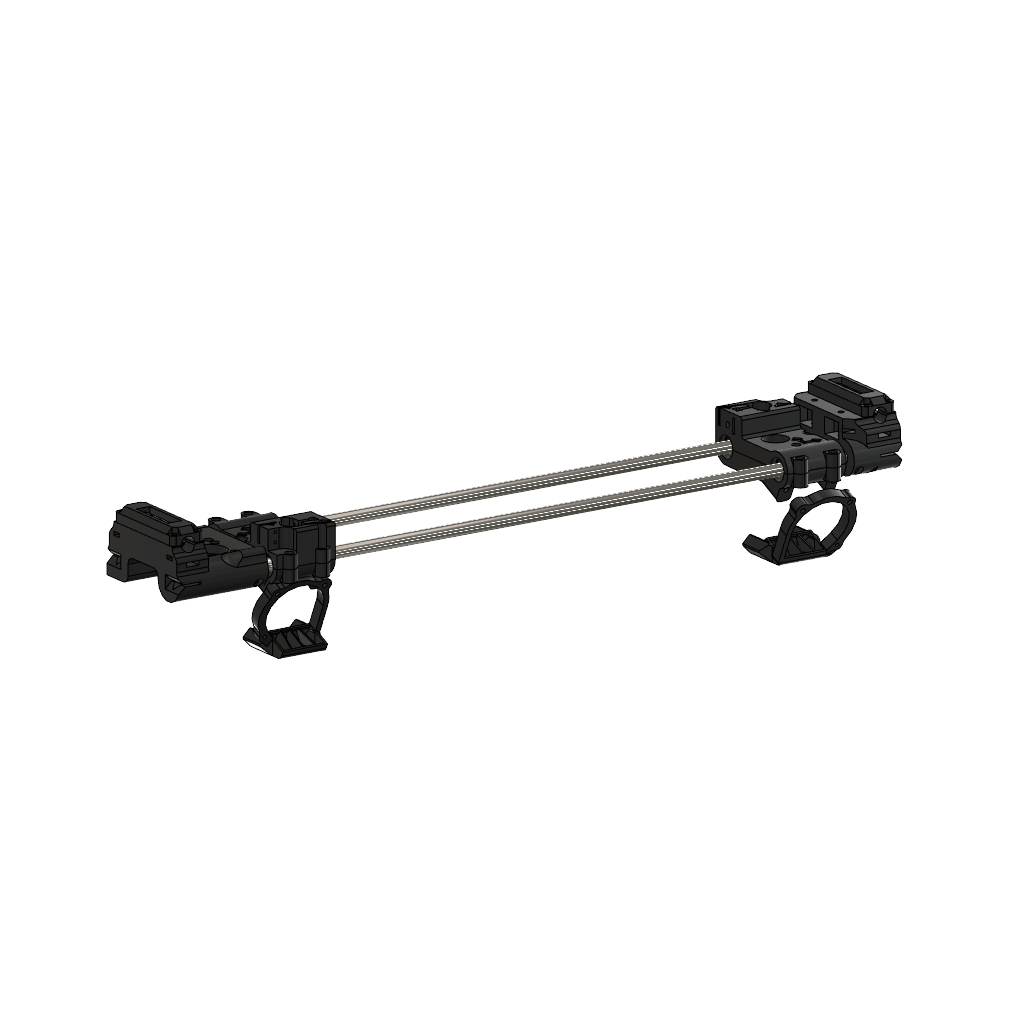

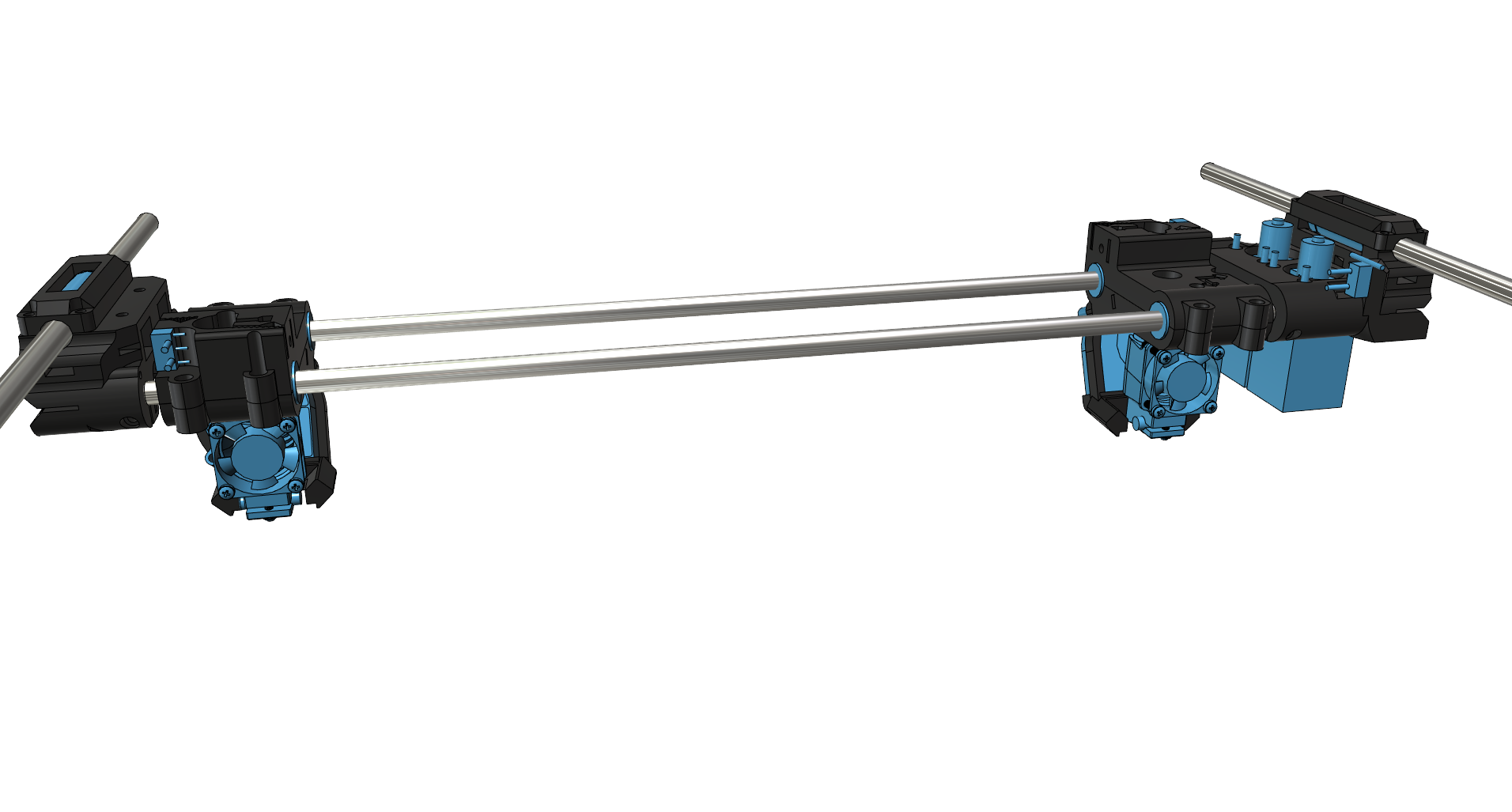

Independent Dual X-Axis Bowden System.

100% Compatible with all versions of E3D's BigBox Printer. No frame modifications needed.

Build Volume.
275mm X-Axis
200mm Y-Axis
300mm Z-Axis

Requirements (additional).

2 x NEMA 11 Stepper Motors, (eBay Affiliate Link).
2 x LM8LUU Bearings, (eBay Affiliate Link).
2 x F604ZZ Bearings, (eBay Affiliate Link).
2 x 20mm M4 Grub Screws, (eBay Affiliate Link).
2 x 460mm 8mm Ground & Hardened Shafts (cut down original BigBox 484mm Rods).

Full details on the E3D Forum | [https://forum.e3d-online.com](https://forum.e3d-online.com)

Print with your favourite thermoplastic | [http://e3d-online.com/All-Filament](http://e3d-online.com/All-Filament)

Updates

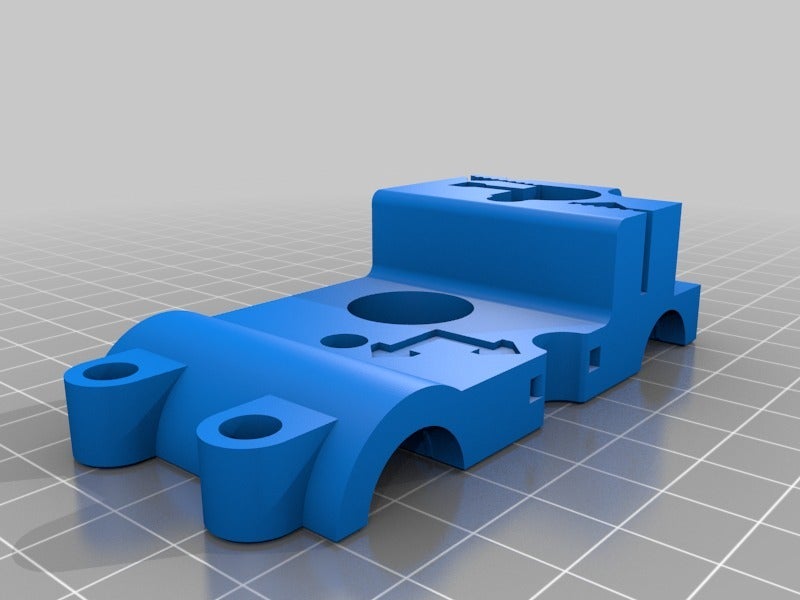

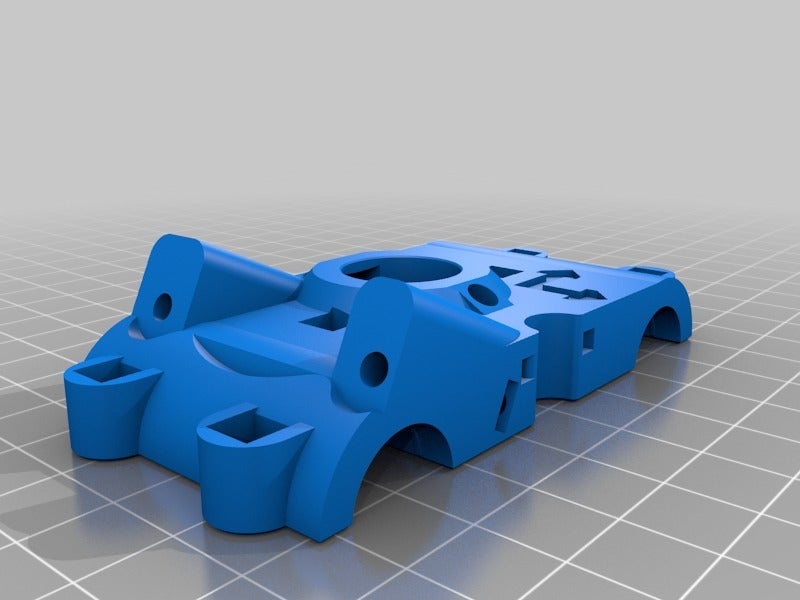

2017 - 02 - 21 | Added Right X-Carriage for V6 3mm Bowden (Designed for Flexibles).

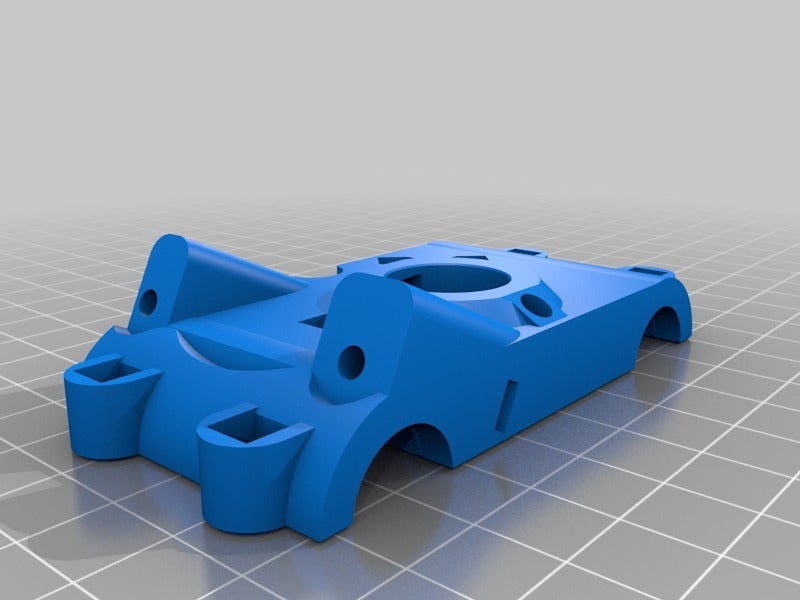

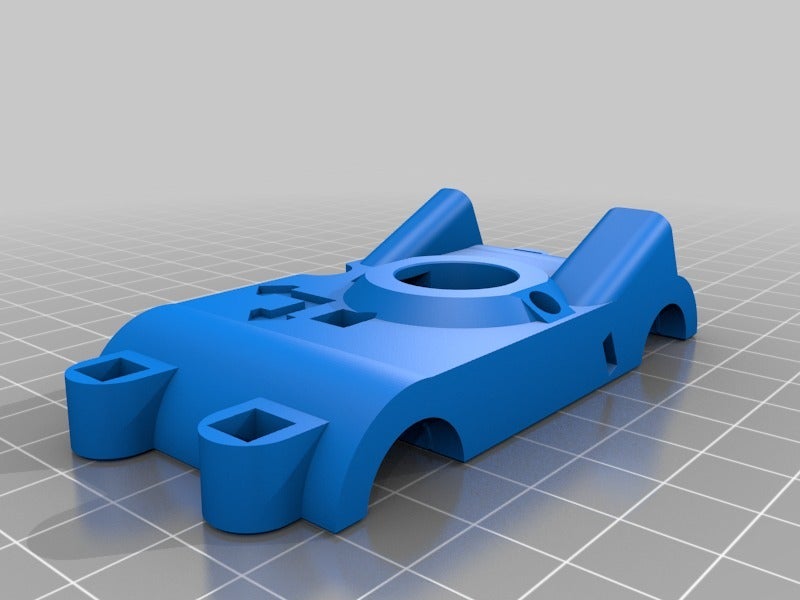

2017 - 02 - 01 | Right & Left X-Carriage Tops - Widened Bowden access holes.

Love 3D printing? Love T-Shirts?

Then you need to check out steps-per-mm.xyz!

It is loaded with a huge range of wearable Parts & Components.

Please help support my work here on Thingiverse and on Instructables by using the following affiliate links when making purchases. Thanks :)

eBay.com | eBay.co.uk | eBay.fr | Amazon.co.uk

Print instructions

Category: 3D Printers Print Settings

Printer: E3D's BigBox

Rafts: No

Supports: Yes

Resolution: 0.25mm

Infill: 15%
