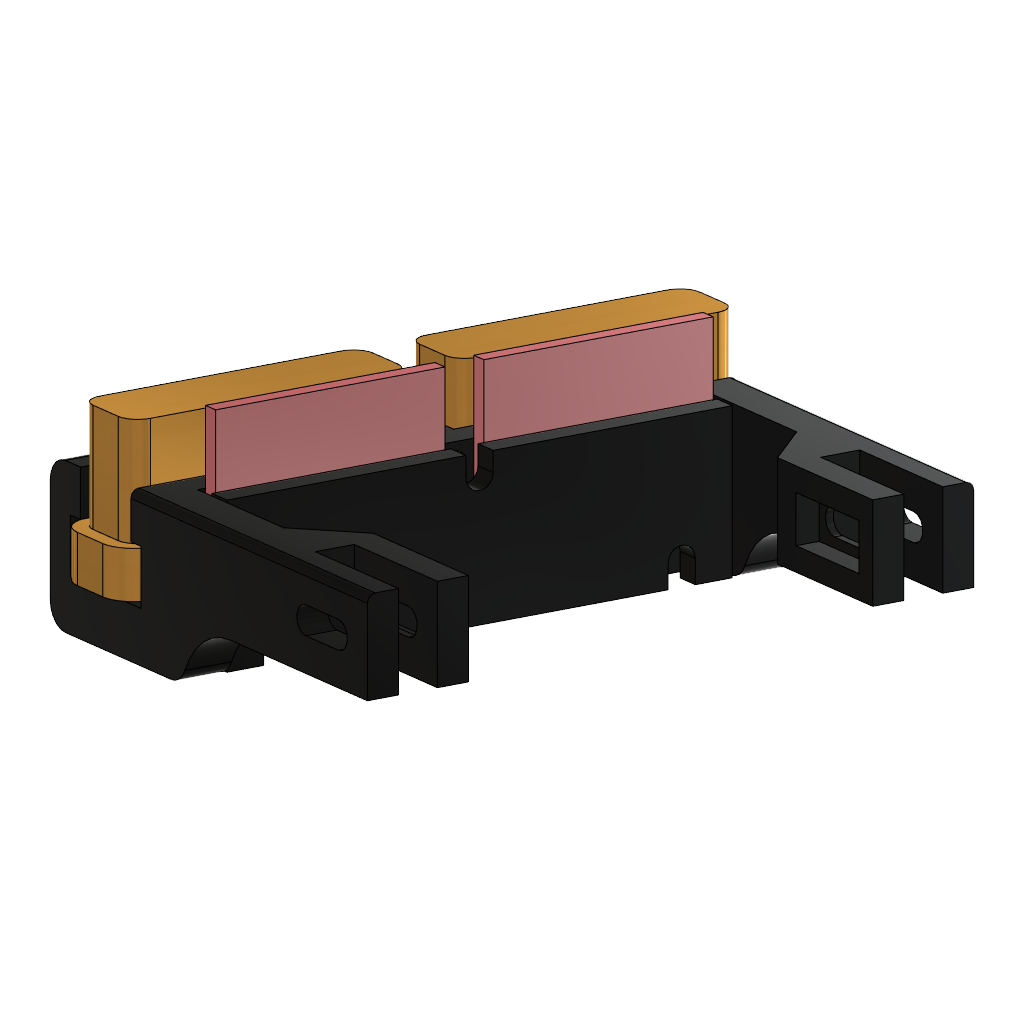

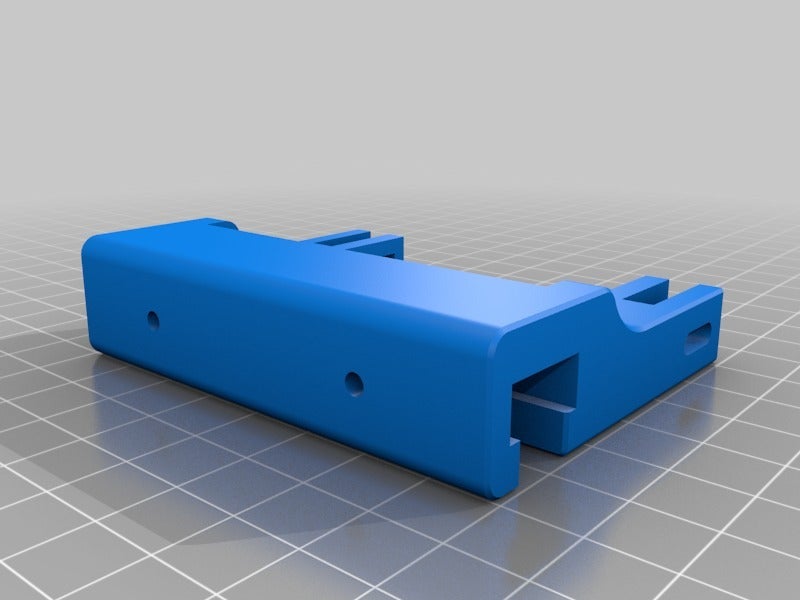

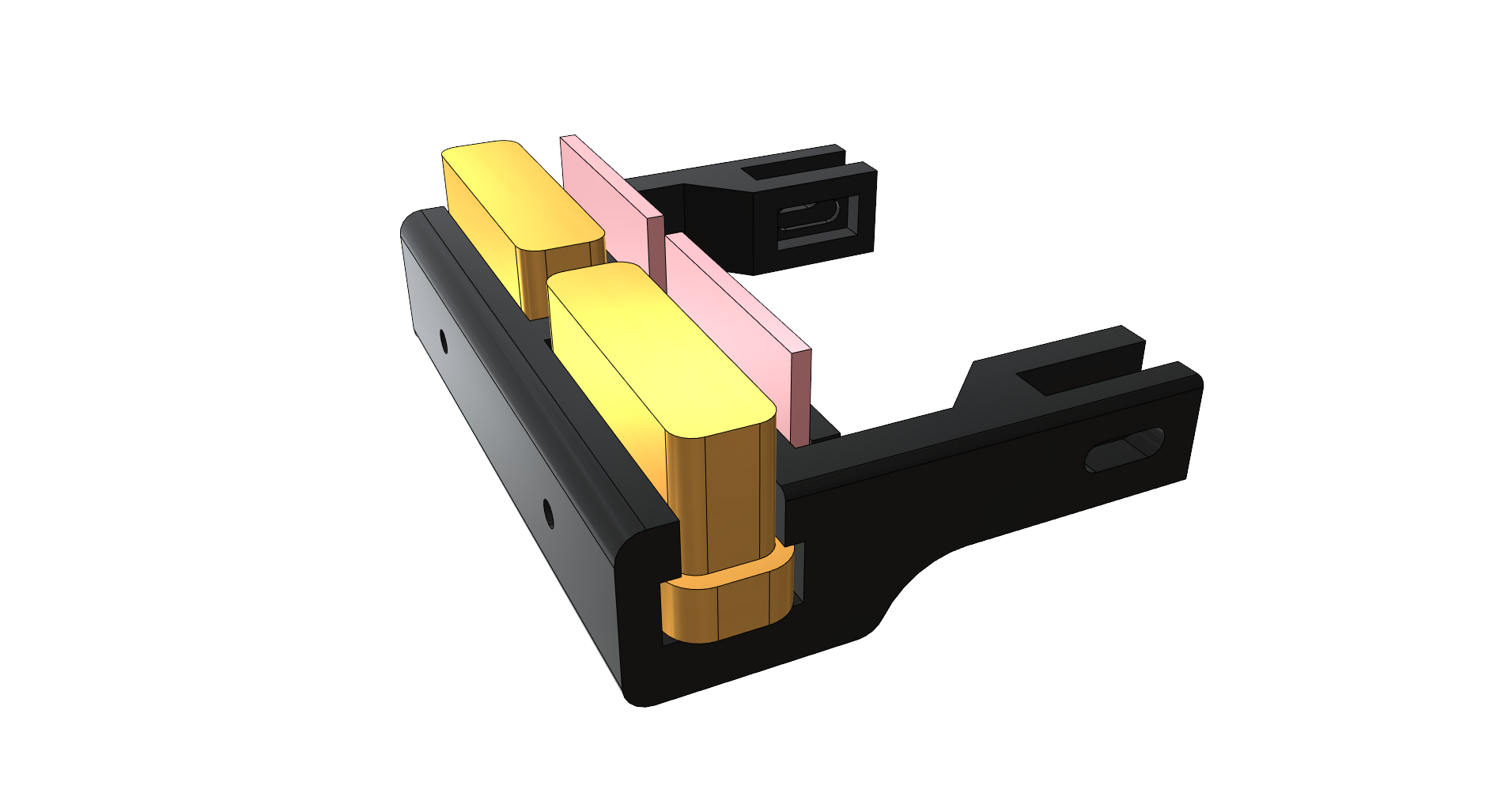

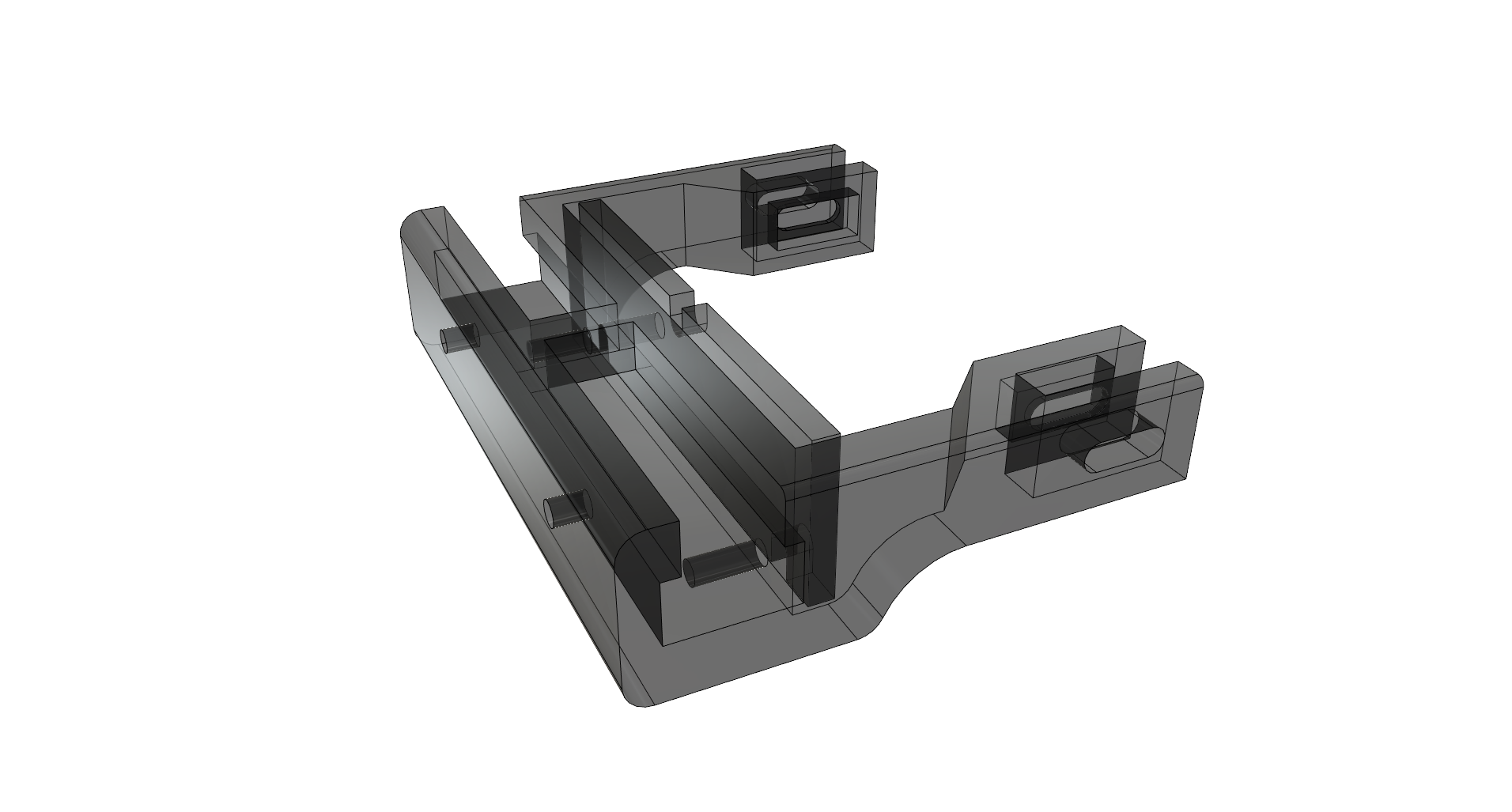

An Adjustable Brushed Wiper for use with the BigBox, perfect for printing with E3Ds Hardened Steel Nozzles. Ideal when printing with abrasive filaments such a Carbon Fibre.

Compatible with all versions of the BigBox.

You will need

2 x Small Brass Brushes with the handles cut off.
2 x M3 6mm Grub Screws to hold the brushes.

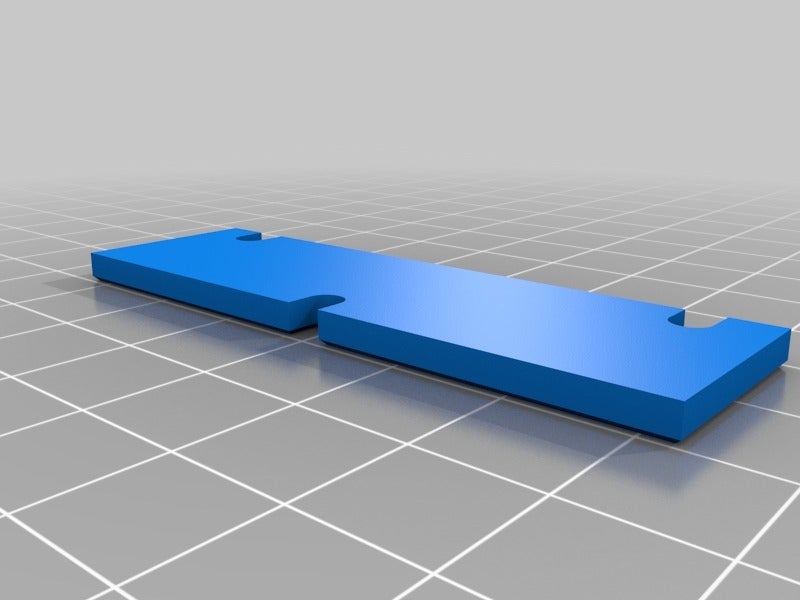

3 x M3 8mm Socket Cap Screws to clamp the rubber strips.

Do not use with non-hardened nozzles or socks!

Love 3D printing? Love T-Shirts?

Then you need to check out steps-per-mm.xyz!

It is loaded with a huge range of wearable Parts & Components.

Please help support my work here on Thingiverse and on Instructables by using the following affiliate links when making purchases. Thanks :)

eBay.com | eBay.co.uk | eBay.fr | Amazon.co.uk

Print instructions

Category: 3D Printer Parts Print Settings

Printer: BigBox Pro / Dual

Rafts: Doesn't Matter

Supports: Yes

Resolution: 0.25mm

Infill: 15%

Notes:

Requires some support in the channel for the brushes. STLs orientated and faces chamfered for best printings.
