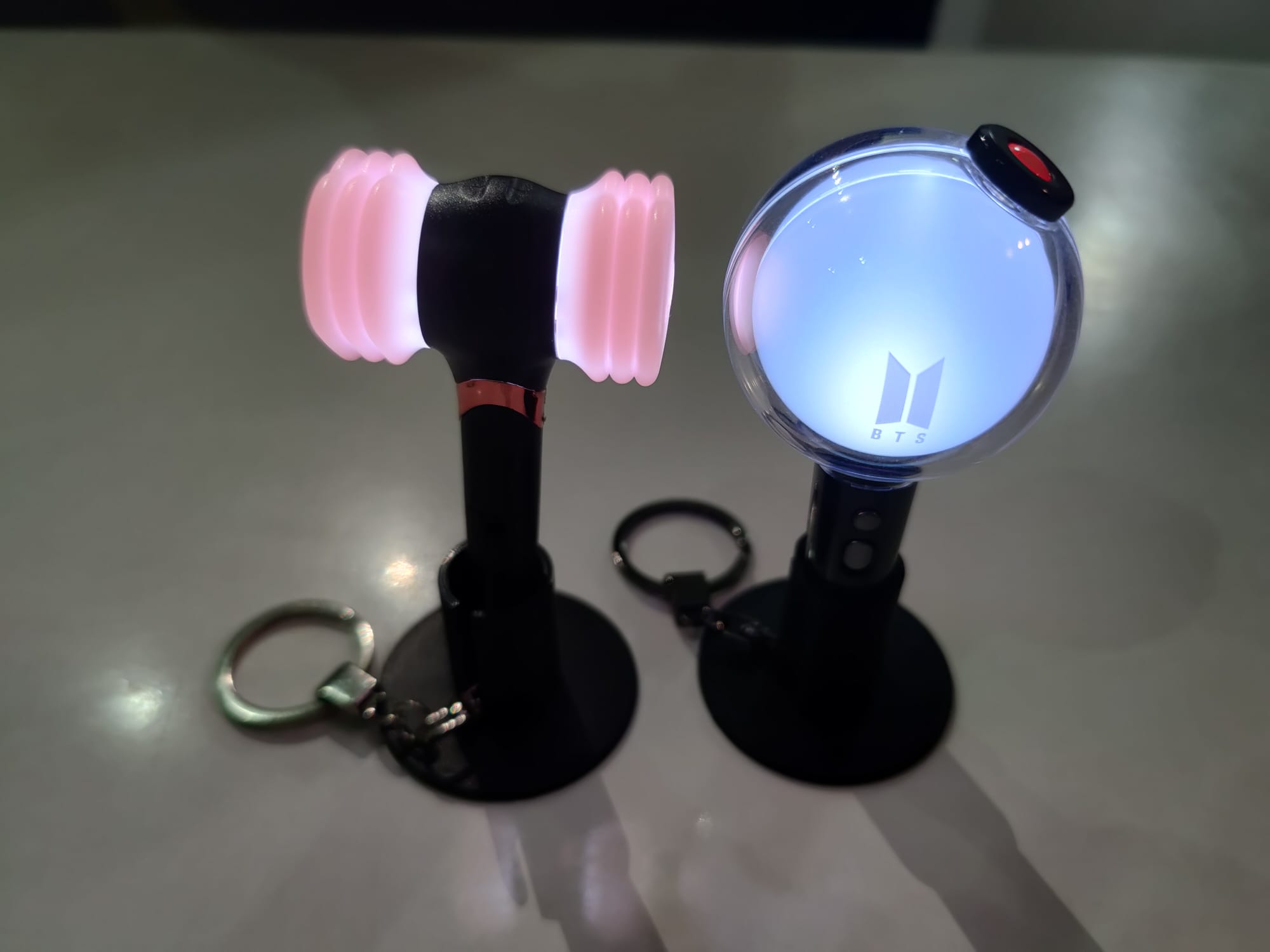

Simple Light Stick Holder/Stand - Parametric — STL Grátis

This design is a simple light stick holder with adjustable parameters to suit different light sticks.

Use Fusion 360 to change the parameters by going to Modify > Change Parameter.

My Print Settings:

Tested Measurements:

User Parameter	Description	BTS	SKZ	BTS Mini
base_diameter	diameter of bottom plate	100	100	50
base_height	height of bottom plate	5	5	2
holder_bottom_diameter	measure the diameter for the bottom of the light stick	29.5	30	16
holder_top_diameter	measure the diameter from the middle of the light stick based on holder height	31.5	32	16
holder_height	measure up the light stick on how far you want the holder to go	60	60	30
holder_thickness	how thick you want the holder part to be	6	6	2
holder_filet_size	how round you want the opening to be	3	3	1
holder_slot_width	slot with for key chain or lanyard	3	3	3

Simple Light Stick Holder/Stand - Parametric
