Complete Modular Sorting System with Stackable Twist-Lock Storage Box

This Model is Prusa MINI Friendly

Download the Compatible Twist-Lock Stackable Containers  - HERE -

Product Description:

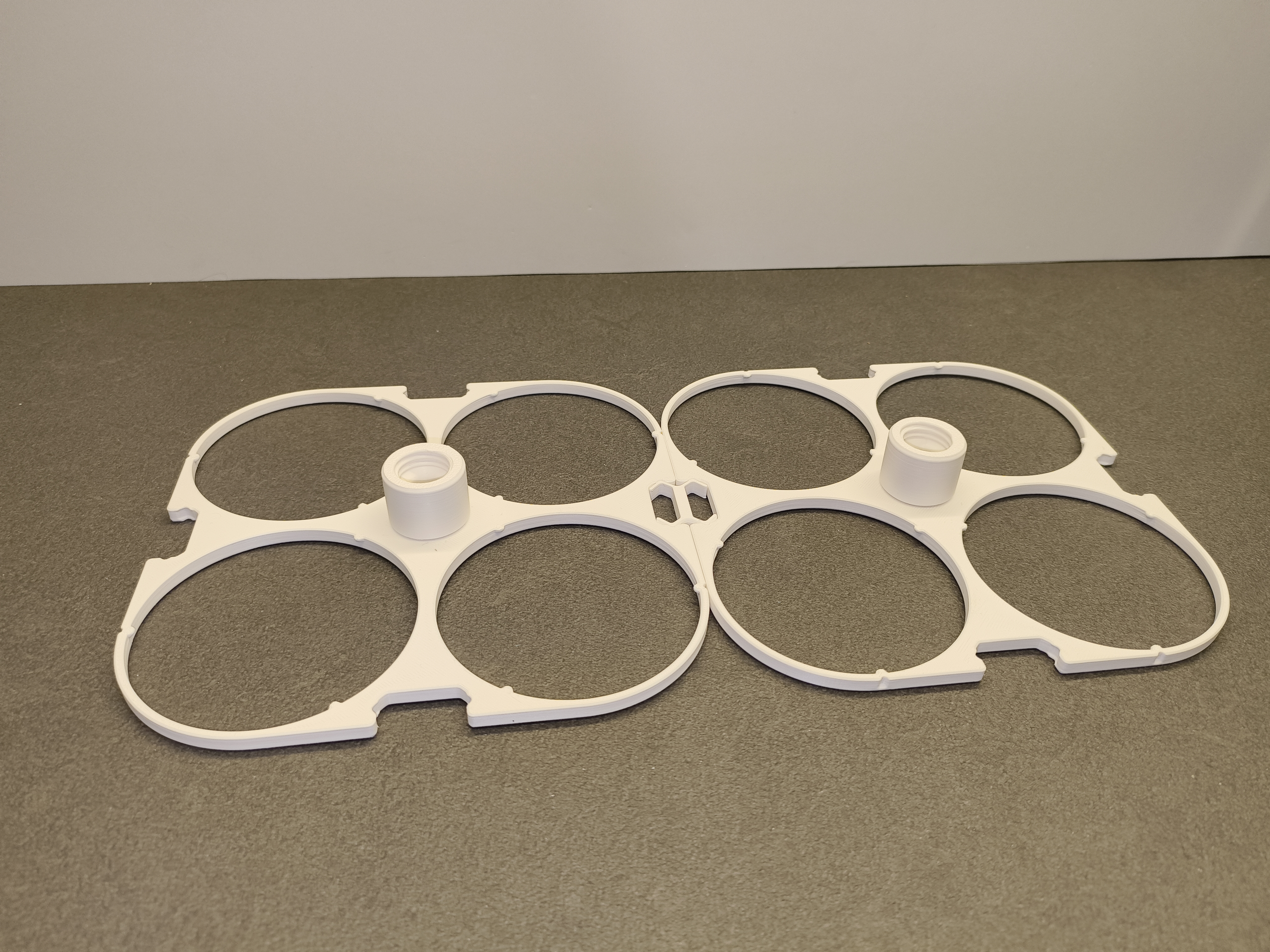

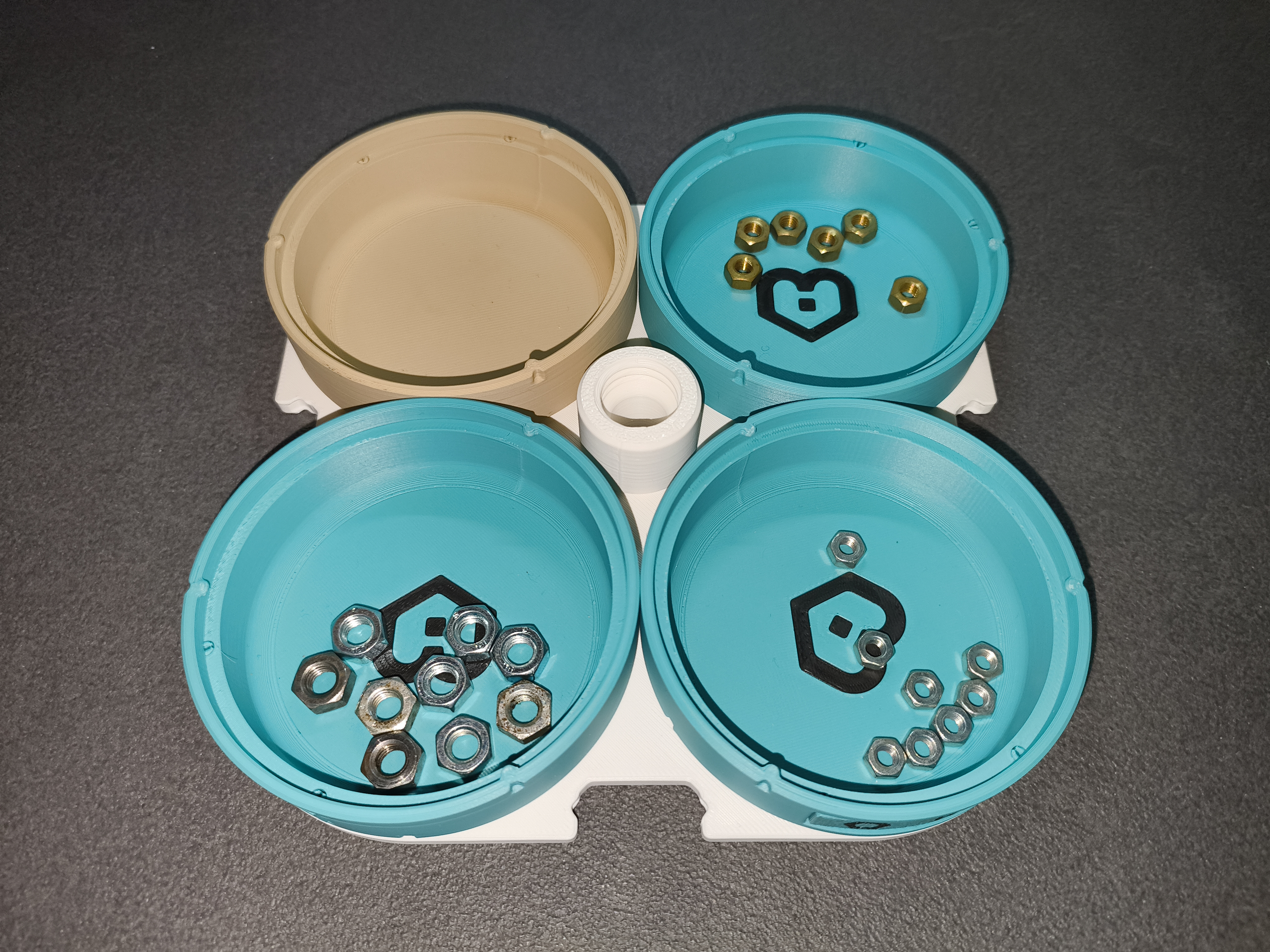

Introducing the Complete Modular Sorting System, an innovative and expandable solution for organizing and sorting miscellaneous items. The system features a modular frame that holds up to four stackable twist-lock containers. This frame is fully modular, allowing additional frames to be attached side by side, creating an even larger sorting system as your needs grow.

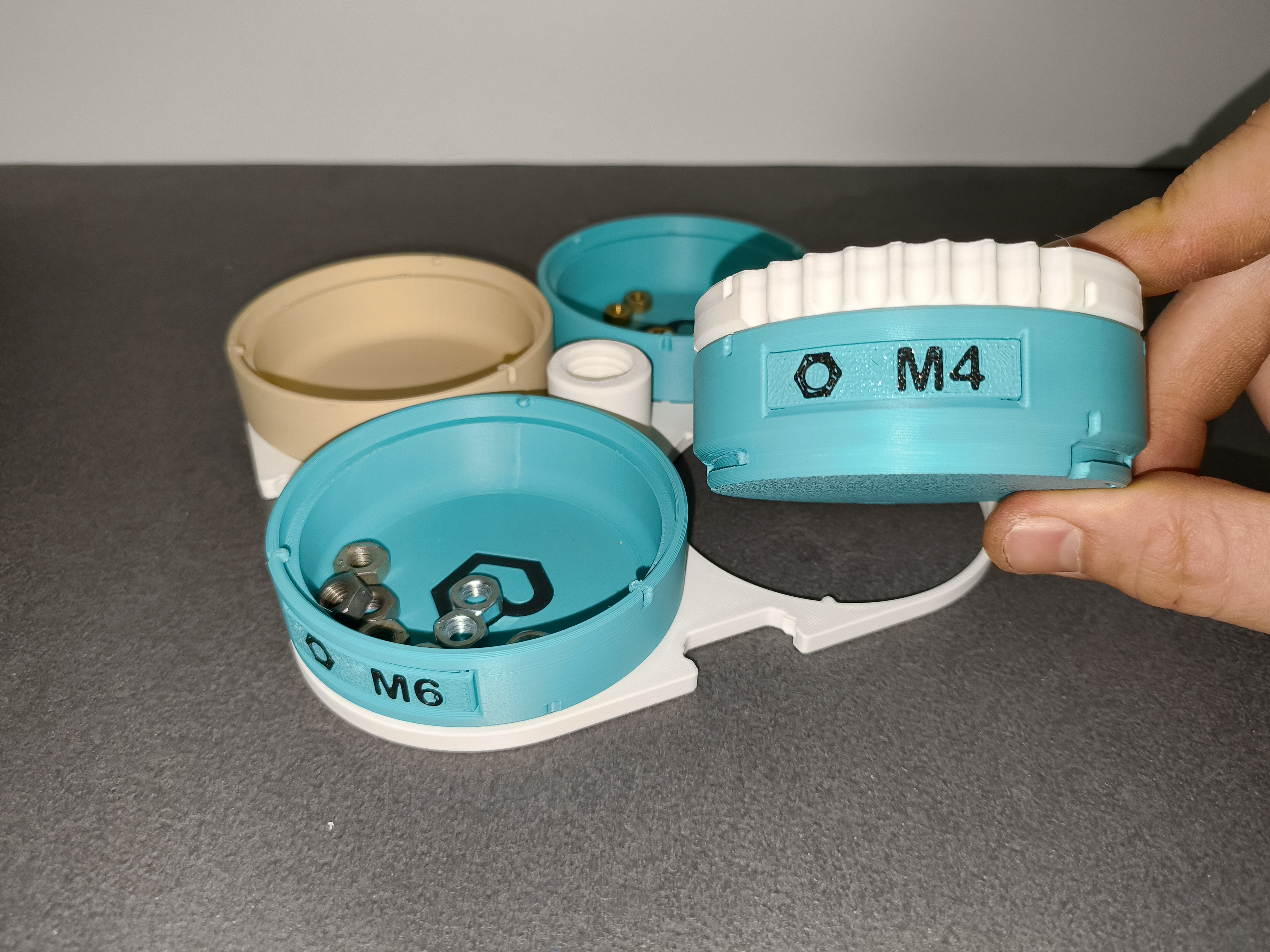

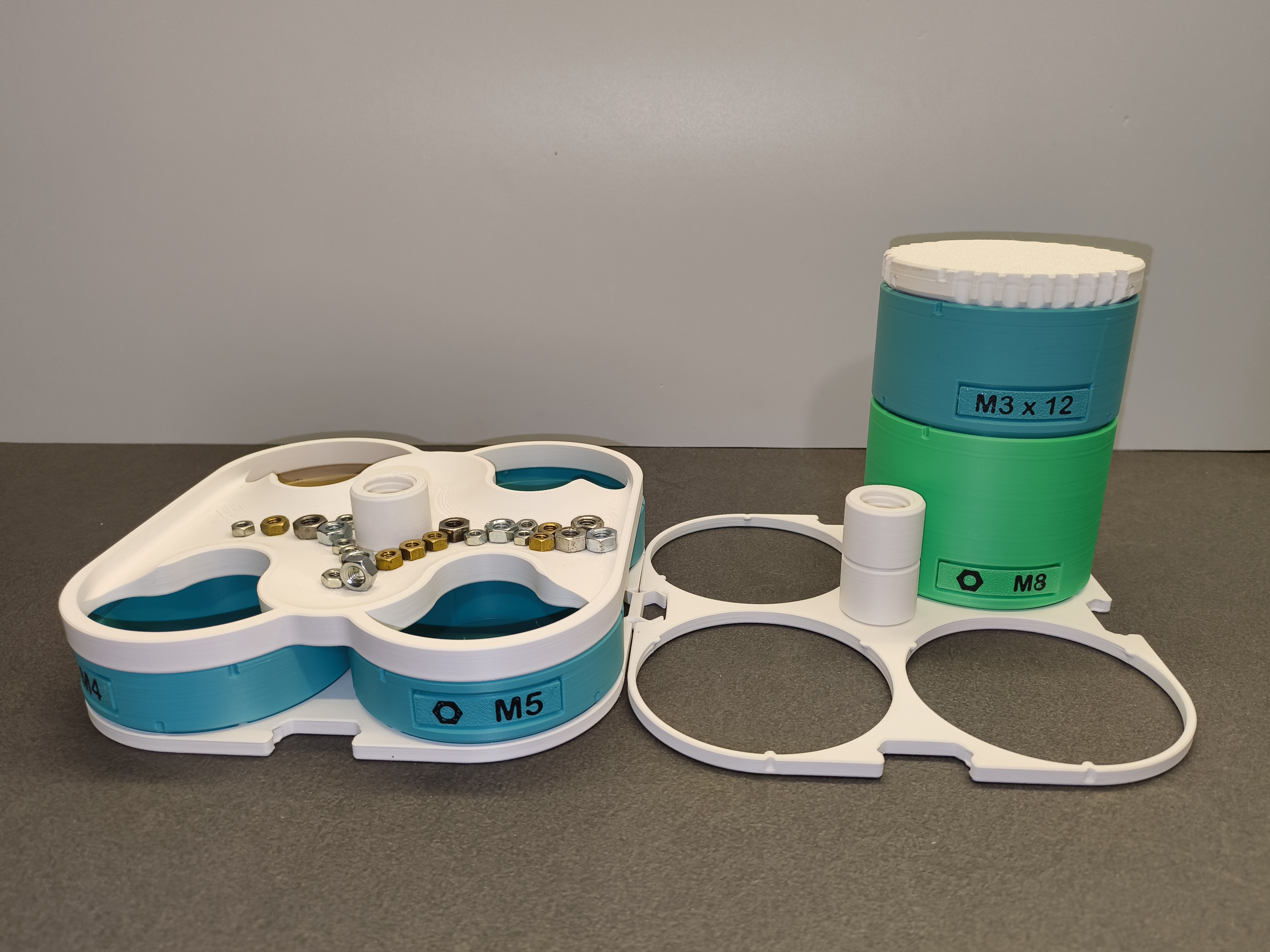

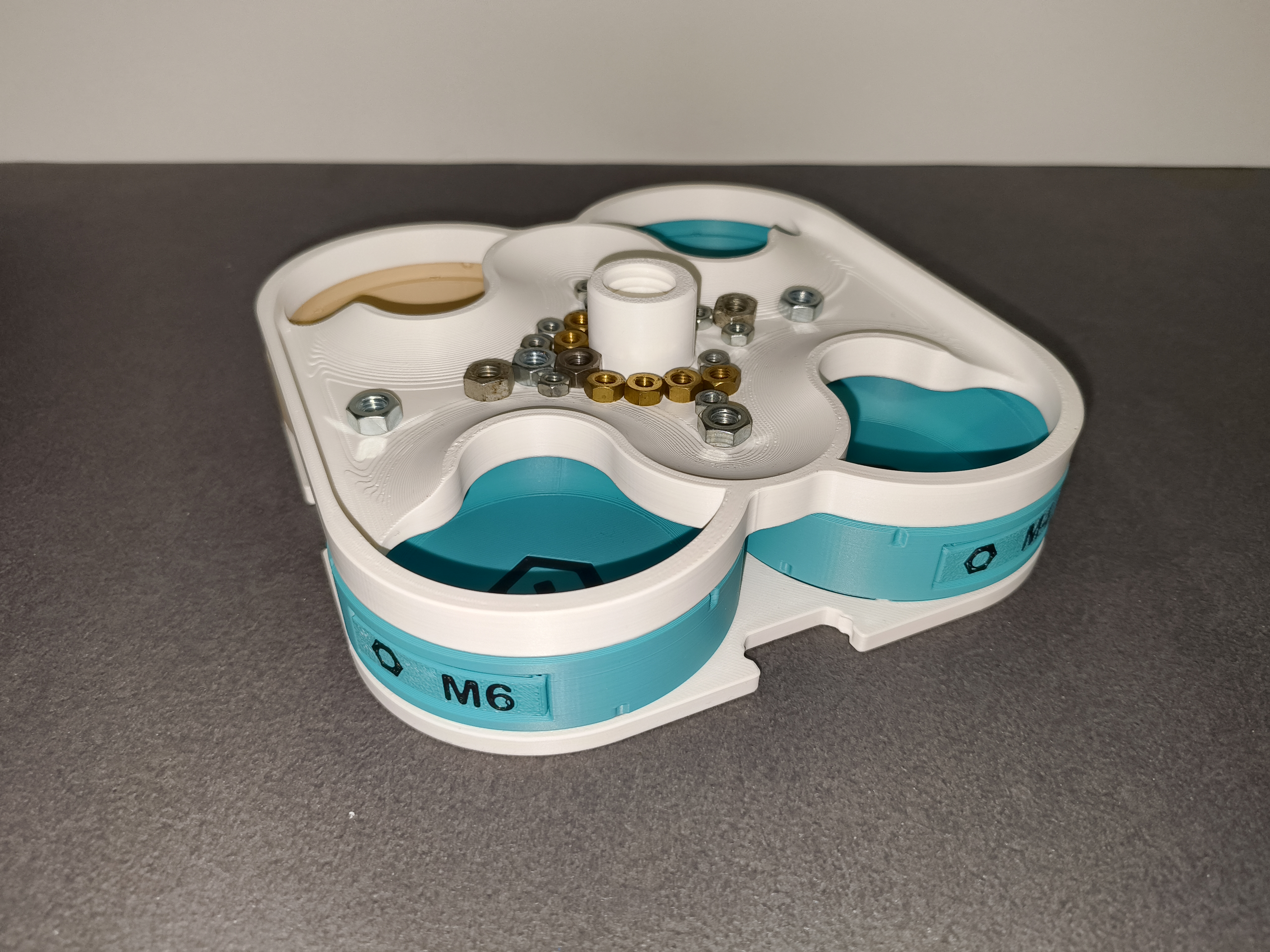

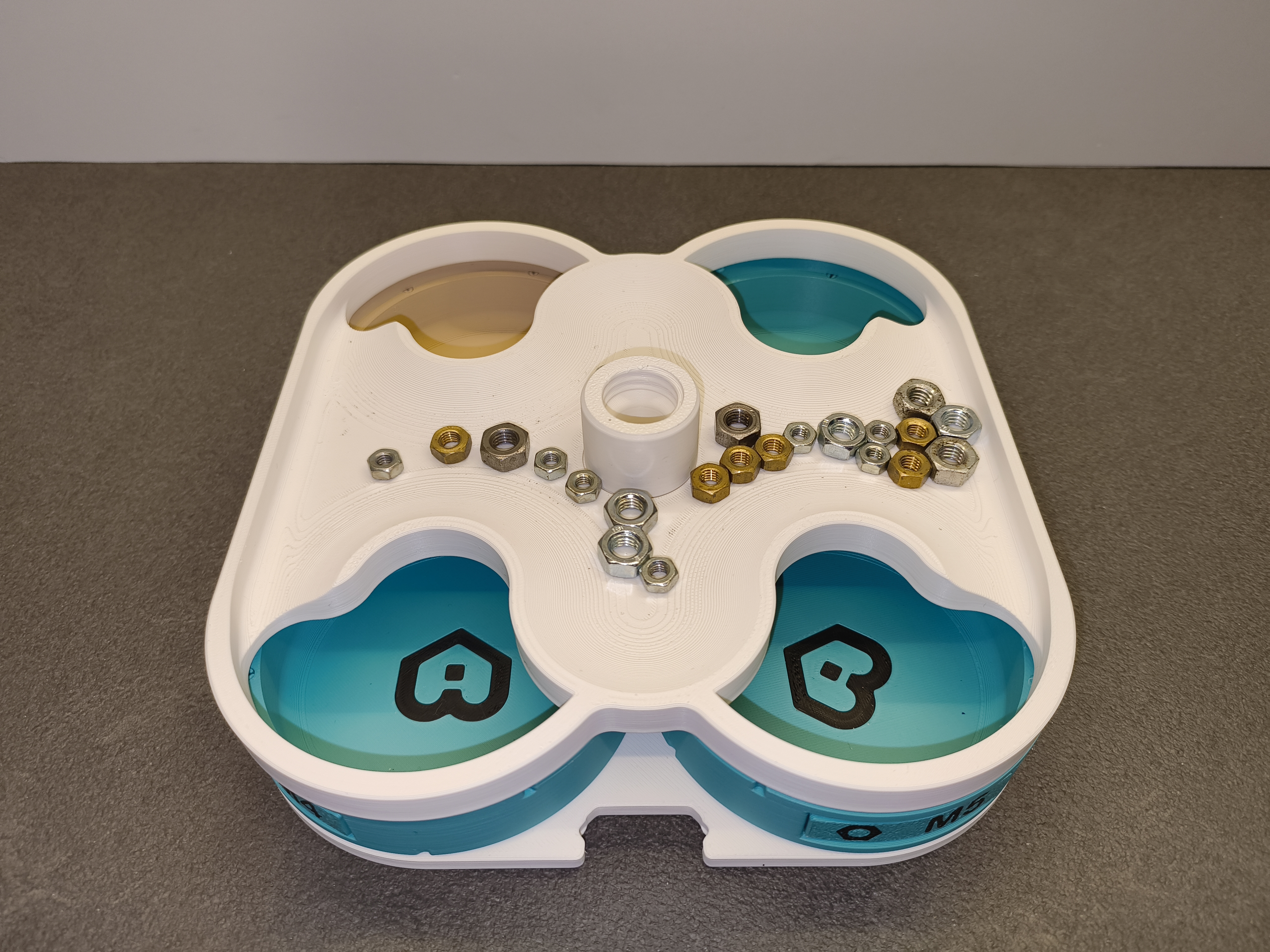

Each frame is equipped with a secure twist-lock mechanism that firmly attaches the containers to the system, making them perfect for holding sorted items. The containers can easily be removed or repositioned, providing maximum flexibility. At the core of the system is a central modular column that supports an attachable sorting tray, which facilitates the quick and easy sorting of small, mixed objects such as screws, bolts, or craft supplies.

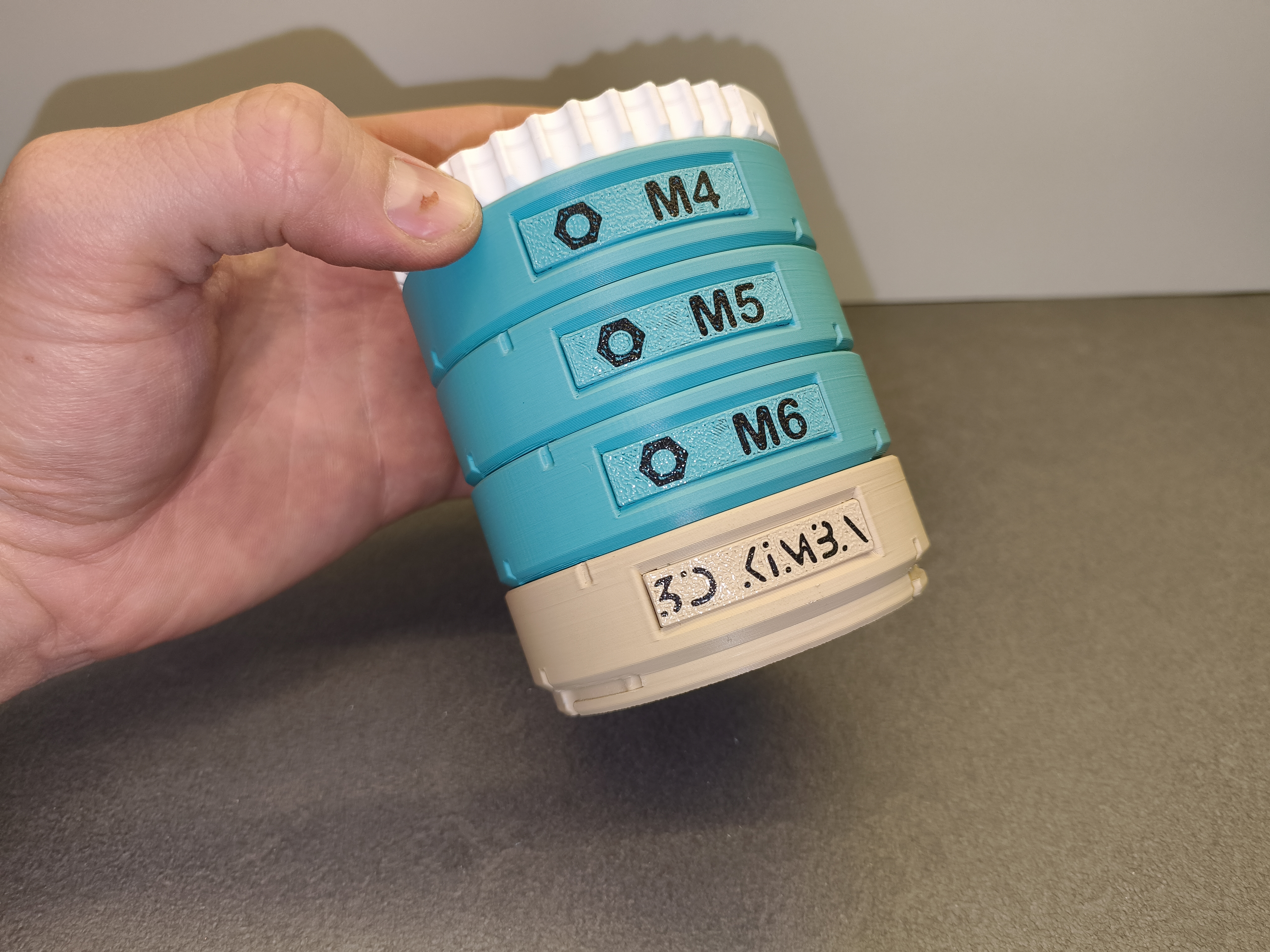

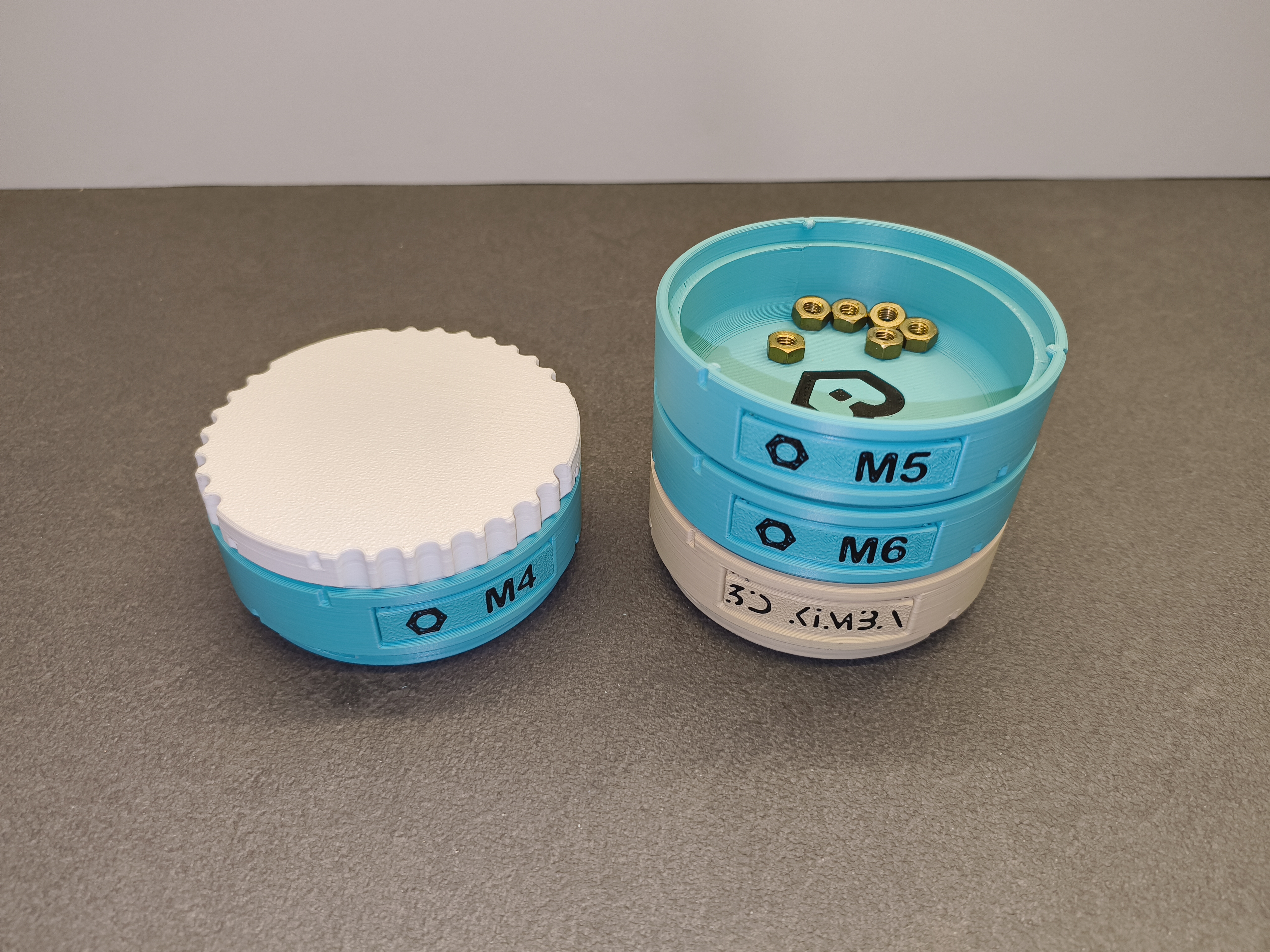

Once the sorting is complete, the tray can be disassembled, and the containers can be stacked securely using the robust twist-lock system. This allows for efficient storage and easy access to sorted items. Each container also includes a customizable snap-in label, so you can quickly identify the contents at a glance.

Printable Files:

• Cylindrical Containers (2cm to 10cm height options)

• Universal Snap-In Label

• Twist-Lock Lid

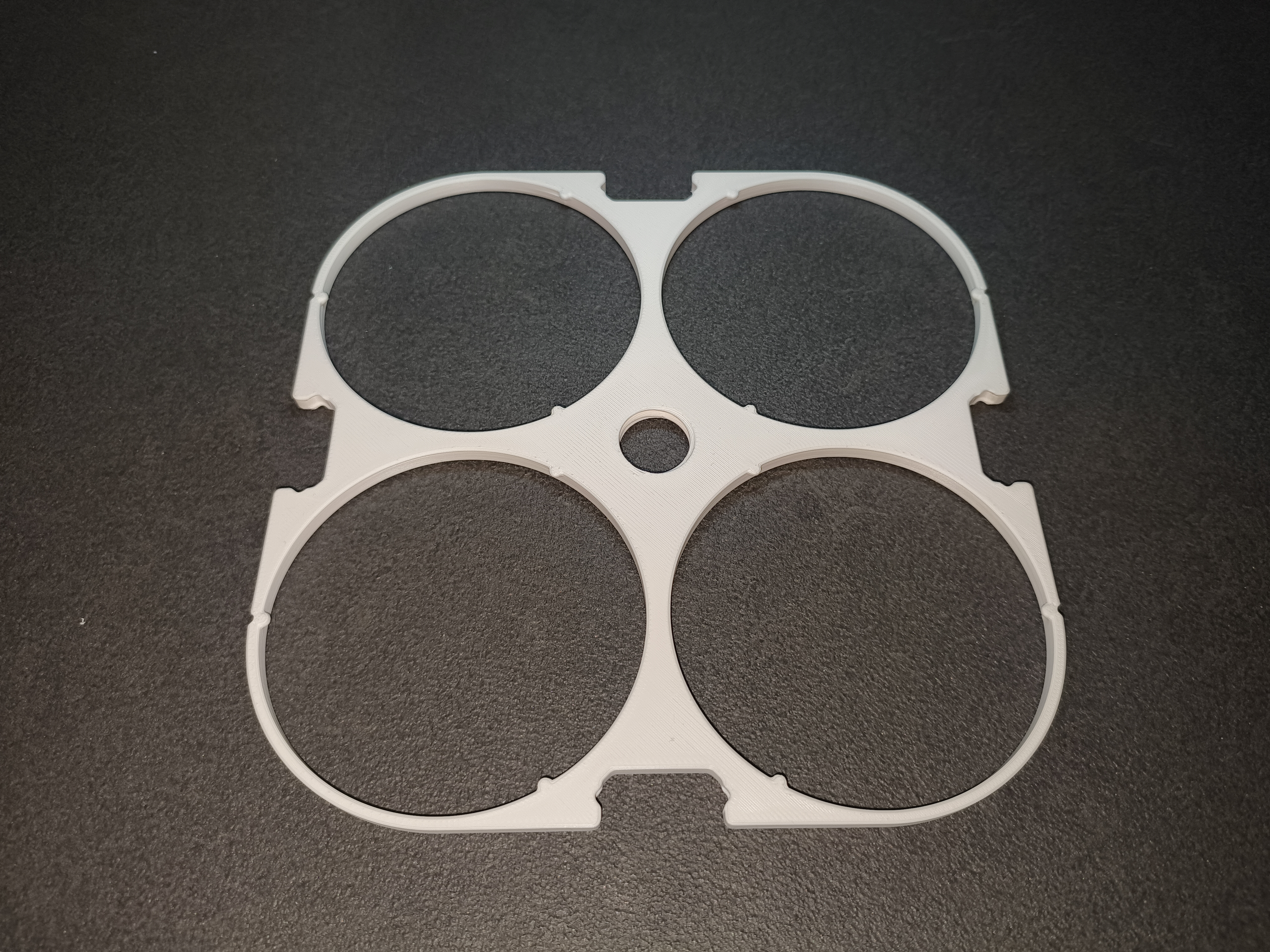

• Modular Sorting Frame (holds up to 4 containers)

• Frame Clip

• Central Column 1U

• Central Column 2U

• Sorting Tray

Printing Instructions:

• Layer Height: 0.2 mm

• Infill: 15-30%

• Perimeters: 2

• Supports: Not required

• Material: PLA or PETG recommended

Note: Printing tolerances may vary depending on your material and settings. Adjust the label size if needed to ensure a perfect fit.

Object Purpose:

The Complete Modular Sorting System is designed for efficient sorting and storage of small, miscellaneous items. Its flexible, modular design allows you to expand your setup as needed, while the twist-lock mechanism ensures stability and easy organization. Ideal for workshops, craft rooms, or garages, this system offers both versatility and a sleek design.

Share Your Makes and Remixes:

We’d love to see how you use your Modular Sorting System! Share your custom setups, tweaks, and configurations to inspire others and show off your creativity.
