Modelo 3D Magnet Insertion Tool v2 por EmGi no Printables

Descrição



UPDATE 24.09.2024

  • 8x3mm Magnet Variant added (not tested by me as i dont have those magnets. These magnets may be too strong for this variant)



UPDATE 20.09.2024

  • 6x3mm Magnet Variant added



INTRODUCTION

v2 of my Magnet Insertion Tool, with

  • optimized Tip size
  • trigger suspension
  • self reloading Magnet Magazine



PRINTING

All parts are already in the correct orientation. “Tip” is the only part that requires Support Material.

I printed everything in PLA. 0.2mm Layer height, 0.4mm Nozzle on a Anycubic kobra 2 Pro.



FILAMENT

i used PLA+ from Elegoo but any other Pla should work as well

PLA+ from Elegoo (reflink)



HARDWARE

Magnet sizes currently tested and supported:

  • 5x1mm
  • 6x2mm
  • 8x2mm
  • 6x3mm
  • 8x3mm (not tested)

Other Hardware you need:

  • 2x M3x6mm
  • 3x M3x10mm
  • Rubberband
  • 3x Magnets of selected size



ASSEMBLY

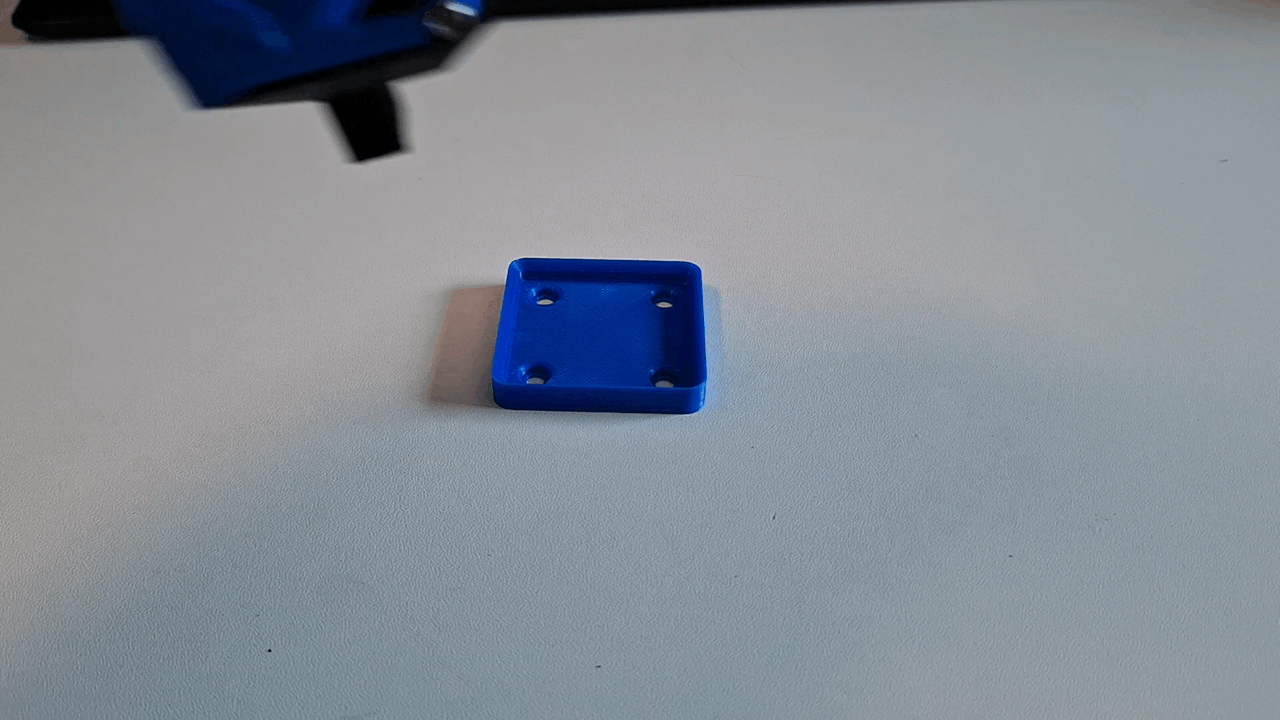

There is a PDF attached to the files with assembly instructions as well as some simple Assembly steps shown in the Video

I reccomend printing 2 tools. 1 for each pole of the magnet. I printed one in Red and one in blue.



Support my work by becoming a PATREON

or Buy me a Coffee

Printables

Magnet Insertion Tool v2

EmGi EmGi (abre em nova aba)

Publicado em 28 de mar de 2025

2,172
Curtidas
4,140
Downloads
59
Impressões
Categoria Tools
Tags
tool magnet magnets glue utensil insert magazine suspension insertion
Licença Creative Commons — Attribution — Noncommercial
