Modelo 3D Gridfinity Deep 1x1 Bin por Matthew no Printables

Descrição

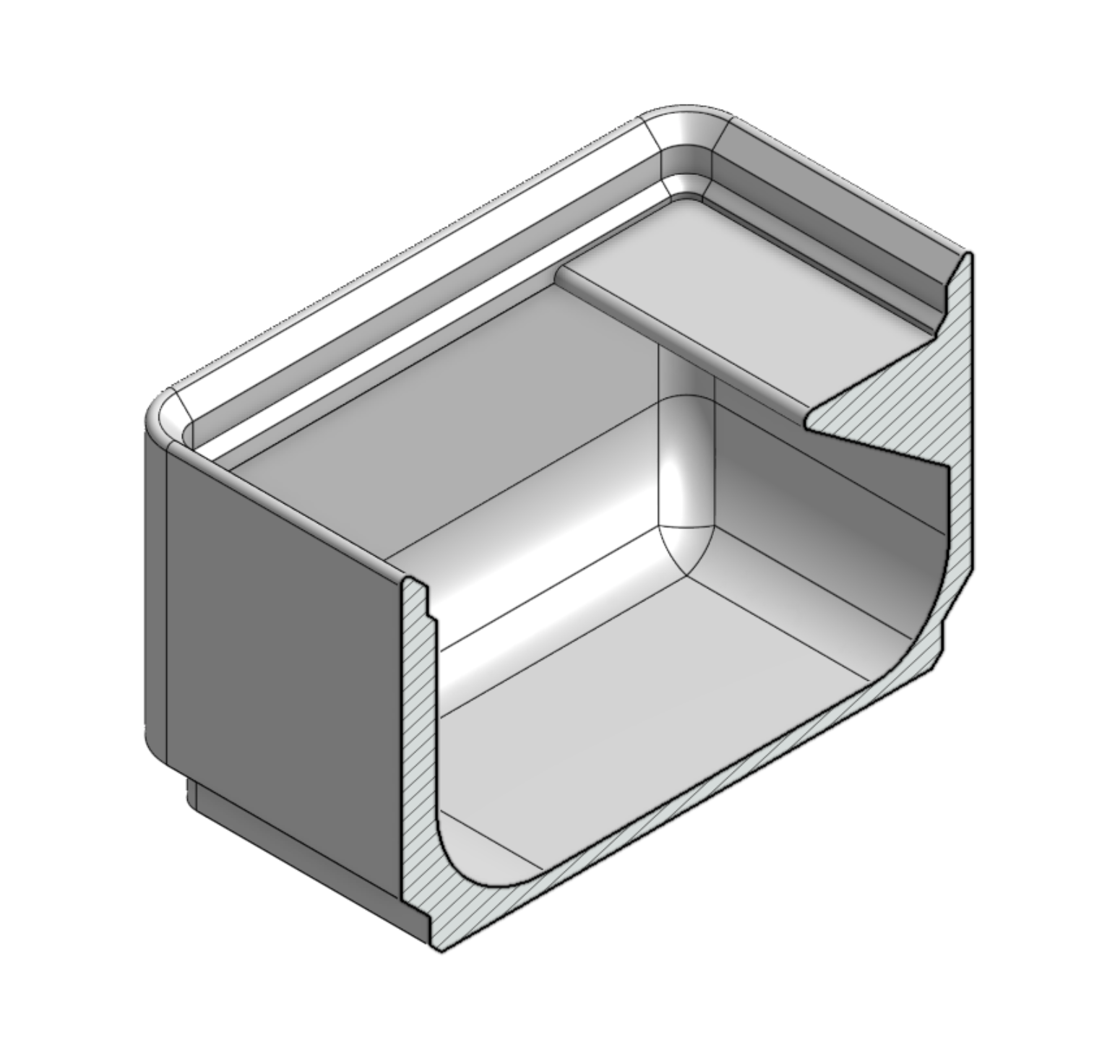

This bin follows the design of the original Gridfinity basic bin.  However the internal space extends down into that space normally reserved for the magnets.

I've exported several sizes but if there's something that you would like to tweak you can open the CAD file here: [https://cad.onshape.com/documents/b9ef65c6b1170f698f0ae743](https://cad.onshape.com/documents/b9ef65c6b1170f698f0ae743)

The files exported here all have 1.7mm walls and a 1.2mm thick base.  I only exported divided bins up to 3 units deep.

Configurations

  • Z Units: 1 - 24
  • Wall thickness: 1.7mm (0.8mm - 2mm)
  • Base Thickness: 1.2mm (0.2mm - 2mm)
  • Front Fillet
  • Divider
  • Label
  • Label Width: 9mm (6mm - 12mm)

While I tried to get all the variants to work, not all possible combinations are valid.  For example a very thick base with thin walls might not generate without errors.

Related

  • These bins are compatible with my Modern Gridfinity Case design. Note that the case files on Printables are only 6 units deep.
  • Andreas Mass designed a divider add-on to keep parts from mixing in divided bins when using my case.

License

These files are licensed under the MIT license just like the core gridfinity designs.  Printables currently doesn't have an option for this license.
