Modelo 3D Table Saw Push Stick por BabaFet no Printables

Descrição

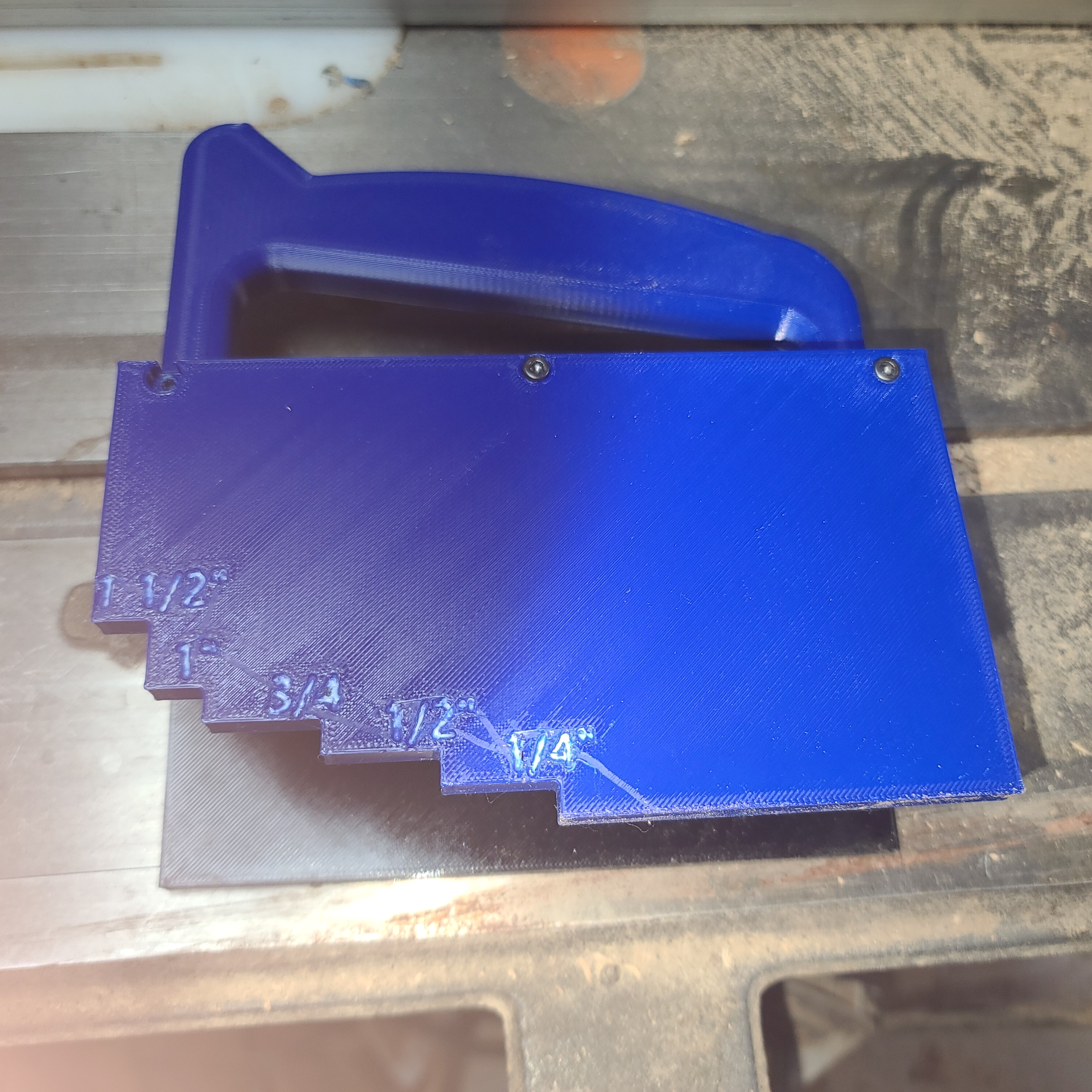

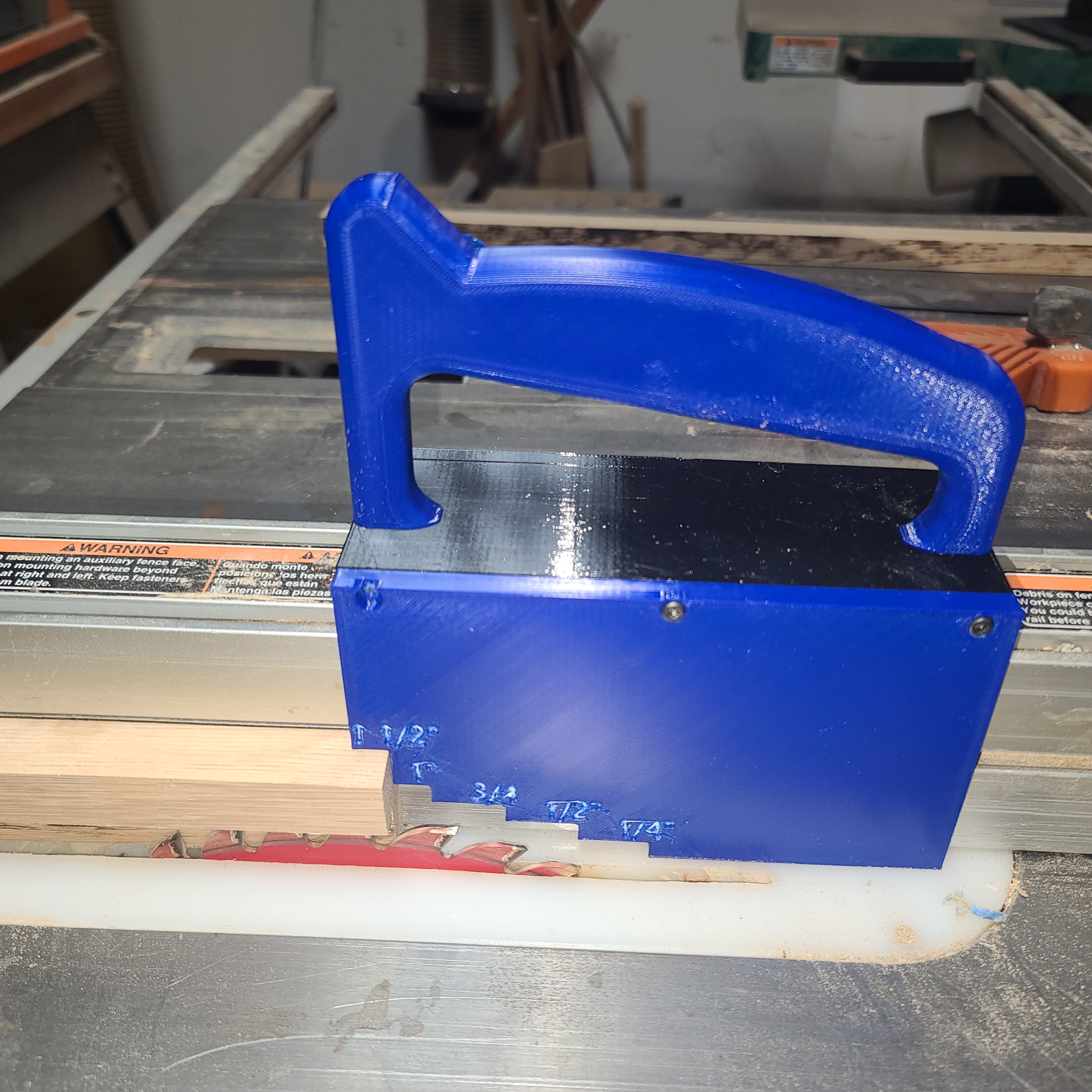

While doing some woodworking I needed to cut some narrow peices on my tablesaw. After getting 7 stitches from having a pushstick thrown at me (after inadvertently coming in contact with the blade), I decided I needed a safer way to push small items between the blade and the fence. I came up with this design for a push-block that wraps around the fence, constraining it to not allow movement into the blade. This one is designed to fit my Ridgid Tablesaw fence perfectly. it might fit others as well. Fence height 2 13/16", Width: 2".

The pushblock is assembled using three 3mm x 12 screws for the push stick, and two 4mm x 20 screws for the handle, for additional strength.

  • Supports: none
  • Material: PETG (Others will work fine)
  • Layer Height: 0.2
  • Printer: Prusa XL
  • Designed with Fusion360

I included the design file so it can be modified as needed.

Printables

Table Saw Push Stick

Publicado em 14 de set de 2024

12
Curtidas
63
Downloads
1
Impressões
Categoria Tools
Tags
ridgid pushblock tablesaws tablesawguide
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (5)
Push Stick.stl 596.6 KB
Fence Braket.stl 1.2 MB
Handle.stl 2.1 MB
Push Stick v1.stl 3.9 MB
Push Stick v8.f3d 333.5 KB
