Descrição

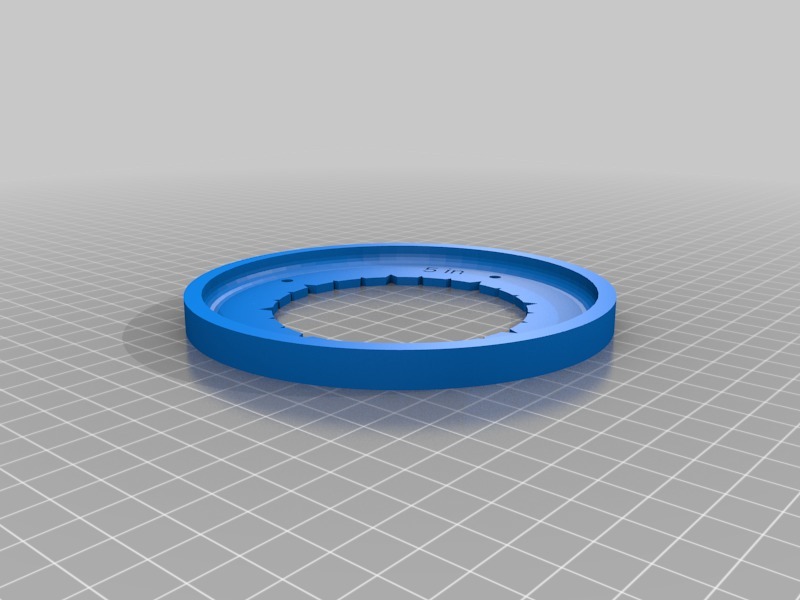

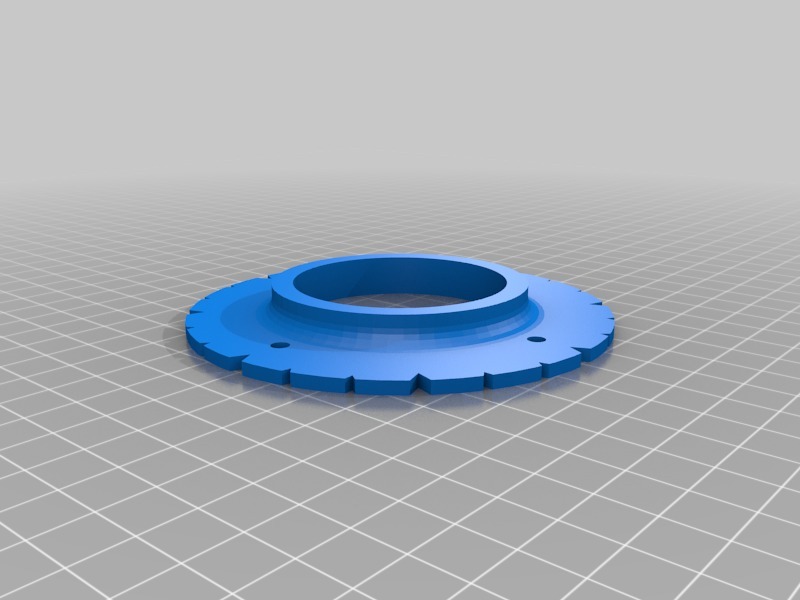

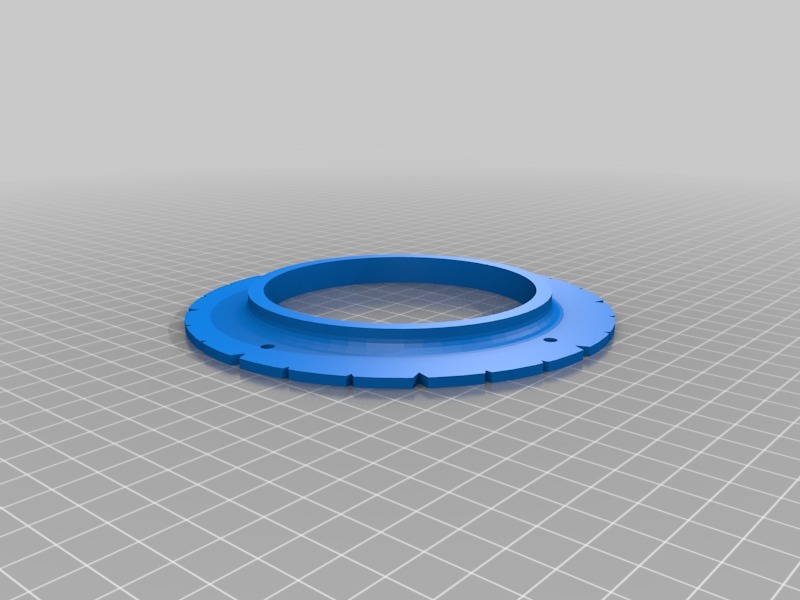

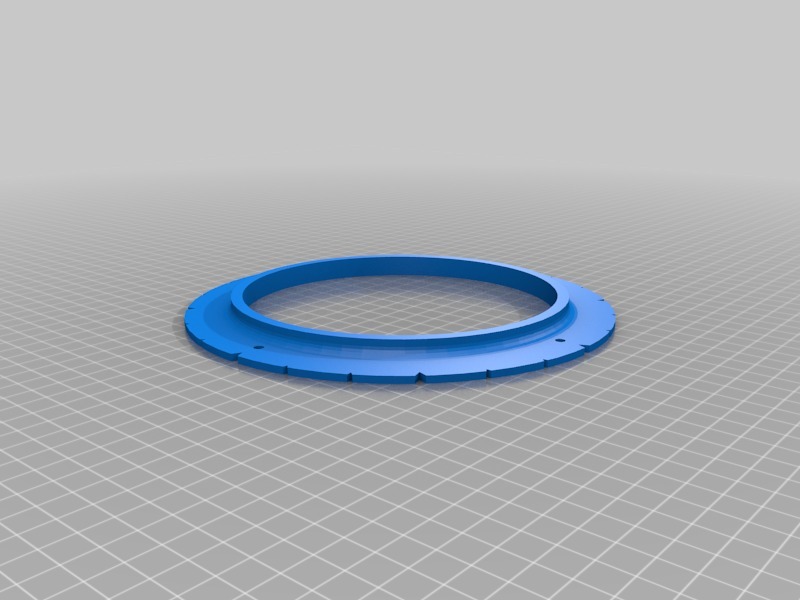

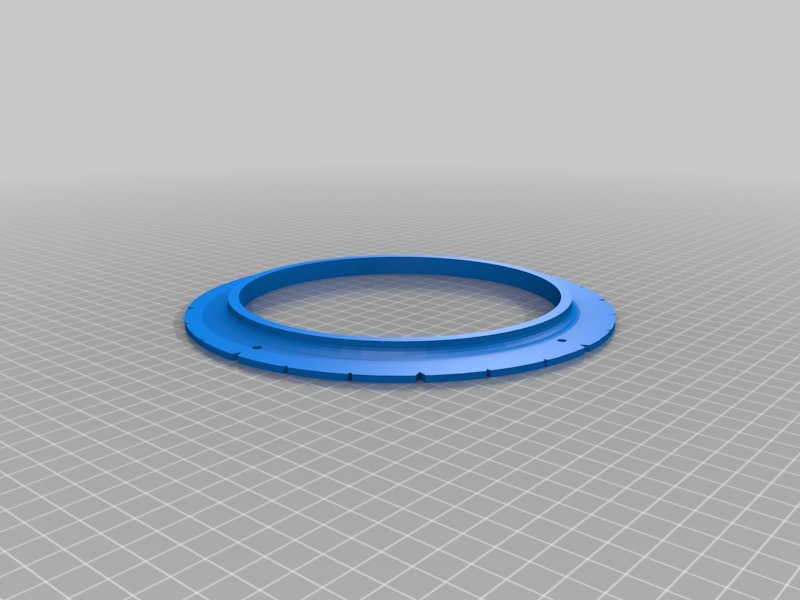

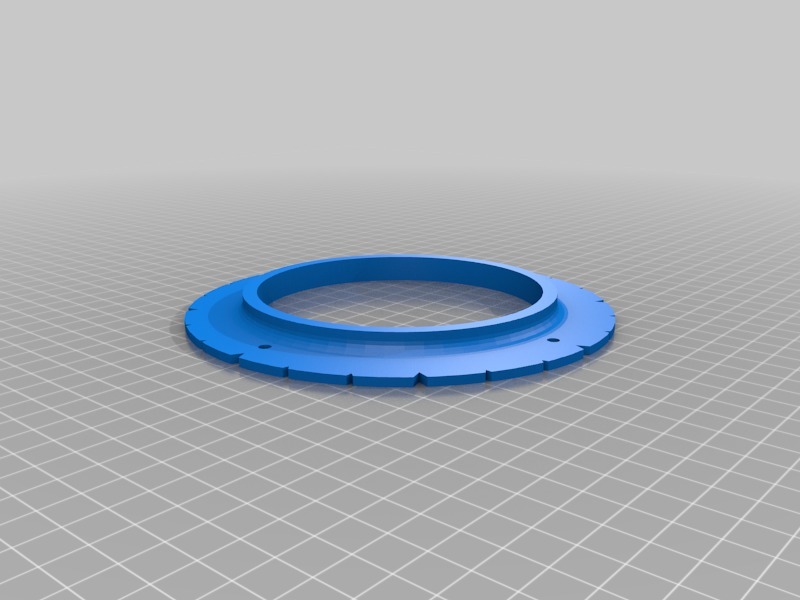

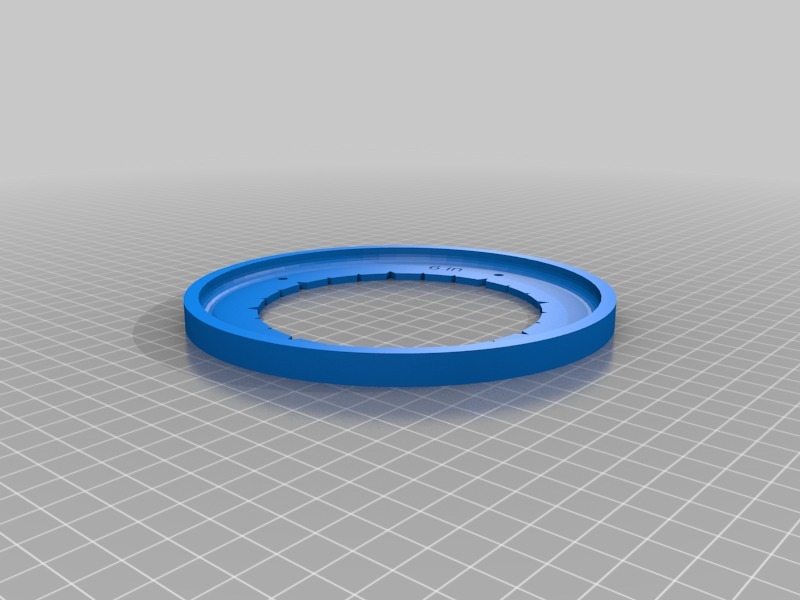

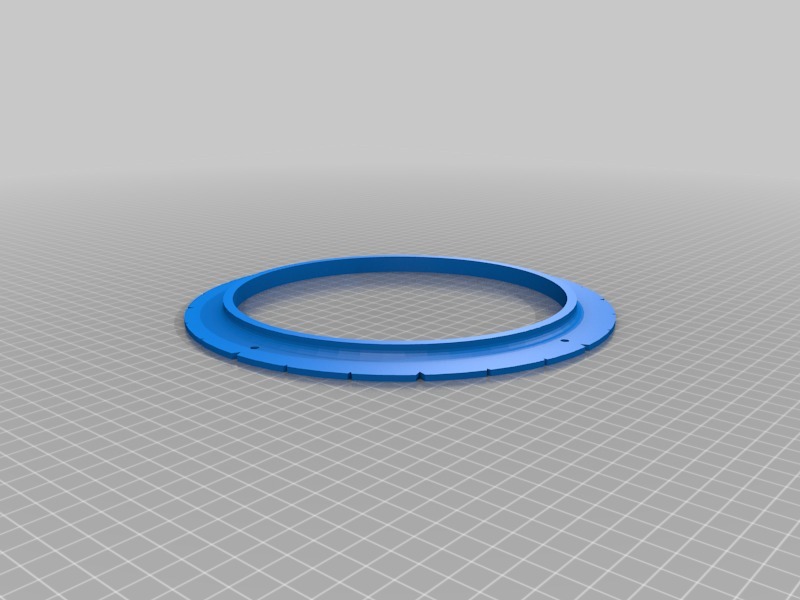

A customizable circle template (OpenSCAD)

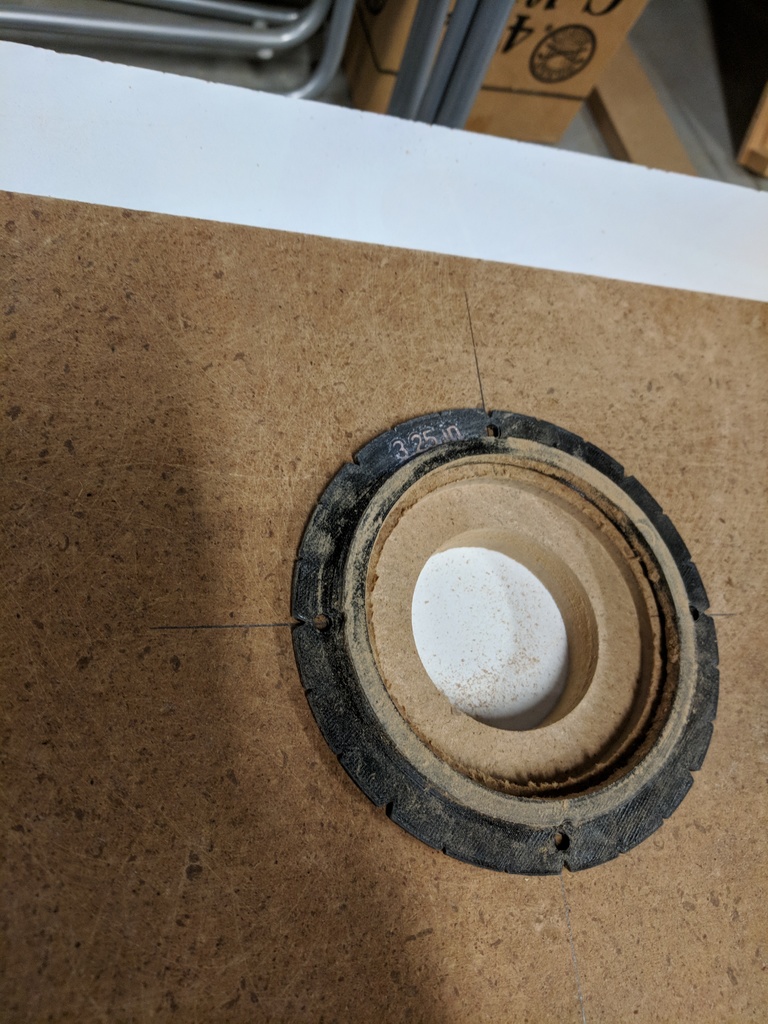

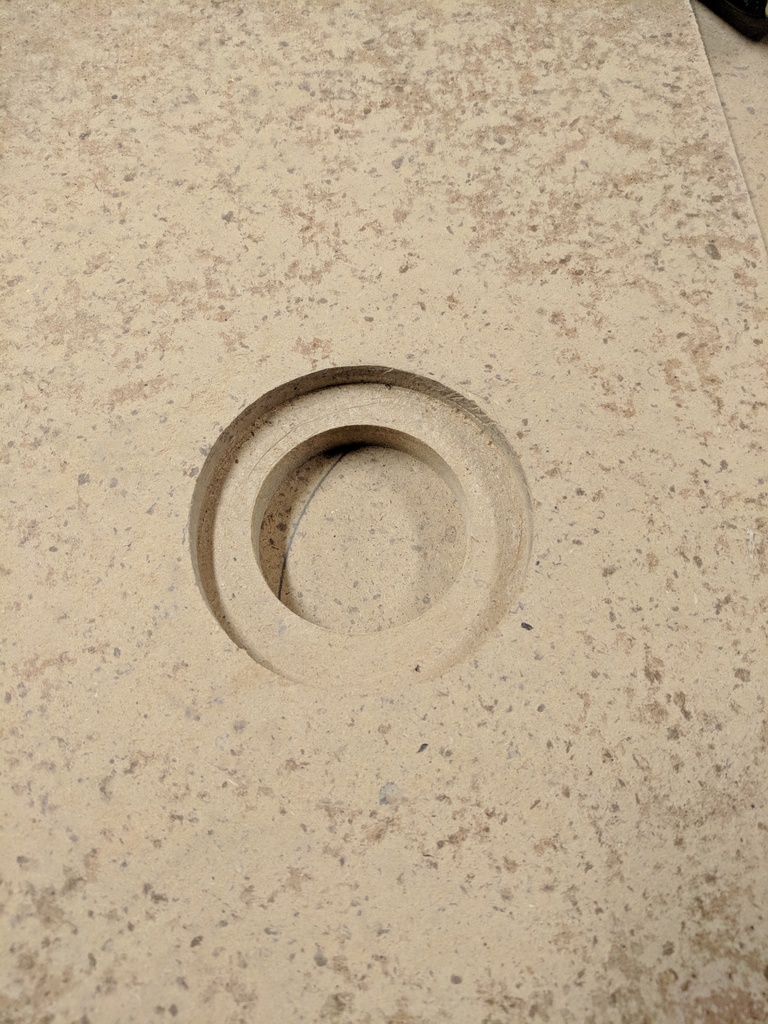

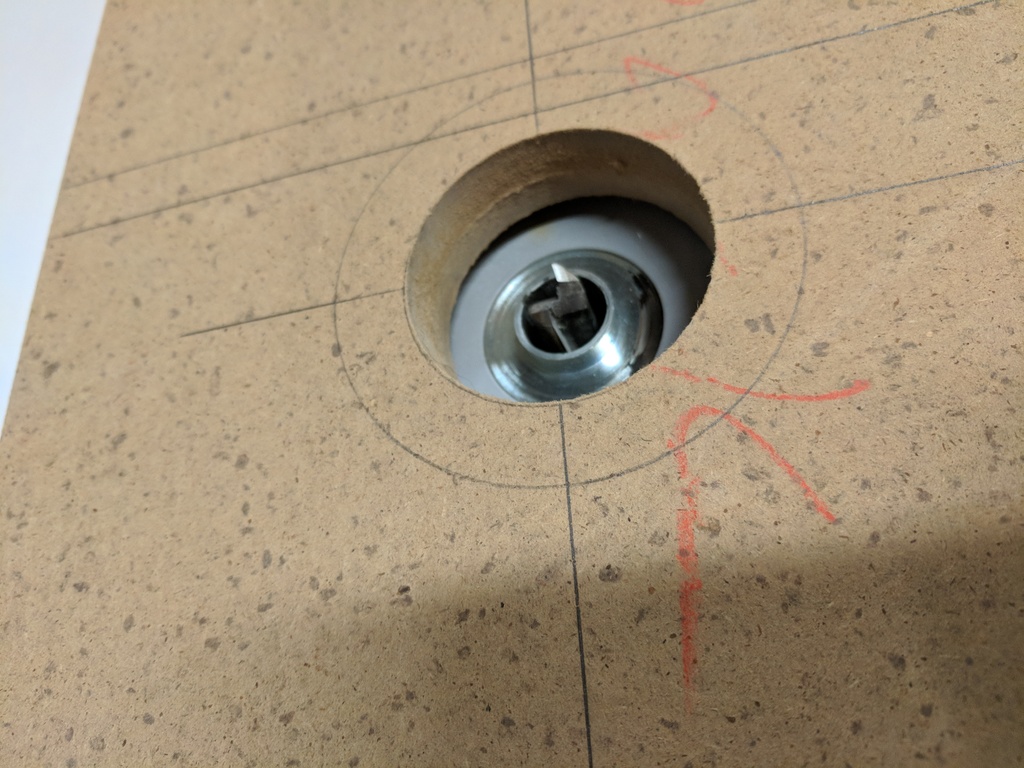

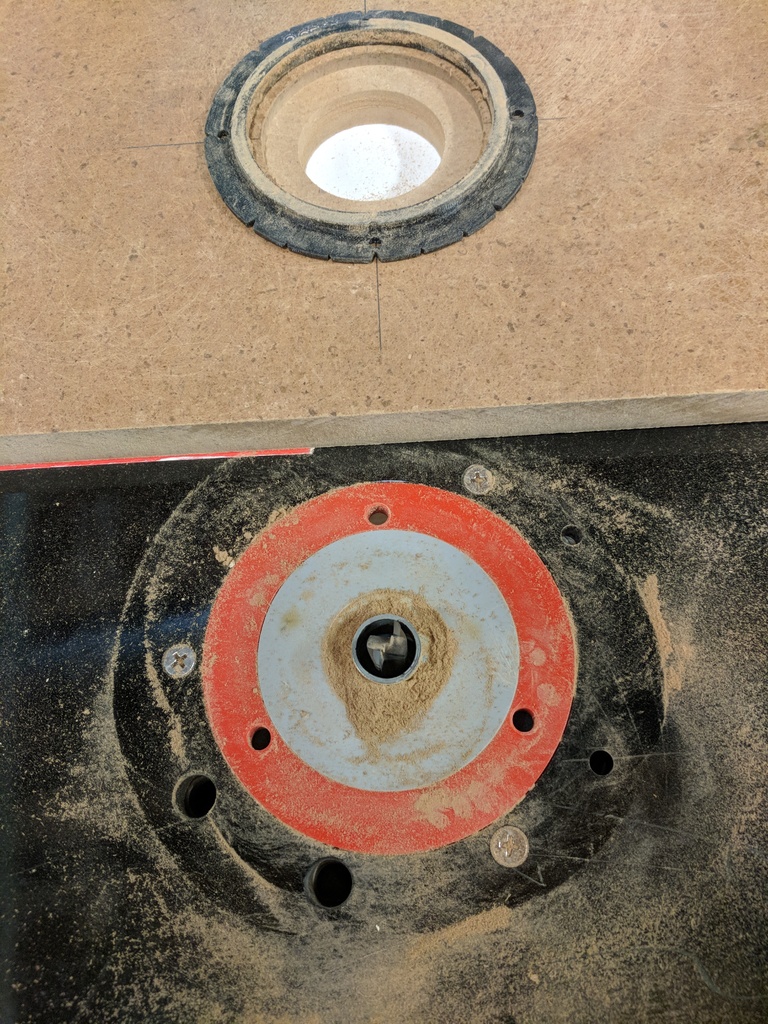

- For woodworking applications, this template is designed to be used as a circle template for a router using flush trim router bits or a plate bushing.

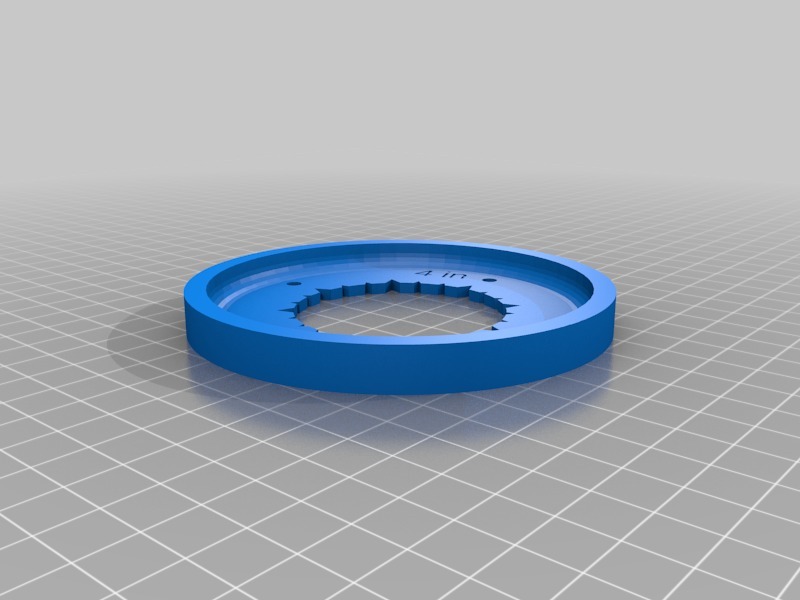

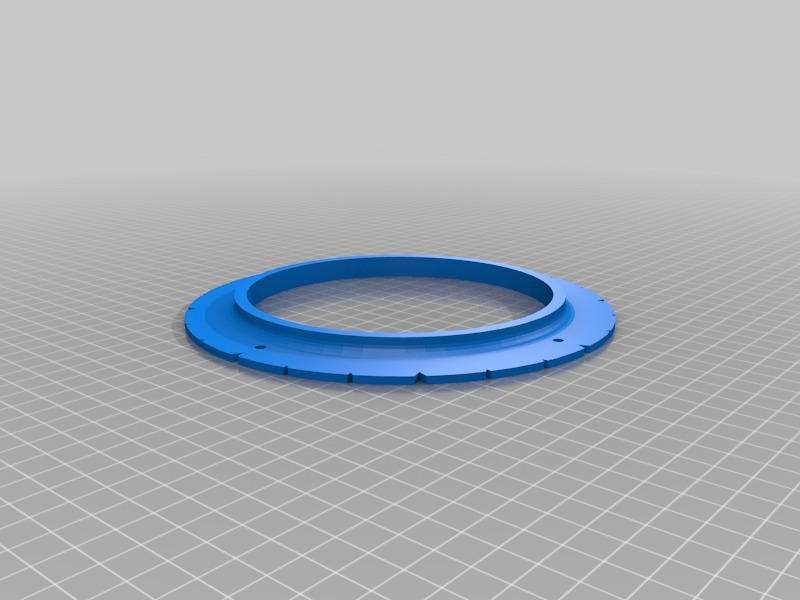

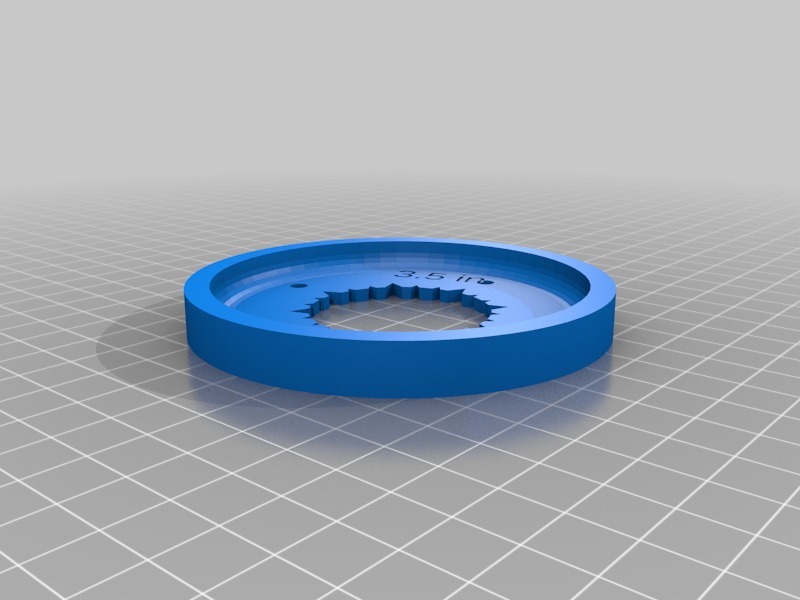

- Inner or outer template orientation
- Includes major registration marks for alignment every 45 degrees
- Minor registration marks every 15 degrees
Customizable properties:
- Circle diameter
- Pen diameter offset
- Thickness
- Flange width
- Flange height
- Mounting hole diameter
- Mounting holes in 4mm metric or #8 screw diameter
- Can specify diameter in inches or cm
- Smaller registration marks for better edge clearance with mounting holes
- Inset text with the template diameter
Uses
- Speaker enclosures
- Cornhole boards
- Bird houses
- Drawing layout lines for fillets and round corners
- Circle shapes
- Wheels
Print Settings
Printer: Prusa Mk2
Rafts: No
Supports: No
Resolution: 0.2
Infill: 10%
