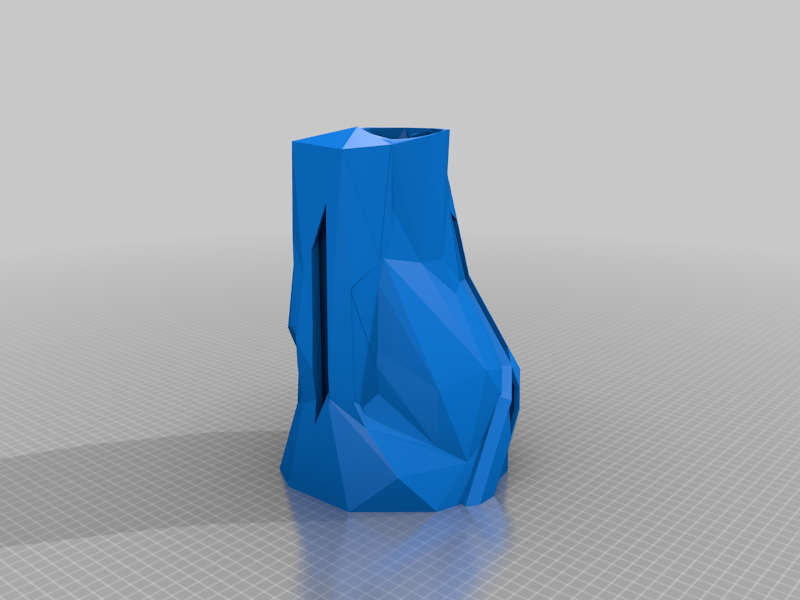

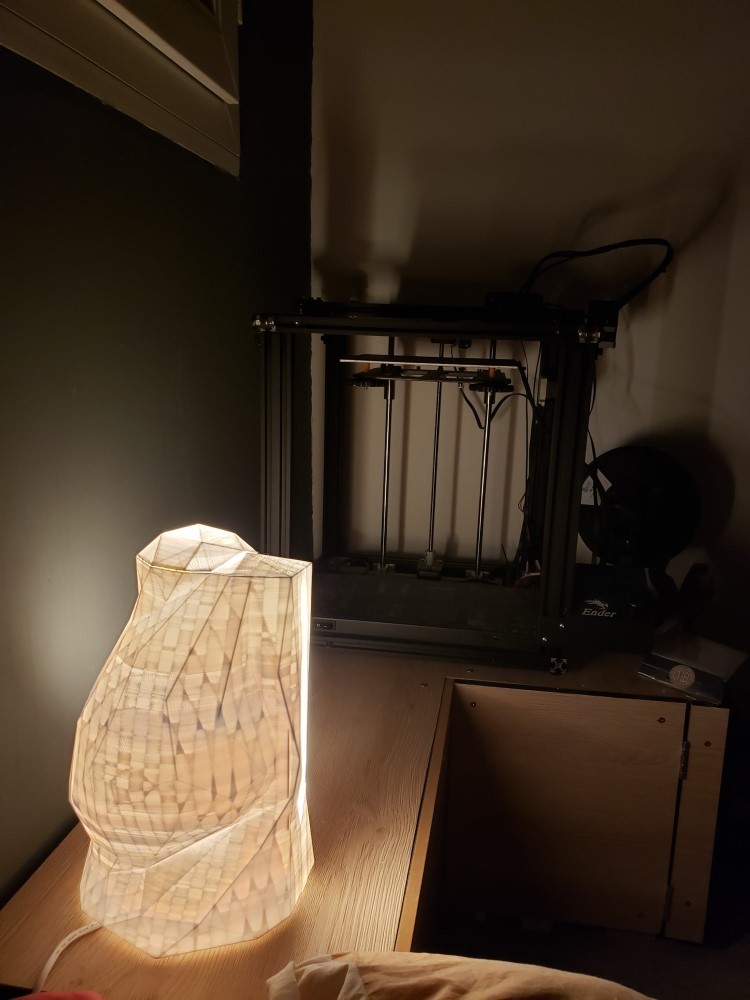

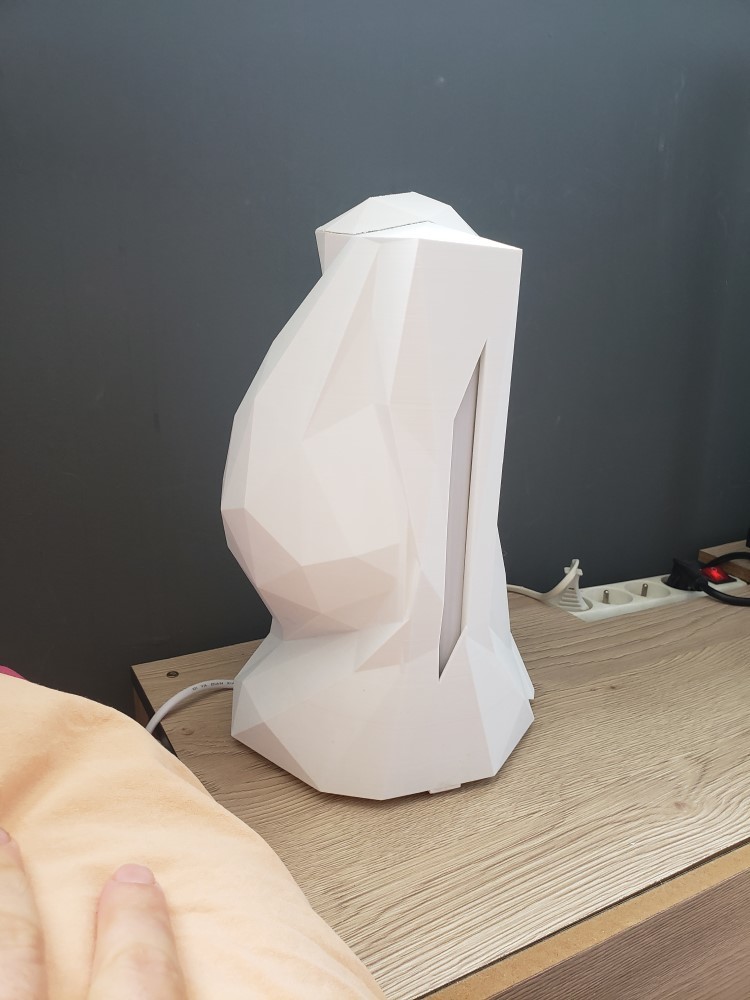

This is a 3 parts bedside table lamp, with a low poly design.

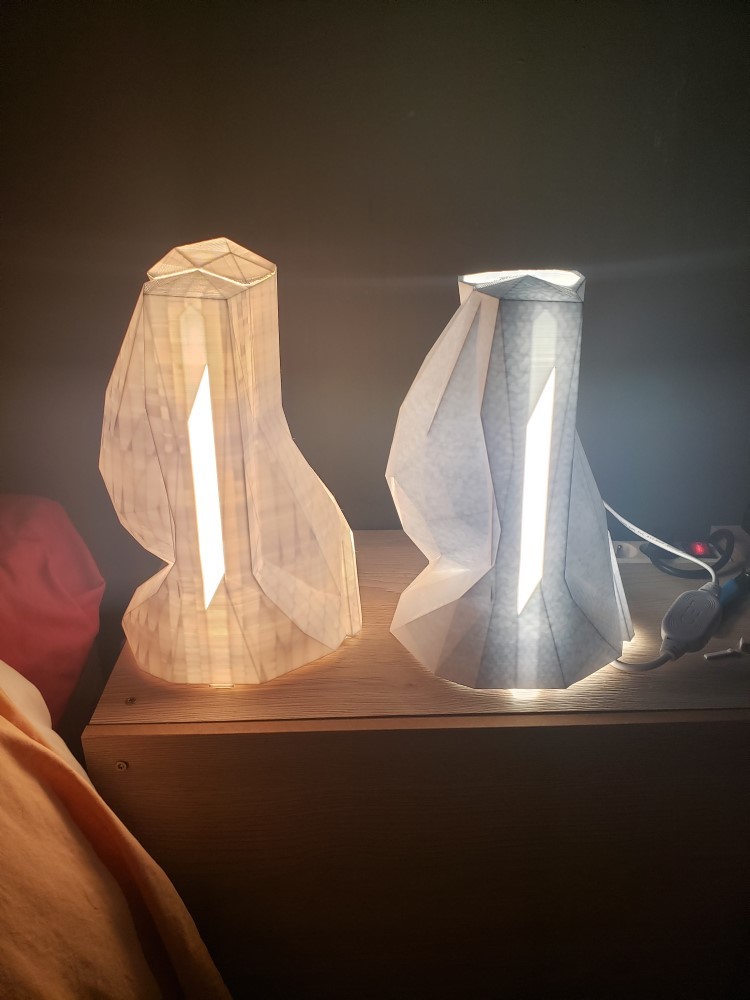

You can play with colors, filling percentage and filling profile to get different results on the transparency :)

For the assembly :

• First insert a 1m flexible led tube, like the one on this link (the one I used) :
  [https://www.ledkia.com/fr/acheter-gaine-flexible-led-neon-sur-mesure/65279-neon-led-flexible-360-rond-120-ledm-220v-ac-blanc-neutre.html](https://www.ledkia.com/fr/acheter-gaine-flexible-led-neon-sur-mesure/65279-neon-led-flexible-360-rond-120-ledm-220v-ac-blanc-neutre.html)?
  Of course you can use a different brand as long as the diameter of the tube is 17mm or lower.
  You insert from the upper side, make you tube go all the way accross the lamp, then insert in the 2nd conduct who is only reachable from the bottom up.

• Glue the cap on the top, after getting the electric cable to go through the bottom.

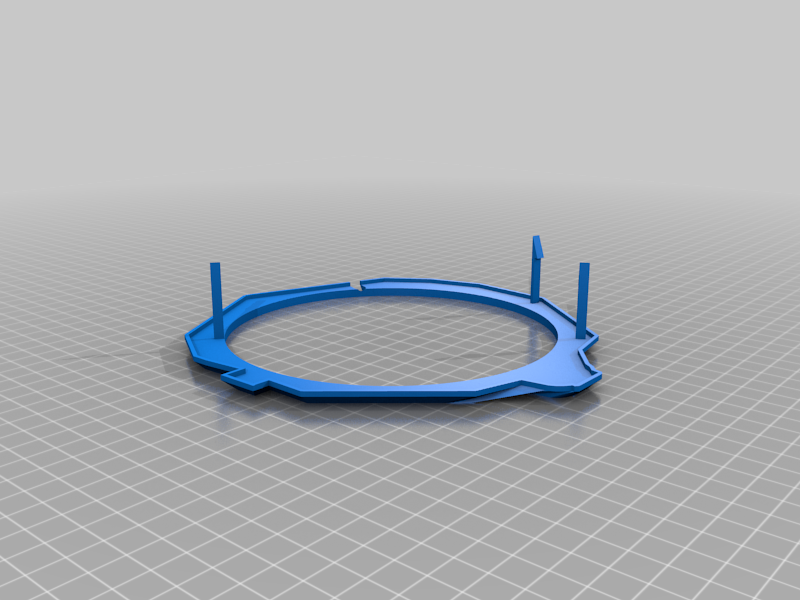

• Glue the base. The clips do not work by themselves, they are only there as guides. The cap could be better designed, that is why I put also the .obj file (.zip file) if you want to modify it !

  Regarding the print : support needed only for the cap. Choose a high minimum overhang angle like 70°.

  Have fun !

  PS : If you post a print of this on instagram, please tag @chavant_fou_3D so I can see your work !

  Print Settings

Printer Brand:

Creality

Printer:

No

Supports:

200

Infill:

ICE PLA

Category: Decor
