Mini modular locker 175mm tall for storing all sorts of trinkets and mini models.

With optional magnets the lockers snap together to form a row of lockers!


Check out the feature in Macy Makes 3D's “Finding the BEST 3D Prints - January 2025”

Non-Printed Parts List

• Required: 2 lengths of filament approximately 28mm long cut straight from the spool
• Optional: 2x D5x1mm magnets for each door (Bambu Store, AliExpress)

• Optional: 8x D5x3mm magnets for each locker (Bambu Lab Store, AliExpress)

  Note: smaller magnet sizes will also work e.g D4x2mm, D5x1mm etc but you may need to use twice as many for required snapping strength.

Printing

Profiles have been optimised for a clean print with good bridging for the handle and louvre slats

Assembly

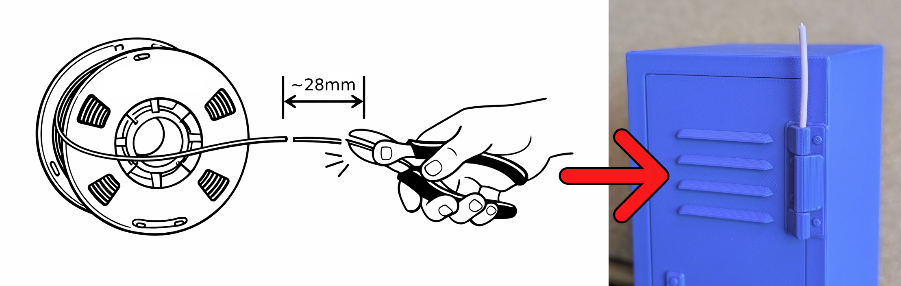

1. Position door and then thread the 2 filament pieces into place from the top of each hinge.



2. Glue magnets using superglue into each position shown below. Keep the magnet polarity consistent across all lockers so they can be positioned in any order. Remember to test before gluing!
