Descrição
AMS Plus is an extension device for the Bambu 3D printer's Automatic Material System (AMS) designed to support the automatic identification of third-party filaments.
Features of AMS Plus:
- Non-intrusive design: AMS Plus uses wireless power supply without modifying the original structure.
- Real-time display: Shows current filament information and the internal temperature and humidity of the AMS on the screen.
- Third-party filament identification: Utilizes NTAG technology to write tags via a mobile application.
The firmware version has been updated to B2.0.5
Some recent updates:
- Added automatic application of flow calibration files. When creating a tag, you can now select a flow calibration ID to apply to third-party filament detection. This ID can be retrieved from the built-in AMS Plus web page.
- Added support for multiple AMS units. You can now select the AMS ID during setup (though a few users have reported some issues with this feature).
- OTA functionality has been added! You can now upload firmware locally over your LAN—no need to fetch it over the internet. You decide when to upgrade :)
- You can now dynamically modify AMS Plus settings—like Wi-Fi info and printer connection parameters—through the built-in web page. No more having to use reset tags every time XD
- The user manual has been updated, including a section on the features of the built-in web page.
I created a solution to automatically identify third-party filaments using custom tags. I have open-sourced the principles and code. You can check out this video for more details.

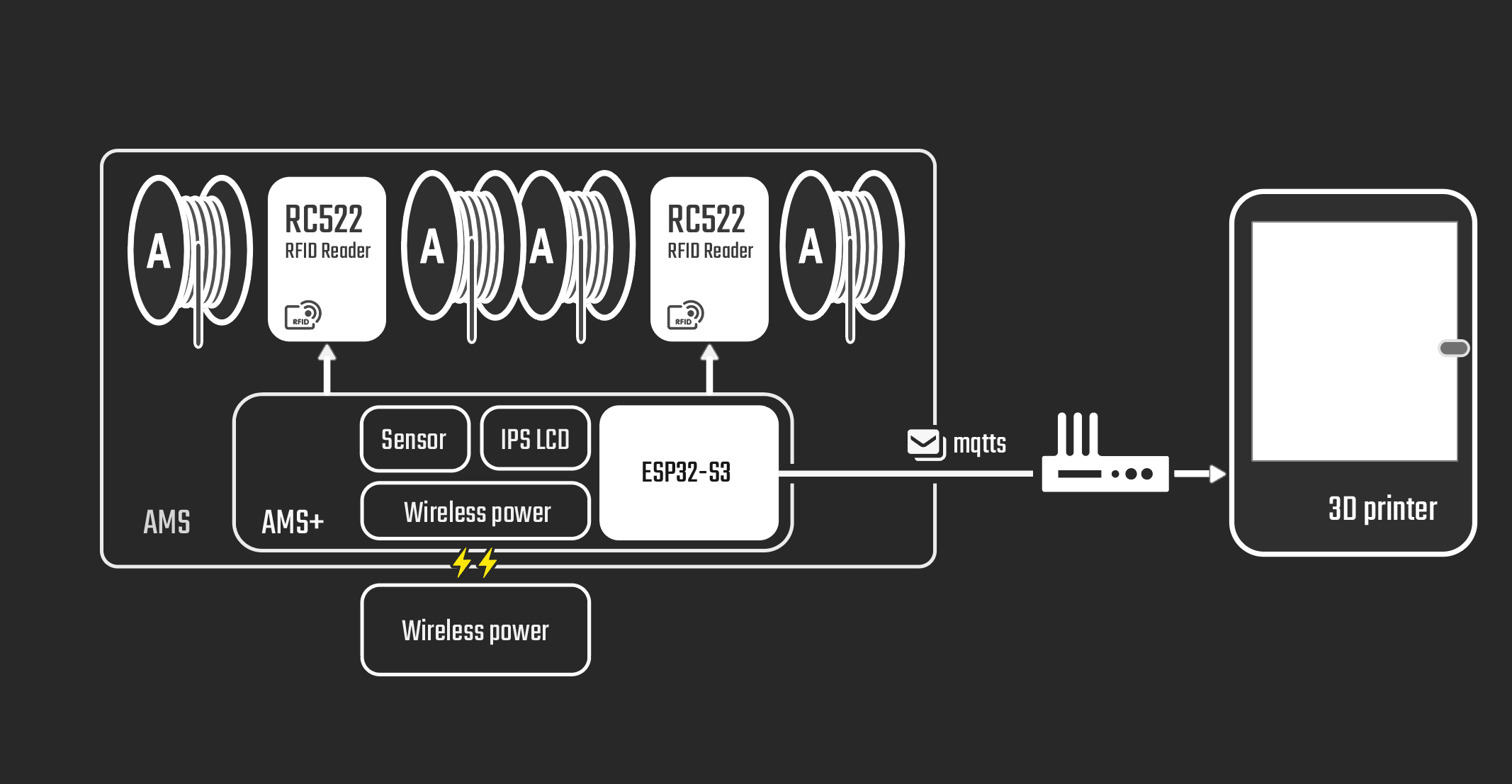

The components of AMS Plus are as follows:
The basic functionality has already been open-sourced on GitHub, and the project is still being continuously updated. If you'd like to stay updated on this project or help improve it, feel free to contact me via Discord or GitHub.If you have any questions or suggestions, please join the discussion on Discord
Electronic Materials List
| Name | Specification | Quantity |
|---|---|---|
| 1.14-inch LCD Screen | 135(H) x 240(V) RGB @ ST7789V | 1 |
| Wireless Charging Module (TX) | 15W High-Power Transmitter, Type-C | 1 |
| Wireless Charging Module (RX) | 5V 5W Wireless Charging Receiver | 1 |
| AHT10 Temp&Hum Module | Requires vertical soldering to the mainboard | 1 |
| RC522 RFID Module | Mini MFRC-522 (no terminal) | 2 |
| MX1.25*7P Single-End Terminal Cable | 7P; 200mm; single-ended, tin-plated | 2 |
| Electronic Connection Cable | For connecting the mainboard and the wireless charging board | - |
| AMS Plus Mainboard | 1 |
You can now purchase the full set of electronic components here [https://www.aliexpress.com/item/1005008402038107.html](https://www.aliexpress.com/item/1005008402038107.html)
Hardware Materials List
| Name | Specification | Quantity |
|---|---|---|
| M2x3x3.5 Injection Molded Heat Insert Nut | M2x3x3.5 | 3 |
| Φ5x3 N35 Magnet | Diameter 5mm; Thickness 3mm | 8 |
| M2x8 Hex Socket Cap Screw | 3 | |
| M2x4 Hex Socket Cap Screw | 6 | |
| AMS Plus Screen Cover Plate | 1 |
The installation of AMS Plus is relatively complex. Please refer to the installation guide in the attachment. The guide is still being updated and will be continuously updated on Discord and GitHub in the future.
Built-in web page
TODO:
- Improve the installation guide
- Launch the AMS.net website
