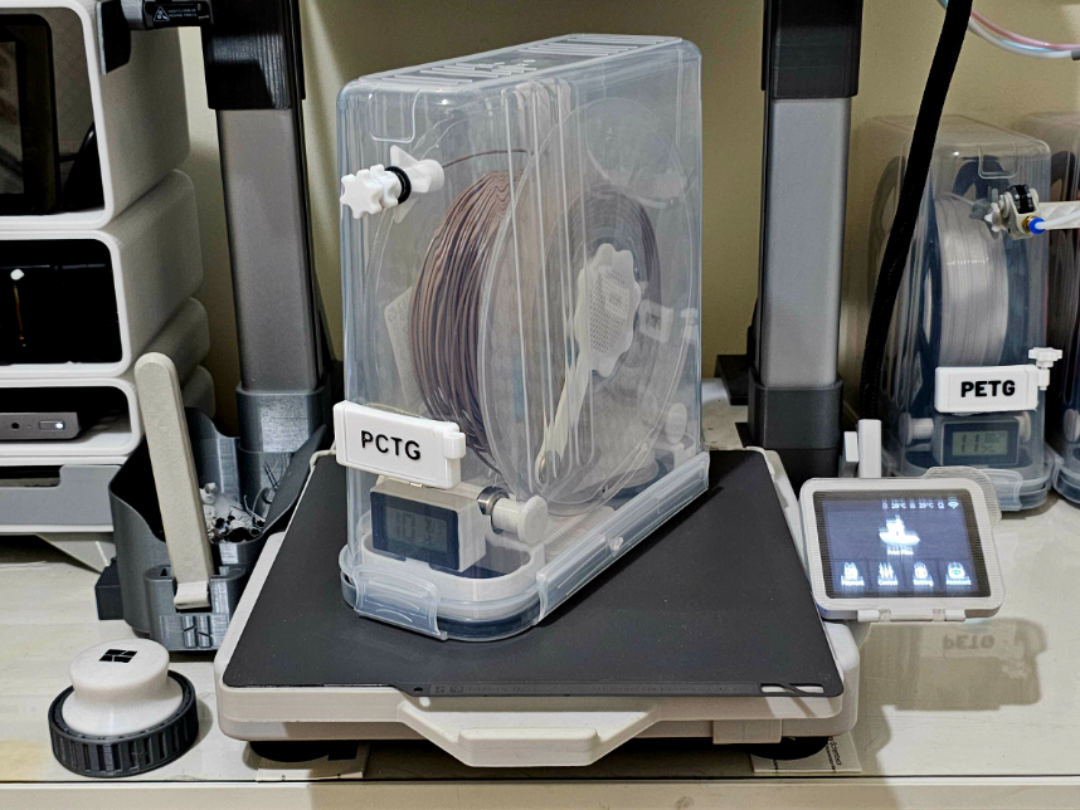

Upside Down Filament Extra Dry Box - Remix

Gathered together the design features from these projects that I found most useful when setting up my spool containers. These only require one hole be made in the box and minimal hardware, M10 coupler and 4x bearings.  Plus a Hydrometer and desicant of couse. Included are some modifications that improved these for my use (detailed below).  For more information on these designs, please visit the original creators using the links below.

Update ~ I have added a print profile for a TPU PTFE plug that secures to the box. It can be used in place of the plug in the main profile. Loop the   ring arround the coupler nut.

Upside Down Filament Dry Box with Hygrometer

By IQndk

• Chassis for Square Hydrometer - * added perforations to the Chassis bin.
• Bin Replacement Lid
• Lid Desiccant Bin - *changed the perforations of the desiccant bin for strength and printability.
• Chassis Desiccant Lid

Filament Dry Box with Rollers

By GunplaMark [https://www.youtube.com/watch?v=YuO7iVL-4Cg&t=195s](https://www.youtube.com/watch?v=YuO7iVL-4Cg&t=195s)

• Axels
• Rollers
• M10 Coupler Nut
• Coupler Plug – *added a spacing lug and inner friction nubs to hold tension on the filament.
• Label Holder - * added a retention catch.
• Labels - * created a rebate to accommodate retention catch.

Spool core desiccant box

By Kenny Z [https://youtu.be/crZYk2DPatU](https://youtu.be/crZYk2DPatU)

• Core Bin- *added an arm and handle with magnets (12 X 6mm and [https://a.co/d/2JCdfRV](https://a.co/d/2JCdfRV) and 16X4mm [https://a.co/d/ctWrbxw](https://a.co/d/ctWrbxw)) to manipulate the spool without opening the container or creating additional holes in the container. Changed the perforations to match the rest of the items. The original pattern kept failing for me.
• Core Bin Lid- *  Changed the perforations to match the rest of the items for the same reason above.
• Core bin Clamp
