Modelo 3D 贴片元器件收纳盒 por yjdamoney no MakerWorld

Descrição

小型贴片元件收纳盒,方便储存和查找。

之前在MakerLab看到类似的,但是需要买磁铁,太麻烦了,就自己做了个插销版的,同时减小了尺寸。



透明PETG打盖子+黑色PETG打盒子,这样通过半透明的盖子能看到大概还有多少料了,噢~ 我真是个天才…



自己准备贴纸写型号

(热敏标签机打元器件型号的标签很好用)



更新日志:

1、收纳盒底座已更新

2、可层叠支架已更新

3、增加底座(已更新)



待优化项:

· 胶纸从胶纸出口拔出时,元器件不能很好掉出来

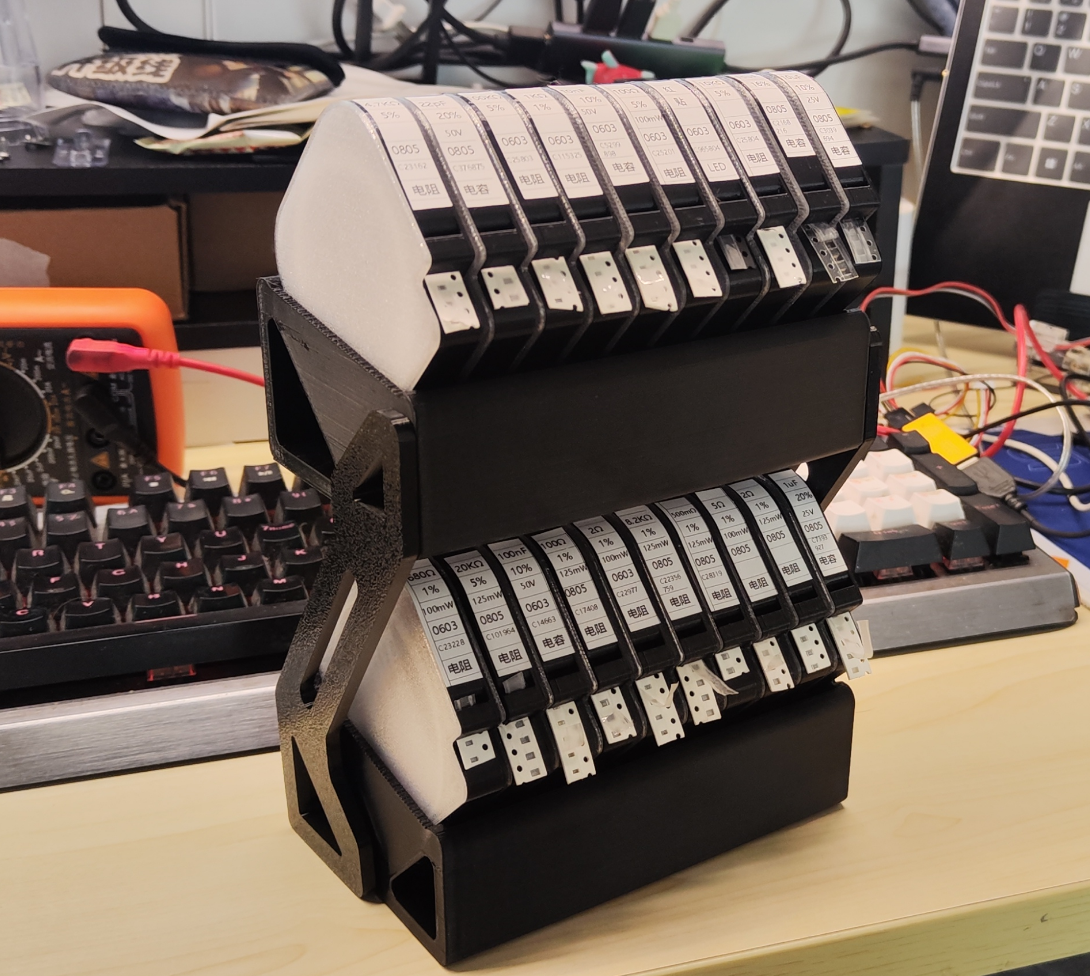

Small chip element storage box for easy storage and search.

I saw a similar one in MakerLab before, but I needed to buy magnets, which was too troublesome, so I made a pin version and reduced the size.



Transparent PETG lid + Black PETG box, so you can see roughly how much material is left through the translucent lid, oh ~ I am such a genius...



Get your own stickers to write the model number

(The thermal label machine is very good to play the label of the component model)



Update log:

1. The bottom of the storage box has been updated

2. The stackable bracket has been updated



Items to be optimized:

· When the adhesive paper is pulled out from the adhesive paper outlet, the components cannot fall out well
