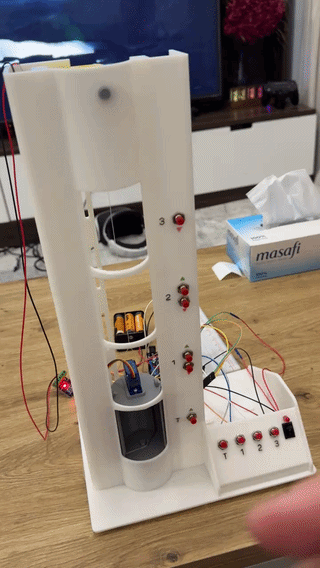

This educational kit simulates a 3-story elevator plus a ground floor, designed for Arduino-based projects. The elevator features a functional door controlled by a 9g servo motor, offering realistic opening and closing actions. It operates using a yellow DC motor, ensuring smooth and precise movement between floors. Position control can be achieved with an HC-SR04 distance sensor or optional reed switch modules, adding flexibility and versatility to the project. The kit includes buttons that mimic an internal elevator panel, as well as external call buttons for each floor. Ideal for learning and teaching electronics, programming, and robotics, this kit is perfect for students, hobbyists, and educators looking for a hands-on way to explore Arduino applications in automation and mechanics.

INCLUDED ITEMS

● 3D Printing files
● Assembly Manual in PDF
● Wiring diagram

● BONUS: EBOOK FROM ZERO TO ROBOT AND CODE

MEASUREMENTS IN mm


COMPONENTS NEEDED FOR ASSEMBLY
● 1 x TT DC Motors (Yellow Motors)
● 1 x servo 9g(SG90)
● 4 x Push button with 7mm thread (more 6 Optional)
● 1 x Support for 6 AA batteries
● 1 x Servo extender cable 50cm
● 1 x ON/OFF mini switch 13,5 x 9mm
● 1 x Green LED
● 1 x HC-SR04 sensor
● 1 x mini H-Bridge (L9110s)
● Jumpers
● 4 x 3M EVA feet
● 2m Strong sewing thread
● 1 x Arduino Nano + Standart shield
● 1 x Capacitor 470uF 16v
● Bluetooth HC-05 (OPTIONAL)

SCREWS LIST
M3x25mm .................2 (AA041)
Nut M3 ......................2 (AB005)
2,2x6,5mm................20 (Self tapping screws AA093)
