之前作了个超级大的可堆叠、镂空的还带提手的收纳盒，尺寸有246*159*219。可堆叠收纳盒，镂空版

现在优化了下之前那收纳盒并把重量减了一点点 （减的不多，毕竟这个收纳盒是以结实可靠为主要目的），同时还做了几个规格与不同的高度，大家按需打印。

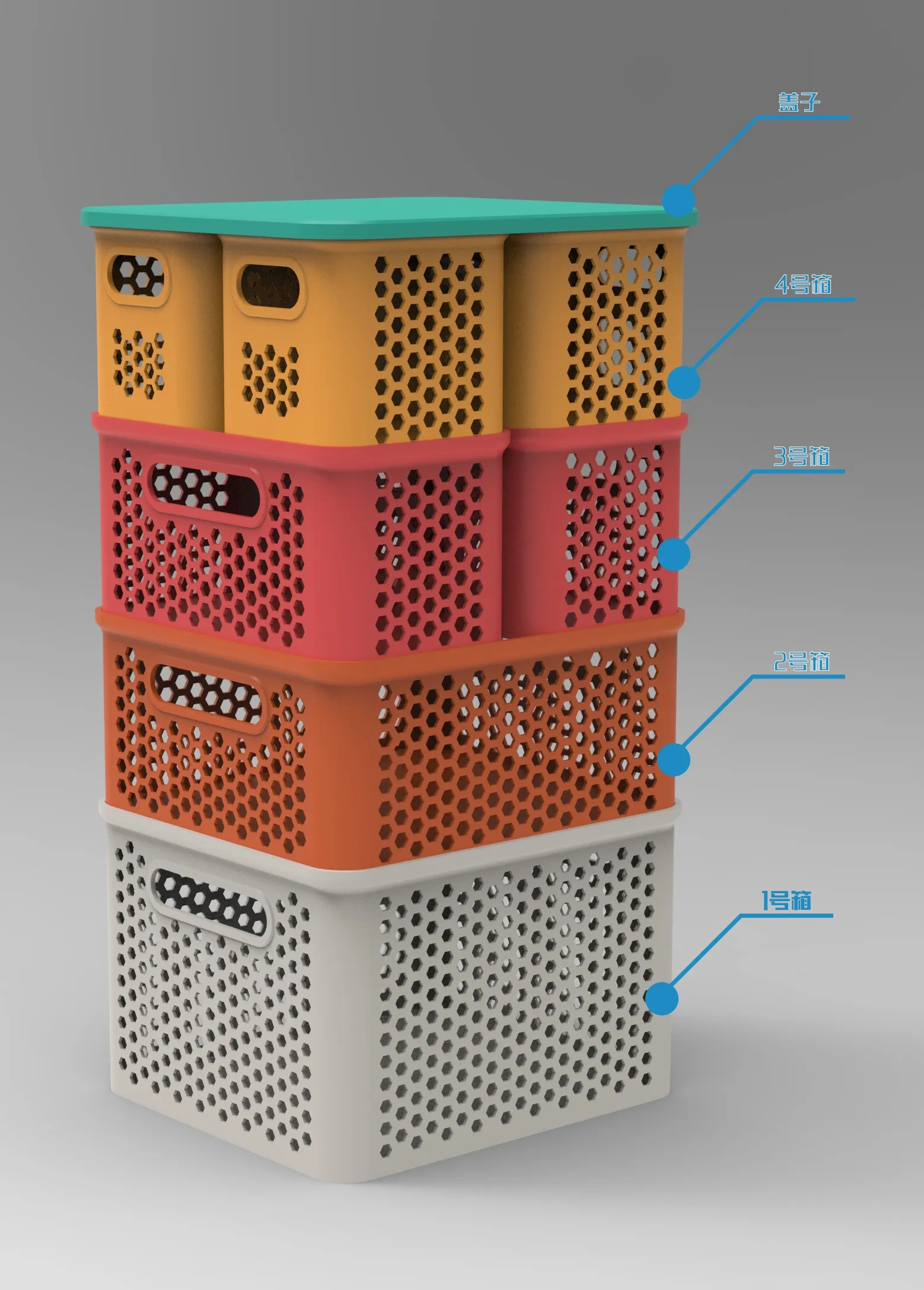

Storage Box Specifications and Stacking Guide

Box 1

External Dimensions: 246mm × 219mm × 159mm

Effective Internal Dimensions: 234.5mm × 207.5mm × 152mm

Features: Large in size, suitable for storing large or heavy items.

Stacking Capability: Can be used as a standalone storage box or as the base for Box 3 and Box 4 (requires indirect stacking through Box 2 or Box 3).

Box 2

External Dimensions: 246mm × 219mm × 107mm

Effective Internal Dimensions: 234.5mm × 207.5mm × 100mm

Features: Moderate in height, suitable for storing medium-sized items.

Stacking Capability: Can be used as a standalone storage box, can be stacked directly on Box 1, and can also serve as the base for Box 3 and Box 4 (requires indirect stacking through Box 3).

Box 3

External Dimensions: 219mm × 123mm × 107mm

Effective Internal Dimensions: 207.5mm × 111.4mm × 100mm

Features: Moderate in width and height, suitable for storing small or slender items.

Stacking Capability: Must be stacked on Box 1 or Box 2, and can also serve as the base for Box 4.

Box 4

External Dimensions: 123mm × 109mm × 107mm

Effective Internal Dimensions: 111.4mm × 98mm × 100mm

Features: Small in size, suitable for storing small items or as a supplementary storage option.

Stacking Capability: Must be stacked on Box 3 and cannot be directly stacked on Box 1 or Box 2.

Usage Suggestions

Choose According to Needs: Select the appropriate storage box size based on the size and weight of the items to be stored.

Proper Stacking: Follow the stacking guide to ensure stability and prevent collapse.

Printing Material: Consider using sturdy and reliable printing materials to ensure durability and load-bearing capacity. PEGT or ABS are recommended for printing.

Labeling and Categorization: Mark the storage boxes with item categories or purposes for easy identification and organization.

Note: Box 3 must be stacked on Box 1 or Box 2 to be stable. Box 4 must be stacked on Box 3 and cannot be directly stacked on Box 1 or Box 2.

=========================================================================================

收纳盒规格与堆叠指南

1号收纳盒

• 外尺寸：246mm × 219mm × 159mm
• 有效内尺寸：234.5mm × 207.5mm × 152mm
• 特点：体积较大，适合存放大型或重型物品。
• 堆叠能力：可作为独立收纳盒使用，也可作为3号和4号收纳盒的底层基础（需通过2号或3号收纳盒间接堆叠）。

2号收纳盒

• 外尺寸：246mm × 219mm × 107mm
• 有效内尺寸：234.5mm × 207.5mm × 100mm
• 特点：高度适中，适合存放中等大小的物品。
• 堆叠能力：可作为独立收纳盒使用，也可直接堆叠在1号收纳盒上，同时可作为3号和4号收纳盒的底层基础（需通过3号收纳盒间接堆叠）。

3号收纳盒

• 外尺寸：219mm × 123mm × 107mm
• 有效内尺寸：207.5mm × 111.4mm × 100mm
• 特点：宽度和高度适中，适合存放小型或细长型物品。
• 堆叠能力：必须堆叠在1号或2号收纳盒上，也可作为4号收纳盒的底层基础。

4号收纳盒

• 外尺寸：123mm × 109mm × 107mm
• 有效内尺寸：111.4mm × 98mm × 100mm
• 特点：体积较小，适合存放小件物品或作为补充收纳使用。
• 堆叠能力：必须堆叠在3号收纳盒上，无法直接堆叠在1号或2号收纳盒上。

使用建议

1. 按需选择：根据存放物品的大小和重量，选择合适的收纳盒规格。
2. 合理堆叠：遵循堆叠指南，确保收纳盒稳固且不易倒塌。
3. 打印材料：考虑使用结实可靠的打印材料，以确保收纳盒的耐用性和承重能力，建议使用PEGT，ABS打印。
4. 标记与分类：在收纳盒上标记物品类别或用途，方便查找和整理。

需要注意的是3号盒子必须要有1号或2号为底才能叠，4号盒子必须要有3号为底才能叠，4号盒子是没办法直接叠在1号或2号盒子上的
