Modelo 3D 猫和老鼠灯具开关装饰盖Tom and Jerry Light Switch Decor shell por user_1856824685 no MakerWorld

Descrição

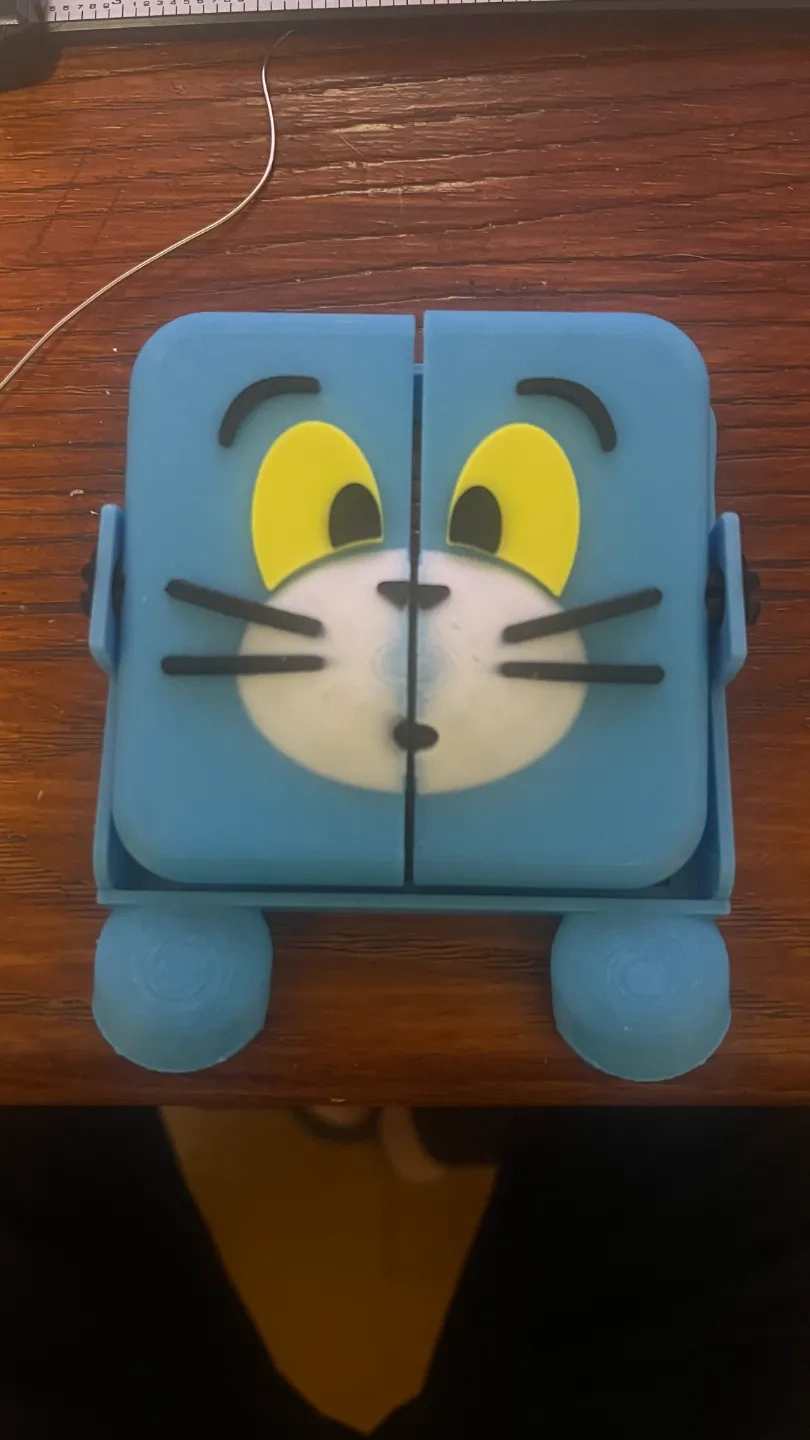

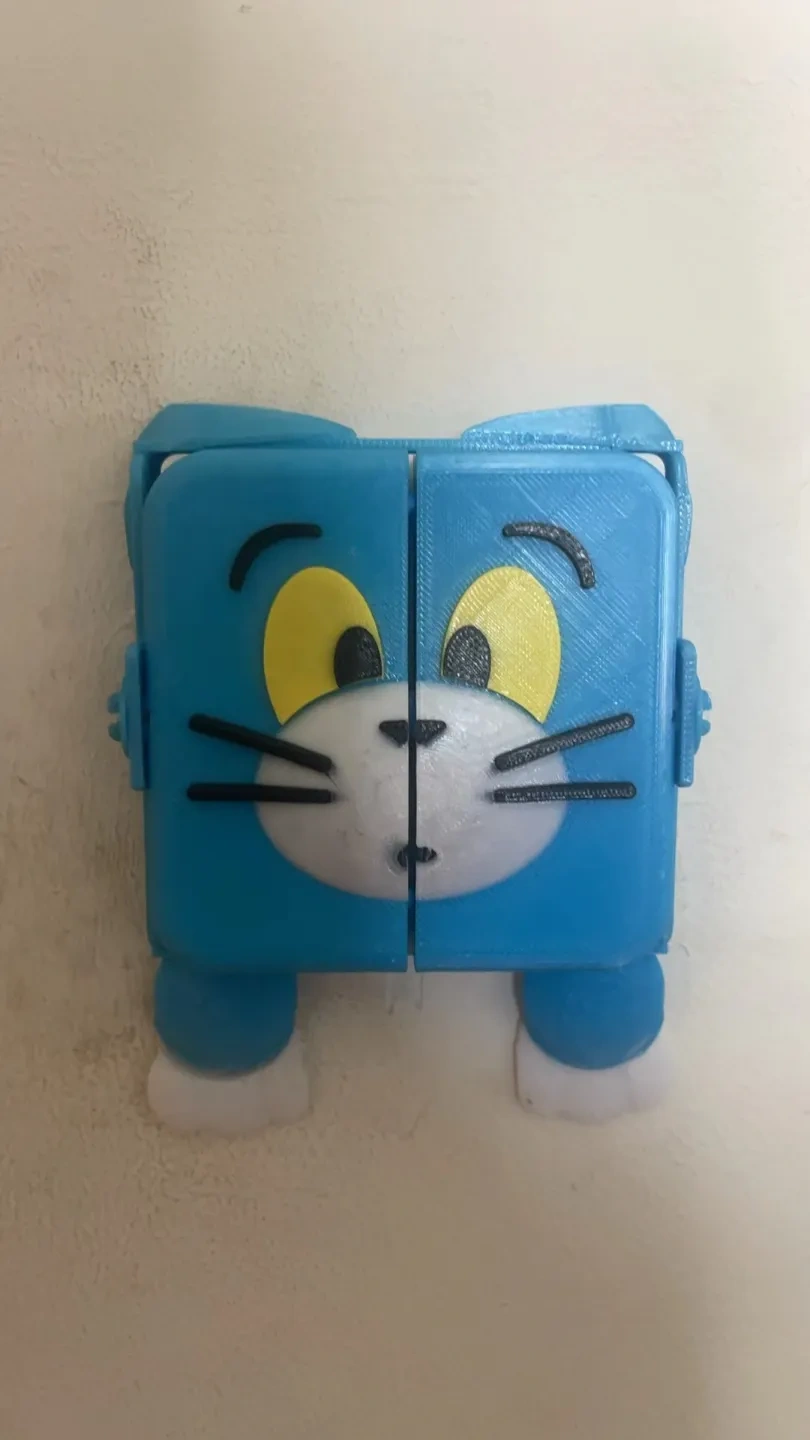

这个灯具装饰开关参考M站另外一个作者的创意,根据实际打印出来的效果,做出以下修改

1.修正原来单开按钮顶部两个突出圆角卡住开关问题



2.修正原单开开关直接套在开关上不稳容易掉下来的问题,新增一个嵌入式版本,可以利用开关本身螺丝压住外框,注意需要拆卸原开关面板装上去后重新扭螺丝,但是稳固不掉落



3.增加双开开关版本,双开版本2个按键中间增加滑动珠,分离两个按钮,避免错位导致按下单按钮的时候2个按钮都被按动,同时新增贯穿式中轴设计,并在外侧两侧增加限位法兰,防止中轴掉落。



4.新增双开开关版本的嵌入式安装,参考第二条的信息。

以上设计均已打印制作测试完毕,目前我使用的是小米灯具开关,高度可以完美匹配,因为每个开关高度不一致,如果你的打印了发现按钮高度不匹配,可以在左侧打印对象的零件位置选中外框的零件 ,我已经对外框做出分拆,可以单独调整外框高度而不影响上面中轴孔的完整性。也可以通过购买eva泡棉去填充灯具按钮和装饰按钮之间的空隙。



欢迎大家提出意见,合理意见我会及时做出更新和调整

制作不易,如果喜欢请为我助力,非常感谢





This lamp decoration switch refers to the creativity of another author on the M station, and the following modifications are made based on the actual printed effect.



1. Corrected the problem that the two protruding rounded corners on the top of the single-open button stuck the switch.



2. Corrected the problem that the original single-switch switch is unstable and easy to fall when it is directly put on the switch. A new embedded version is added. You can use the screws of the switch itself to press the outer frame. Note that you need to disassemble the original switch panel and then re-tighten the screws. However, Stable and will not fall



3. Add a double-open switch version. A sliding bead is added between the two buttons of the double-open version to separate the two buttons to avoid misalignment and cause both buttons to be pressed when a single button is pressed. At the same time, a through-type central axis design is added, and Limit flanges are added on both sides of the outer side to prevent the bottom bracket from falling.



4. Added the embedded installation of double-switch version, please refer to the second information.

The above designs have been printed, produced and tested. Currently, I am using a Xiaomi light switch. The height can be perfectly matched because the height of each switch is inconsistent. If you find that the height of the button does not match after printing, you can print the part position of the object on the left Select the parts of the outer frame. I have separated the outer frame so that the height of the outer frame can be adjusted independently without affecting the integrity of the central axis hole above. You can also buy eva foam to fill the gap between the lamp button and the decorative button.



Everyone is welcome to provide opinions. I will make timely updates and adjustments based on reasonable opinions.



is not easy to Design, if you like it, please help me, thank you very much
