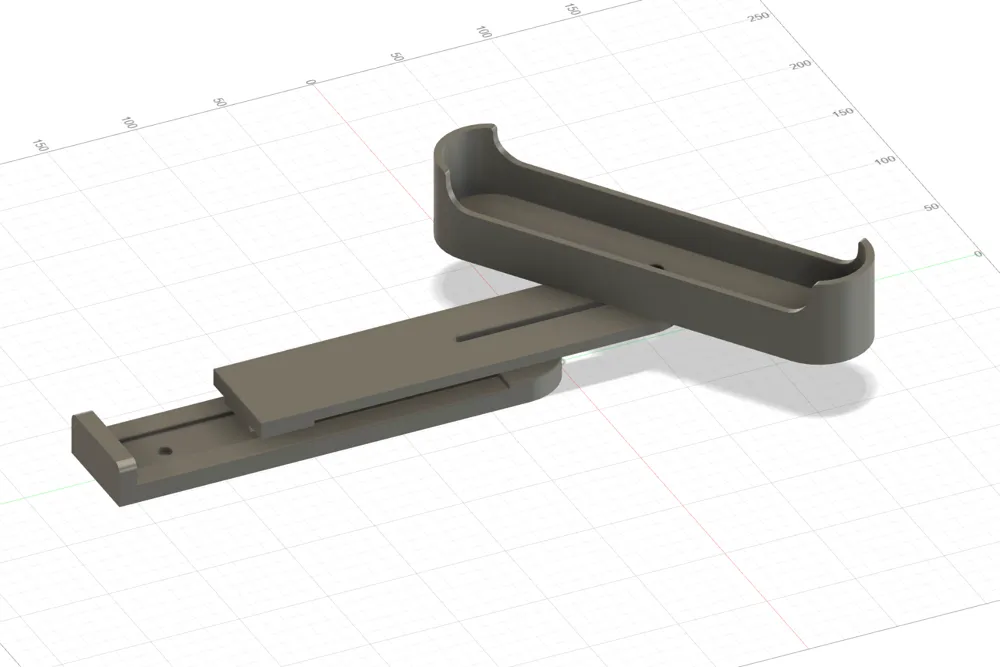

A single-level telescopic spice organizer for a cabinet. Dovetail slider assembly allows this model to be printed without supports. It does require two small wood screws to mount the base to the inside of the cabinet. Mine are mounted about ¾" back from the front edge of the cabinet face frame. Mounting process and hardware is outlined/linked below.

Mounting/Assembly Steps:

1. Attach Spice_Shelf to Slider_Assembly_Top using 15mm binding Screw
2. Slide Slider_Assembly_Top starting from the back, toward the front into Slider_Assembly_Bottom
   **Don't attach backstop until the end**
3. Mount entire assembly to cabinet/shelf using #7 ½" Wood Screws or similar.

• Start by pushing the entire top assembly back far enough to expose the front hole. Secure the front screw to cabinet/shelf.
• Next, slide the entire top assembly forward to expose the rear hole. Secure rear screw to cabinet/shelf.
• Finally, attach backstop to the base of the slider assembly.
