表贴元器件 (SMD) 收纳盒 v1.2

感谢各位朋友的反馈！推荐打印最新版本的配置文件。

更新说明：

• 新增两个尺寸的模型：w14_t3.5、w16_t3.5 (w是盒子的外部宽度、t是出口处的高度，单位mm)。
• 为每个模型提供了一个增强版本，加强了出口处用于压住薄膜的薄片的厚度，以增加其强度。

祝打印快乐！

SMD Storage Boxes v1.2

Thank you for your feedback, everyone!
It is highly recommended to print the latest version (v1.2) of the this design.

Update Notes:

• Added two new size options: w14_t3.5, w16_t3.5 (where w is the external width of the box and t is the height at the opening, in mm).

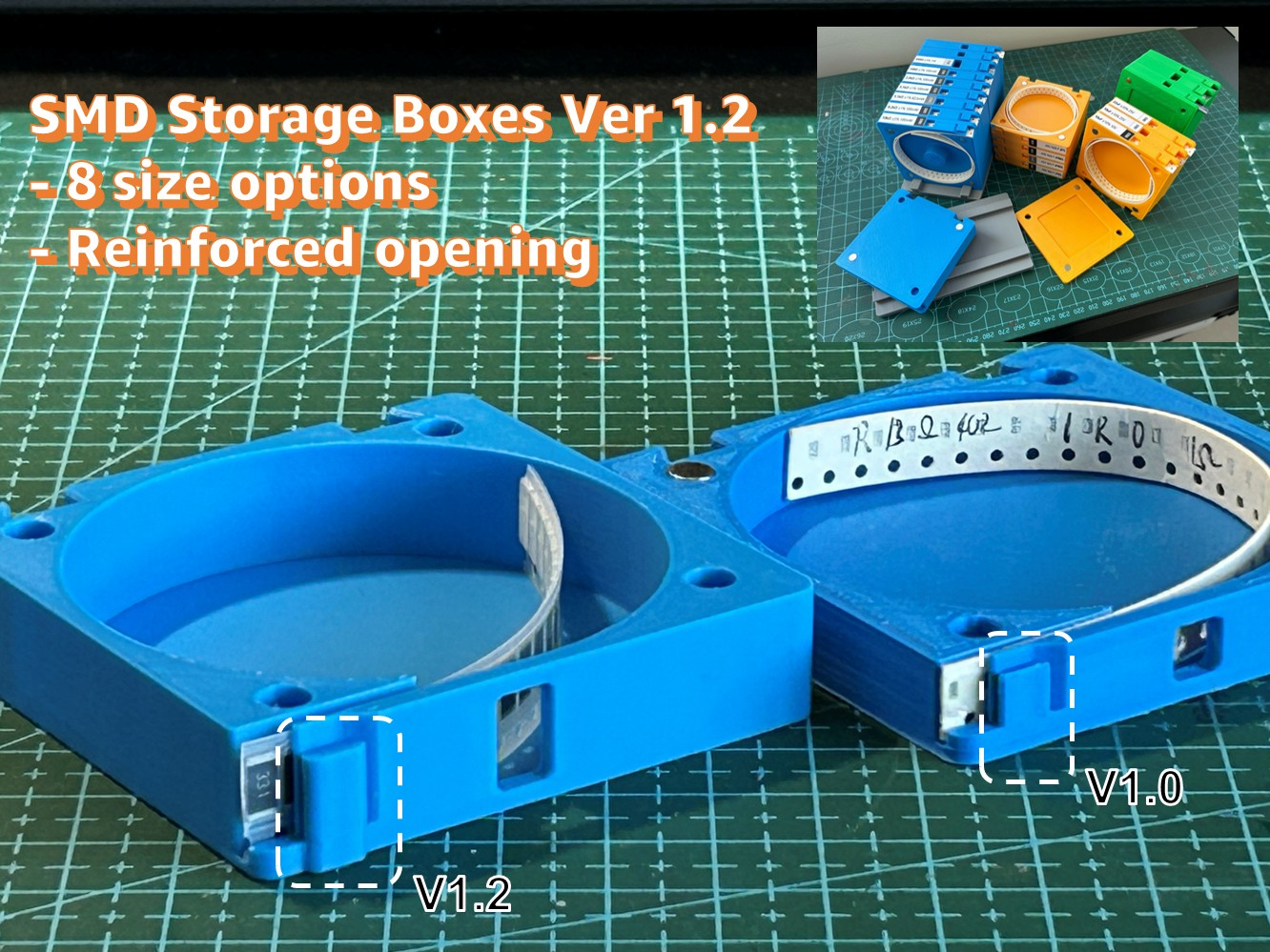

• Provided a reinforced version for each model. The thickness of the thin plate at the opening, which presses against the reel film, has been increased to enhance its strength.

Happy printing!


===============================

表贴元器件 (SMD) 收纳盒

这系列收纳盒是参考Thingiverse上多款SMD收纳盒，以及自己工作空间的实际情况而设计的。

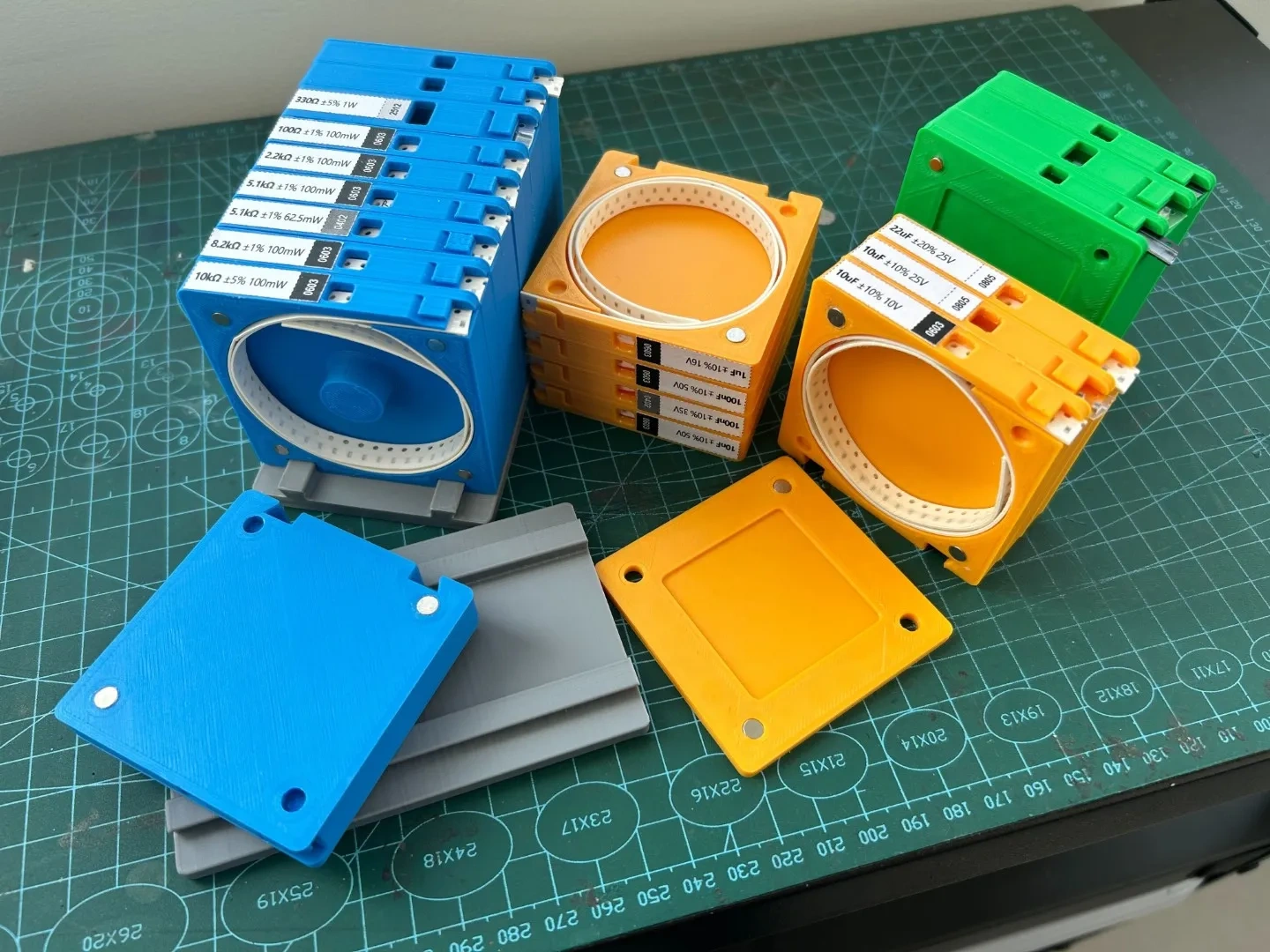

• 可以通过磁铁吸附横向叠加。预留了4个用于安装磁铁 (d5.0mmx3.0mm) 的孔，但实际上我发现在对角线上安装2枚磁铁就可以提供足够的吸引力。
• 也可以通过导轨有序地排列起来，你可以在Bambu Studio里自由地调整导轨模型的长度，适配你的需要。
• 为盒子提供了4个尺寸选项：
  • w是盒子的外部宽度 (10mm, 14mm)，内部宽度是 8.8mm和 12.8mm
  • t是出口处的高度 (1.5mm, 2.0mm 和 3.0mm)

如需要打印盒子的标签，请参考模板文件SMD Tape Tag Template.docx。

百度网盘链接：[https://pan.baidu.com/s/1NsucoVs-ns13ya_HW_iV8w?pwd=07si](https://pan.baidu.com/s/1NsucoVs-ns13ya_HW_iV8w?pwd=07si) ，提取码：07si

如果你有额外的尺寸需求，欢迎在下面留言。

祝打印快乐！

SMD Storage Boxes

This series of SMD (Surface Mount Device) storage boxes is designed based on several designes from Thingiverse and my actual workspace requirements.

• Boxes can be stacked horizontally using magnets. There are 4 holes reserved for magnets (d5.0mmx3.0mm), though I found that installing 2 magnets diagonally provides sufficient magnetic force.
• They can also be arranged orderly using rails. You can freely adjust the length of the rail model in Bambu Studio to fit your needs.
• The boxes come with 4 size options:
  • w is the external width of the box (10mm, 14mm), with internal widths of 8.8mm and 12.8mm
  • t is the height at the opening end (1.5mm, 2.0mm, and 3.0mm)

If you need additional size options, please feel free to leave a comment below.

Happy printing!
