Remix of Gridfinity Storage Box by Pred

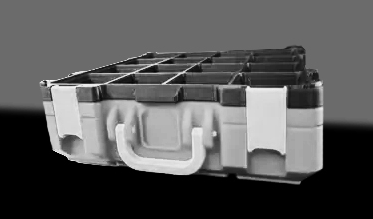

Description: This remix of the popular Gridfinity Storage Box by Pred adds a new level of functionality! By incorporating the Gridfinity bin base profile on the bottom, this model aligns seamlessly with other Gridfinity-compatible bins while retaining the original stackable design. Now you can mix and match boxes—stack this model on Pred’s version, or vice versa—for ultimate flexibility.

Key Features:

• Gridfinity Compatibility: Bottom redesigned with the Gridfinity bin base profile, maintaining compatibility with all standard Gridfinity system base plates.
• Printability: The perimeter of the base has been redesigned with a 45-degree angle, allowing for support-free printing, saving filament, and reducing print time.
• Stackable Design: Preserved the original design for stackability (pins on the lid). This model can stack with Pred’s original version, offering flexibility and compatibility.
• Size: Started at 5x5 with a height of 6 units, the largest that fits on a Bambu Lab X1C printer bed, staying true to Gridfinity’s pattern and measurements. If other dimensions are desired, please leave a comment, and I’ll be happy to export them for you. Alternatively, I can provide the Fusion file.
• Available Size :
  • 4x4x6U
  • 5x4x6U
  • 5x5x4U
  • 5x5x6U
  • 5x5x12U
  • 5x5x15U
  • 6x6x6U - available via stl download. Not available in 3mf.
• To acces the file for the size you want, you need to download/Open the 3mf in your slicer.

This model is perfect for anyone looking to expand their Gridfinity setup with optimized printability and compatibility!

Thanks for printing and sharing a picture when done printing! ☺️

***********************************************************************************************************

UPDATE:

2025-01-27

• Added 5x5x18U



2025-01-14

• Added 5x3x6
• Added 4x3x6
• Added 4x5x20
• Added 6x6x12 (stl files because it doesnt fit bambu lab printer)
• Fixed 3mf for 4x4x6 base, 5x5x6.
• Working on a fix for latching multiple box together.

2024-12-13

• Added 5x5x15U base

2024-12-05

• Added 5x5x12U base

2024-11-30:

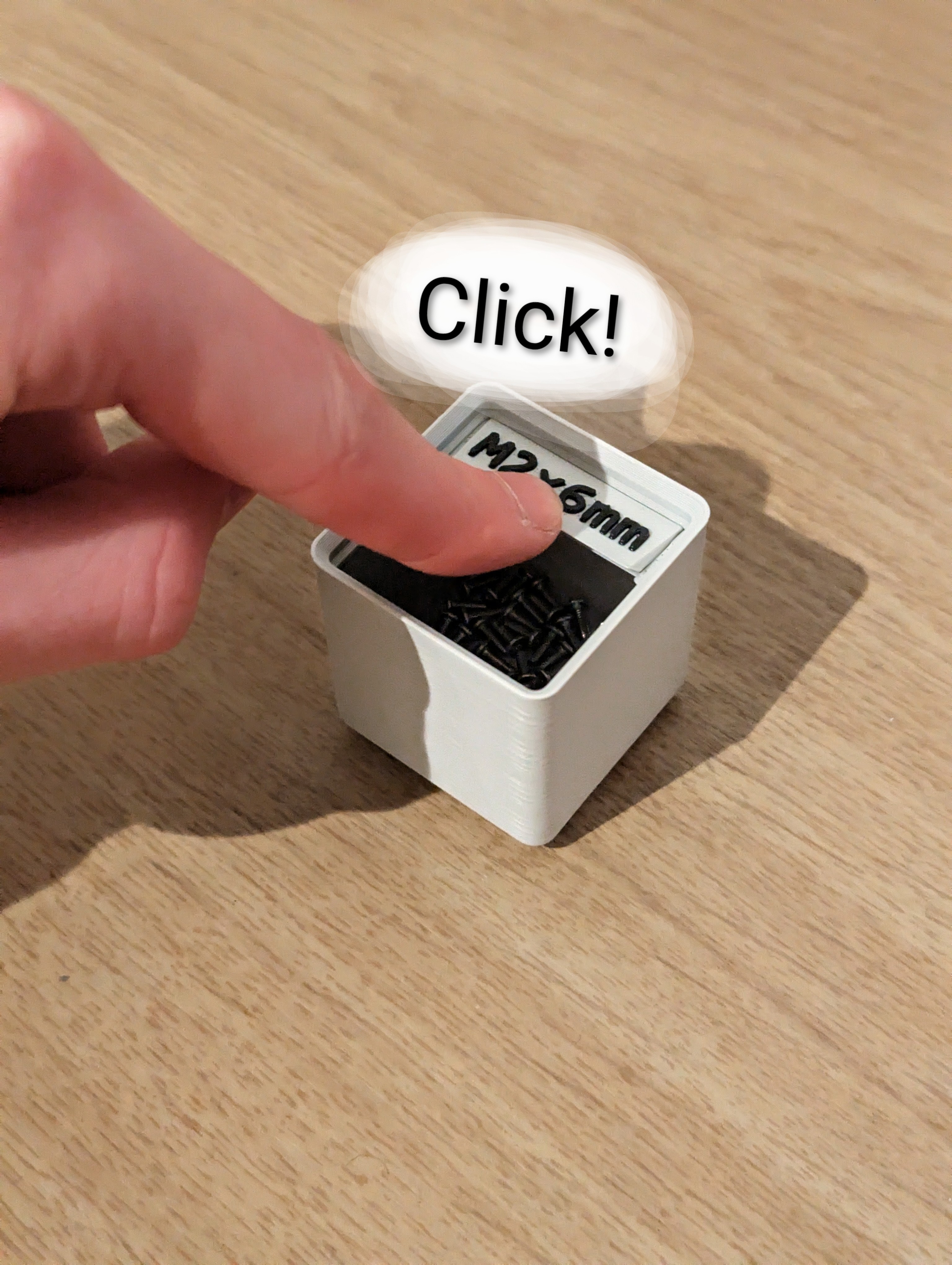

• Added 1x1, 2x1 and 2x2  6Unit high Bins



2024-11-27:

• Added empty labels for customization: 6, 5 and 4 unit wide.



2024-11-25

• Added M3x30 hinge

2024-11-24

• Modified 4U high latches - testing right now
• Released  Latch called Experimental for ease of locking and unlocking lid.
• 5x4x6U added
• 5x5 and 6x6 base fixed - there was an assymetric latches depression. (6x6 base is in the stl folder, not in the 3mf)
